SILICON PLANAR EPITAXIAL HIGH-SPEED DIODE
BAV23S
SOT-23

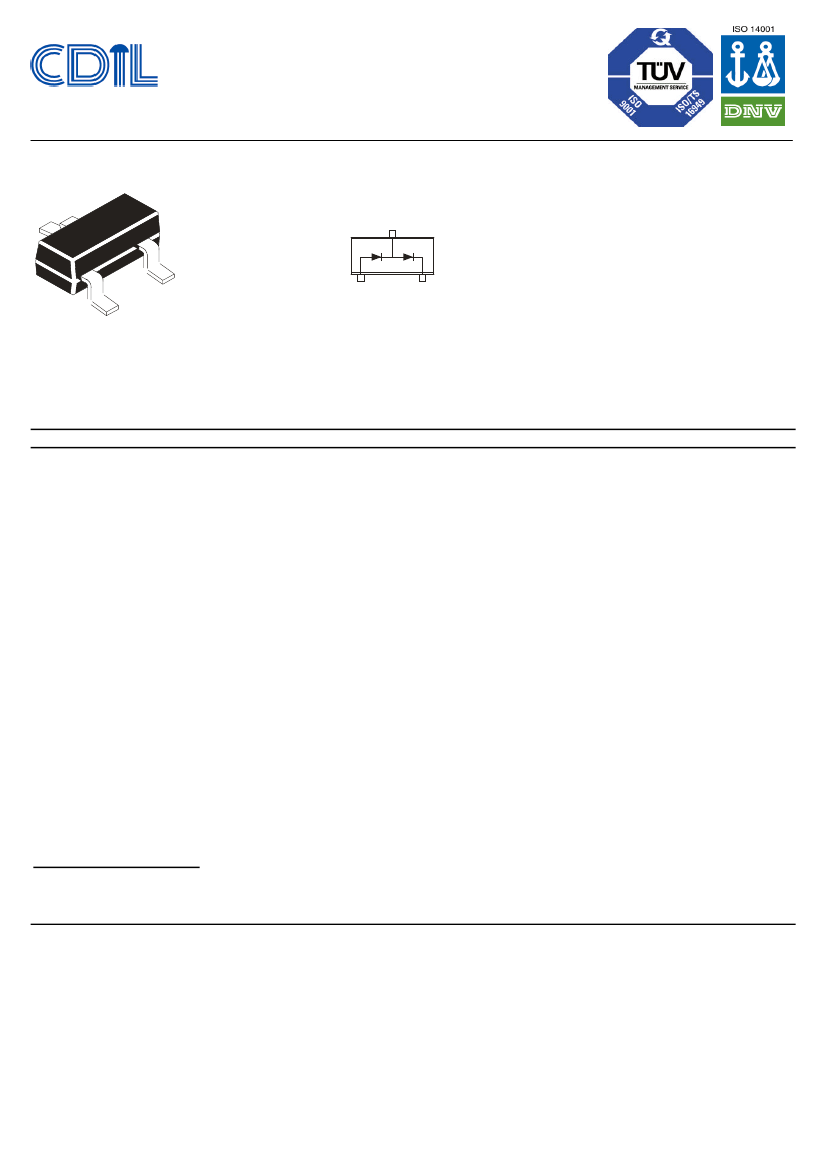

Pin Configuration
1 = ANODE
2 = CATHODE
3 = ANODE/
CATHODE
3
MARKING:- L31
1
2
DESCRIPTION
BAV23S Consists of Two Planar Epitaxial High-Speed Diodes in One Microminiature Plastic Envelope
Intended for Surface Mounting. The Device is Designed for Switching & General Applications.
ABSOLUTE MAXIMUM RATINGS
DESCRIPTION
Continuous Reverse Voltage
Single Diode
Series Connection
Repetitive Peak Reverse Voltage
Single Diode
Series Connection
Forward Current (DC)
Single Diode
Series Connection
Repetitive Peak Forward Current
Single Diode
Series Connection
Non Repetitive Peak Forward Current t=1s
Single Diode
Series Connection
Non Repetitive Forward Current t=1us
Single Diode
Series Connection
Power Dissipation
Storage Temprature Range
Junction Temperature
THERMAL RESISTANCE
Junction to Ambient
*Mounted on FR4 Printboard
SYMBOL
VR
VALUE
UNIT
200
400
VRRM
250
500
IF(AV)
225
125
IFRM
625
450
IFSM
0.5
0.4
IFSM
2.5
1.5
300
-65 to 150
150
500
V
V
V
V
mA
mA
mA
mA
A
A
A
A
mW
deg C
deg C
K/W
Ptot
Tstg
Tj
Rth(j-a)*
Continental Device India Limited
Data Sheet
Page 1 of 4
ELECTRICAL CHARACTERISTICS (Tamb=25 deg C Unless Otherwise Specified)
DESCRIPTION
SYMBOL TEST CONDITION
MIN
Reverse Breakdown Voltage
Single Diode
Series Connection
Forward Voltage
Single Diode
Series Connection
Single Diode
Series Connection
Reverse Current
DYNAMIC CHARACTERISTICS
Diode Capacitance
Single Diode
Series Connection
Reverse Recovery Time When Switched
From
V(BR) R
IR=100uA
VF
IF=100mA
IF=200mA
IR
Cd
VR=0V,f=1MHz
trr
IF=30mA to IR=30mA
RL=100 ohms,
measured@ IR=3mA
-
-
-
VR=VR max
-
-
-
-
-
250
500
TYP
MAX
UNIT
-
-
-
-
-
-
-
-
-
1.0
2.0
1.25
2.5
100
V
V
V
V
V
V
nA
-
-
-
5.0
2.5
50
pF
pF
ns
Continental Device India Limited
Data Sheet
Page 2 of 4
BAV23S
SOT-23
Formed SMD Package
SOT-23 Formed SMD Package
+/– 0.10
2.50
+/– 0.05
0.62
+/–0.025
1.30
0.62
+/-0.05
SOT-23 Package Reel Information
Reel specifications for Packing (13"/7" reels)
14.4
M AX
ł 100.0– 0.5 / ł 54.5 – 0.5
ł 329.2– 0.5 / 178 – 0.5
7.9 10.9
9.2– 0.5
+/–0.025
2.90
+/–0.05
1.90
+0.08
0.40 -0.02
1
cL
3
ł 20.2 M IN
+0.5
0.2
ł 13.0
180
or
330
TRAILER
2
3
3
2.0– 0.5
0.08
+/–0.02
0.60
+/–0.025
0.95
PARTING LINE
RO.08
+/–0.01
0.12
+/– 4"
6º
5º
+/–0.10
2.50
+/–3"
R0.08
+/-/0.04
0.06
All dimensions in mm
330 / 180 mm Antistatic Coated Plastic Reel
NO TES:
No. of Devices
1.
2.
3.
4.
5.
8mm Tape
Size of Reel
330 mm (13")
10,000 Pcs
8mm Tape
Size of Reel
180 mm (7")
3,000 Pcs
0.21
7
The bandolier of 330 mm reel contains at least 10,000 devices.
The bandolier of 180 mm reel contains at least 3,000 devices.
No m ore than 0.5% missing devices / reel. 50 empty com partments for 330 mm reel.
15 empty compartments for 180 mm reel.
Three consecutive empty places might be found provided this gap is followed by 6
consecutive devices.
The carrier tape (leader) starts with at least 75 empty positions (equivalent to 330
mm). In order to fix the carrier tape a self adhesive tape of 20 to 50 mm is applied. At
the end of the bandolier at least 40 em pty positions (equivalent to 160 mm) are there.

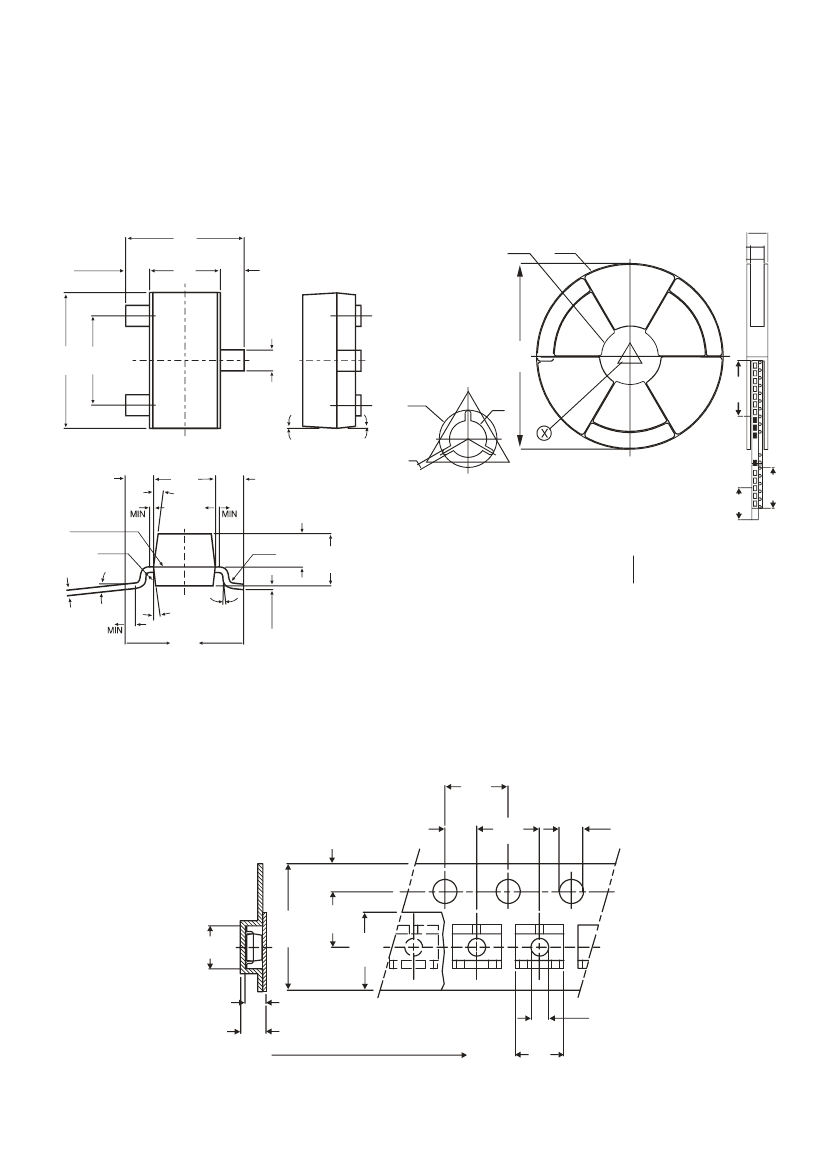

Tape Specification for SOT-23 Surface Mount Device
– 0.1
4.0
– 0.05
– 0.1
2.0
4.0
– 0.1
1.75
+0.3 – 0.05
- 0.1 3.5
8.0
5.75
M AX
– 0.05
– 0.05
1.55
– 0.10
2.77
– 0.1
1.22
1.6
M AX
1.0
– 0.10
3.15
Direction of Unreeling
All dimensions in mm
Continental Device India Limited
Data Sheet
Page 3 of 4
FIXING
TAPE
+/– 0.05
0.62
1.30
7º
0.08
DETAIL X
LEADER
+/– 0.05
0.62
Packing Detail
PACKAGE
Details
SOT-23 T&R
3K/reel
10K/reel
STANDARD PACK
Net Weight/Qty
136 gm/3K pcs
415 gm/10K pcs
Size
3" x 7.5" x 7.5"
9" x 9" x 9"
13" x 13" x 0.5"
INNER CARTON BOX
Qty
12.0K
51.0K
10.0K
Size
17" x 15" x 13.5"
19" x 19" x 19"
17" x 15" x 13.5"
OUTER CARTON BOX
Qty
192.0K
408.0K
300.0K
Gr Wt
12 kgs
28 kgs
16 kgs
Customer Notes
Component Disposal Instructions
1. CDIL Semiconductor Devices are RoHS compliant, customers are requested to please
dispose as per prevailing Environmental Legislation of their Country.
2.
In Europe, please dispose as per EU Directive 2002/96/EC on Waste Electrical and
Electronic Equipment (WEEE).
Disclaimer
The product information and the selection guides facilitate selection of the CDIL's Discrete Semiconductor Device(s) best suited
for application in your product(s) as per your requirement. It is recommended that you completely review our Data Sheet(s) so as
to confirm that the Device(s) meet functionality parameters for your application. The information furnished on the CDIL Web
Site/CD are believed to be accurate and reliable. CDIL however, does not assume responsibility for inaccuracies or incomplete
information. Furthermore, CDIL does not assume liability whatsoever, arising out of the application or use of any CDIL product;
neither does it convey any license under its patent rights nor rights of others. These products are not designed for use in life
saving/support appliances or systems. CDIL customers selling these products (either as individual Discrete Semiconductor
Devices or incorporated in their end products), in any life saving/support appliances or systems or applications do so at their own
risk and CDIL will not be responsible for any damages resulting from such sale(s).
CDIL strives for continuous improvement and reserves the right to change the specifications of its products without prior notice.
CDIL is a registered Trademark of
Continental Device India Limited
C-120 Naraina Industrial Area, New Delhi 110 028, India.
Telephone + 91-11-2579 6150, 4141 1112 Fax + 91-11-2579 5290, 4141 1119
email@cdil.com
www.cdilsemi.com
Continental Device India Limited
Data Sheet
Page 4 of 4
