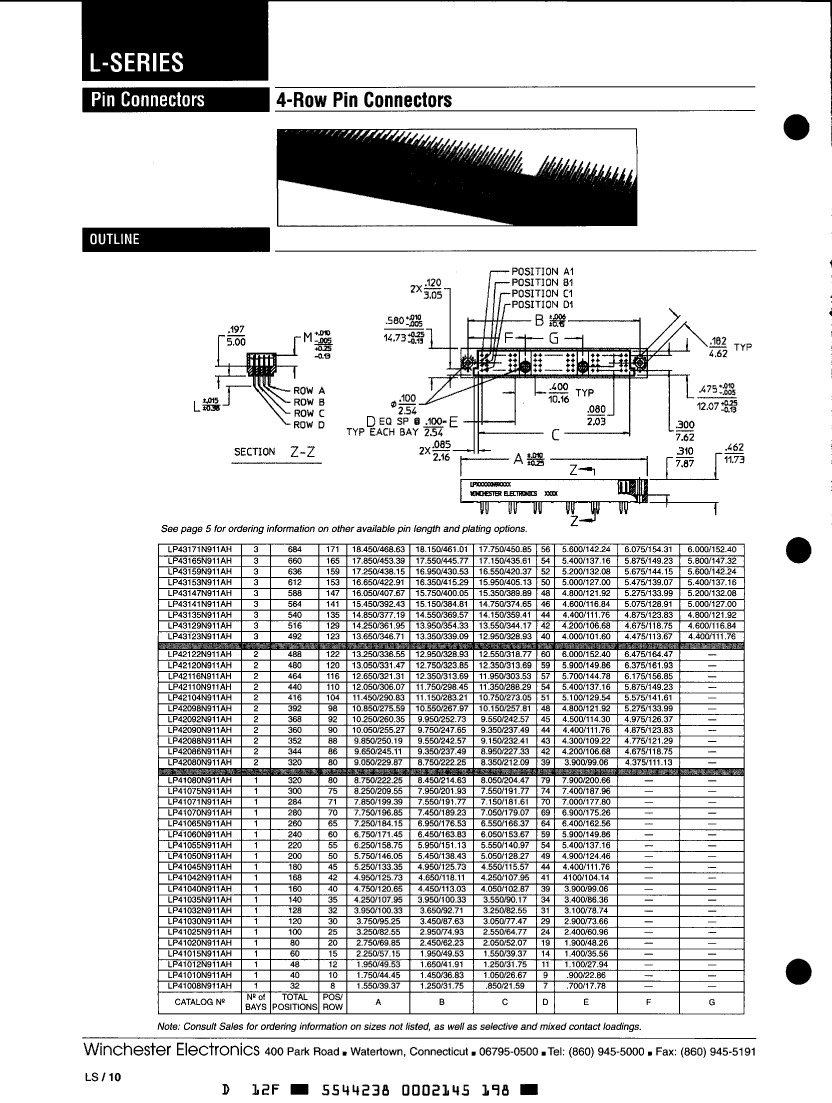

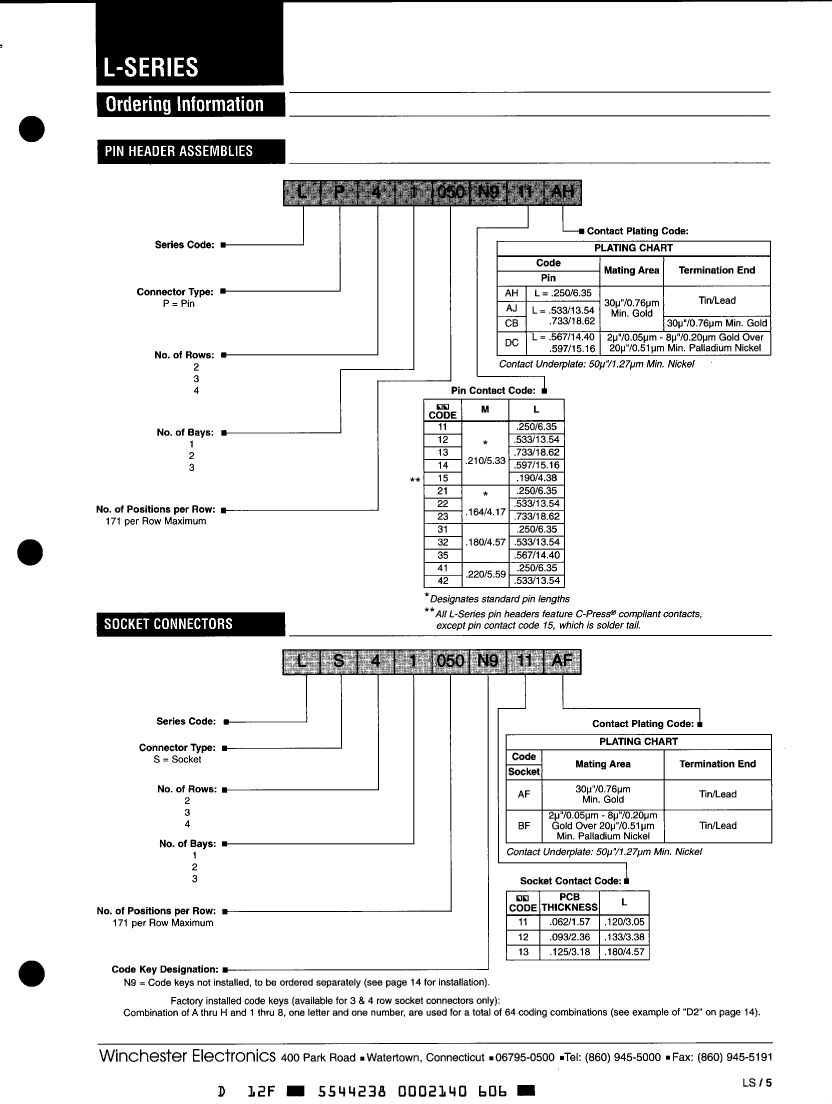

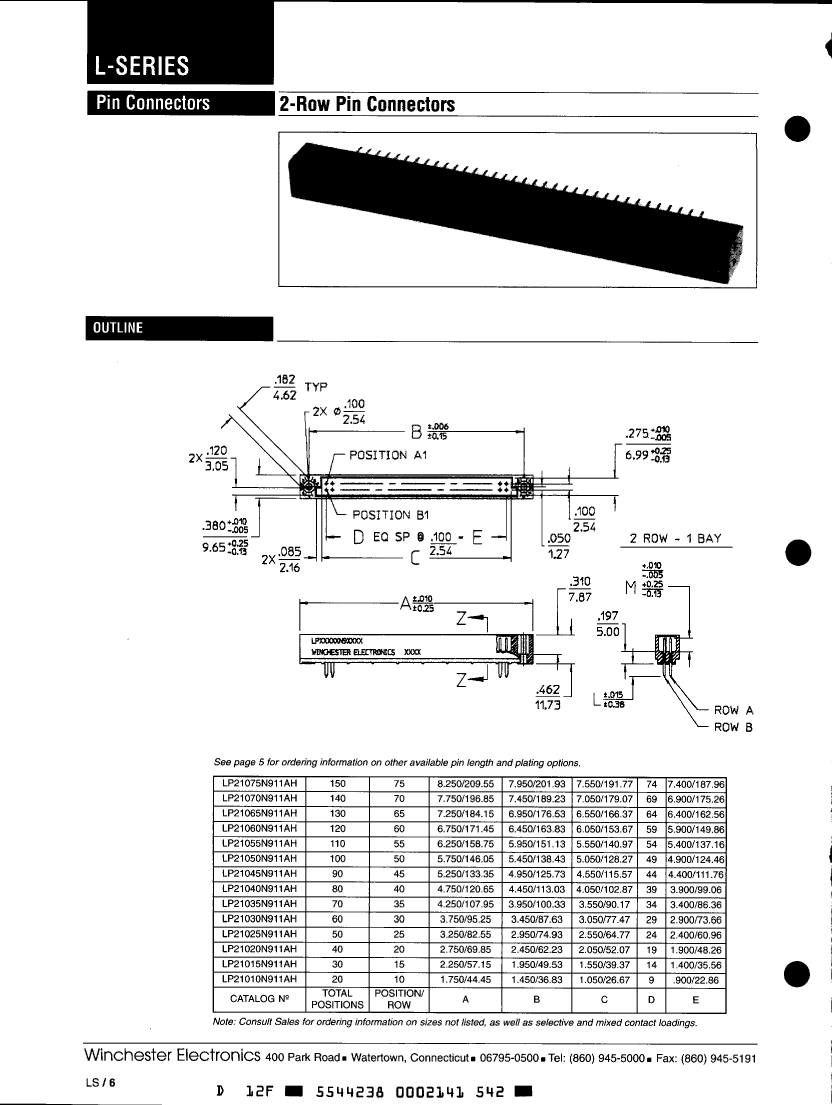

Board Connector, 220 Contact(s), 4 Row(s), Male, Straight, 0.1 inch Pitch, Press Fit Terminal, Black Insulator, Receptacle

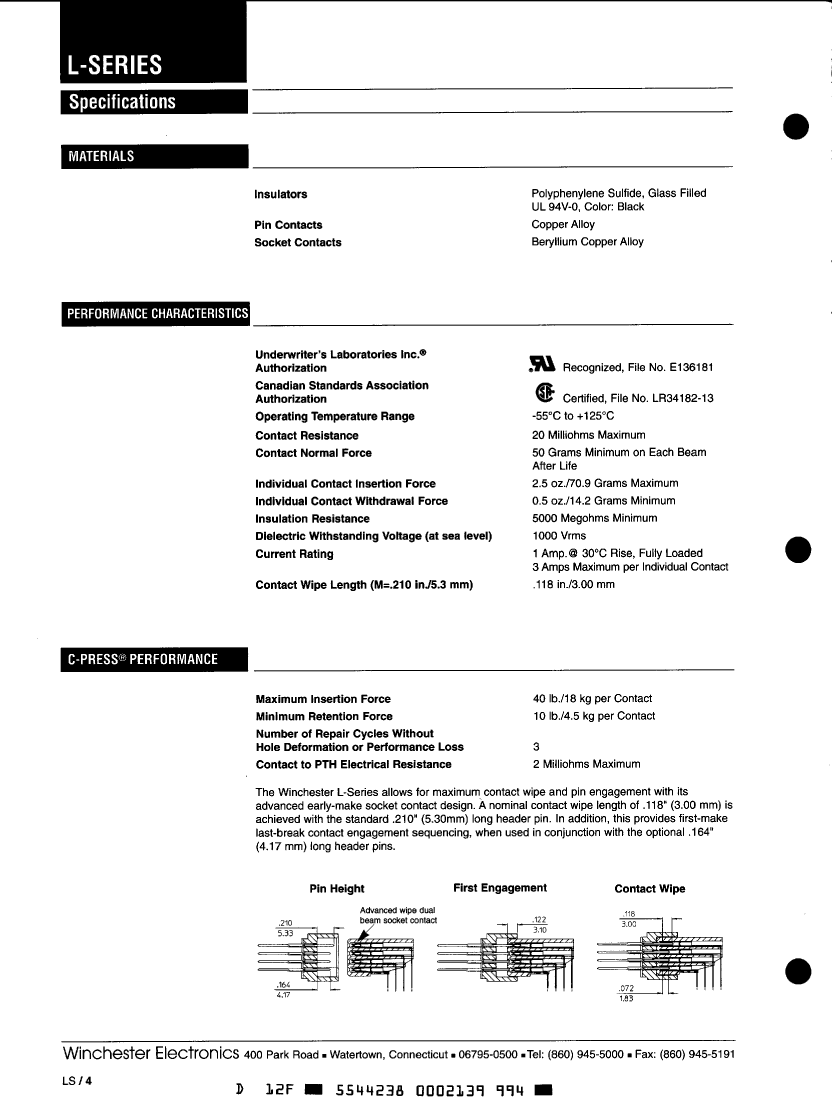

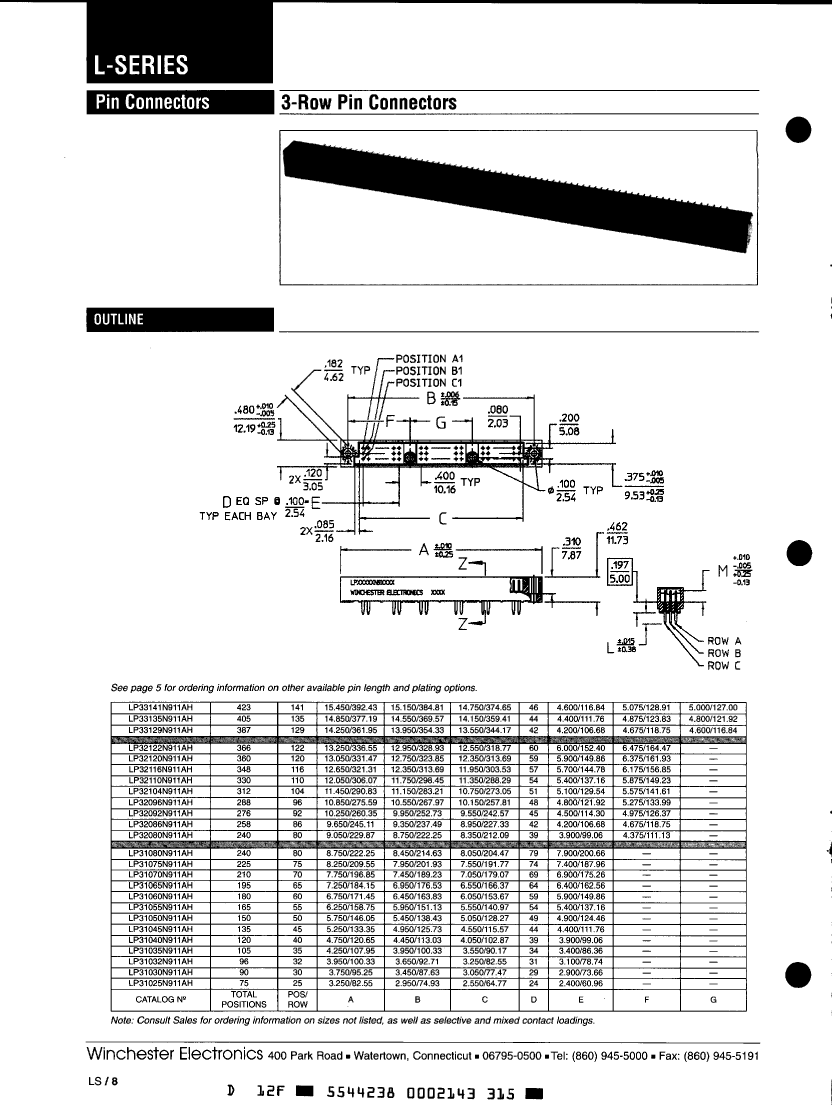

| Parameter Name | Attribute value |
| Maker | Winchester Electronics |
| Reach Compliance Code | unknow |
| Other features | NUMBER OF BAYS=1 |
| Board mount options | HOLE .112-.124 |
| body width | 0.58 inch |
| subject depth | 0.462 inch |
| body length | 6.25 inch |
| Body/casing type | RECEPTACLE |
| Connector type | BOARD CONNECTOR |
| Contact to complete cooperation | AU ON NI |
| Contact completed and terminated | TIN OVER NICKEL |
| Contact point gender | MALE |
| Contact material | COPPER ALLOY |
| contact mode | RECTANGULAR |
| Contact resistance | 20 mΩ |
| Contact style | SQ PIN-SKT |
| Dielectric withstand voltage | 1000VAC V |
| maximum insertion force | 1.39 N |
| Insulation resistance | 5000000000 Ω |
| Insulator color | BLACK |
| insulator material | GLASS FILLED POLYPHENYLENE SULPHIDE |
| Manufacturer's serial number | L |
| Plug contact pitch | 0.1 inch |
| Match contact row spacing | 0.1 inch |
| Installation method | STRAIGHT |
| Installation type | BOARD |
| Number of connectors | ONE |
| PCB row number | 4 |
| Number of rows loaded | 4 |
| Maximum operating temperature | 125 °C |
| Minimum operating temperature | -55 °C |
| PCB contact pattern | RECTANGULAR |
| PCB contact row spacing | 2.54 mm |
| Plating thickness | 30u inch |
| Rated current (signal) | 3 A |
| Guideline | UL, CSA |
| reliability | COMMERCIAL |
| Terminal length | 0.25 inch |
| Terminal pitch | 2.54 mm |
| Termination type | PRESS FIT |
| Total number of contacts | 220 |
| Evacuation force-minimum value | .139 N |
| Base Number Matches | 1 |
| LP41055N911AH | LP31055N911AH | LP33141N911AH | |
|---|---|---|---|
| Description | Board Connector, 220 Contact(s), 4 Row(s), Male, Straight, 0.1 inch Pitch, Press Fit Terminal, Black Insulator, Receptacle | Board Connector, 165 Contact(s), 3 Row(s), Male, Straight, 0.1 inch Pitch, Press Fit Terminal, Black Insulator, Receptacle | Board Connector, 423 Contact(s), 3 Row(s), Male, Straight, 0.1 inch Pitch, Press Fit Terminal, Black Insulator, Receptacle |
| Maker | Winchester Electronics | Winchester Electronics | Winchester Electronics |
| Reach Compliance Code | unknow | unknow | unknown |
| Other features | NUMBER OF BAYS=1 | NUMBER OF BAYS=1 | NUMBER OF BAYS=3 |
| Board mount options | HOLE .112-.124 | HOLE .112-.124 | HOLE .112-.124 |
| body width | 0.58 inch | 0.48 inch | 0.48 inch |
| subject depth | 0.462 inch | 0.462 inch | 0.462 inch |
| body length | 6.25 inch | 6.25 inch | 15.45 inch |
| Body/casing type | RECEPTACLE | RECEPTACLE | RECEPTACLE |
| Connector type | BOARD CONNECTOR | BOARD CONNECTOR | BOARD CONNECTOR |
| Contact to complete cooperation | AU ON NI | AU ON NI | AU ON NI |
| Contact completed and terminated | TIN OVER NICKEL | TIN OVER NICKEL | TIN OVER NICKEL |
| Contact point gender | MALE | MALE | MALE |
| Contact material | COPPER ALLOY | COPPER ALLOY | COPPER ALLOY |
| contact mode | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Contact resistance | 20 mΩ | 20 mΩ | 20 mΩ |
| Contact style | SQ PIN-SKT | SQ PIN-SKT | SQ PIN-SKT |
| Dielectric withstand voltage | 1000VAC V | 1000VAC V | 1000VAC V |
| maximum insertion force | 1.39 N | .695 N | .695 N |
| Insulation resistance | 5000000000 Ω | 5000000000 Ω | 5000000000 Ω |
| Insulator color | BLACK | BLACK | BLACK |
| insulator material | GLASS FILLED POLYPHENYLENE SULPHIDE | GLASS FILLED POLYPHENYLENE SULPHIDE | GLASS FILLED POLYPHENYLENE SULPHIDE |
| Manufacturer's serial number | L | L | L |
| Plug contact pitch | 0.1 inch | 0.1 inch | 0.1 inch |
| Match contact row spacing | 0.1 inch | 0.1 inch | 0.1 inch |
| Installation method | STRAIGHT | STRAIGHT | STRAIGHT |
| Installation type | BOARD | BOARD | BOARD |
| Number of connectors | ONE | ONE | ONE |
| PCB row number | 4 | 3 | 3 |
| Number of rows loaded | 4 | 3 | 3 |
| Maximum operating temperature | 125 °C | 125 °C | 125 °C |
| Minimum operating temperature | -55 °C | -55 °C | -55 °C |
| PCB contact pattern | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| PCB contact row spacing | 2.54 mm | 2.54 mm | 2.54 mm |
| Plating thickness | 30u inch | 30u inch | 30u inch |
| Rated current (signal) | 3 A | 3 A | 3 A |
| Guideline | UL, CSA | UL, CSA | UL, CSA |
| reliability | COMMERCIAL | COMMERCIAL | COMMERCIAL |
| Terminal length | 0.25 inch | 0.25 inch | 0.25 inch |
| Terminal pitch | 2.54 mm | 2.54 mm | 2.54 mm |
| Termination type | PRESS FIT | PRESS FIT | PRESS FIT |
| Total number of contacts | 220 | 165 | 423 |
| Evacuation force-minimum value | .139 N | .139 N | .139 N |
| Base Number Matches | 1 | 1 | 1 |
