SolidMatrix
®

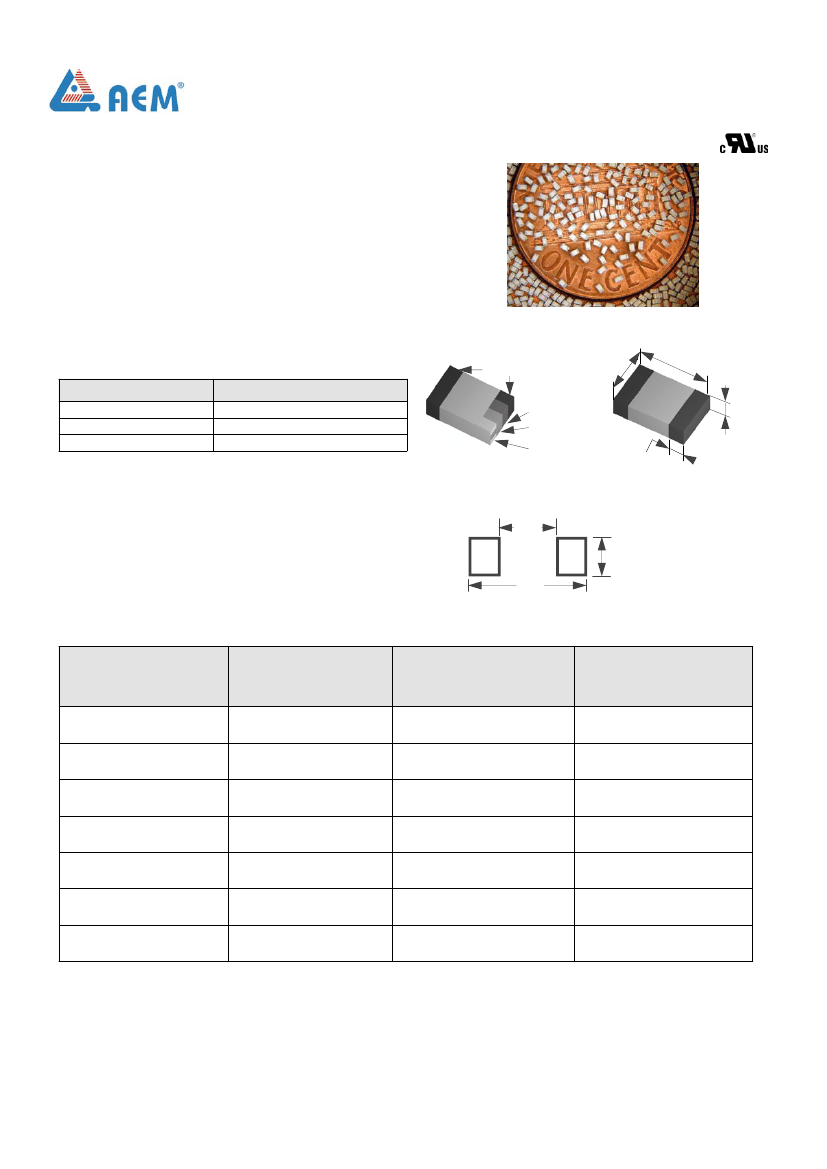

0402 Fast Acting Surface Mount Fuses
Features:
Multilayer monolithic structure with glass ceramic body and
silver fusing element
Silver termination with nickel and pure-tin solder plating,
providing excellent solderability
Standard EIA0402/EIAJ1005 size
Compatible with both wave and reflow soldering processes
Operating temperature range: -55
o
C to +125
o
C
(with de-rating)
RoHS compliant
Shape and Dimensions:
SOLDER
0.020 ± 0.004
(0.51± 0.10)
0.039 ± 0.004
(1.00 ± 0.10)
Clearing Time Characteristics (Fast Acting):
% of current rating
100 %
250 %
400 %
Clearing time at 25
o
C
4 hours min.
5 seconds max.
0.05 seconds max.
NICKEL
SILVER
METALLIZATION
FUSE ELEMENT
Agency Approval:
Recognized Under the Components
Program of Underwriters Laboratories. File Number: E232989
0.010 ± 0.004
(0.25 ± 0.10)
0.020 ± 0.004
(0.51 ± 0.10)
Recommended Land Pattern:
Patents:
U.S. Patent numbers 6,034,589; 6,602,766;
7,268,661 B2; and other pending patents
0.016
(0.40)
0.028
(0.70)
Interrupting Ratings:
35 A at rated voltage
0.063
(1.60)
Inch(mm)
Ordering Information:
Part Number
Current Rating
(A)
0.5
0.75
1.0
1.5
2.0
3.0
4.0
Voltage Rating
(VDC)
24
24
24
24
24
24
24
Nominal Cold DCR
( )
1
0.380
0.210
0.120
0.056
0.035
0.021
0.014
F0402FA0500V024T
F0402FA0750V024T
F0402FA1000V024T
F0402FA1500V024T
F0402FA2000V024T
F0402FA3000V024T
F0402FA4000V024T
1. Measured at
10% rated current and 25
o
C ambient.
Website:
www.aemchina.com & www.aemcomponents.com
Rev. Aug. 11
SolidMatrix
®
0402 Fast Acting Surface Mount Fuses

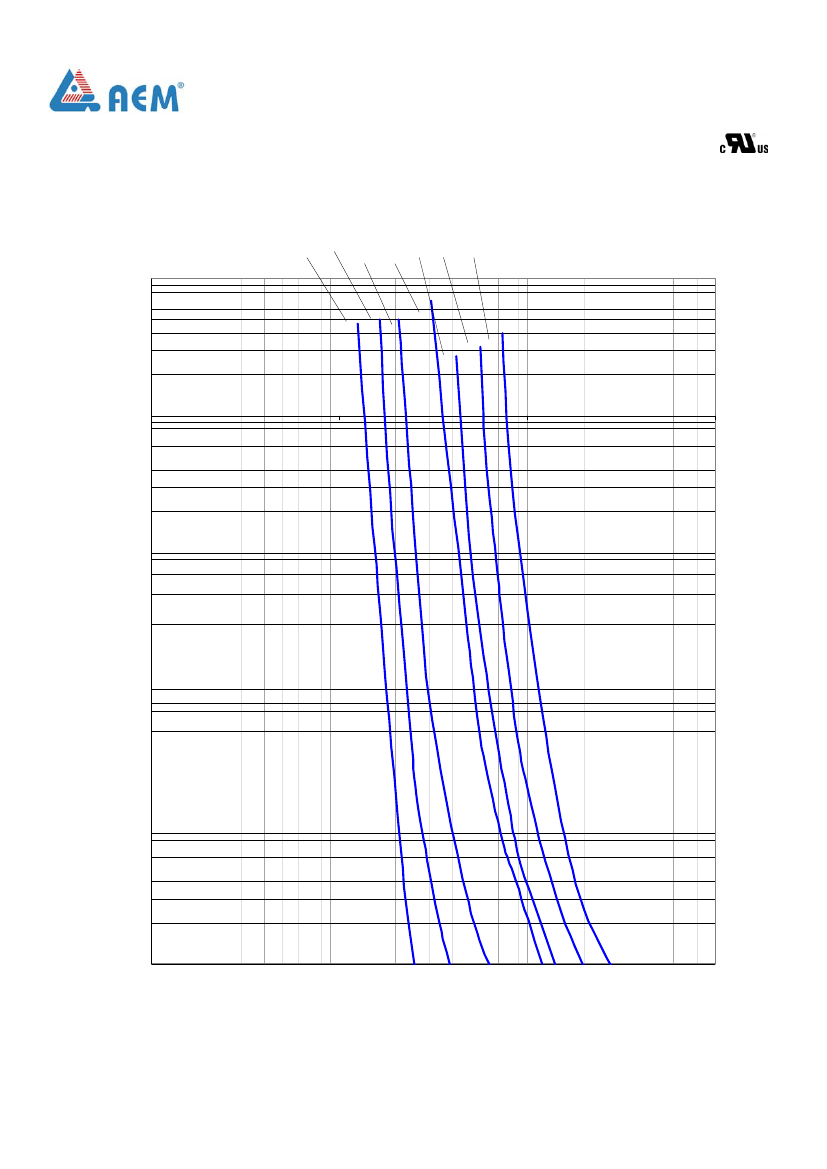

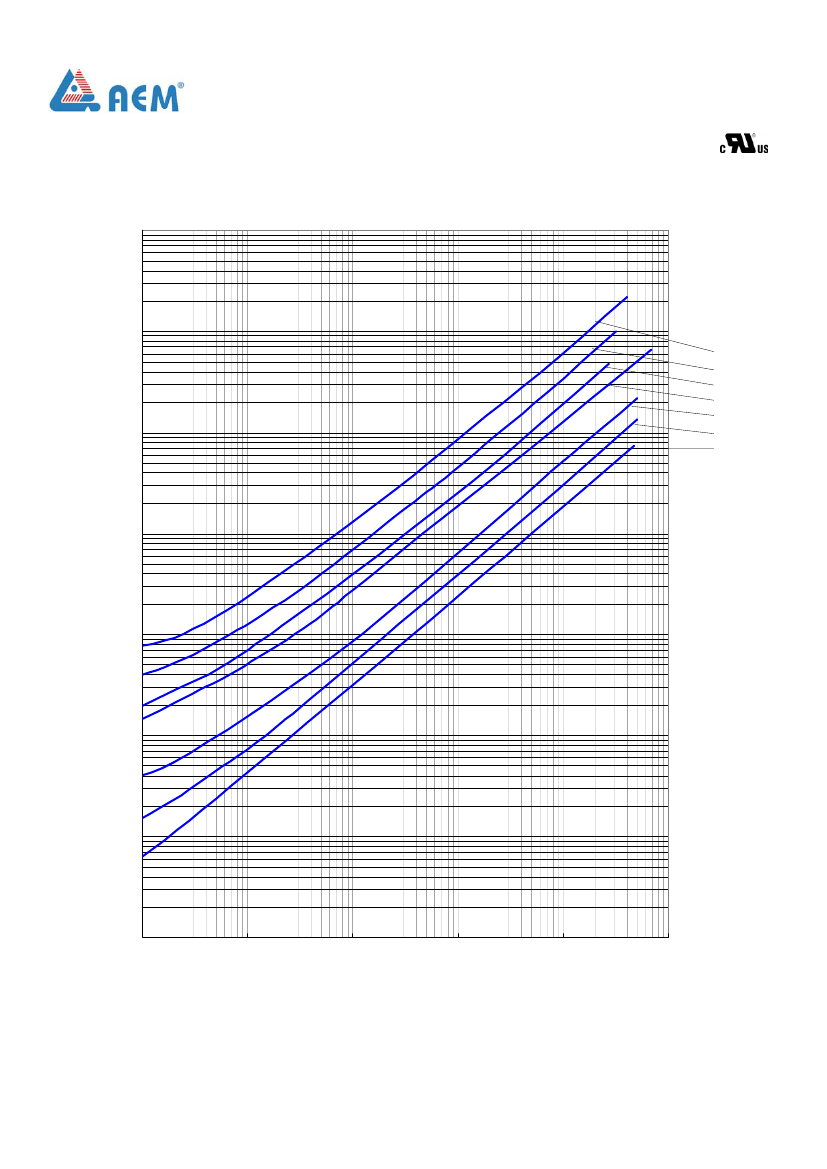

Average Clearing Time Curves
0.75 A
4.0 A
0.5 A
1.0 A
1.5 A
2.0 A
3.0 A
10
1
Clearing Time (s)
0.1
0.01
0.001
0.0001
0.1
1
10
100
Current (A)
Website:
www.aemchina.com & www.aemcomponents.com
