SolidMatrix
®

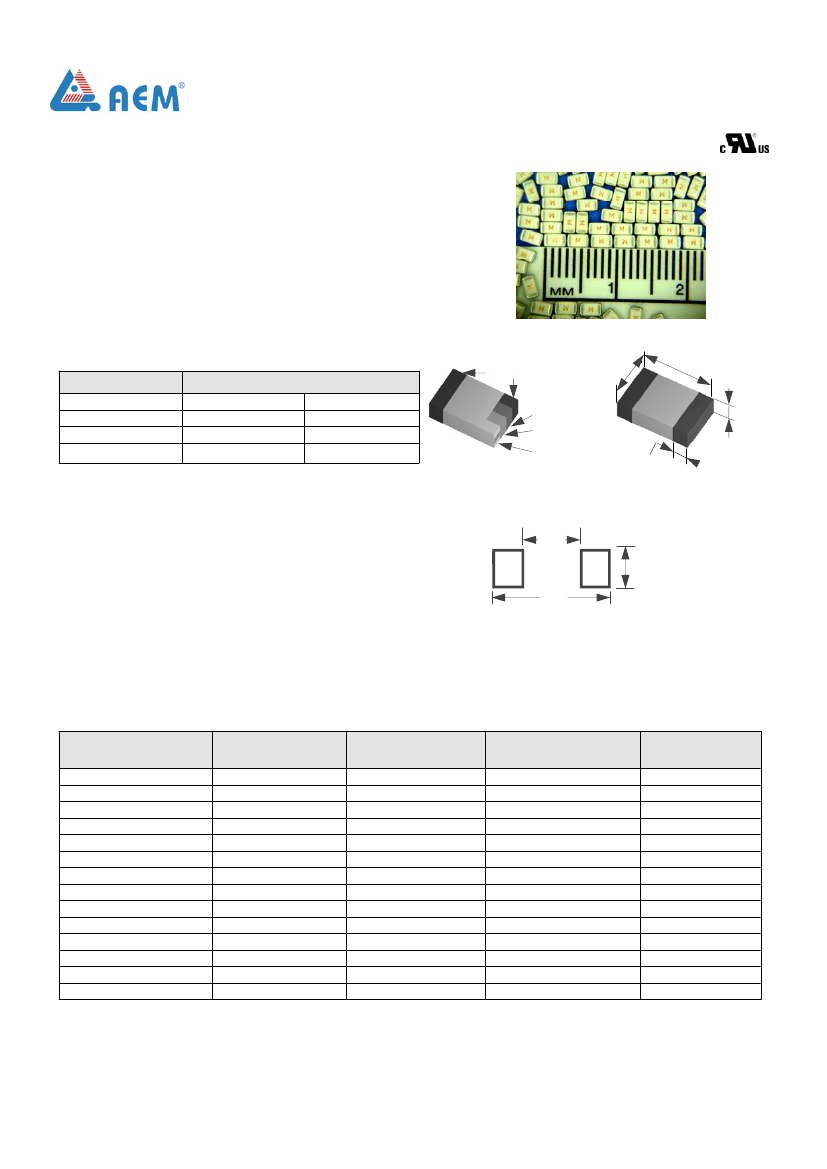

1206 Slow Blow Surface Mount Fuses
Features:
High inrush current withstanding capability
Multilayer monolithic structure with glass ceramic body and silver
fusing element
Silver termination with nickel and pure-tin solder plating, providing
excellent solderability
Standard EIA1206/EIAJ3216 size
Compatible with both wave and reflow soldering processes
Operating temperature range: -55°C to +125°C (with de-rating)
RoHS compliant
Shape and Dimensions:

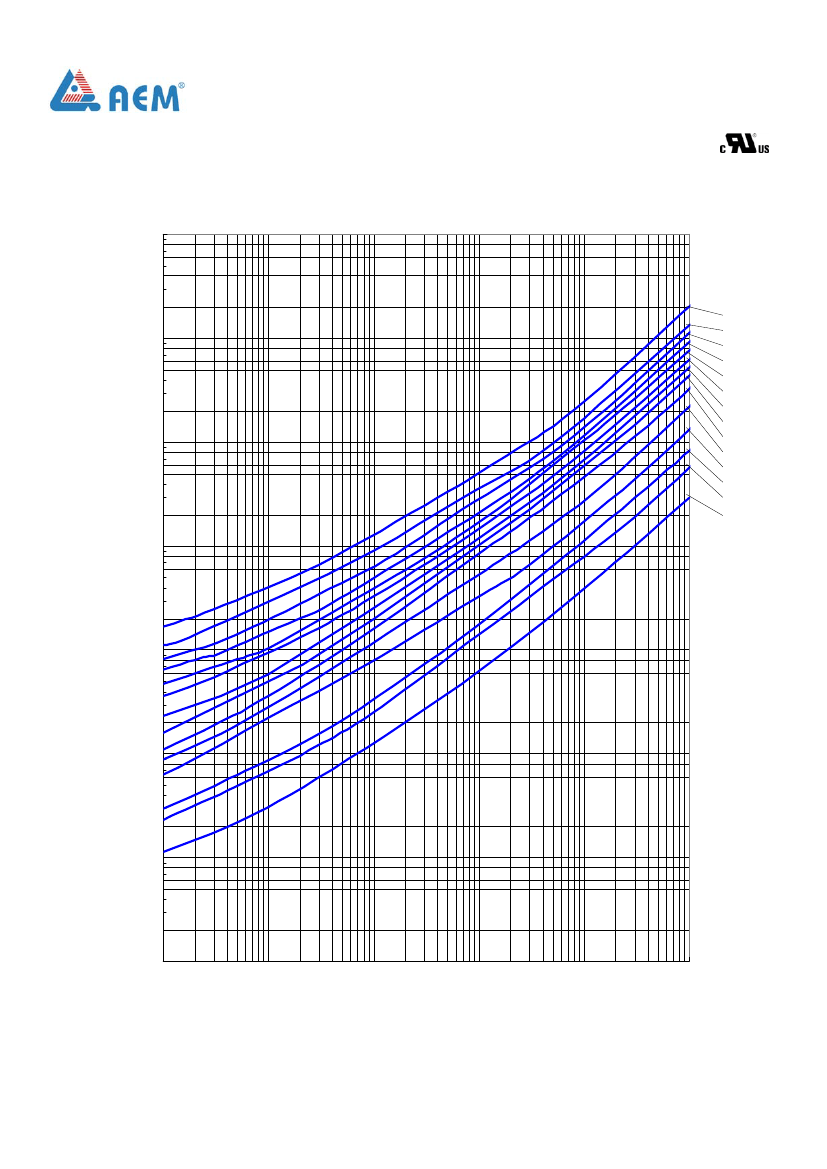

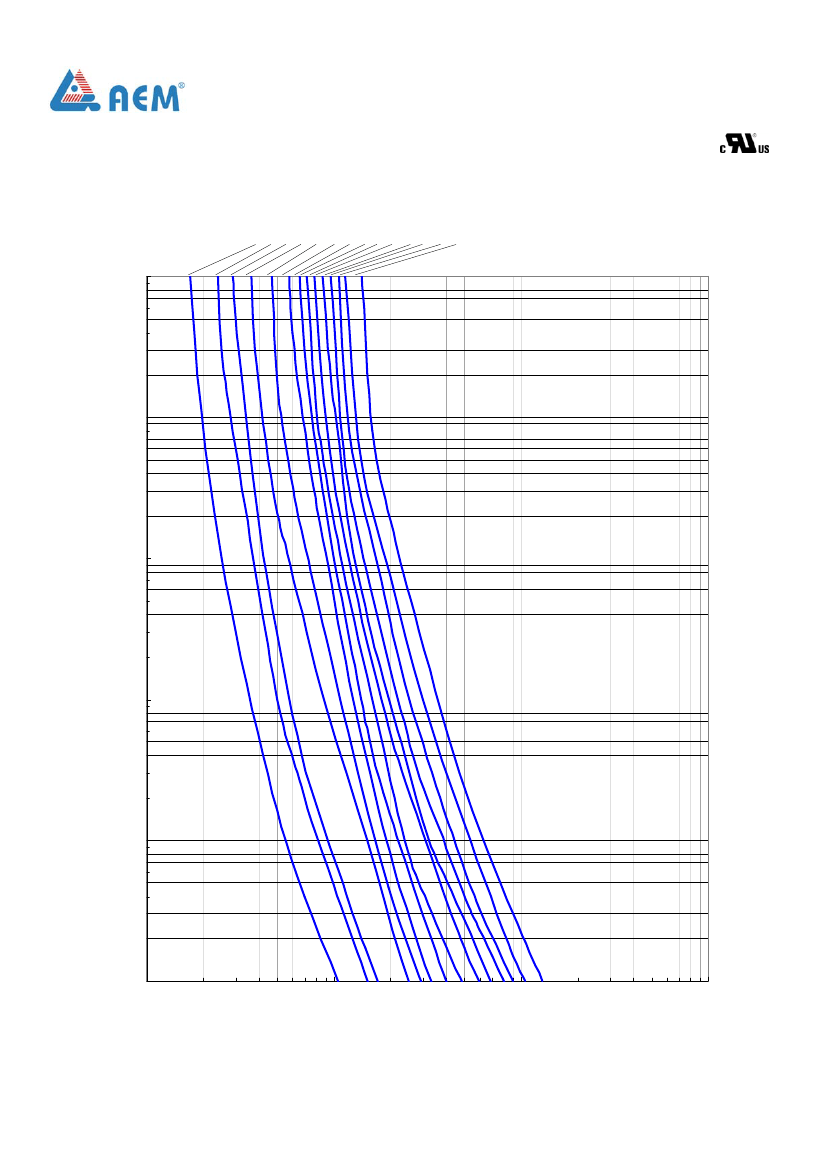

Clearing Time Characteristics ( Slow Blow):
% of current rating
100 %
200 %
300 %
800 %
Clearing time at 25
o
C
4 hours min.
1 second min.
0.1 seconds min.
0.002 seconds min.
120 seconds max.
3 seconds max.
0 05 seconds max.
SOLDER
0.063 ± 0.008
(1.60 ± 0.20)
0.126 ± 0.008
(3.20± 0.20)
NICKEL
SILVER
METALLIZATION
FUSE ELEMENT
Agency Approval:
Recognized Under the Components
Program of Underwriters Laboratories. File Number: E232989
0.020 ± 0.010
(0.51 ± 0.25)
0.038 ± 0.008
(0.97 ± 0.20)
Recommended Land Pattern:
0.059
(1.50)
0.071
(1.80)
0.173
(4.40)
Patents:
U.S. Patent numbers 6,034,589; 6,602,766;
7,268,661 B2; and other pending patents.
Interrupting Ratings:
1.0 A - 5.5 A
6.0 A - 8.0 A
50 A at rated voltages
60 A at rated voltage
Inch (mm)
Marking (Optional):
Red Marking Character Code
1.0 A:E, 1.25 A:F, 1.5 A:G, 2.0 A:I, 2.5 A:J, 3.0 A:K, 3.5 A:L, 4.0 A:M,
4.5 A:T, 5.0 A:N, 5.5 A:U, 6.0 A:O, 7.0 A:P, 8.0 A:R
Ordering Information:
Part Number
F1206SB1000V063T
F1206SB1250V063T
F1206SB1500V063T
F1206SB2000V063T
F1206SB2500V032T
F1206SB3000V032T
F1206SB3500V032T
F1206SB4000V032T
F1206SB4500V032T
F1206SB5000V032T
F1206SB5500V024T
F1206SB6000V024T
F1206SB7000V024T
F1206SB8000V024T
Current Rating
(A)
1.0
1.25
1.5
2.0
2.5
3.0
3.5
4.0
4.5
5.0
5.5
6.0
7.0
8.0
Voltage Rating
(VDC)
63
63
63
63
32
32
32
32
32
32
24
24
24
24
Nominal Cold DCR
( )
1
0.360
0.200
0.150
0.088
0.065
0.034
0.028
0.024
0.020
0.018
0.014
0.011
0.010
0.009
Nominal I
2
t
(A
2
s)
2
0.11
0.22
0.23
0.63
0.90
1.20
1.60
2.20
3.60
5.30
6.40
8.50
10.0
16.9
1. Measured at 10 % of rated current and 25ºC ambient
2. Melting I
2
t at 0.001 second clearing time
Website:
www.aemchina.com & www.aemcomponents.com
Mouser Electronics
Authorized Distributor
Click to View Pricing, Inventory, Delivery & Lifecycle Information:
AEM
:
F1206SB1000V063T F1206SB1250V063T F1206SB1500V063T F1206SB2000V063T F1206SB2500V032T
F1206SB3000V032T F1206SB3500V032T F1206SB4000V032T F1206SB4500V032T F1206SB5000V032T
F1206SB5500V024T F1206SB6000V024T F1206SB7000V024T F1206SB8000V024T
