REVISIONS
ECN #
REV.
001
002
DESCRIPTION
REVISED PER ECR 111009AZ01
MODIFIED GENERAL TOLERANCE .XX
DATE
8/18/10
11/14/11
1
NOTES:
1.
2.
3.
D
4.
5.
MOUNTING: Mounts in a .281 .002 (7.14mm 0.051) panel hole on .375 (9.53mm) centers.
Panel thickness .031 (.8mm) to .125 (3.18mm). Panel hole shall be deburred, but not chamfered.
ASSEMBLY: Insert Litepipe through the panel hole and press on retaining ring to secure unit to
panel. Slide PCB into position aligning LED with the end of the Litepipe unit.
MATERIAL: Litepipe - Acrylic (Clear optical grade) UL 94-HB
Lens - Polycarbonate UL 94-V2
Seal - TPE
Retaining Ring - Polypropylene (Black)
Meets NEMA 4/IP 56 standards
U.S. & Foreign Pat. Issued
INITIALS
KH
RL
CHK'D
DPZ
AZ
D
MOISTURE
SEAL
.280
(7.112mm)
.200
(5.080mm)
RETAINING
RING
C
C
.300
(7.620mm)
.360
(9.144mm)
.XXX
B
.165
(4.191mm)
B
ORDERING CODE:
LMS XXX XXX
LITEPIPE
XXX = LENGTH
033
.330"
053
.530"
073
.730"
093
0.93"
113
1.13"
133
1.33"
CUSTOM LENGTHS
AVAILABLE UPON
REQUEST
8
LENS
XXX =
RTP
ATP
GTP
BTP
YTP
CTP
GLO
COLOR
RED TRANSPARENT
AMBER TRANSPARENT
GREEN TRANSPARENT
BLUE TRANSPARENT
YELLOW TRANSPARENT
CLEAR TRANSPARENT
WHITE TRANSLUCENT
ASSEMBLY
7
6
5
4
DIMENSION STYLE: INCHES [MM]
GENERAL TOLERANCES UNLESS
OTHERWISE SPECIFIED
APPROVAL
DATE
8/18/10
8/19/10
A
.X
.XX
.XXX
INCHES
.020
.015
.005
ANGLE 1'
MM
.508
.381
.127
DRAWN
CHECKED
MATERIAL
K HOWARD
DPZ
OPTOELECTRONICS
190 BOSSTICK BLVD. SUITE 101 SAN MARCOS, CA 92069 U.S.A
PHONE: (760) 560-1300, FAX: (760) 560-1301 EMAIL: vccsales@vcclite.com
A
BREAK ALL CORNERS AND SHARP
EDGES .030 MAX
TITLE:
SEE NOTES
THIRD ANGLE PROJECTION

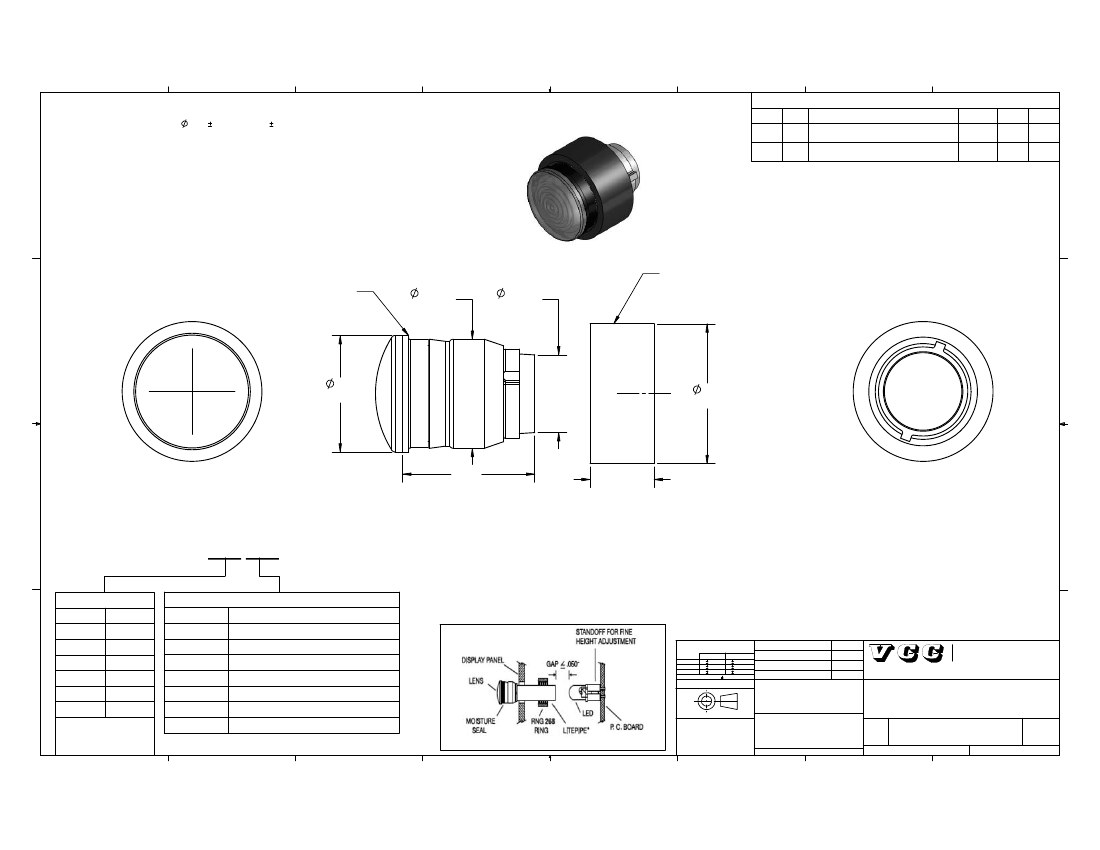

5MM MOISTURE SEALED
LITEPIPE
SIZE DWG. NO.
REV
PROPRIETARY AND CONFIDENTIAL
FINISH
THE INFORMATION CONTAINED IN THIS
DRAWING IS THE SOLE PROPERTY OF
VISUAL COMMUNICATIONS COMPANY, INC.
ANY REPRODUCTION IN PART OR AS
A WHOLE WITHOUT THE WRITTEN
PERMISSION OF VISUAL
COMMUNICATIONS COMPANY, INC IS
PROHIBITED.
SEE NOTES
DO NOT SCALE DRAWING
B
2
LMS XXX XXX
1
002
SHEET 1 OF 1
SCALE: 6:1
3
