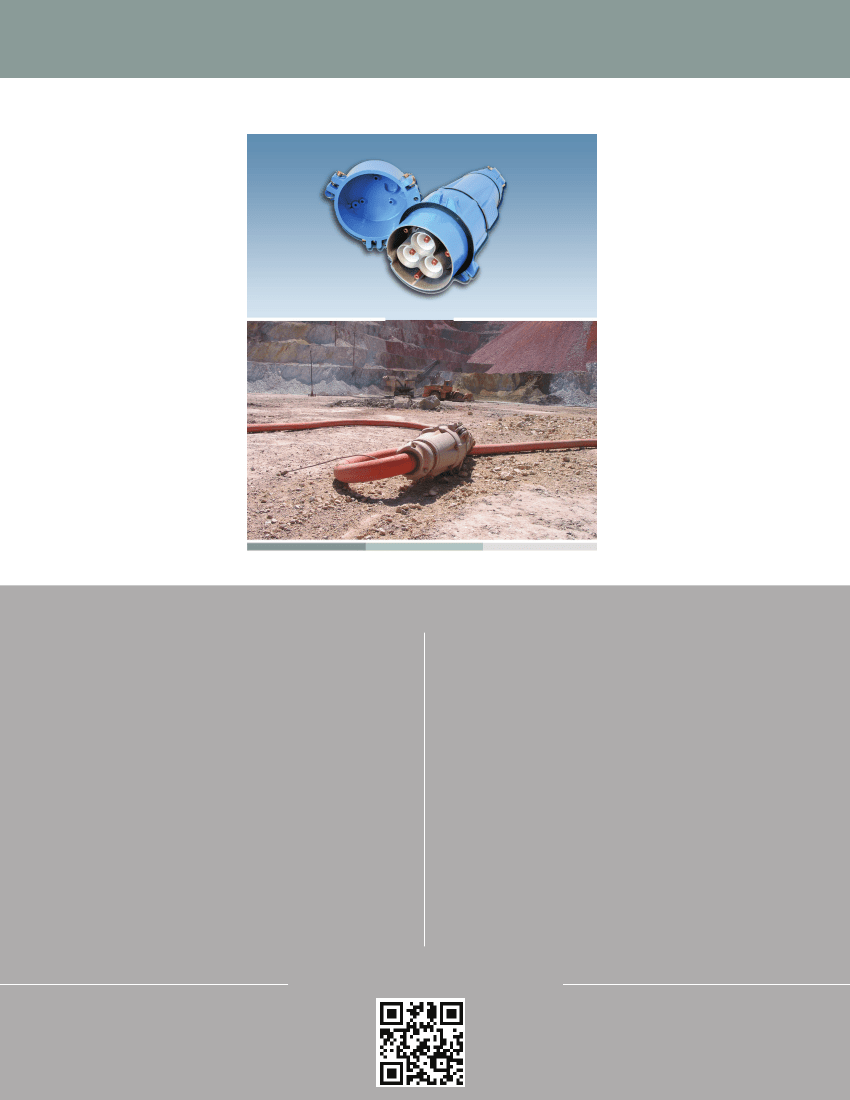

Amphenol
®
IDS-63
MVC 8KV
A hazardous industry by its very nature, mine sites must rely
heavily on electrical equipment. The safe and reliable transfer of
electricity throughout a site is a significant concern.
Amphenol Industrial Global Operations (AIGO) offers many
products and solutions for the mining market. The MVC 8KV
incorporates patented RADSOK® contact technology for higher
amperage (25% greater than a standard contact), lower T-rise,
less resistance and reduced mating forces. When looking for the
best interconnect for the job, AIGO’s MVC 8KV cable coupler
with “Rapid-Couple
®
” technology will not leave you guessing.
The MVC 8KV coupler has been remarkably designed with a
wide range of features and benefits that makes this the coupler
of choice for the mining industry and other markets. Our Rapid-
Couple
®
interlock method makes for quick and easy mating and
unmating. This provides for positive mating and secure fitting
covers that repel water and soil while keeping the contacts
uncontaminated. Engineered to Amphenol’s high standards for
ruggedness and reliability there is no field condition in the world
that can impede the MVC.
Features:
• Up to 500 Amps
• Cast aluminum housing standard, other materials available
• Contact Termination: Solderless (Screw Termination)
• All parts are replaceable and can be serviced easily in the
field, equaling less downtime for repairs
• Rapid-Couple
®
mating technology
• Incorporates patented RADSOK® contact technology leading
to 25% more current in the same size contact, while reducing
mating forces
• Combined strain relief and cable seal eliminating the need for
hose clamps while providing waterproof protection
• Elongated ground plane which provides protection from
phase to phase faults and flashovers
• Fully shielded phase conductors
• Coupler mating is a one person operation without the need
for expensive tools or closing mechanisms
www.amphenol-industrial.com
The Amphenol MVC 8KV coupler has a standard contact arrangement containing three insulated phase contacts, two ground contacts,
and one isolated ground check (pilot contact). Please consult the factory for other contact configurations.
Technical Data
Rated Current
Rated Voltage
Cable Size
Up to 500 Amps
8,000V
Up to 350 MCM, 185mm
2

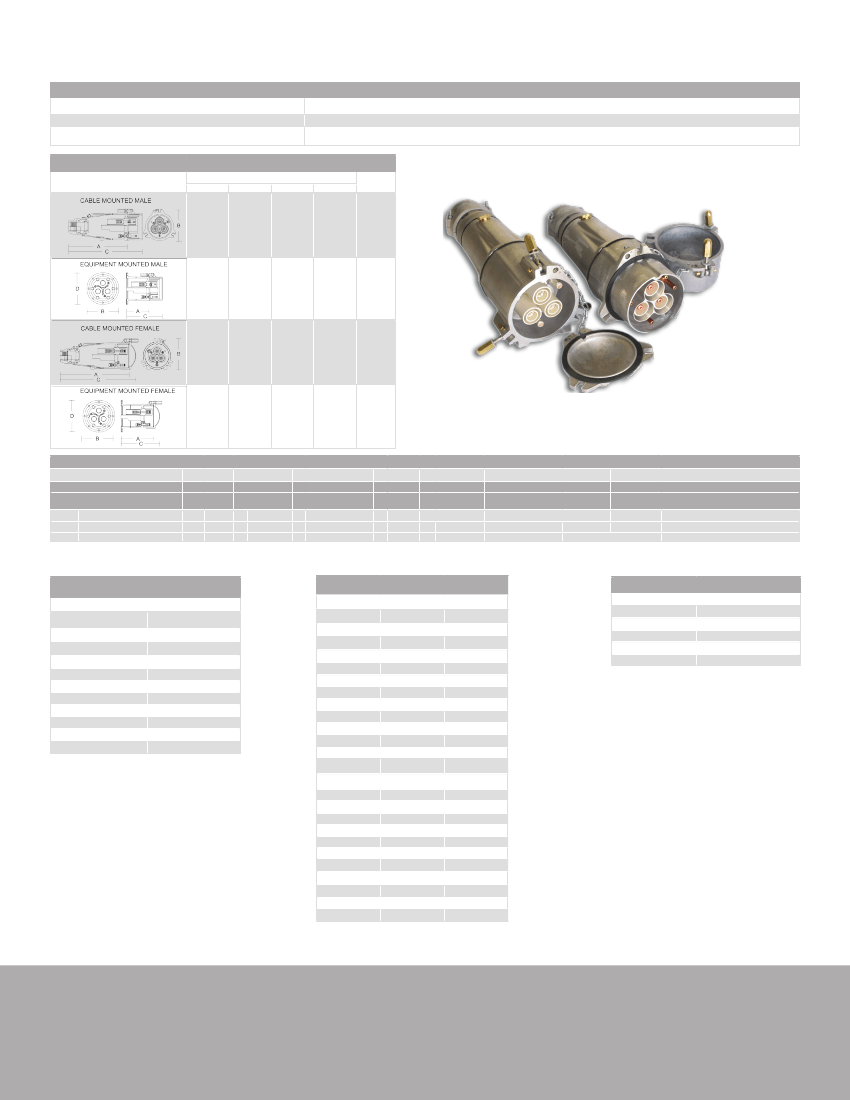

MVC 8KV Coupler Weights and Dimensions
Illustration (not to scale)
A
17”
432 mm
Dimensions
B
C
9 1/2”
241 mm
21”
533 mm
D
Weight
32.0 lb
14.5 kg
7 1/2”
191 mm
10 1/2”
267 mm
21”
533 mm
9 1/4”
235 mm
25.0 lb
11.5 kg
20”
508 mm
9 1/2”
241 mm
23”
584 mm
34.0 lb
15.3 kg
10 5/8”
272 mm
10 1/2”
267 mm
13 1/2”
343 mm
9 1/4”
235 mm
27.0 lb
12.3 kg
How to order
1
MVC
2
8
Voltage
8KV
P
R
3
P
Body Type
4
2
Mounting
5
P
Contacts
6
C
Conductor Size
See Table A
Product Line
MVC
Medium Voltage Connector 8
(Leave Blank for 600V or Equipment Mount)
7
W6
Entrance Fitting/Seal Size
See Table B
8
(BL)
Modifications
K
Key Interlock
F
Fiber Provision
See Table C Powder Coating Body
Plug
1 Equipment Mount P Pin
Receptacle 2 Cable Mount
S Socket
Table A (Conductor Size)
Conductor
#4 AWG
#3 AWG
#2 AWG
#1 AWG
1/0 AWG
2/0 AWG
3/0 AWG
4/0 AWG
250 MCM
300 MCM
350 MCM
Code
A
B
C
D
E
F
G
H
I
J
K
Table B (Entrance Fitting & Cable Seal)
Outside Cable Diameter
(mm)
20.9 -22.1
22.4-23.9
24.2-25.7
26.0-26.9
27.2-28.5
28.8-31.8
32.1-34.8
35.1-38.1
38.4-41.2
41.5-44.5
44.8-47.5
47.8-50.8
51.0-53.9
54.2-57.2
57.5-60.2
60.5-63.5
63.8-66.6
66.9-69.9
70.2-72.9
73.2-76.2
76.5-79.3
(in)
0.82-0.87
0.88-0.94
0.95-1.01
1.02-1.06
1.07-1.12
1.13-1.25
1.26-1.37
1.38-1.50
1.51-1.62
1.63-1.75
1.76-1.87
1.88-2.00
2.01-2.12
2.13-2.25
2.26-2.37
2.38-2.50
2.51-2.62
2.63-2.75
2.76-2.87
2.88-3.00
3.01-3.12
3.13-3.25
3.26-3.37
3.38-3.50
W1
W2
W3
W4
W5
W6
W7
W8
W9
W10
W11
X1
X2
X3
X4
Y1
Y2
Y3
Z1
Z2
Z3
Z4
Z5
Z6
Code
Table C (Powder Coating Color)
Color
No Color
Blue
Orange
Red
White
Code
Leave Blank (Standard)
BL
OG
RD
WH
Other Markets:
Tunneling, Utility & Shore Power
79.6-82.6
82.9-85.6
85.9-88.9
