MY87C Overview

Triple-Balanced Mixer

MY87C Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	MACOM
Reach Compliance Code	compli
Other features	SMA-F, I/P POWER-MAX (PEAK)=26DBM
Characteristic impedance	50 Ω
structure	COAXIAL
Maximum frequency conversion loss	12.5 dB
Maximum operating frequency	19000 MHz
Minimum operating frequency	500 MHz
Maximum operating temperature	100 °C
Minimum operating temperature	-54 °C
RF/Microwave Device Types	TRIPLE BALANCED

Preview

Download Datasheet

View All

MY87 / MY87C

Triple-Balanced Mixer

Rev. V2

Features

•

LO 0.5 TO 19 GHz

RF 0.5 TO 19 GHz

IF 0.03 TO 5 GHz

LO DRIVE +13 dBm (nominal)

VERY WIDE BANDWIDTH

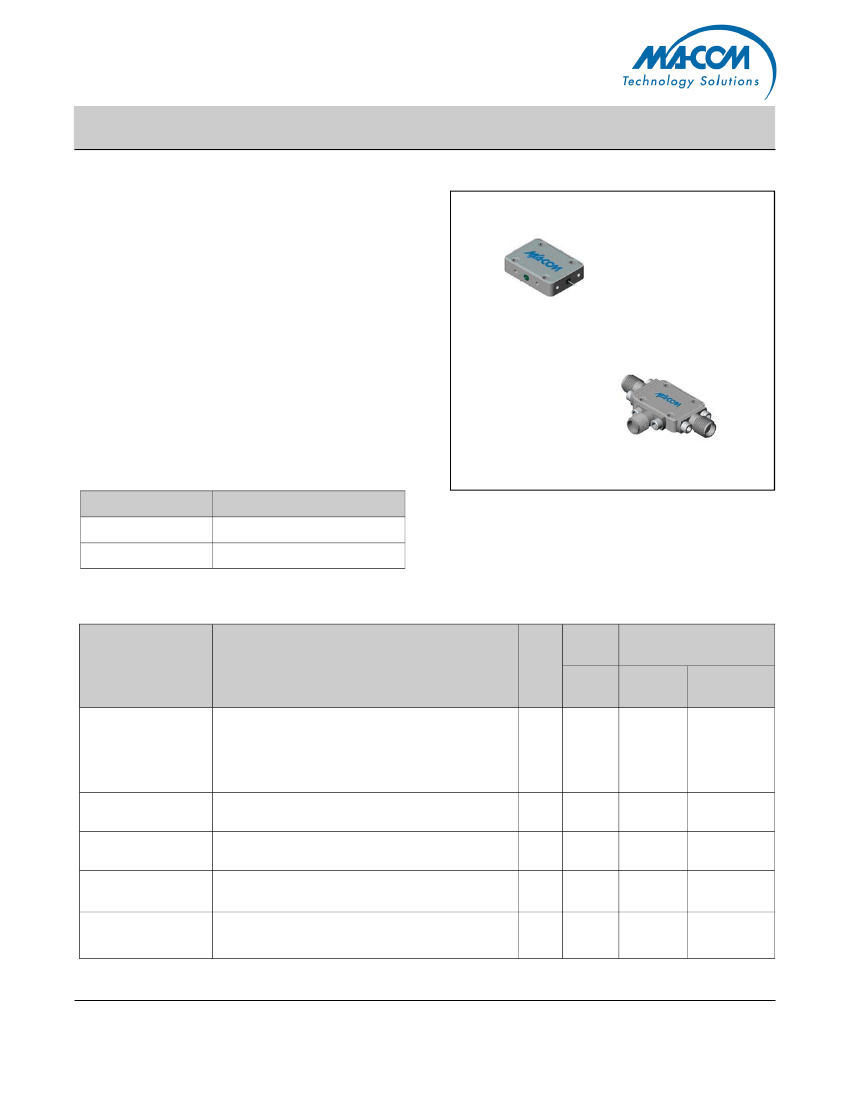

Product Image

Description

MY87 is a triple balanced mixer, designed for use in military,

commercial and test equipment applications. The design utilizes

Schottky ring quad diodes and broadband soft dielectric baluns to

attain excellent performance. The use of high temperature solder

assembly processes used internally makes it ideal for use in

manual, semi-automated assembly. Environmental screening

available to MIL-STD-883, MIL-STD-202 or MIL-DTL-28837,

consult factory.

Ordering Information

Part Number

MY87

MY87C

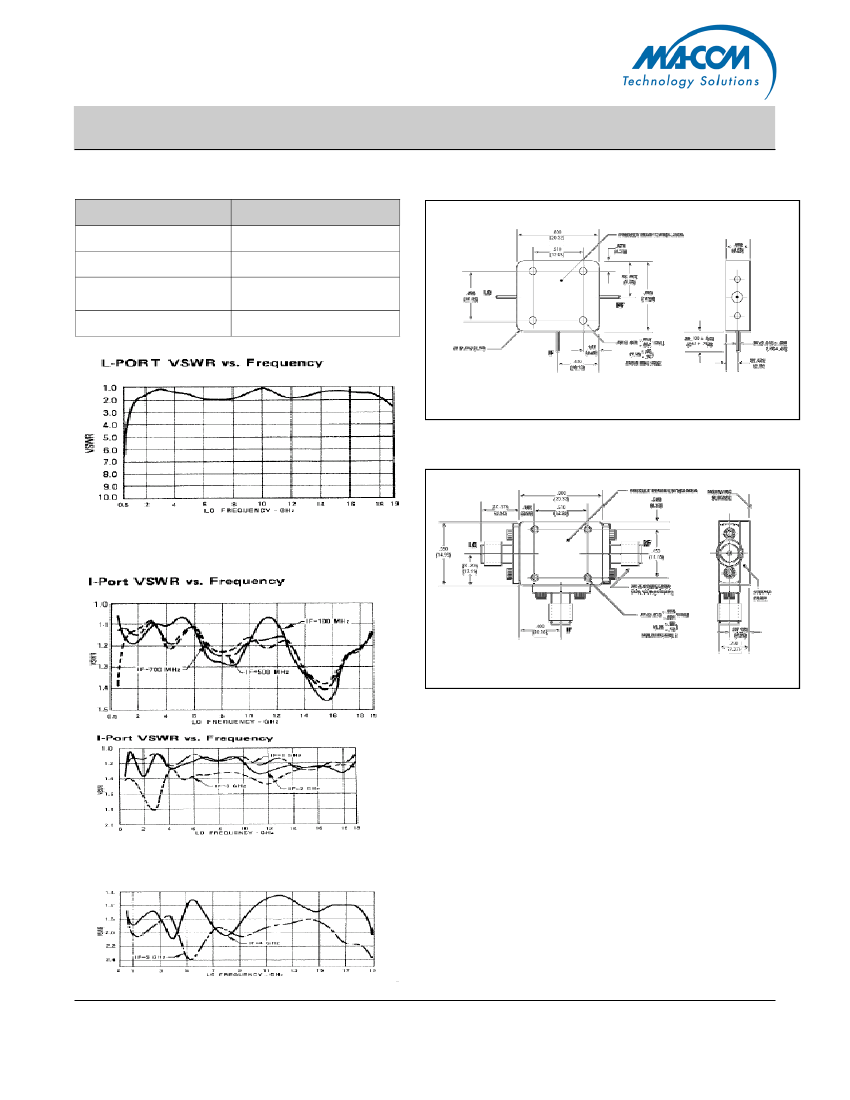

Package

Versapac

SMA Connectorized

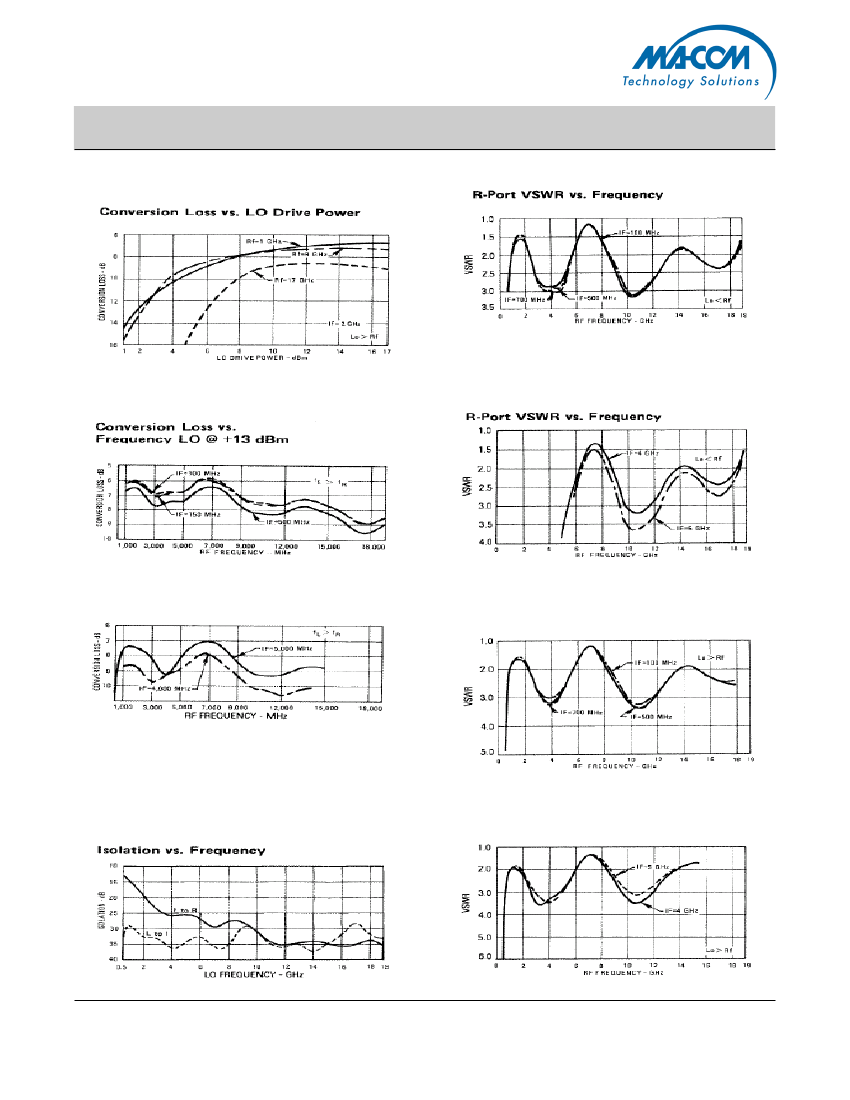

Electrical Specifications: Z

= 50Ω Lo = +13 dBm (Downconverter Application only)

Typical

Parameter

Test Conditions

Units

+25ºC

-54º to +85ºC

Guaranteed

SSB Conversion Loss

(max) & SSB Noise

Figure (max)

fR = 1 to 18 GHz, fL = 0.5 to 18 GHz, fI = 0.03 to 3 GHz

fR = 0.5 to 18 GHz, fL = 0.5 to 18 GHz, fI = 0.03 to 4 GHz

fR = 0.7 to 19 GHz, fL = 3 to 19 GHz, fI = 0.03 to 5 GHz

7.5

8.5

10.5

11.0

12.0

11.0

11.5

12.5

Isolation, L to R (min)

fL = 0.5 to 3 GHz

fL = 3 to 19 GHz

fL = 0.5 to 5 GHz

Isolation, L to I (min)

1 dB Conversion Comp.

fL = +13 dBm

fR1 = 5 GHz at –6 dBm, fR2 = 6.01 GHz at –6 dBm, fL = 7 GHz at +13 dBm

fR1 = 15 GHz at –6 dBm, fR2 = 15.01 GHz at –6 dBm, fL =18 GHz at +13 dBm

dBm

+16.5

+18

Input IP3

ADVANCED:

Data Sheets contain information regarding a product M/A-COM Technology Solutions

•

North America

Tel: 800.366.2266 •

Europe

Tel: +353.21.244.6400

is considering for development. Performance is based on target specifications, simulated results,

•

India

Tel: +91.80.4155721

•

China

Tel: +86.21.2407.1588

and/or prototype measurements. Commitment to develop is not guaranteed.

Visit www.macomtech.com for additional data sheets and product information.

PRELIMINARY:

Data Sheets contain information regarding a product M/A-COM Technology

Solutions has under development. Performance is based on engineering tests. Specifications are

typical. Mechanical outline has been fixed. Engineering samples and/or test data may be available.

M/A-COM Technology Solutions Inc. and its affiliates reserve the right to make

Commitment to produce in volume is not guaranteed.

changes to the product(s) or information contained herein without notice.
