SM3150AF-C: DescriptionRectifier Diode, Schottky, 1 Phase, 1 Element, 3A, 150V V(RRM), Silicon, HALOGEN FREE AND ROHS COMPLIANT, PLASTIC, SMAF, 2 PIN; CategoryDiscrete semiconductor diode; File Size238KB，2 Pages; ManufacturerSECOS; Websitehttp://www.secosgmbh.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

SM3150AF-C Overview

Rectifier Diode, Schottky, 1 Phase, 1 Element, 3A, 150V V(RRM), Silicon, HALOGEN FREE AND ROHS COMPLIANT, PLASTIC, SMAF, 2 PIN

SM3150AF-C Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
package instruction	HALOGEN FREE AND ROHS COMPLIANT, PLASTIC, SMAF, 2 PIN
Contacts	2
Manufacturer packaging code	SMAF
Reach Compliance Code	compliant
ECCN code	EAR99
application	GENERAL PURPOSE
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	0.87 V
JESD-30 code	R-PDSO-F2
Maximum non-repetitive peak forward current	80 A
Number of components	1
Phase	1
Number of terminals	2
Maximum operating temperature	150 °C
Minimum operating temperature	-50 °C
Maximum output current	3 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Maximum repetitive peak reverse voltage	150 V
Maximum reverse current	200 µA
surface mount	YES
technology	SCHOTTKY
Terminal form	FLAT
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED

Preview

Download Datasheet

View All

SM320AF~SM3200AF

Elektronische Bauelemente

20 V ~ 200 V

3.0 Amp Surface Mount Schottky Barrier Rectifiers

RoHS Compliant Product

A suffix of “-C” specifies halogen-free and RoHS Compliant

FEATURES

Ideal for surface mount applications

Easy pick and place

Built-in strain relief

Low forward voltage drop

SMAF

PACKAGING INFORMATION

Metallurgically bonded construction

Polarity: Color band denotes cathode end

Case: Molded plastic

Epoxy: UL94-V0 rate flame retardant

Weight: 0.032 grams (approximately)

REF.

PACKAGE INFORMATION

Package

SMAF

MPQ

Leader Size

7 inch

Millimeter

Min.

Max.

3.95

4.60

2.25

2.95

4.80

5.60

REF.

Millimeter

Min.

Max.

0.75

1.50

1.25

1.65

0.90

1.10

MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS

(Rating 25

C ambient temperature unless otherwise specified. Single phase half wave, 60Hz, resistive or inductive load.

For capacitive load, de-rate current by 20%.)

Part Number

Parameter

Maximum Recurrent Peak Reverse

Voltage

Working Peak Reverse Voltage

Maximum DC Blocking Voltage

Maximum Instantaneous Forward

Voltage @ 3A

Maximum Average Forward Rectified

Current, See Fig.1

Peak Forward Surge Current, 8.3ms

single half sine-wave superimposed on

rated load (JEDEC method)

=25°C

Maximum Reverse

Current

=100°C

Typical Thermal Resistance

Diode Junction Capacitance (Typ.)

Operating Temperature Range

Storage Temperature Range

Symbol

RRM

RMS

320AF

0.45

340AF

0.5

360AF

0.7

3100AF

100

0.85

3150AF

150

105

150

0.87

3200AF

200

140

200

0.9

Unit

FSM

0.5

0.2

120

180

150

-50 ~ 125

-50~150

110

100

-50~150

STG

° /W

Note:

1. f=1MHz and applied 4V DC reverse voltage

2. Pulse Test：Pulse Width = 300

µs,

Duty Cycle

≦

2.0%.

http://www.SeCoSGmbH.com/

Any changes of specification will not be informed individually.

07-Feb-2013 Rev. A

Page 1 of 2

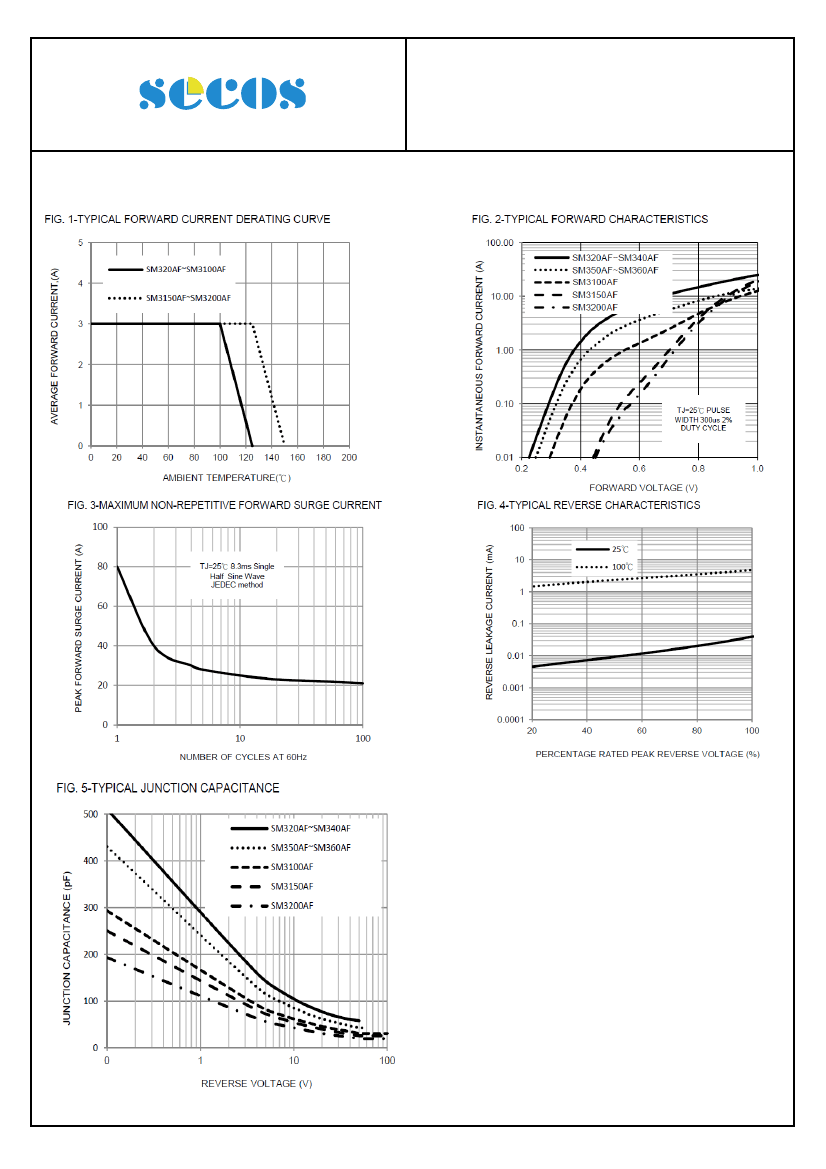

SM3150AF-C Related Products

	SM3150AF-C	SM340AF-C	SM360AF-C
Description	Rectifier Diode, Schottky, 1 Phase, 1 Element, 3A, 150V V(RRM), Silicon, HALOGEN FREE AND ROHS COMPLIANT, PLASTIC, SMAF, 2 PIN	Rectifier Diode, Schottky, 1 Phase, 1 Element, 3A, 60V V(RRM), Silicon, HALOGEN FREE AND ROHS COMPLIANT, PLASTIC, SMAF, 2 PIN	Rectifier Diode, Schottky, 1 Phase, 1 Element, 3A, 60V V(RRM), Silicon, HALOGEN FREE AND ROHS COMPLIANT, PLASTIC, SMAF, 2 PIN
Is it Rohs certified?	conform to	conform to	conform to
package instruction	HALOGEN FREE AND ROHS COMPLIANT, PLASTIC, SMAF, 2 PIN	HALOGEN FREE AND ROHS COMPLIANT, PLASTIC, SMAF, 2 PIN	HALOGEN FREE AND ROHS COMPLIANT, PLASTIC, SMAF, 2 PIN
Contacts	2	2	2
Manufacturer packaging code	SMAF	SMAF	SMAF
Reach Compliance Code	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99
application	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Configuration	SINGLE	SINGLE	SINGLE
Diode component materials	SILICON	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
Maximum forward voltage (VF)	0.87 V	0.7 V	0.7 V
JESD-30 code	R-PDSO-F2	R-PDSO-F2	R-PDSO-F2
Maximum non-repetitive peak forward current	80 A	80 A	80 A
Number of components	1	1	1
Phase	1	1	1
Number of terminals	2	2	2
Maximum operating temperature	150 °C	125 °C	125 °C
Minimum operating temperature	-50 °C	-50 °C	-50 °C
Maximum output current	3 A	3 A	3 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Maximum repetitive peak reverse voltage	150 V	60 V	60 V
Maximum reverse current	200 µA	500 µA	500 µA
surface mount	YES	YES	YES
technology	SCHOTTKY	SCHOTTKY	SCHOTTKY
Terminal form	FLAT	FLAT	FLAT
Terminal location	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
