Pulse Transformers
www.schurter.com/PG85
Pulse transformers for THT mounting
IT

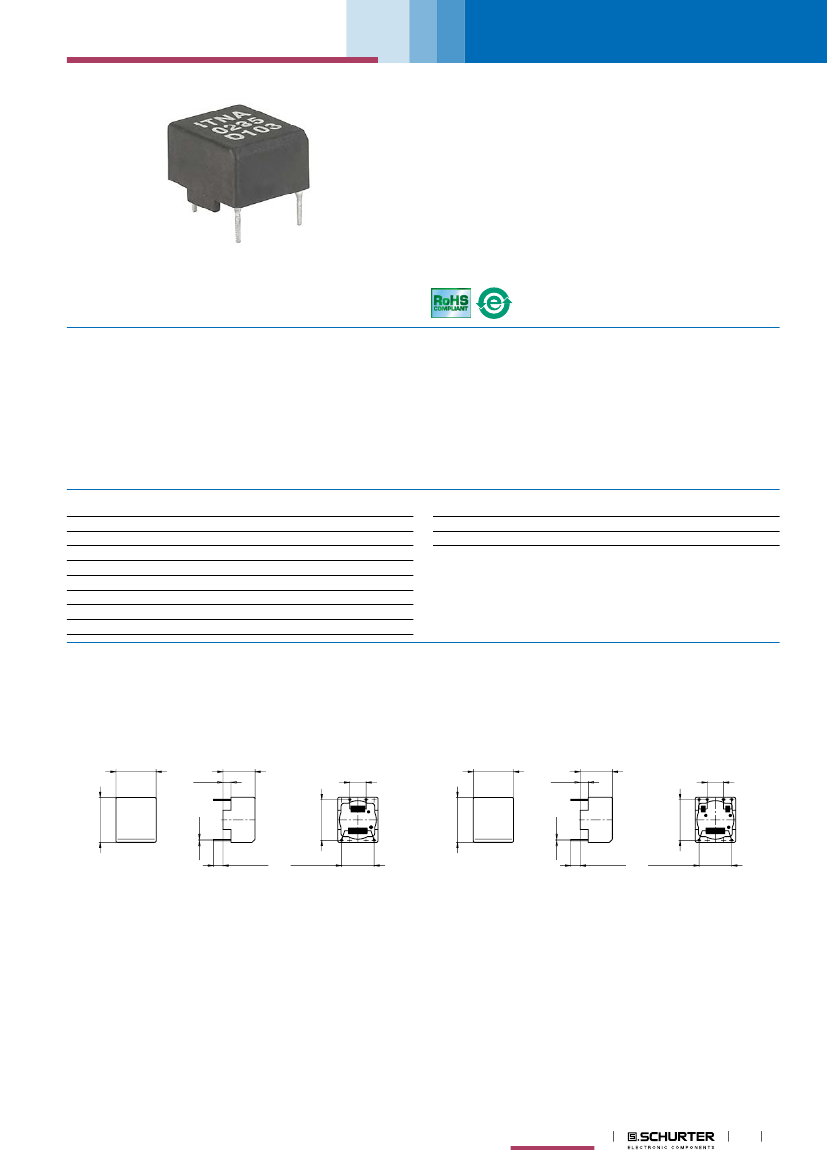

Description
- High insulation rating (>3.2 kVAC) between the primary and the secon-
dary windings
- High insulation rating up to 500V between the secondary windings
- Small coupling capacitances between primary and secondary windings
limit transient feedback from the power supply side to the control elec-
tronics
- The defined partial discharge voltage guarantees an effecively unlimited
serviceable live
Applications
- Galvanic separation of drive- and power-circuit
- Mainly used in ignition circuits with Thyristors, Triacs, power transistors
and IGBT's
- DC/DC converters
- Line coupling transformers in high speed data transmission
Weblinks
Standards
- VDE 110b
pdf-datasheet, html-datasheet, General Product Information,
Approvals, CE declaration of conformity, RoHS, CHINA-RoHS, e-Shop,
SCHURTER-Stock-Check, Distributor-Stock-Check, Detailed request for
product
Technical Data
Rated voltage
Voltage Time Integral
Pulse Rise Time
Turns Ratio
Terminal technic
Weight
Material: Housing
Sealing Compound
up to 600 VAC
150 - 400 Vµs
0.05 - 1.5 µs
1:1, 2:1, 1:1:1
THT
6 - 11 g
UL 94V-0
UL 94V-0
Climatic Category
Allowable Operation Temp.
25/100/21 acc. to IEC 60068-1
-25 °C to 100 °C
Dimension
Case 35-3
Case 35-4
max. 13
1.8
max. 10.6
5.1
±0.2
4
5
max. 15.2
max. 13
1.8
max. 10.6
5.1
±0.2
3
12.7
±0.2
4 5
6
max. 15.2
0.45 x0.66
12.7
±0.2
2
3.5
– 0.5
0
10.2
±0.2
1)
1
0.45 x0.66
2
3.5
– 0.5
0
10.2
±0.2
1)
1

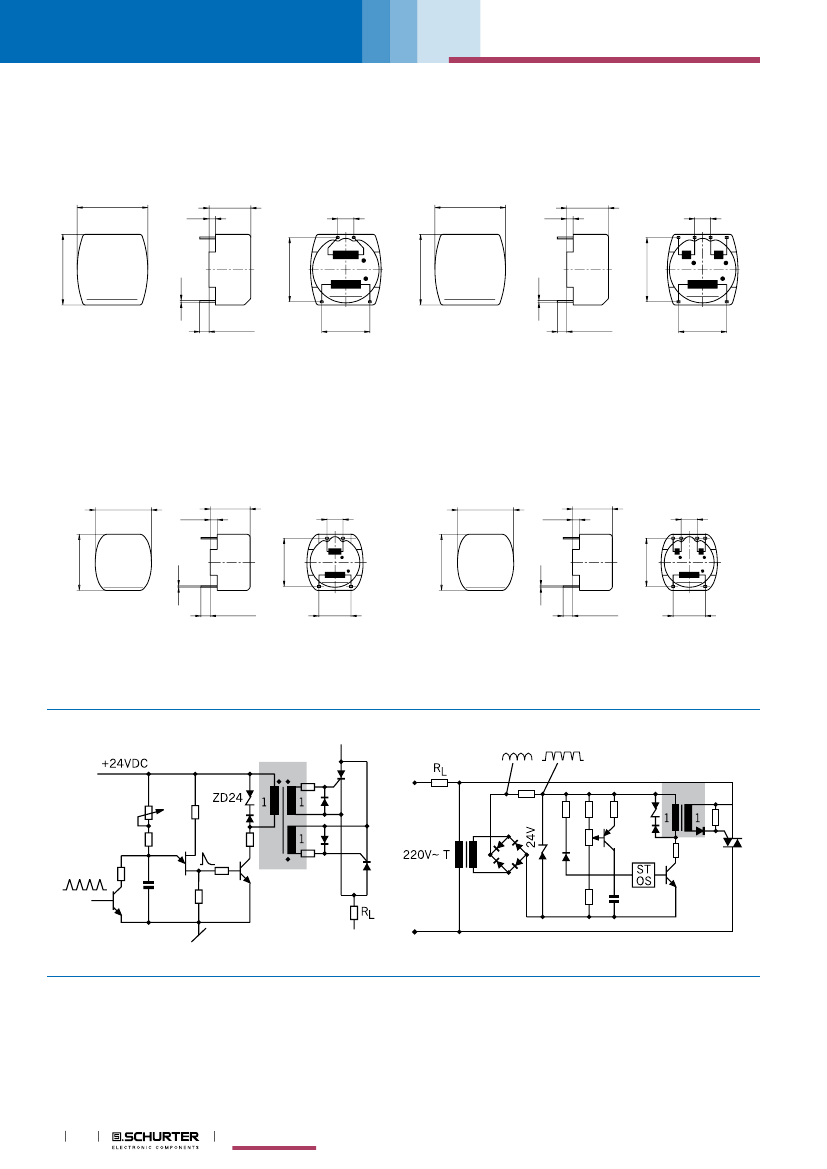

1) Prim.
EMC Products
1
Pulse Transformers
www.schurter.com/PG85
IT
U
isol
[kV]
3.2
3.5
3.2
3.5
3.2
3.5
3.2
3.2
3.5
3.5
3.2
3.2
3.5
U
s
x T
w
[Vμs]
200
200
400
400
300
300
150
350
350
250
350
250
250
L
s
[mH]
2.8
2.8
2.2
2.2
3.5
3.5
1.1
1.6
1.6
1.4
1.8
1.4
1.6
R
P
[Ω]
1.5
1
0.4
0.4
0.7
0.7
1
0.4
0.4
0.5
0.8
1
1
R
S
[Ω]
1
1
0.4
0.4
0.7
0.7
0.5
0.4
0.4
0.5
0.4
0.5
0.5
C
C
[pF]
43/80
20
100
20
90
20
40
90
20
20
90
70
20
Weight [g]
8g
8g
11 g
11 g
9g
9g
8g
10 g
10 g
9g
9g
9g
6g
Packing unit [pcs.]
480
480
140
140
45
45
480
140
140
45
140
45
45
Housing
35-3
35-3
39-3
39-3
49-3
49-3
35-4
39-4
39-4
49-4
39-3
49-3
49-3
Order Number
ITRA-0235-D103
ITNA-0235-D103
ITRA-0239-D502
ITNA-0239-D202
ITRA-0249-D104
ITNA-0249-D104
ITRF-0235-D101
ITRF-0239-D502
ITNF-0239-D202
ITNF-0249-D101
ITRB-0239-D502
ITRB-0249-D101
ITNB-0249-D101
Variants
Turns Ratio
1:1
1:1
1:1
1:1
1:1
1:1
1:1:1
1:1:1
1:1:1
1:1:1
2:1
2:1
2:1
T
r
[μs]
0.05
0.9
0.1
1
0.05
1
0.05
0.5
1.5
1
0.5
0.05
1
I
ign
[A]
0.1
0.1
0.5
0.17
0.1
0.1
0.1
0.5
0.17
0.1
0.5
0.1
0.1
Availability for all products can be searched real-time:http://www.schurter.com/en/Stock-Check/Stock-Check-SCHURTER
The specifications, descriptions and illustrations indicated in this document are based on current
information. All content is subject to modifications and amendments.
Information furnished is believed to be accurate and reliable. However, users should independently evaluate
the suitability and test each product selected for their own applications.
EMC Products
3
02.05.2014
