545258-3 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> socket> 545258-3

545258-3: DescriptionPGA SOCKET,121 CONTACTS,13X13,0.1 ROW SPACING,PC TAIL TERMINAL; CategoryThe connector socket; File Size331KB，4 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric Compare View All

545258-3 Overview

PGA SOCKET,121 CONTACTS,13X13,0.1 ROW SPACING,PC TAIL TERMINAL

545258-3 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
ECCN code	EAR99
body width	1.35 inch
subject depth	0.175 inch
body length	1.35 inch
Contact structure	13X13
Contact to complete cooperation	AU ON NI
Contact completed and terminated	GOLD
Contact material	BE-CU
Contact style	RND PIN-SKT
current rating	3 A
Device slot type	IC SOCKET
Type of equipment used	PGA121
Dielectric withstand voltage	1000VAC V
Shell material	POLYBUTYLENE TEREPHTHALATE
Insulation resistance	5000000000 Ω
Manufacturer's serial number	545258
Plug contact pitch	0.1 inch
Installation method	STRAIGHT
Number of contacts	121
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	0.1 mm
Terminal pitch	2.54 mm
Termination type	SOLDER

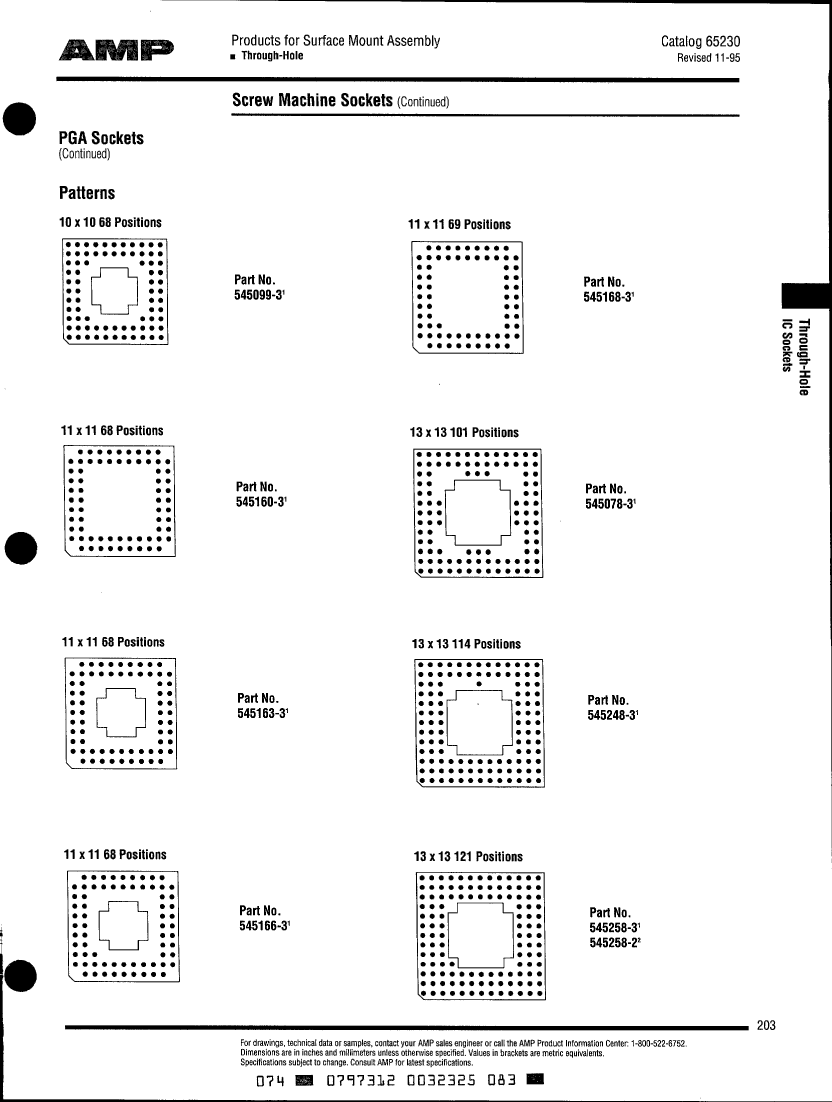

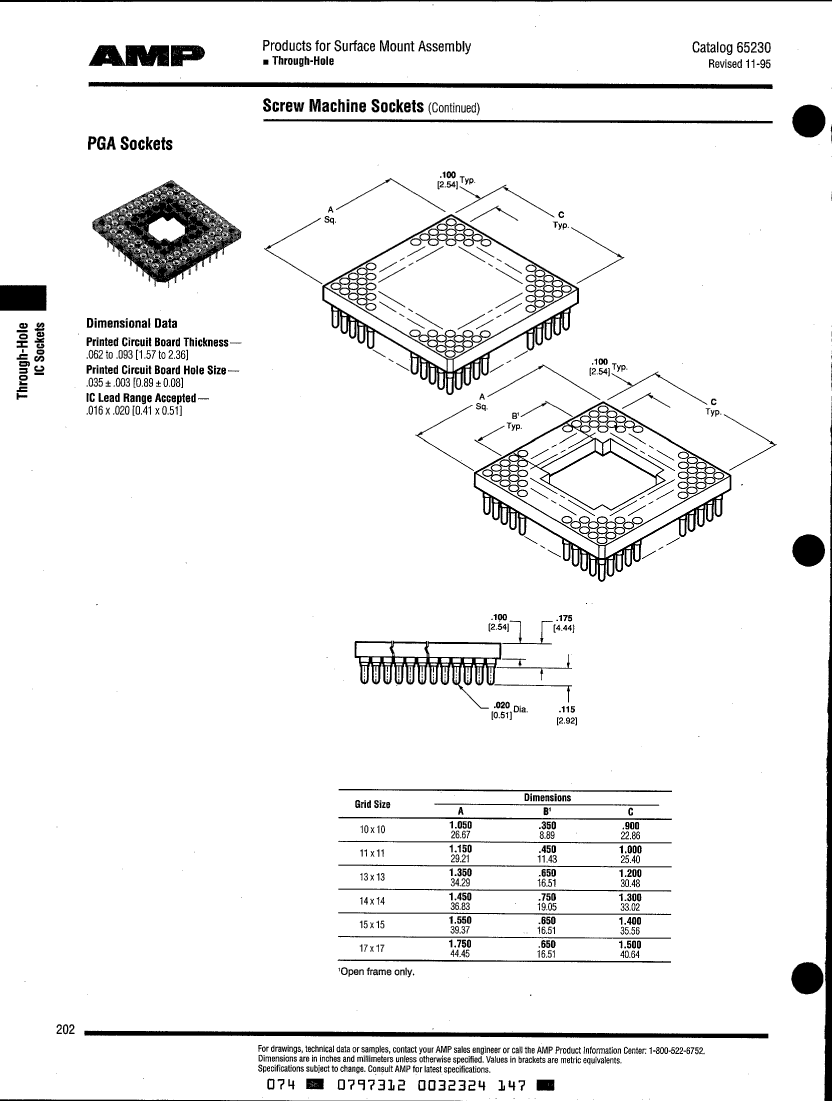

Preview

Download Datasheet

View All

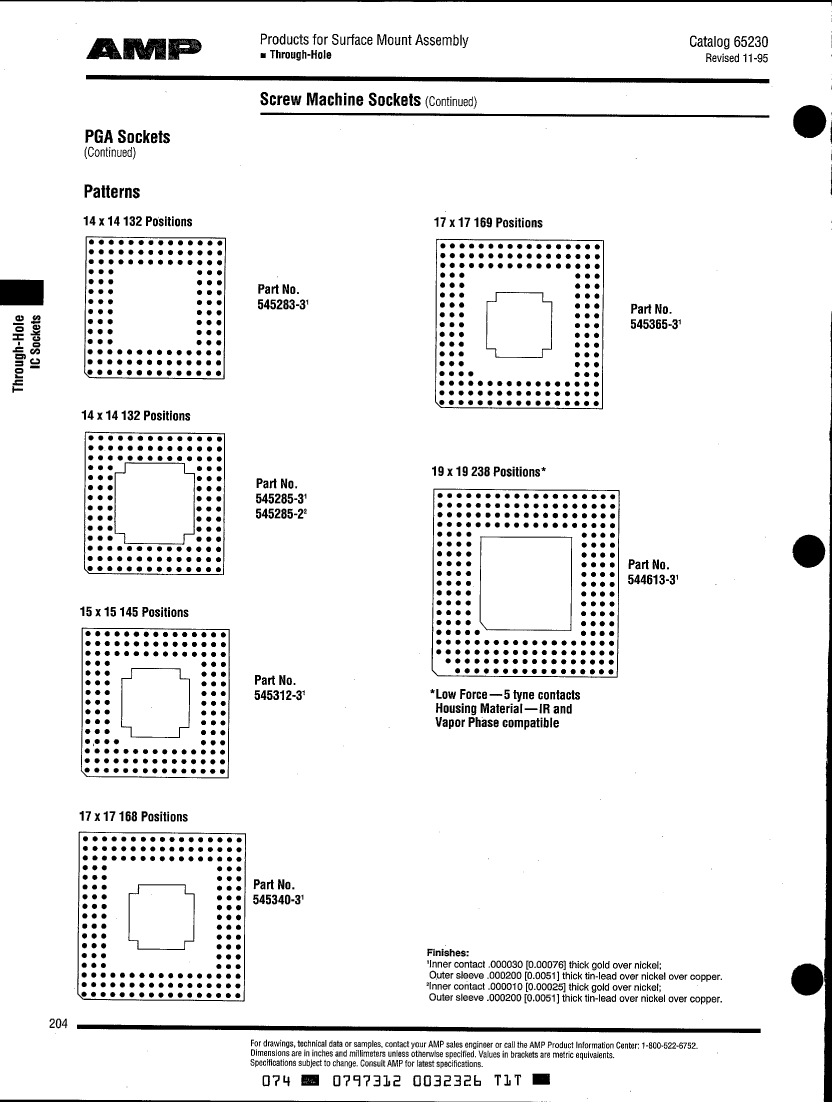

545258-3 Related Products

	545258-3	545168-3	545365-3	545285-3	545258-2	545099-3	545163-3
Description	PGA SOCKET,121 CONTACTS,13X13,0.1 ROW SPACING,PC TAIL TERMINAL	PGA SOCKET,69 CONTACTS,11X11,0.1 ROW SPACING,PC TAIL TERMINAL	PGA SOCKET,169 CONTACTS,17X17,0.1 ROW SPACING,PC TAIL TERMINAL	PGA SOCKET,132 CONTACTS,14X14,0.1 ROW SPACING,PC TAIL TERMINAL	PGA SOCKET,121 CONTACTS,13X13,0.1 ROW SPACING,PC TAIL TERMINAL	PGA SOCKET,68 CONTACTS,10X10,0.1 ROW SPACING,PC TAIL TERMINAL	PGA SOCKET,68 CONTACTS,11X11,0.1 ROW SPACING,PC TAIL TERMINAL
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
body width	1.35 inch	1.15 inch	1.75 inch	1.45 inch	1.35 inch	1.05 inch	1.15 inch
subject depth	0.175 inch	0.175 inch	0.175 inch	0.175 inch	0.175 inch	0.175 inch	0.175 inch
body length	1.35 inch	1.15 inch	1.75 inch	1.45 inch	1.35 inch	1.05 inch	1.15 inch
Contact structure	13X13	11X11	17X17	14X14	13X13	10X10	11X11
Contact to complete cooperation	AU ON NI	AU ON NI	AU ON NI	AU ON NI	AU ON NI	AU ON NI	AU ON NI
Contact completed and terminated	GOLD	GOLD	GOLD	GOLD	GOLD	GOLD	GOLD
Contact material	BE-CU	BE-CU	BE-CU	BE-CU	BE-CU	BE-CU	BE-CU
Contact style	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT
current rating	3 A	3 A	3 A	3 A	3 A	3 A	3 A
Device slot type	IC SOCKET	IC SOCKET	IC SOCKET	IC SOCKET	IC SOCKET	IC SOCKET	IC SOCKET
Type of equipment used	PGA121	PGA69	PGA169	PGA132	PGA121	PGA68	PGA68
Dielectric withstand voltage	1000VAC V	1000VAC V	1000VAC V	1000VAC V	1000VAC V	1000VAC V	1000VAC V
Shell material	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE
Insulation resistance	5000000000 Ω	5000000000 Ω	5000000000 Ω	5000000000 Ω	5000000000 Ω	5000000000 Ω	5000000000 Ω
Manufacturer's serial number	545258	545168	545365	545285	545258	545099	545163
Plug contact pitch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Number of contacts	121	69	169	132	121	68	68
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
PCB contact pattern	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
PCB contact row spacing	0.1 mm	0.1 mm	0.1 mm	0.1 mm	0.1 mm	0.1 mm	0.1 mm
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
