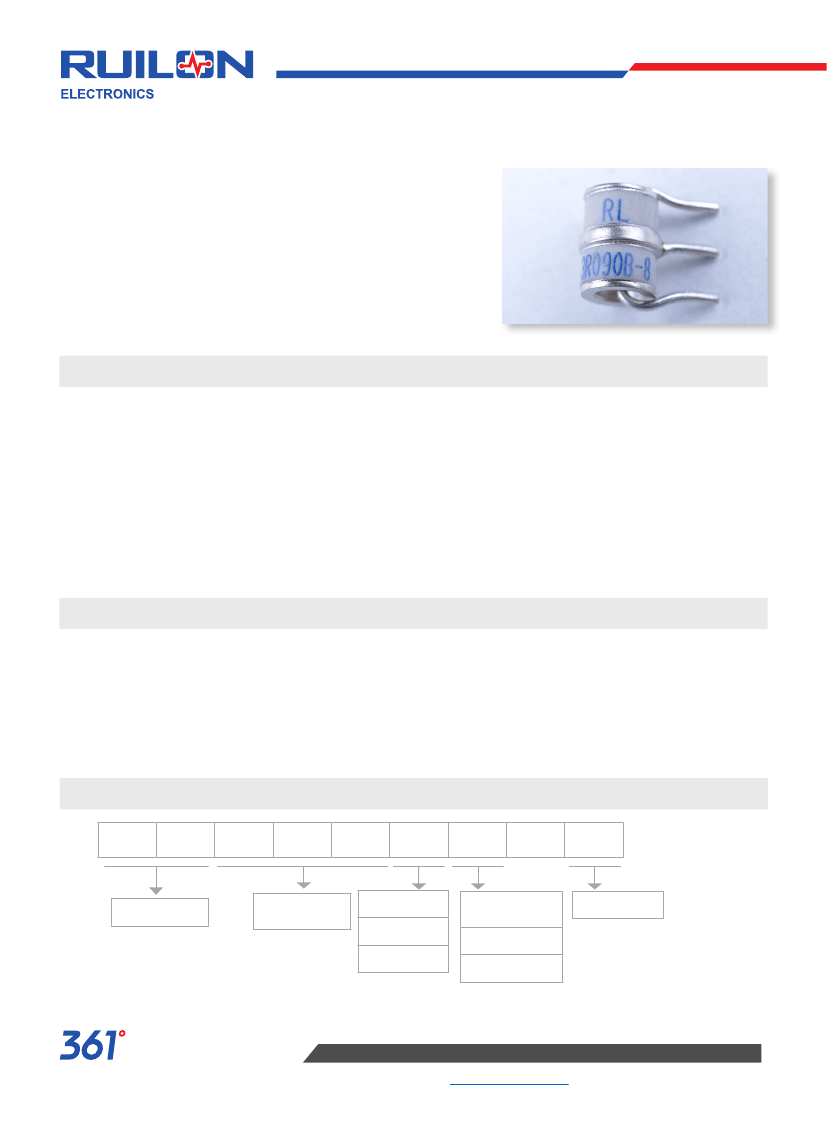

Gas Discharge Tube - 3RB-7 Series
GDT introduction:Gas discharge tubes (GDT) use noble gasses enclosed
in ceramic tubes to provide an alternate circuit path for voltage spikes.The
ceramic envelope and with nickel connectors allow for high loads and Ruilon
offers products that function at 20KA,40KA,50KA,60KA,100KA&150KA.
The breakdown voltages of the devices have a wide range (up to 20%
tolerance).Major applications are high frequency telecommunication
lines,stations, security systems,HID and high quality Surge Protection
Devices (SPD).
Features
1. RoHS & HF compliant
2. Rugged ceramic-metal construction
3. Available with or without leads
4. Available with fail-safe clip
5. DC spark-over voltage:75~600V
6. Low capacitance
7. Agency recognition :UL
8. Operating temperature : -30°C ~ +85°C
Storage temperature: -40°C ~ +115°C
Recommended Applications
1. Cable Modem
2. xDSL
3. Set-Top Box
4. TV sets
5. Power supplier
6. Consumer electronics
Part Number Code
3
R
0
7
5
T
B
-
7
Series
DC Line
Voltage
Lead Type
T=Thrust
S=SMD
Electrical
Characteristics
A=5000A
B=10000A
Dimensions
Circuit Protection
System
Specifications are subject to change without notice.
Please refer to
http://www.ruilon.com
for current information.
Page:1
Gas Discharge Tube - 3RB-7 Series
Electriacl Characteristics
DC
Spark-over
Voltage
100V/S
L Series
3R075LB-7
3R090LB-7
3R150LB-7
3R200LB-7
3R230LB-7
3R250LB-7
3R350LB-7
3R400LB-7
3R470LB-7
3R600LB-7
(V)
75±20%
90±20%
150±20%
200±20%
230±20%
250±20%
350±20%
400±20%
470±20%
600±20%
Max.
Impulse
Breakdown
Voltage
100V/ 1KV/
μs
μs
(V)
600
600
500
500
600
600
700
800
900
1000
(V)
700
700
700
700
700
700
800
900
1000
1100
Max.
Impulse
Discharge
Current
(8/20μs)
10
times
(KA)
10
10
10
10
10
10
10
10
10
10
Impulse
Life(10/
1000μs)
100A
(Times)
300
300
300
300
300
300
300
300
300
300
Normal
Alternating
Discharge
Current
50Hz,1Sec
(A)
10
10
10
10
10
10
10
10
10
10
DC
Holdover
Voltage
<150ms
(V)
52
52
135
135
150
150
150
150
150
150
(GΩ)
10
10
10
10
10
10
10
10
10
10
(pF)
2
2
2
2
2
2
2
2
2
2
Part No.
Minimum
Insulation
Resistance
Maximum
Capacitance
(1MHz)
DC Spark-over Voltage
75-90V
150-400V
420-600V
DC Measuring Voltage
50V
100V
250V
Circuit Protection
System
Specifications are subject to change without notice.
Please refer to
http://www.ruilon.com
for current information.
Page:2
Gas Discharge Tube - 3RB-7 Series
Packaging Bulk
Unit:mm
Plastic Tray
(200x210x10mm)
Inner Box
(210x225x60mm)
Outside Box
(450x245x345mm)
100 PCS/ Plastic Tray
500 PCS/ Box
5,000 PCS/ Carton
Warehouse Storage Conditions of Products
·
Storage Conditions:
1. Storage Temperature: -10°C~+40°C
2. Relative Humidity:≤75%RH
3. Keep away from corrosive atmosphere and sunlight.
·
Period of Storage: 1 year
Circuit Protection
System
Specifications are subject to change without notice.
Please refer to
http://www.ruilon.com
for current information.
Page:4
