WPYP83R09FB: DescriptionFixed Resistor, Wire Wound, 10W, 3.09ohm, 685V, 1% +/-Tol, -100,100ppm/Cel,; CategoryPassive components The resistor; File Size370KB，2 Pages; ManufacturerTT Electronics plc; Websitehttp://www.ttelectronics.com/; Environmental Compliance

Download Datasheet Parametric View All

WPYP83R09FB Overview

Fixed Resistor, Wire Wound, 10W, 3.09ohm, 685V, 1% +/-Tol, -100,100ppm/Cel,

WPYP83R09FB Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	compliant
structure	Cylindrical
Manufacturer's serial number	WPYP
Number of terminals	2
Maximum operating temperature	200 °C
Minimum operating temperature	-55 °C
Package shape	CYLINDRICAL PACKAGE
Package form	SMT
method of packing	Bulk
Rated power dissipation(P)	10 W
resistance	3.09 Ω
Resistor type	FIXED RESISTOR
series	WPYP
technology	WIRE WOUND
Temperature Coefficient	-100,100 ppm/°C
Tolerance	1%
Operating Voltage	685 V

Preview

Download Datasheet

View All

Capacitor Mounting

Wirewound Resistors

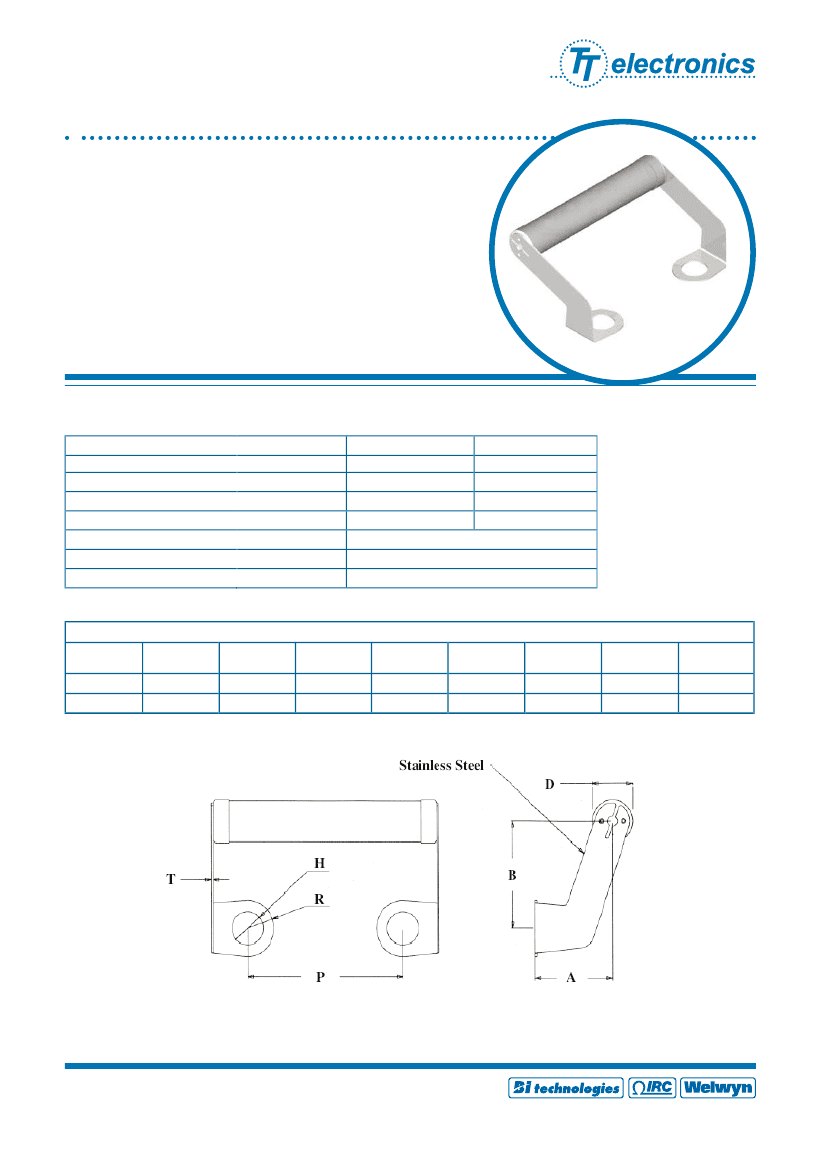

WPYP Series

·

Direct mount on capacitor terminals at

22mm and 32mm pitch

Power dissipation to 13W @ 25°C

Corrosion resistant stainless steel terminals

Good pulse performance

Robust vibration resistant construction

RoHS compliant

Welwyn Components

·

RoHS compliant

Electrical Data

Power rating at 25C

Power rating at 70C

Resistance range

Limiting element voltage

TCR

Resistance Tolerance

Ambient temperature range

watts

ohms

volts

ppm/C

%

C

WPYP8

10

8

WPYP10

13

10

1R0-120K

940V

100

1, 2, 5

-55 to +200

1R0 – 82K

685V

Physical Data

Dimensions in mm, weight in g

P

Type

±1

WPYP8

22

WPYP10

31.8

A

±1

15

B

±1

21

D

±1

9.5

T

±0.05

0.40

R

±0.20

5.35

H

±0.20

6.35

Weight

8

10

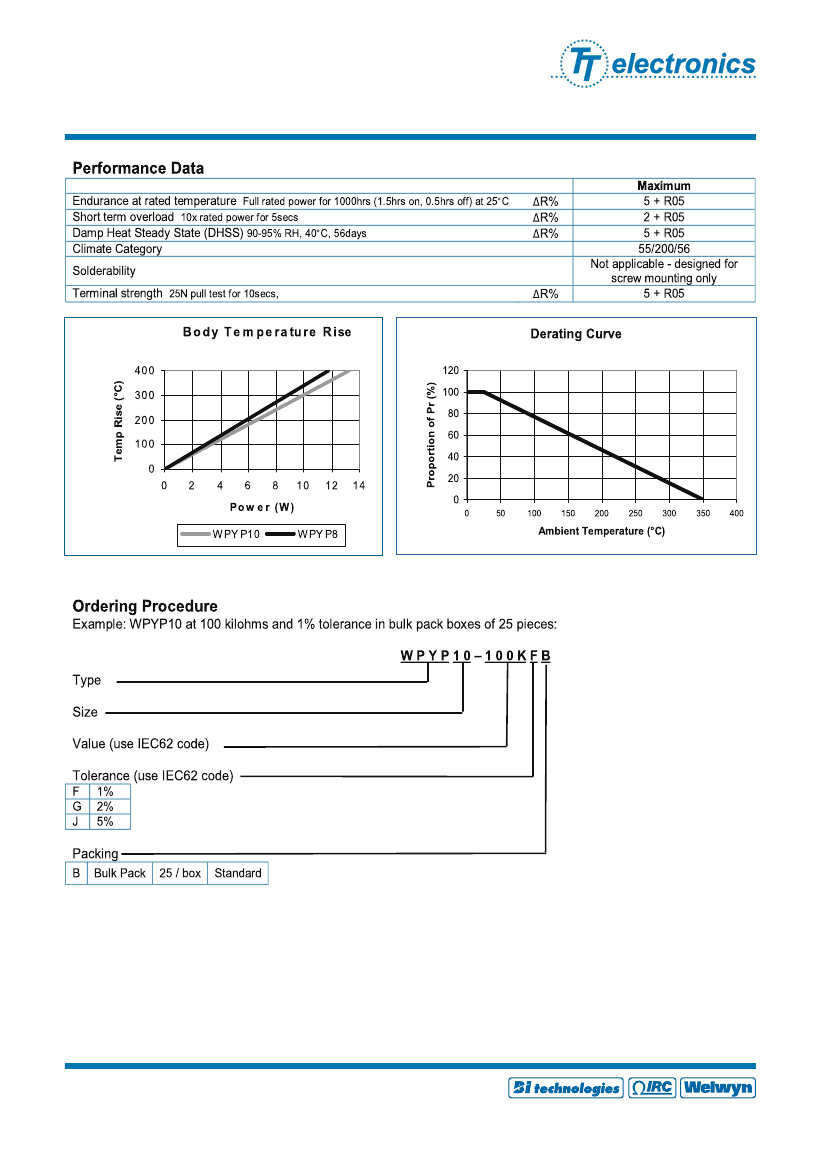

General Note

Welwyn Components reserves the right to make changes in product specification without notice or liability.

TT electronics reserves theto Welwyn’s own data and is considered accurate at time of going to print.

A subsidiary of

All information is subject right to make changes in product specification without notice or liability.

All information is subject to TT electronics’ own data and is considered accurate at time of going to print.

TT electronics plc

www.bitechnologies.com www.irctt.com www.welwyn-tt.com

· Bedlington, Northumberland NE22 7AA, UK

07

09.

07

.

08

Telephone: +44 (0) 1670

822181 · Facsimile: +44 (0) 1670 829465 · Email: info@welwyn-tt.com · Website: www.welwyn-tt.com

09. 11
