59-312: DescriptionITW SWITCHES - 59-312 - SWITCH; PUSHBUTTON; SPST-NO; 400mA; 125V; Categoryunclassified; File Size104KB，3 Pages; ManufacturerETC2

Download Datasheet Compare View All

59-312 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	59-312	-	-	View	Buy Now

59-312 Overview

ITW SWITCHES - 59-312 - SWITCH; PUSHBUTTON; SPST-NO; 400mA; 125V

Preview

Download Datasheet

View All

USHBUTTON

WITCHES

INIATURE

ETAL

ANEL

EALED

USHBUTTON

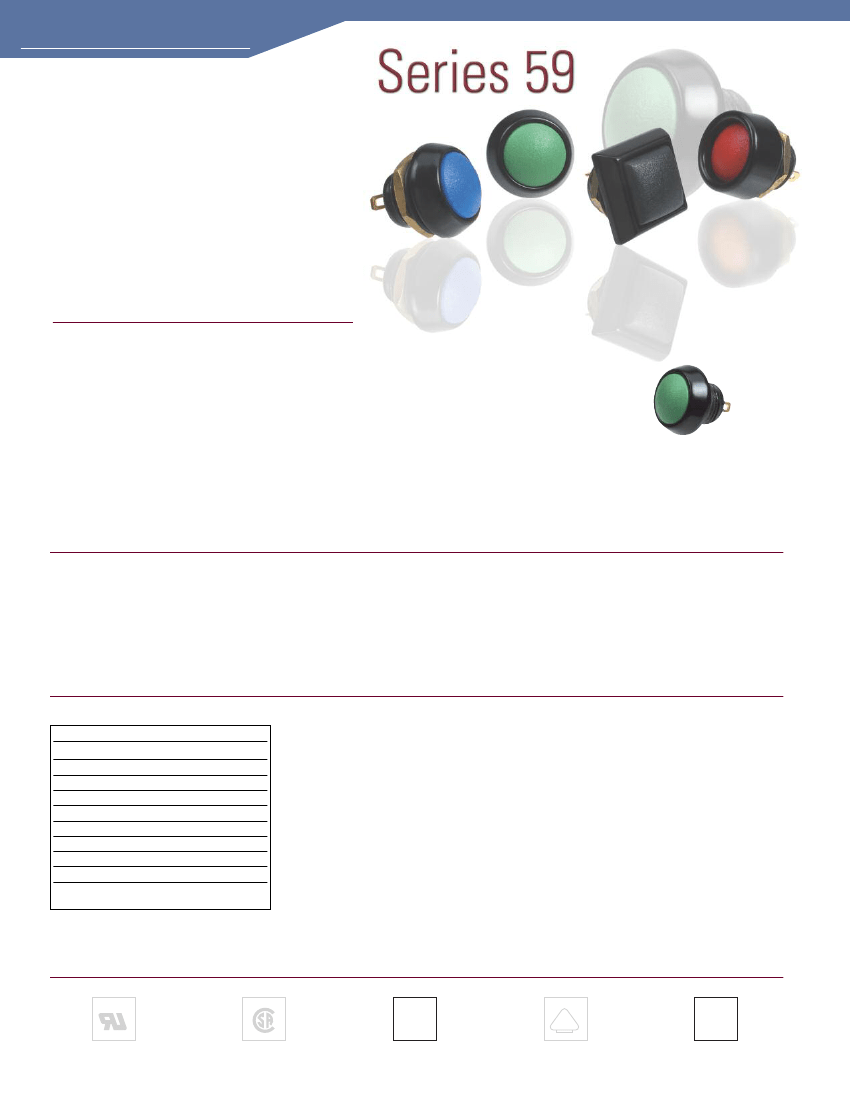

This rugged panel sealed pushbutton is made of

a special high creep strength non-spark zinc

alloy suitable for use in mining or other

potentially explosive atmospheres where

dust and moisture are problematic.

PPLICATIONS

•

Communications

Instrumentation

Data processing

Process controls

Transportation/ Material handling

CTUAL

IZE

EATURES

•

Panel sealed to IP67

Momentary action

Non-spark material

500,000 life cycles @ max power

•

Impact resistant

•

Gold contacts

•

Wide temperature range: –55°C to +125°C

RDERING

NFORMATION

Part Number

59-111

59-112

59-113

59-211

59-212

59-213

59-311

59-312

59-313

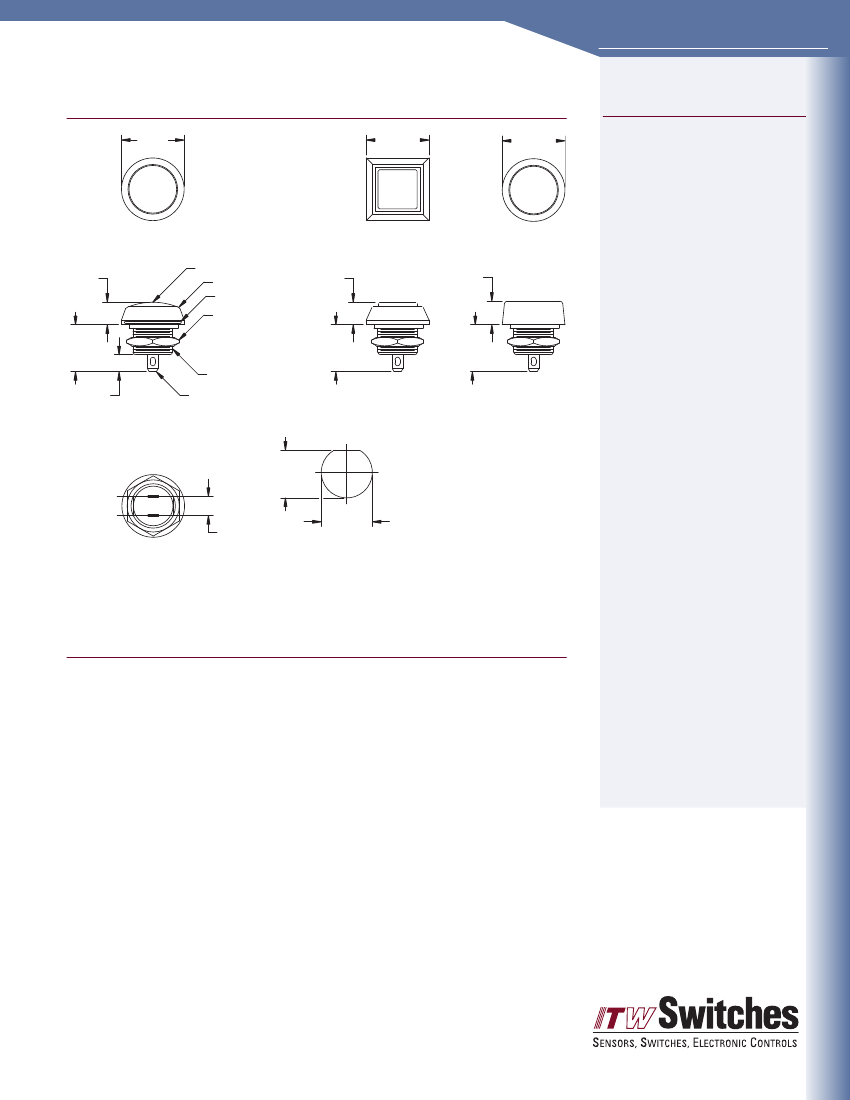

Bezel Style

Round

Square

High Round

Button Color*

Black

Red

Green

Black

Red

Green

Black

Red

Green

*Consult factory for additional colors.

TANDARDS

/ A

GENCY

/ R

ATINGS

RoHS

COMPLIANT

2002 / 95 / EC

D E

IEC

IP67

COMPLIANT

www.itwswitches.com

Contact an Authorized Distributor or Factory for Pricing

59-312 Related Products

	59-312	59-112	59-113	59-212	59-213	59-311	59-313	59-111	59-211
Description	ITW SWITCHES - 59-312 - SWITCH; PUSHBUTTON; SPST-NO; 400mA; 125V	PUSHBUTTON SWITCH, SPST, MOMENTARY, PANEL MOUNT-THREADED	PUSHBUTTON SWITCH, SPST, MOMENTARY, PANEL MOUNT-THREADED	PUSHBUTTON SWITCH, SPST, MOMENTARY, PANEL MOUNT-THREADED	PUSHBUTTON SWITCH, SPST, MOMENTARY, PANEL MOUNT-THREADED	ITW SWITCHES - 59-311 - SWITCH; PUSHBUTTON; SPST-NO; 400mA; 125V	PUSHBUTTON SWITCH, SPST, MOMENTARY, PANEL MOUNT-THREADED	PUSHBUTTON SWITCH, SPST, MOMENTARY, PANEL MOUNT-THREADED	PUSHBUTTON SWITCH, SPST, MOMENTARY, PANEL MOUNT-THREADED
Maximum operating temperature	-	125 Cel	125 Cel	125 Cel	125 Cel	-	125 Cel	125 Cel	125 Cel
Minimum operating temperature	-	-40 Cel	-40 Cel	-40 Cel	-40 Cel	-	-40 Cel	-40 Cel	-40 Cel
Maximum AC contact current	-	0.4000 A	0.4000 A	0.4000 A	0.4000 A	-	0.4000 A	0.4000 A	0.4000 A
Maximum AC contact voltage	-	32 V	32 V	32 V	32 V	-	32 V	32 V	32 V
state	-	ACTIVE	ACTIVE	ACTIVE	ACTIVE	-	ACTIVE	ACTIVE	ACTIVE
seal	-	IP67	IP67	IP67	IP67	-	IP67	IP67	IP67
Electrical life	-	500000 Cycle(s)	500000 Cycle(s)	500000 Cycle(s)	500000 Cycle(s)	-	500000 Cycle(s)	500000 Cycle(s)	500000 Cycle(s)
switch function	-	single pole single throw	single pole single throw	single pole single throw	single pole single throw	-	single pole single throw	SPST	single pole single throw
terminal coating	-	gold	gold	gold	gold	-	gold	GOLD	gold
Manufacturer Series	-	59	59	59	59	-	59	59	59
Control valve	-	BUTTON TYPE	BUTTON TYPE	BUTTON TYPE	BUTTON TYPE	-	BUTTON TYPE	BUTTON TYPE	BUTTON TYPE
high	-	13 mm	13 mm	13 mm	13 mm	-	13 mm	13 mm	13 mm
length or diameter	-	17.45 mm	17.45 mm	17.45 mm	17.45 mm	-	17.45 mm	17.45 mm	17.45 mm
Installation features	-	Threaded mounting panel	Threaded mounting panel	Threaded mounting panel	Threaded mounting panel	-	Threaded mounting panel	PANEL MOUNT-THREADED	Threaded mounting panel
maximum control	-	3 N	3 N	3 N	3 N	-	3 N	3 N	3 N
Switch action	-	Transient	Transient	Transient	Transient	-	Transient	MOMENTARY	Transient
Switch type	-	power switch button	power switch button	power switch button	power switch button	-	power switch button	PUSHBUTTON SWITCH	power switch button
Terminal type	-	welding	welding	welding	welding	-	welding	SOLDER	welding
