ERJ1G0201 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> ERJ1G0201

ERJ1G0201: DescriptionRESISTOR, METAL GLAZE/THICK FILM, 0.1 W, 1 %, 100 ppm, 240 ohm, SURFACE MOUNT, 0402; CategoryPassive components; File Size257KB，6 Pages; ManufacturerPanasonic; Websitehttp://www.panasonic.co.jp/semicon/e-index.html

Download Datasheet Parametric Compare View All

ERJ1G0201 Overview

RESISTOR, METAL GLAZE/THICK FILM, 0.1 W, 1 %, 100 ppm, 240 ohm, SURFACE MOUNT, 0402

ERJ1G0201 Parametric

Parameter Name	Attribute value
Maximum operating temperature	155 Cel
Minimum operating temperature	-55 Cel
Processing package description	CHIP, ROHS COMPLIANT
Lead-free	Yes
EU RoHS regulations	Yes
state	ACTIVE
packaging shape	RECTANGULAR PACKAGE
Terminal shape	WRAPAROUND
terminal coating	MATTE TIN OVER NICKEL
Installation features	SURFACE MOUNT
Rated temperature	70 Cel
Manufacturer Series	ERJ2R
size code	0402
deviation	1 %
resistance	240 ohm
Craftsmanship	METAL GLAZE/THICK FILM
Resistor type	RESISTOR
Operating Voltage	50 V
Temperature Coefficient	100
Rated power P	0.1000 W

Preview

Download Datasheet

View All

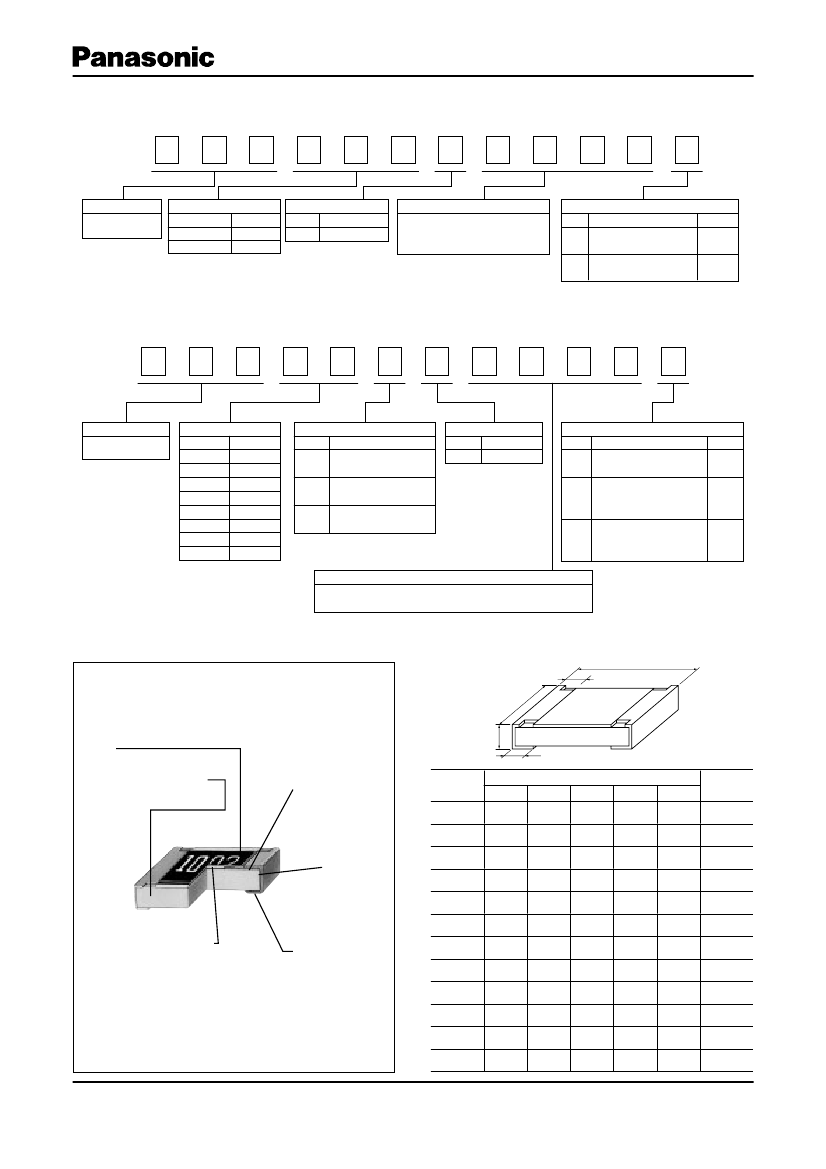

Precision Thick Film Chip Resistors

ERJ G : 01005, 0201

ERJ R : 0201, 0402, 0603, 0805

ERJ E : 0603, 0805, 1206,

1210, 1812, 2010, 2512

Type:

ERJ XG, 1G

ERJ 1R, 2R, 3R, 6R

ERJ 3E, 6E, 8E, 14, 12, 1T

■

Features

●

Small size and lightweight

●

High reliability

Metal glaze thick ﬁ lm resistive element and three

layers of electrodes

●

Compatible with placement machines

Taping packaging available

●

Suitable for both reﬂow and ﬂow soldering

●

Low Resistance Tolerance

ERJXG, 1G, 2R, 3E, 6E, 8E, 14, 12, 1T Series ..... ±1 %

ERJ1R, 2R, 3R, 6R Series .............................. ±0.5 %

●

Reference Standards

IEC 60115-8, JIS C 5201-8

■

Explanation of Part Numbers

For existing customers, we continue to use the three-digit resistance code in the part numbers.

●

ERJ1R, 2R, 3R, 6R Series, ±0.5 % type

Product Code

Thick Film

Chip Resistors

Size, Power Rating

Type: inches

1R : 0201

2R : 0402

3R : 0603

6R : 0805

Power R.

0.05 W

0.063 W

0.1 W

Code

T.C.R. Marking

T.C.R.

±50

–6

/˚C(ppm/˚C)

(1R, 2R)

±50

–6

/˚C(ppm/˚C)

(3R, 6R)

±100

–6

/˚C(ppm/˚C)

(1R, 2R)

±100

–6

/˚C(ppm/˚C)

(3R, 6R)

Resistance Tolerance

Code

Tolerance

±0.5

Code

Packaging Methods

Packaging

Pressed Carrier Taping

2 mm pitch

Punched Carrier Taping

2 mm pitch

Punched Carrier Taping

4 mm pitch

Type

ERJ1R

ERJ2R

ERJ3R

ERJ6R

Resistance Value

The first three digits are significant figures of resistance

and the last one denotes number of zeros following.

Example: 1002 10 k

Design and speciﬁcations are each subject to change without notice. Ask factory for the current technical speciﬁcations before purchase and/or use.

Should a safety concern arise regarding this product, please be sure to contact us immediately.

Mar. 2008

ERJ1G0201 Related Products

	ERJ1G0201	ERJ1TN2512	ERJ3EK0603	ERJ6EN0805	ERJ8EN1206	ERJ2RK0402	ERJXG01005
Description	RESISTOR, METAL GLAZE/THICK FILM, 0.1 W, 1 %, 100 ppm, 240 ohm, SURFACE MOUNT, 0402	RESISTOR, METAL GLAZE/THICK FILM, 0.1 W, 1 %, 100 ppm, 240 ohm, SURFACE MOUNT, 0402	RESISTOR, METAL GLAZE/THICK FILM, 0.1 W, 1 %, 100 ppm, 240 ohm, SURFACE MOUNT, 0402	RESISTOR, METAL GLAZE/THICK FILM, 0.1 W, 1 %, 100 ppm, 240 ohm, SURFACE MOUNT, 0402	RESISTOR, METAL GLAZE/THICK FILM, 0.1 W, 1 %, 100 ppm, 240 ohm, SURFACE MOUNT, 0402	RESISTOR, METAL GLAZE/THICK FILM, 0.1 W, 1 %, 100 ppm, 240 ohm, SURFACE MOUNT, 0402	RESISTOR, METAL GLAZE/THICK FILM, 0.1 W, 1 %, 100 ppm, 240 ohm, SURFACE MOUNT, 0402
Maximum operating temperature	155 Cel	155 Cel	155 Cel	155 Cel	155 Cel	155 Cel	155 Cel
Minimum operating temperature	-55 Cel	-55 Cel	-55 Cel	-55 Cel	-55 Cel	-55 Cel	-55 Cel
Processing package description	CHIP, ROHS COMPLIANT	CHIP, ROHS COMPLIANT	CHIP, ROHS COMPLIANT	CHIP, ROHS COMPLIANT	CHIP, ROHS COMPLIANT	CHIP, ROHS COMPLIANT	CHIP, ROHS COMPLIANT
Lead-free	Yes	Yes	Yes	Yes	Yes	Yes	Yes
EU RoHS regulations	Yes	Yes	Yes	Yes	Yes	Yes	Yes
state	ACTIVE	ACTIVE	ACTIVE	ACTIVE	ACTIVE	ACTIVE	ACTIVE
packaging shape	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE
Terminal shape	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND
terminal coating	MATTE TIN OVER NICKEL	MATTE TIN OVER NICKEL	MATTE TIN OVER NICKEL	MATTE TIN OVER NICKEL	MATTE TIN OVER NICKEL	MATTE TIN OVER NICKEL	MATTE TIN OVER NICKEL
Installation features	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Rated temperature	70 Cel	70 Cel	70 Cel	70 Cel	70 Cel	70 Cel	70 Cel
Manufacturer Series	ERJ2R	ERJ2R	ERJ2R	ERJ2R	ERJ2R	ERJ2R	ERJ2R
size code	0402	0402	0402	0402	0402	0402	0402
deviation	1 %	1 %	1 %	1 %	1 %	1 %	1 %
resistance	240 ohm	240 ohm	240 ohm	240 ohm	240 ohm	240 ohm	240 ohm
Craftsmanship	METAL GLAZE/THICK FILM	METAL GLAZE/THICK FILM	METAL GLAZE/THICK FILM	METAL GLAZE/THICK FILM	METAL GLAZE/THICK FILM	METAL GLAZE/THICK FILM	METAL GLAZE/THICK FILM
Resistor type	RESISTOR	RESISTOR	RESISTOR	RESISTOR	RESISTOR	RESISTOR	RESISTOR
Operating Voltage	50 V	50 V	50 V	50 V	50 V	50 V	50 V
Temperature Coefficient	100	100	100	100	100	100	100
Rated power P	0.1000 W	0.1000 W	0.1000 W	0.1000 W	0.1000 W	0.1000 W	0.1000 W
