Light Touch Switches/EVQP0/Q2
6 mm Square Thin Type SMD
Light Touch Switches
Type:
EVQP0
EVQQ2
■
Features
●
External dimensions : 6.5 mm 6.0 mm, Height 1.8 mm
(Excluding the push plate)
●
With or without ground terminal, height, operating force
●
Overstroke travel
■
Recommended Applications
●
Operating switches for other electronic equipment
●
Operation switches for PC mouse
●
Car audio systems
■
Explanation of Part Numbers
1
2
3
4
5
6
7
8
9
E
V
Product Code
Q
P
Q
0
2
Height
Push Plate Color
4th & 5th
P0
Q2
Type
Overstroke travel
Short push travel
■
Specifications
Travel Type
Type
Rating
Contact Resistance
Electrical
Insulation Resistance
Dielectric Withstanding Voltage
Bouncing
Operating Force
Mechanical
Travel
Endurance
Operating Life
Short Push Travel
Overstroke Travel
Snap action/Push-on type SPST
10 µA 2 Vdc to 20 mA 15 Vdc (Resistive load)
100 m
100 M
max.
min. (at 100 Vdc)
250 Vac for 1 minute
10 ms max. (ON, OFF)
0.5 N, 1.0 N, 1.3 N,
0.6 N, 1.0 N
1.6 N, 2.6 N, 3.5 N
0.25 mm (0.2 mm : 0.5N, 1.0N)
0.3 mm
0.5 N : 2000000 cycles min.
1.0 N, 1.3 N, 1.6 N : 1000000 cycles min.
2.6 N : 200000 cycles min.
3.5 N : 100000 cycles min.
0.6 N : 2000000 cycles min.
1.0 N : 1000000 cycles min.
Operating Temperature
Storage Temperature
Minimum Quantity/Packing Unit
Quantity/Carton
Note: Non washable
–40 °C to +85 °C
–40 °C to +85 °C (Bulk)
–20 °C to +60 °C (Taping)
H=2.0 mm
H=2.5 mm, 3.1 mm
H=2.0 mm
H=2.5 mm, 3.1 mm
4000 pcs. Embossed Taping (Reel Pack)
2000 pcs. Embossed Taping (Reel Pack)
20000 pcs.
10000 pcs.
Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.
Should a safety concern arise regarding this product, please be sure to contact us immediately.
00
Oct. 2012
– ES76 –

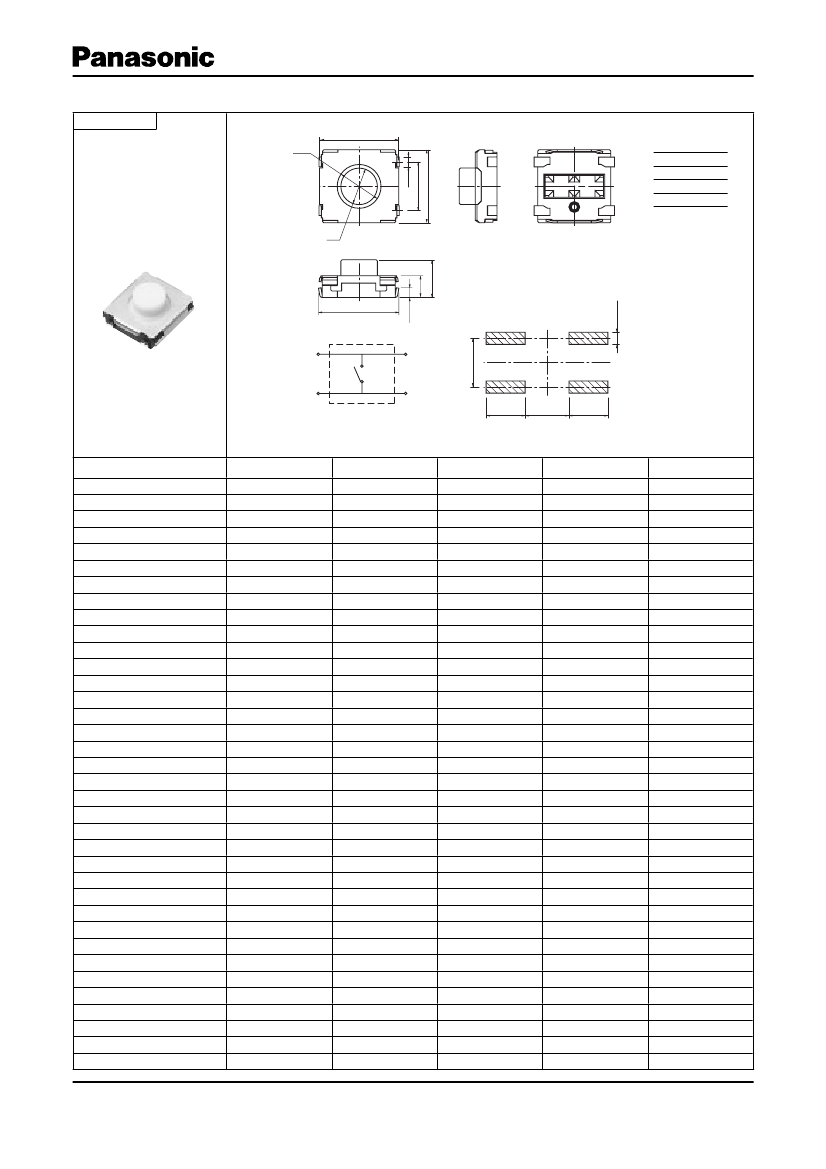

Light Touch Switches/EVQP0/Q2
■
Dimensions in mm (not to scale)
No. 1
EVQP0
Overstroke travel : 0.35 mm
With J-bent terminals
φ3
0.8
4.0
6.0
6.5
B
B'
A
φ2
1.8
2.5
A'
(6.6)
(0.8)
B
B'
A
Circuit Diagram
A'
4.0
(3.2)
(3.6)
(3.2)
PWB land pattern for reference
Part Numbers
EVQP0N02B
EVQP0P02B
EVQP0Q02Q
EVQP0S02Q
Operating Force
0.6 N
0.6 N
1.0 N
1.0 N
Height
2.5 mm
2.5 mm
2.5 mm
2.5 mm
Push Plate Color Ground Terminal
Blue
Blue
Gray
Gray
Without
With
Without
With
1 min.
Operating Life
2000000 cycles
2000000 cycles
1000000 cycles
1000000 cycles
Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.
Should a safety concern arise regarding this product, please be sure to contact us immediately.
00
Oct. 2012
– ES77 –
Light Touch Switches/EVQP0/Q2
■
Dimensions in mm (not to scale)
No. 2
6.5
EVQQ2
Short push travel : 0.25 mm
With J-bent terminals
φ3.8
B
0.8
4.0
6.0
B'
A
φ3
A'
Height
H
2.0±0.2
2.5±0.2
3.1±0.2
(0.8)
1.8
H
(6.6)
A
A'
(3.2)
Circuit Diagram
(3.6)
(3.2)
4.0
B
B'
PWB land pattern for reference
Part Numbers
EVQQ2B01W
EVQQ2B02W
EVQQ2B03W
EVQQ2D01W
EVQQ2D02W
EVQQ2D03W
EVQQ2F01W
EVQQ2F02W
EVQQ2F03W
EVQQ2H01W
EVQQ2H02W
EVQQ2H03W
EVQQ2K01W
EVQQ2K02W
EVQQ2K03W
EVQQ2M01W
EVQQ2M02W
EVQQ2M03W
EVQQ2P01W
EVQQ2P02W
EVQQ2P03W
EVQQ2S01W
EVQQ2S02W
EVQQ2S03W
EVQQ2U01W
EVQQ2U02W
EVQQ2U03W
EVQQ2W01W
EVQQ2W02W
EVQQ2W03W
EVQQ2Y01W
EVQQ2Y02W
EVQQ2Y03W
EVQQ2201W
EVQQ2202W
EVQQ2203W
Operating Force
0.5 N
0.5 N
0.5 N
0.5 N
0.5 N
0.5 N
1.0 N
1.0 N
1.0 N
1.0 N
1.0 N
1.0 N
1.3 N
1.3 N
1.3 N
1.3 N
1.3 N
1.3 N
1.6 N
1.6 N
1.6 N
1.6 N
1.6 N
1.6 N
2.6 N
2.6 N
2.6 N
2.6 N
2.6 N
2.6 N
3.5 N
3.5 N
3.5 N
3.5 N
3.5 N
3.5 N
H=Height
2.0 mm
2.5 mm
3.1 mm
2.0 mm
2.5 mm
3.1 mm
2.0 mm
2.5 mm
3.1 mm
2.0 mm
2.5 mm
3.1 mm
2.0 mm
2.5 mm
3.1 mm
2.0 mm
2.5 mm
3.1 mm
2.0 mm
2.5 mm
3.1 mm
2.0 mm
2.5 mm
3.1 mm
2.0 mm
2.5 mm
3.1 mm
2.0 mm
2.5 mm
3.1 mm
2.0 mm
2.5 mm
3.1 mm
2.0 mm
2.5 mm
3.1 mm
Push Plate Color Ground Terminal
White
Without
White
Without
White
Without
White
With
White
With
White
With
White
Without
White
Without
White
Without
White
With
White
With
White
With
White
Without
White
Without
White
Without
White
With
White
With
White
With
White
Without
White
Without
White
Without
White
With
White
With
White
With
White
Without
White
Without
White
Without
White
With
White
With
White
With
White
Without
White
Without
White
Without
White
With
White
With
White
With
1 min.
Operating Life
2000000 cycles
2000000 cycles
2000000 cycles
2000000 cycles
2000000 cycles
2000000 cycles
1000000 cycles
1000000 cycles
1000000 cycles
1000000 cycles
1000000 cycles
1000000 cycles
1000000 cycles
1000000 cycles
1000000 cycles
1000000 cycles
1000000 cycles
1000000 cycles
1000000 cycles
1000000 cycles
1000000 cycles
1000000 cycles
1000000 cycles
1000000 cycles
200000 cycles
200000 cycles
200000 cycles
200000 cycles
200000 cycles
200000 cycles
100000 cycles
100000 cycles
100000 cycles
100000 cycles
100000 cycles
100000 cycles
Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.
Should a safety concern arise regarding this product, please be sure to contact us immediately.
00
Oct. 2012
– ES78 –

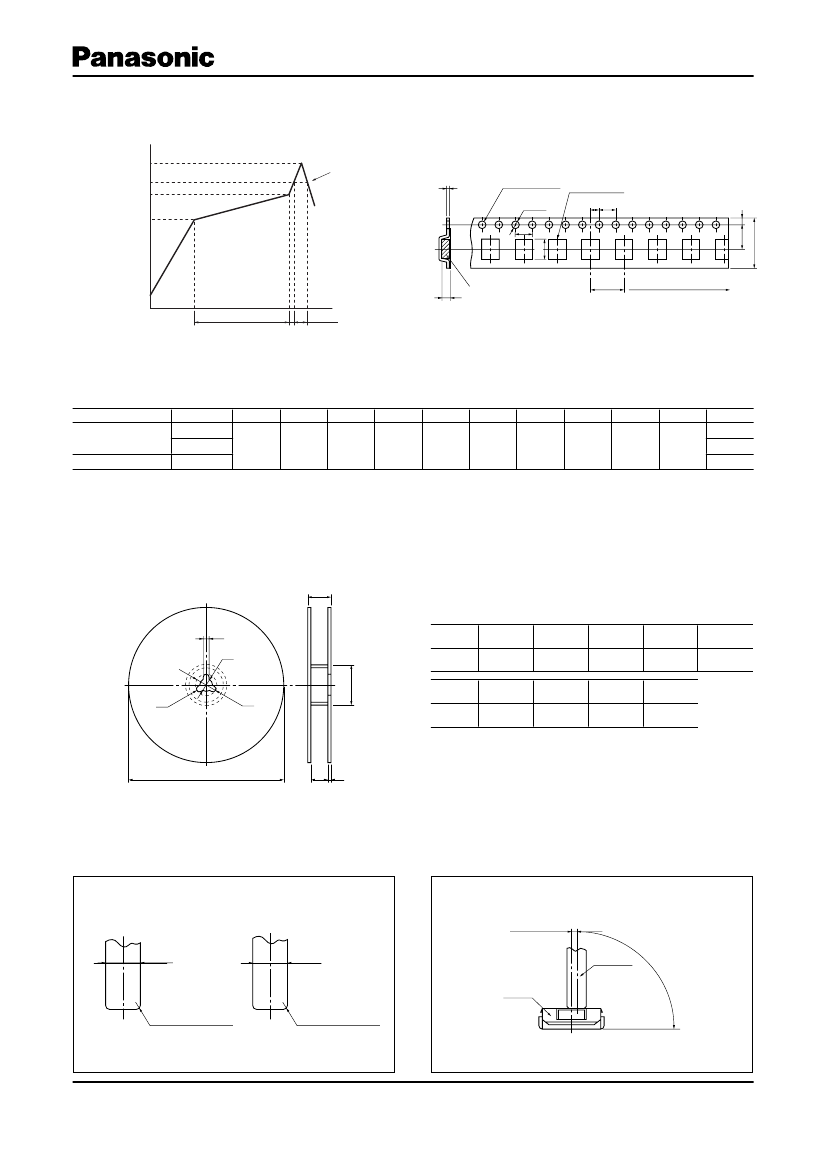

Light Touch Switches/EVQP0/Q2
■
Recommended Reflow Soldering Conditions
●
Embossed Carrier Taping
MAX.
260
Operation Top (°C)
230
180
150
A
B
F
W
P
1
Tape running direction
Unit: mm
Part No.
EVQQ2
EVQP0
Height
2.0
2.5/3.1
2.5
6.7±0.2
7.4±0.2
12.0±0.3
5.5±0.1 1.75±0.10 8.0±0.1
2.0±0.1
4.0±0.1
1.5
+0.1
_0
Fan or Normal Temp.
Tape width=12.0 mm
t
1
Feeding hole
φD
0
Chip pocket
P
2
P
0
E
t
2
Chip component
(Normal Temp.)
90±30
Soldering Time (s)
40±10
A
B
W
F
E
P
1
P
2
P
0
D
0 Dia
t
1
t
2
2.2±0.2
0.30±0.05 3.2±0.2
2.8±0.2
●
Standard Reel Dimensions in mm (not to scale)
T
E
C
B
Item
A
B
C
φ13.0±0.5
t
—
D
φ21.0±1.0
r
—
E
2.0±0.5
Rate (mm)
φ380.0±2.0 φ80.0±1.0
Item
Rate (mm)
W
13.5±1.0
T
17.5±1.0
r
D
A
W
t
■
Recommended Shape of Test Pole
2 mm Type
2.5 mm, 3.1 mm Type
■
Recommended Operating Conditions
0.3 mm max.
φ3
+0
–0.5
φ4
+0.5
–0
Leaning angle range
90
°±4 °
(vertical direction)
Test pole
Switch
R0.1 mm±0.05 mm
R0.1 mm±0.05 mm
Mounting surface
Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.
Should a safety concern arise regarding this product, please be sure to contact us immediately.
00
Oct. 2012
– ES79 –
