RF AMPLIFIER

MODEL

TM9511

Features

Low Noise Figure: 2.3 dB Typical

Operating Temp. - 55 ºC to + 85 ºC

Environmental Screening Available

Available as:

TM9511, 4 Pin TO-8 (T4)

TN9511, 4 Pin Surface Mount (SM3)

FP9511, 4 Pin Flatpack (FP4)

BX9511, Connectrized Housing (H1)

Typical Intermodulation Performance at 25 º C

Second Order Harmonic Intercept Point........+21 dBm (Typ.)

Second Order Two Tone Intercept Point.........+16 dBm (Typ.)

Third Order Two Tone Intercept Point.............+14 dBm (Typ.)

Specifications

CHARACTERISTIC

Frequency

Gain (dB)

Power @ 1 dB

Comp. (dBm)

Reverse

Isolation (dB)

VSWR

Out

Noise figure (dB)

Power

Vdc

TYPICAL

Ta= 25

ºC

5 - 1000 MHz

16.5

-18.5

<1.5:1

2.3

+15

9.5

MIN/MAX

Ta = -55

ºC

to +85

ºC

5 - 1000 MHz

15.0 Min.

-1 Min.

-18 Max.

2.0:1 Max.

3.0 Max.

+15

11 Max.

Maximum Ratings

Ambient Operating Temperature .............. -55ºC to + 100 ºC

Storage Temperature ............................... -62ºC to + 125 ºC

Case Temperature ................................................. + 125 ºC

DC Voltage ......................................................... + 18 Volts

Continuous RF Input Power ................................. + 13 dBm

Short Term RF Input Power ...... 50 Milliwatts (1 Minute Max.)

Maximum Peak Power..................0.5 Wattts (3

µsec

Max.)

Note: Care should always be taken to effectively ground the case of each unit.

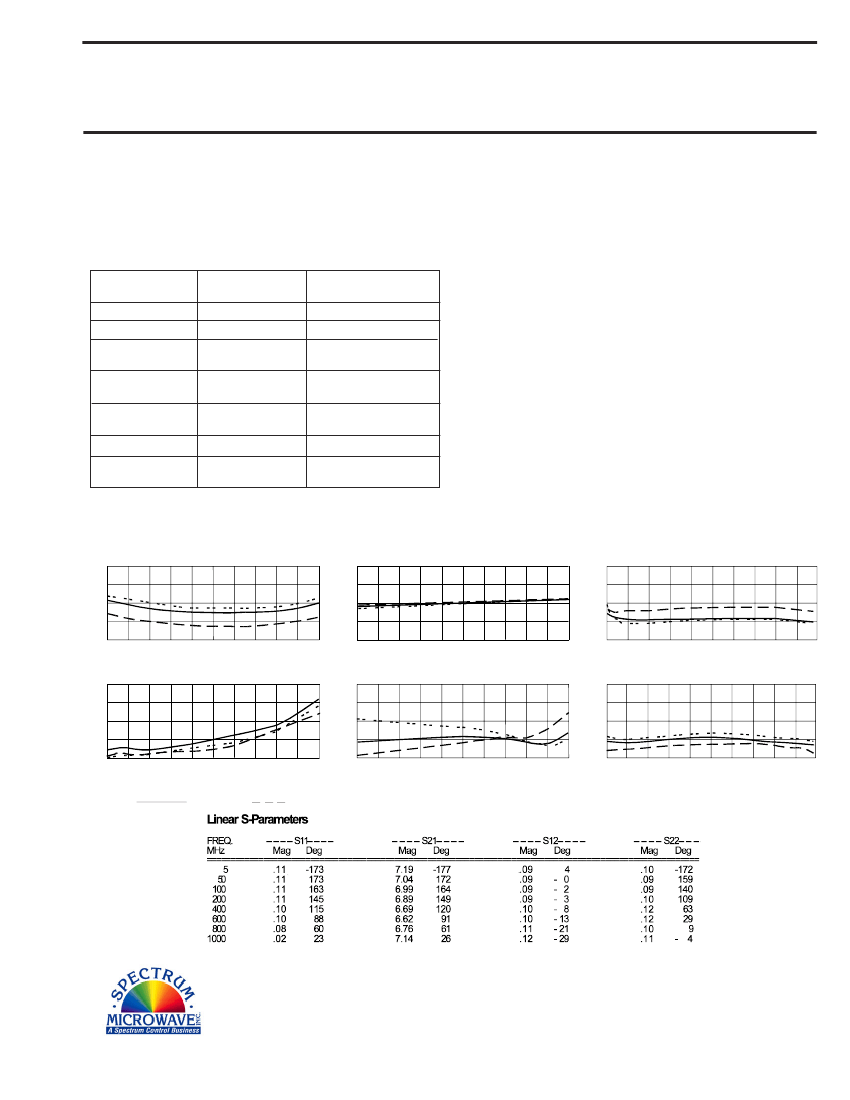

Typical Performance Data

Gain (dB)

Start 5 MHz

Stop 1000 MHz

- 10

- 20

- 30

- 40

Reverse Isolation (dB)

Noise Figure (dB)

Start 5 MHz

Stop 1000 MHz

Start 5 MHz

Stop 1000 MHz

1 dB Comp. (dBm)

+ 8

+ 6

+ 4

+ 2

Start 5 MHz

Stop 1000 MHz

2.0

1.5

1.0

Start 5 MHz

Input VSWR

2.0

1.5

1.0

Stop 1000 MHz

Start 5 MHz

Output VSWR

Stop 1000 MHz

Legend

+ 25 ºC

+ 85 ºC - - - - - - -55 ºC

Spectrum Microwave · 2144 Franklin Drive N.E. · Palm Bay, Florida 32905 · PH (888) 553-7531 · Fax (888) 553-7532

04/13/05

www.spectrummicrowave.com

Spectrum Microwave (Europe) · 2707 Black Lake Place · Philadelphia, Pa. 19154 · PH (215) 464-4000 · Fax (215) 464-4001
