5962-01-286-1596 datasheet, PDF

Datasheet> All Categories > storage> storage> 5962-01-286-1596

5962-01-286-1596: DescriptionStandard SRAM, 16KX4, 85ns, CMOS, CDIP22; Categorystorage storage; File Size546KB，7 Pages; ManufacturerIDT (Integrated Device Technology)

Download Datasheet Parametric Compare View All

5962-01-286-1596 Overview

Standard SRAM, 16KX4, 85ns, CMOS, CDIP22

5962-01-286-1596 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
package instruction	DIP, DIP22,.3
Reach Compliance Code	not_compliant
ECCN code	3A001.A.2.C
Maximum access time	85 ns
I/O type	COMMON
JESD-30 code	R-XDIP-T22
JESD-609 code	e0
memory density	65536 bit
Memory IC Type	STANDARD SRAM
memory width	4
Number of terminals	22
word count	16384 words
character code	16000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
organize	16KX4
Output characteristics	3-STATE
Package body material	CERAMIC
encapsulated code	DIP
Encapsulate equivalent code	DIP22,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Parallel/Serial	PARALLEL
Peak Reflow Temperature (Celsius)	225
power supply	5 V
Certification status	Not Qualified
Filter level	38535Q/M;38534H;883B
Maximum standby current	0.02 A
Minimum standby current	4.5 V
Maximum slew rate	0.14 mA
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	MILITARY
Terminal surface	TIN LEAD
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	30

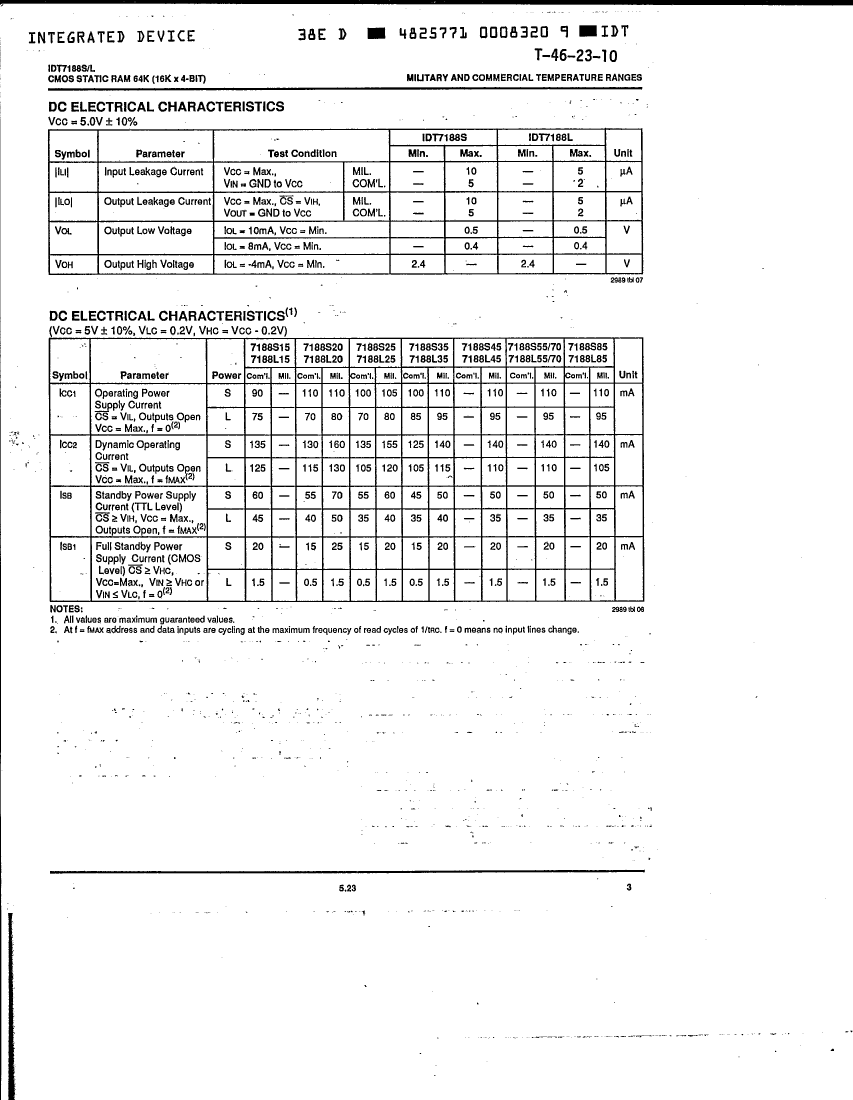

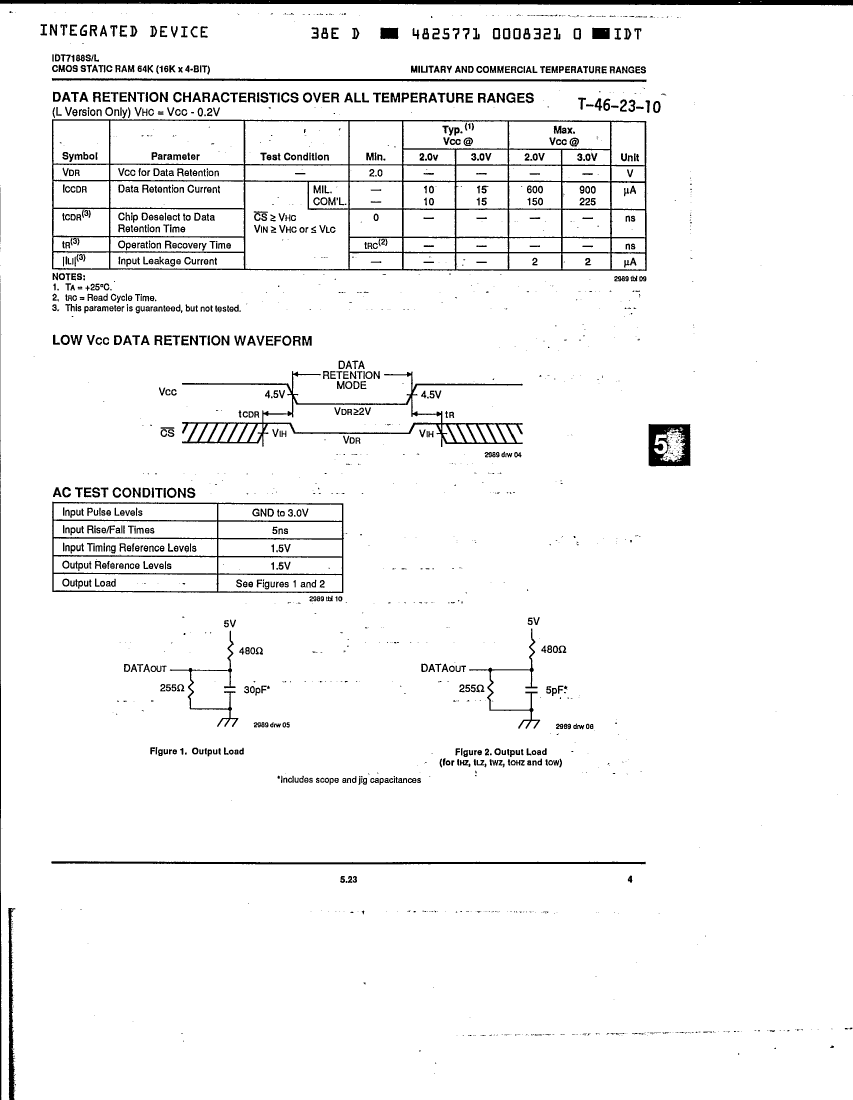

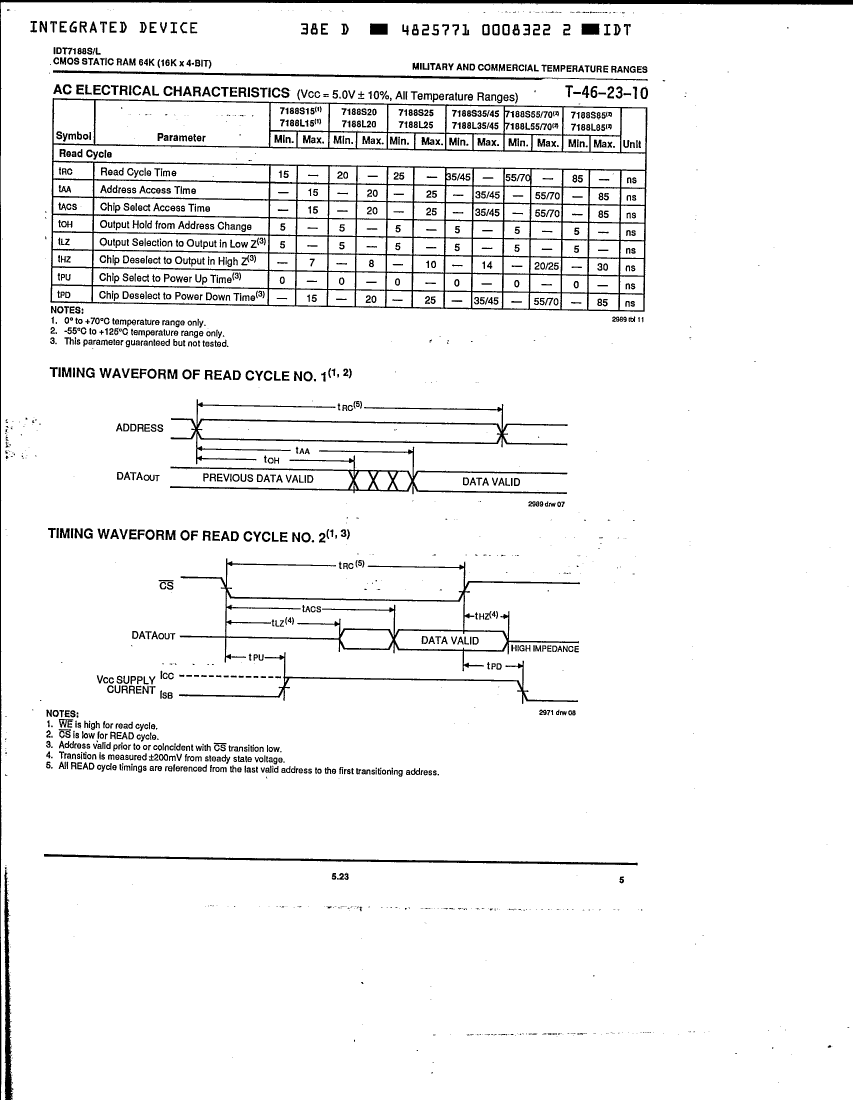

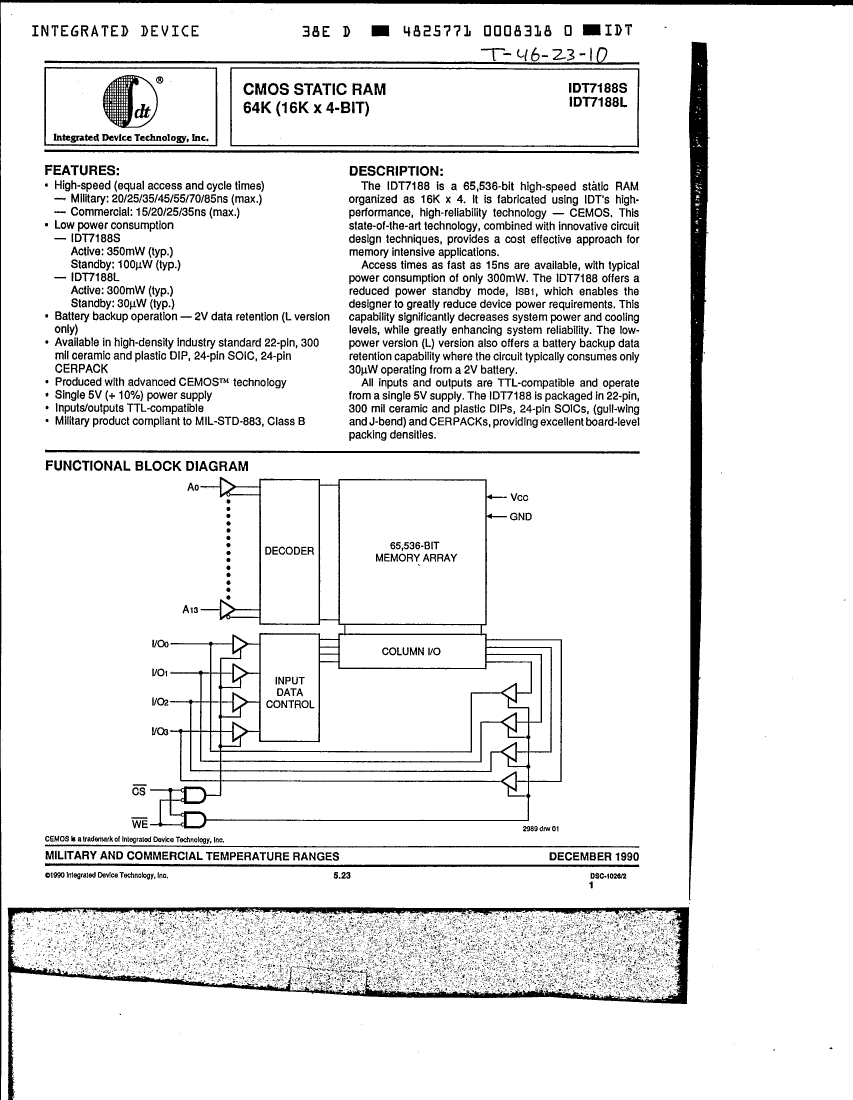

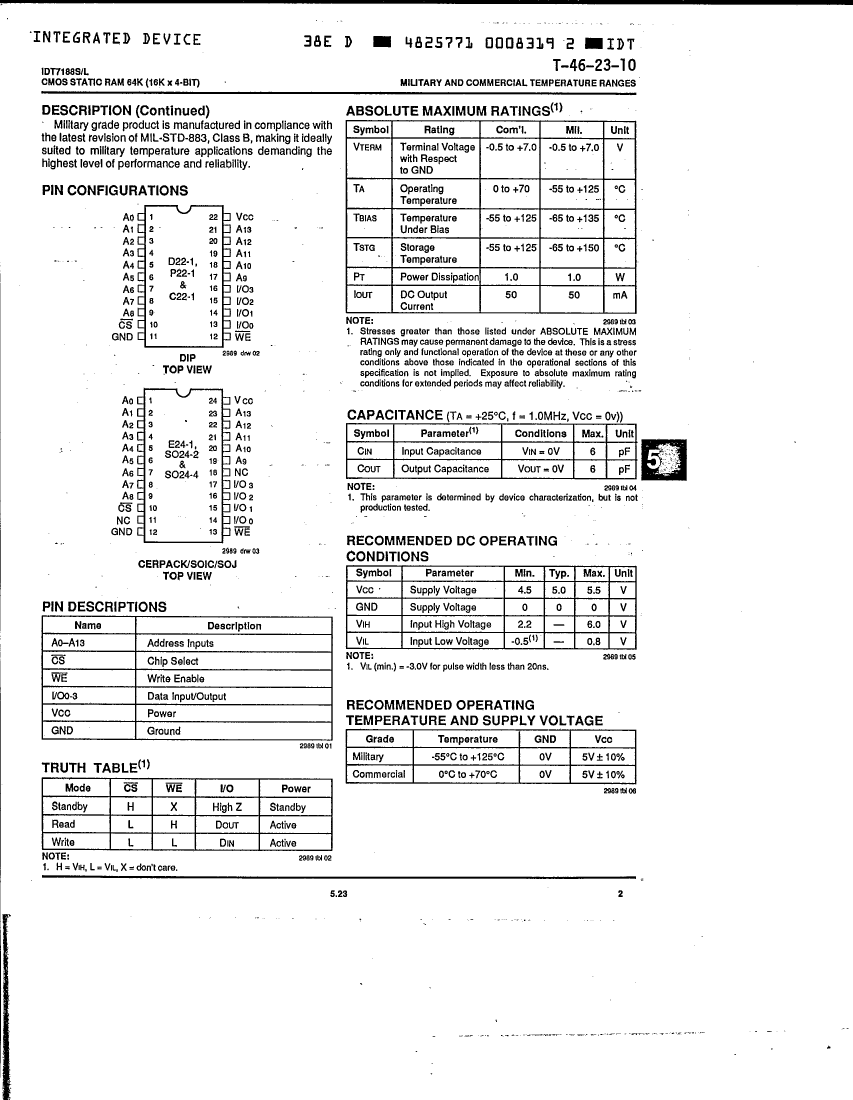

Preview

Download Datasheet

View All

5962-01-286-1596 Related Products

	5962-01-286-1596	5962-01-389-1107	IDT7188LF	IDT7188LRT	IDT7188SF	IDT7188SRT	5962-01-326-2473
Description	Standard SRAM, 16KX4, 85ns, CMOS, CDIP22	Standard SRAM, 16KX4, 45ns, CMOS, CDIP22	Standard SRAM, 16KX4, CMOS	Standard SRAM, 16KX4, CMOS	Standard SRAM, 16KX4, CMOS	Standard SRAM, 16KX4, CMOS	Standard SRAM, 16KX4, 55ns, CMOS, CDIP22
Is it lead-free?	Contains lead	Contains lead	Lead free	Contains lead	Contains lead	Contains lead	Contains lead
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Reach Compliance Code	not_compliant	_compli	not_compliant	not_compliant	not_compliant	not_compliant	not_compliant
I/O type	COMMON	COMMON	COMMON	COMMON	COMMON	COMMON	COMMON
memory density	65536 bit	65536 bi	65536 bit	65536 bit	65536 bit	65536 bit	65536 bit
Memory IC Type	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM
memory width	4	4	4	4	4	4	4
word count	16384 words	16384 words	16384 words	16384 words	16384 words	16384 words	16384 words
character code	16000	16000	16000	16000	16000	16000	16000
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
organize	16KX4	16KX4	16KX4	16KX4	16KX4	16KX4	16KX4
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE
Encapsulate equivalent code	DIP22,.3	DIP22,.3	FL(UNSPEC)	DIE OR CHIP	FL(UNSPEC)	DIE OR CHIP	DIP22,.3
Parallel/Serial	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL
Peak Reflow Temperature (Celsius)	225	225	NOT SPECIFIED	225	225	225	260
power supply	5 V	5 V	5 V	5 V	5 V	5 V	5 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Filter level	38535Q/M;38534H;883B	38535Q/M;38534H;883B	38535Q/M;38534H;883B	38535Q/M;38534H;883B	38535Q/M;38534H;883B	38535Q/M;38534H;883B	38535Q/M;38534H;883B
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V	5 V
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY
Maximum time at peak reflow temperature	30	30	NOT SPECIFIED	30	30	30	6
JESD-609 code	e0	e0	e0	e0	e0	e0	-
Package body material	CERAMIC	CERAMIC	CERAMIC	-	CERAMIC	-	CERAMIC
encapsulated code	DIP	DIP	DFP	-	DFP	-	DIP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	-	RECTANGULAR	-	RECTANGULAR
Package form	IN-LINE	IN-LINE	FLATPACK	-	FLATPACK	-	IN-LINE
Minimum standby current	4.5 V	4.5 V	-	2 V	-	4.5 V	4.5 V
surface mount	NO	NO	YES	-	YES	-	NO
Terminal surface	TIN LEAD	TIN LEAD	Tin/Lead (Sn/Pb)	TIN LEAD	Tin/Lead (Sn/Pb)	TIN LEAD	-
Terminal form	THROUGH-HOLE	THROUGH-HOLE	FLAT	-	FLAT	-	THROUGH-HOLE
Terminal location	DUAL	DUAL	DUAL	-	DUAL	-	DUAL
Base Number Matches	-	1	1	1	1	1	-
