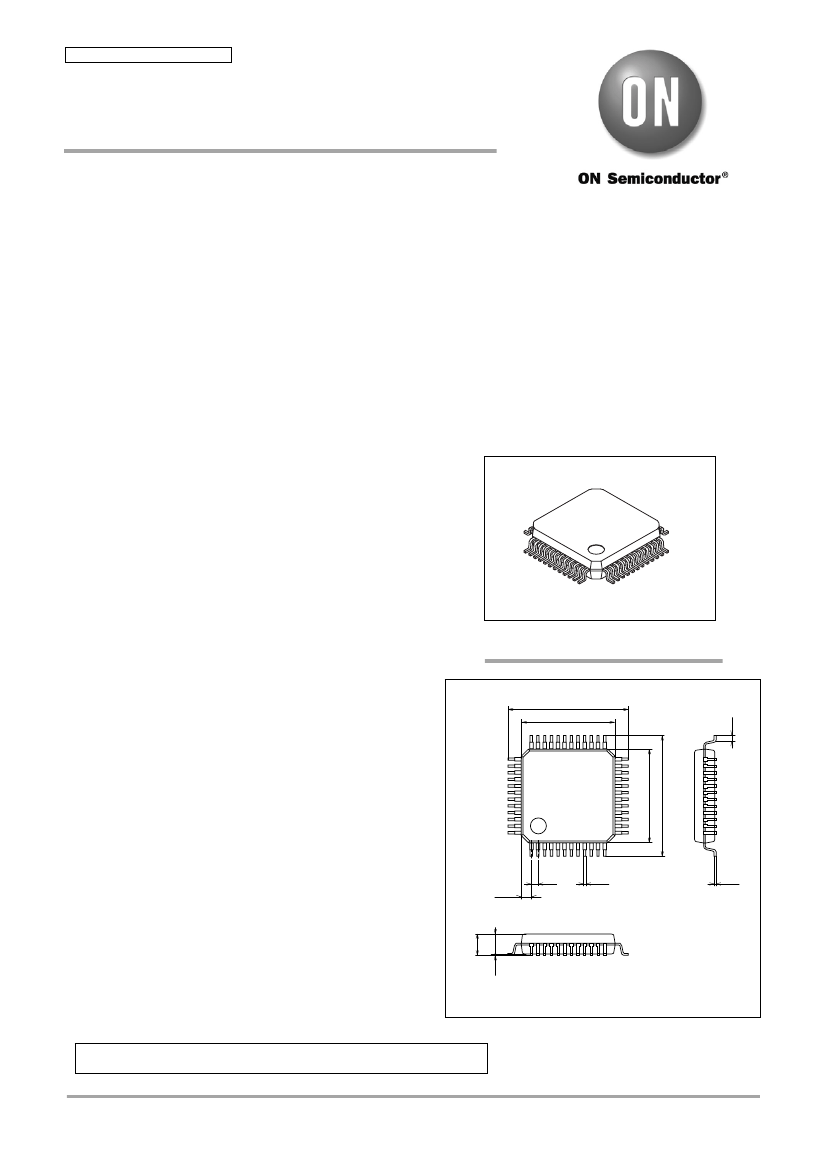

Ordering number : ENA2197

LC87F1K64A

CMOS IC

8-bit Microcontroller

with USB-host Controller

64K-byte Flash ROM / 8K-byte RAM / 48-pin

http://onsemi.com

Overview

The LC87F1K64A is an 8-bit microcontroller that, integrates on a single chip a number of hardware features such as

64K-byte flash ROM, 8192-byte RAM, an on-chip debugger, a sophisticated 16-bit timer/counter (may be divided into

8-bit timers), a 16-bit timer (may be divided into 8-bit timers or PWMs), four 8-bit timers with a prescaler, a base timer

serving as a time-of-day clock, two channels of synchronous SIO interface with automatic data transfer capabilities, an

asynchronous/synchronous SIO interface, a single-master I

C/synchronous SIO interface, a UART interface (full

duplex), a full/low-speed USB interface (host control function) × 2 ports, a 12-bit 12-channel AD converter, two

channels of 12-bit PWM, a system clock frequency divider, an infrared remote control receiver circuit, an internal reset

circuit, and a 44-source 10-vector interrupt feature.

Features

■

Flash ROM

•

65536×8 bits

•

Capable of on-board programming with a wide range of

supply voltage from 3.0 to 5.5V

•

Block-erasable in 128-byte units

•

Data written in 2-byte units

•

8192×9 bits

•

SQFP48 (7×7): Lead-/halogen-free product

•

83.3ns (when CF=12MHz)

Note: The bus cycle time here refers to the ROM read

speed.

■

RAM

SQFP48(7X7)

■

Package Form

■

Bus Cycle Time

■

Minimum Instruction Cycle Time (tCYC)

•

250ns (when CF=12MHz)

0.5

(0.75)

0.18

7.0

9.0

1.7max

ORDERING INFORMATION

See detailed ordering and shipping information on page 35 of this data sheet.

0.1

(1.5)

SQFP48(7X7)

* This product is licensed from Silicon Storage Technology, Inc. (USA).

Semiconductor Components Industries, LLC, 2013

July, 2013

ver.1.02

71713HKPC 20111124-S00003 No.A2197-1/35

0.5

9.0

7.0

0.15

LC87F1K64A

■

Standby Function

•

HALT mode: Halts instruction execution while allowing the peripheral circuits to continue operation.

1) Oscillators do not stop automatically.

2) There are three ways of releasing HOLD mode.

(1) Setting the reset pin to a low level.

(2) Generating a reset signal by watchdog timer or low-voltage detection

(3) Occurrence of an interrupt

•

HOLD mode: Suspends instruction execution and operation of the peripheral circuits.

1) The PLL, CF, RC and crystal oscillators automatically stop operation.

Note: Low-speed RC oscillator is controlled directly by the watchdog timer and its oscillation in standby mode

is also controlled.

2) There are five ways of releasing HOLD mode.

(1) Setting the reset pin to a low level

(2) Generating a reset signal by the watchdog timer or low-voltage detection

(3) Establishing an interrupt source at one of INT0, INT1, INT2, INT4, and INT5 pins

* INT0 and INT1 HOLD mode release is available only when level detection is configured.

(4) Establishing an interrupt source at port 0

(5) Establishing an bus active interrupt source in the USB host control circuit

•

X'tal HOLD mode: Suspends instruction execution and the operation of the peripheral circuits except the base timer

and infrared remote control receiver circuit.

1) The PLL, CF and RC oscillators automatically stop operation.

Note: Low-speed RC oscillator is controlled directly by the watchdog timer and its oscillation in standby mode

is also controlled.

Note: The low-speed RC oscillator retains the state that is established on entry into X'tal HOLD mode if the base

timer is running with the low-speed RC oscillator selected as the base timer input clock source.

2) The state of crystal oscillator established when the X'tal HOLD mode is entered is retained.

3) There are seven ways of releasing X'tal HOLD mode.

(1) Setting the reset pin to a low level

(2) Generating a reset signal by the watchdog timer or low-voltage detection

(3) Establishing an interrupt source at one of INT0, INT1, INT2, INT4, and INT5 pins

* INT0 and INT1 X'tal HOLD mode release is available only when level detection is configured.

(4) Establishing an interrupt source at port 0

(5) Establishing an interrupt source in the base timer circuit

(6) Establishing an interrupt source in the infrared remote control receiver circuit

(7) Establishing an bus active interrupt source in the USB host control circuit

■

Development Tools

•

On-chip debugger: TCB87–Type B + LC87F1K64A or

TCB87–Type C (3-wire communication cable) + LC87F1K64A

■

Flash ROM Programming Board

Package

SQFP48 (7×7)

Programming Board

W87F55256SQ

No.A2197-5/35
