SB32 THRU SB36
星合电子
ＸＩＮＧＨＥ ＥＬＥＣＴＲＯＮＩＣＳ
SURFACE MOUNT SCHOTTKY
BARRIER RECTIFIER
VOLTAGE:20 TO 60V
CURRENT: 3.0A
FEATURE
Plastic package has Underwriters Laboratory Flammability Classification
94V-0
For surface mounted applications
Low profile package
Built-in strain relief
Low power loss, high efficiency
High current capability, low forward voltage drop
High surge capability
For use in low voltage high frequency inverters, free wheeling, and polarity
protection applications
Guarding for over voltage protection
High temperature soldering guaranteed:
250
ºC
/10 seconds at terminals

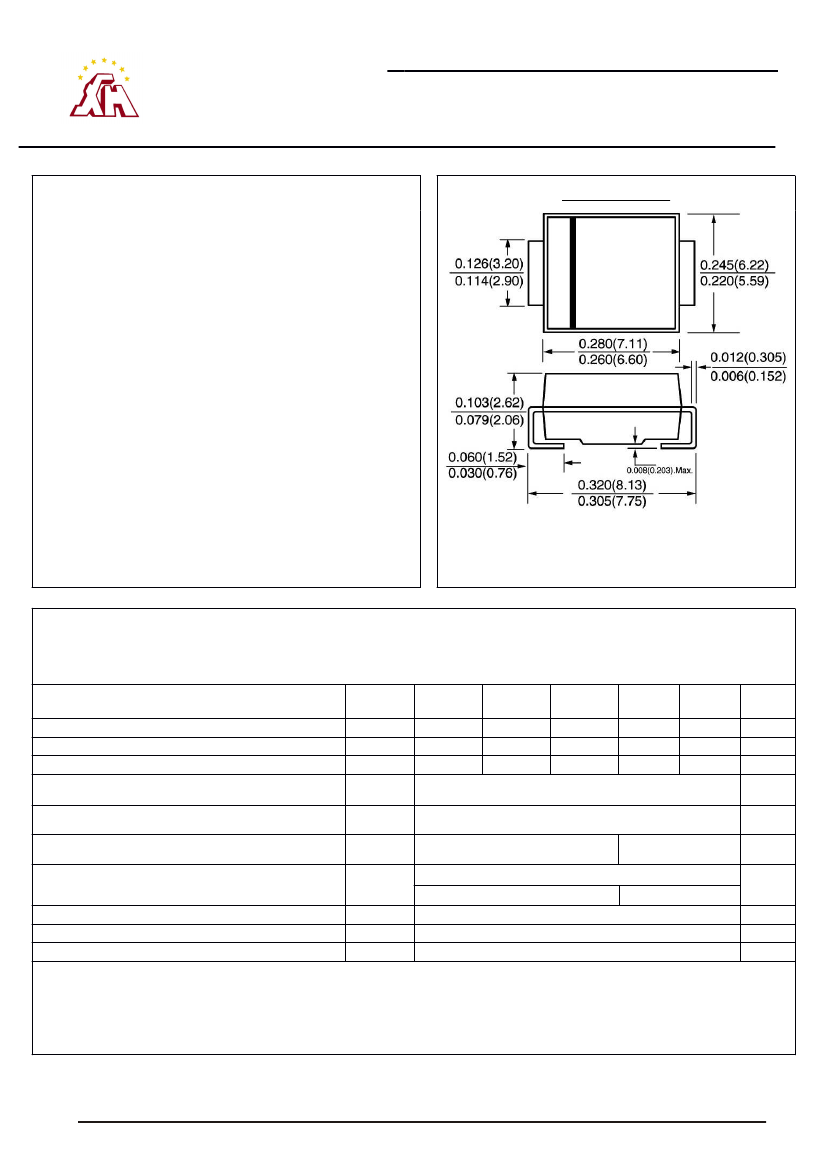

SMC/DO--214AB
MECHANICAL DATA
Case: JEDEC DO-214AB molded plastic body
Terminals: Solder plated, solderable per MIL-STD-750, Method 2026
Polarity: Color band denotes cathode end
Weight: 0.007 ounce, 0.25gram
Dimensions in inches and (millimeters)
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
(single-phase, half-wave, 60HZ, resistive or inductive load rating at 25
ºC
, unless otherwise stated,
for capacitive load, derate current by 20%)
SYMBOL
Maximum Recurrent Peak Reverse Voltage
Maximum RMS Voltage
Maximum DC blocking Voltage
Maximum Average Forward Rectified
Current 3/8’lead length at T
L
=105
ºC
Peak Forward Surge Current 8.3ms single
half sine-wave superimposed on rated load
Maximum Forward Voltage at
rated Forward current
(Note 1)
Maximum DC Reverse Current
at rated DC blocking voltage
Ta =25
ºC
Ta =100
ºC
Vrrm
Vrms
Vdc
If(av)
Ifsm
Vf
Ir
R(ja)
Tstg
0.5
0.5
20.0
55.0
-50 to +150
10.0
SB
32
20
14
20
SB
33
30
21
30
SB
34
40
28
40
3.0
100.0
0.75
SB
35
50
35
50
SB
36
60
42
60
units
V
V
V
A
A
V
mA
Typical Thermal Resistance
(Note 2)
Storage and Operating Temperature Range
ºC
/W
ºC
NOTE:
(1) Pulse test: 300
µ
s pulse width, 1% duty cycle
(2) P.C.B. mounted with 0.2 x 0.2inches (5.0 x 5.0mm) copper pad areas
1

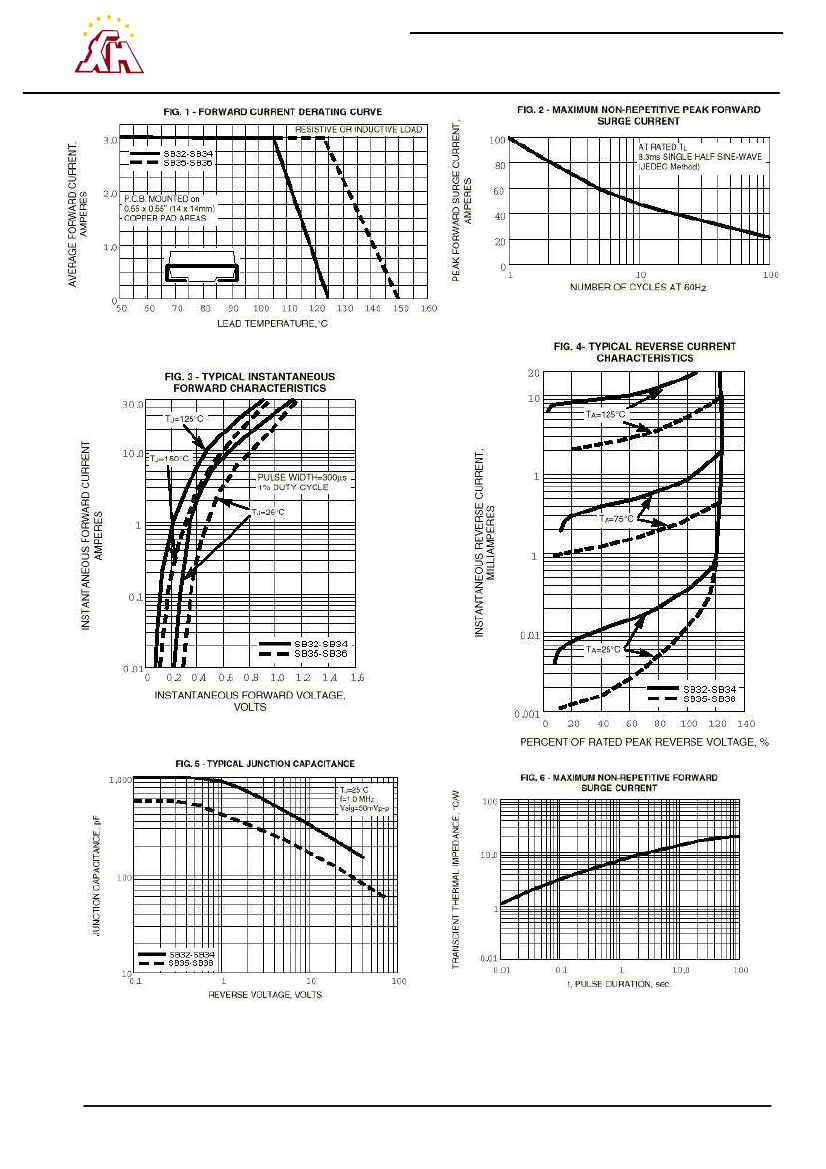

1
