YM061U2C805NQ: DescriptionKEYLOCK SWITCH, SPST, LATCHED, 4A, 28VDC, PANEL MOUNT-THREADED, ROHS COMPLIANT; CategoryMechanical and electronic products switch; File Size463KB，3 Pages; ManufacturerC&K Components; Environmental Compliance

Download Datasheet Parametric Compare View All

YM061U2C805NQ Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	YM061U2C805NQ	-	-	View	Buy Now

YM061U2C805NQ Overview

KEYLOCK SWITCH, SPST, LATCHED, 4A, 28VDC, PANEL MOUNT-THREADED, ROHS COMPLIANT

YM061U2C805NQ Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT
Reach Compliance Code	not_compliant
ECCN code	EAR99
Factory Lead Time	20 weeks
Actuator material	ZINC ALLOY
Actuator type	KEYLOCK
Other features	ROHS COMPLIANT
body height	27.07 mm
Body length or diameter	15.04 mm
center contact material	COPPER ALLOY
Center contact plating	SILVER
Contact (AC) maximum rated R load	4A@125VAC
Maximum contact current (AC)	4 A
Maximum contact current (DC)	4 A
Contact (DC) maximum rated R load	4A@28VDC
Contact function	OFF-ON
Contact resistance	0.01 mΩ
Maximum contact voltage (AC)	125 V
Maximum contact voltage (DC)	28 V
Dielectric withstand voltage	1000VRMS V
Electrical life	10000 Cycle(s)
End contact material	COPPER ALLOY
End contact plating	SILVER
Shell material	NYLON
Graduation angle	90 deg
Insulation resistance	1000000000 Ω
insulator material	NYLON
JESD-609 code	e4
Manufacturer's serial number	YM
Installation features	PANEL MOUNT-THREADED
Number of independent keys	1
Number of positions	2
Number of switching segments	2
surface mount	NO
Switch action	LATCHED
switch function	SPST
Switch type	KEYLOCK SWITCH
Terminal surface	Silver (Ag)
Terminal length	0.27 inch
Terminal material	COPPER ALLOY
Termination type	QUICK CONNECT

Preview

Download Datasheet

View All

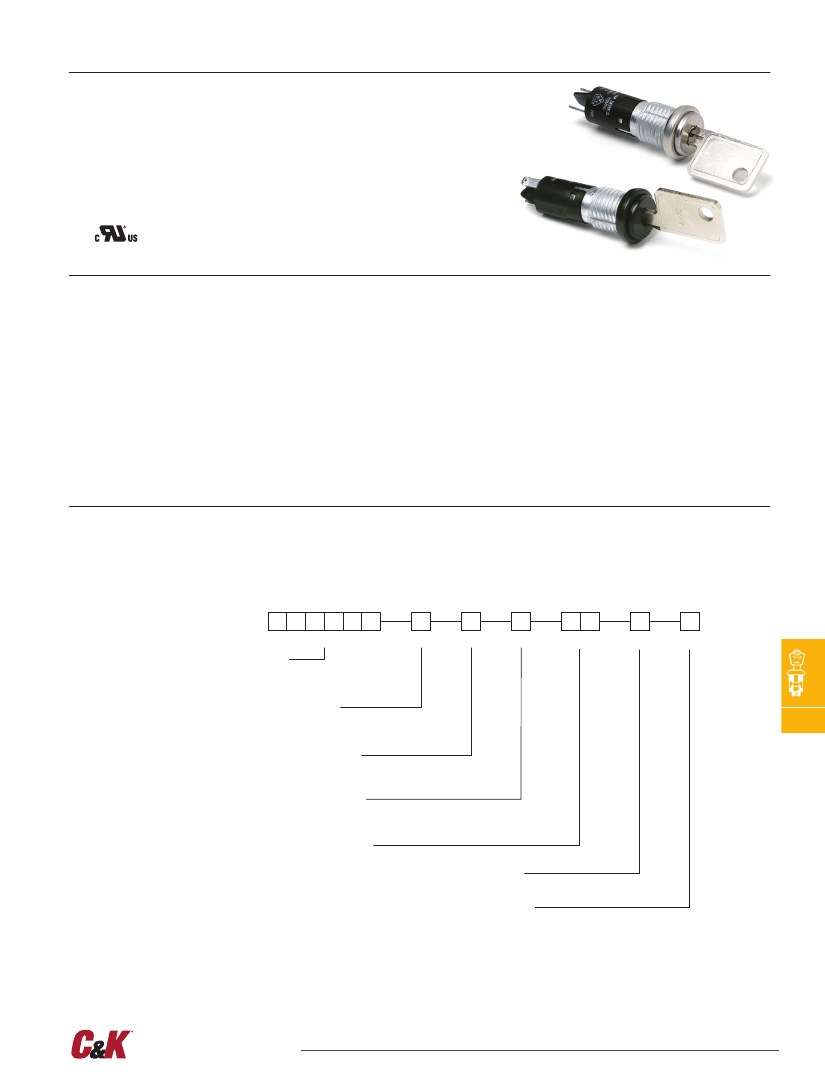

YM Series

4 Tumbler Miniature Switchlocks

Features/Benefits

•

Snap-together assembly allows

for pre-wiring of switch

•

Wire lead terminations available

•

4 Tumbler lock with positive detent

Typical Applications

•

Cable TV connectors

•

Automotive accessories

•

Computers

Models Available

Specifications

CONTACT RATING: Q contact material: 4 AMPS @ 125 V AC or

28 V DC; 2 AMPS @ 250 V AC (UL/CSA). 4 AMPS @ 125 V AC,

2 AMPS @ 250 V AC, T65, class 1 (VDE). See page L-17 for

additional ratings.

ELECTRICAL LIFE: 10,000 make-and-break cycles at full load.

CONTACT RESISTANCE: Below 10 m Ω typ. initial @

2-4 V DC, 100 mA.

INSULATION RESISTANCE: 109 Ω min.

DIELECTRIC STRENGTH: 1,000 Vrms min. @ sea level.

INDEXING: 90º:2 positions.

Materials

LOCK: Zinc alloy with stainless steel facing. 4 tumbler single

bitted lock with integral detent mechanism.

KEYS: Two nickel plated brass keys with code number.

SWITCH HOUSING: 6/6 Nylon (UL 94V-2).

CONTACTS & TERMINALS: Q contact material: Copper, silver

plated. See page L-17 for additional contact materials.

MOUNTING NUT: Brass, bright zinc plated.

NOTE:

Any models supplied with Q or B contact material are RoHS compliant.

NOTE:

Specifications and materials listed above are for switchlocks with standard options.

For information on specific and custom switchlocks, consult Customer Service Center.

Build-A-Switch

To order, simply select desired option from each category and place in the appropriate box. Available options are shown and

described on pages L–16 and L–17. For additional options not shown in catalog, consult Customer Service Center.

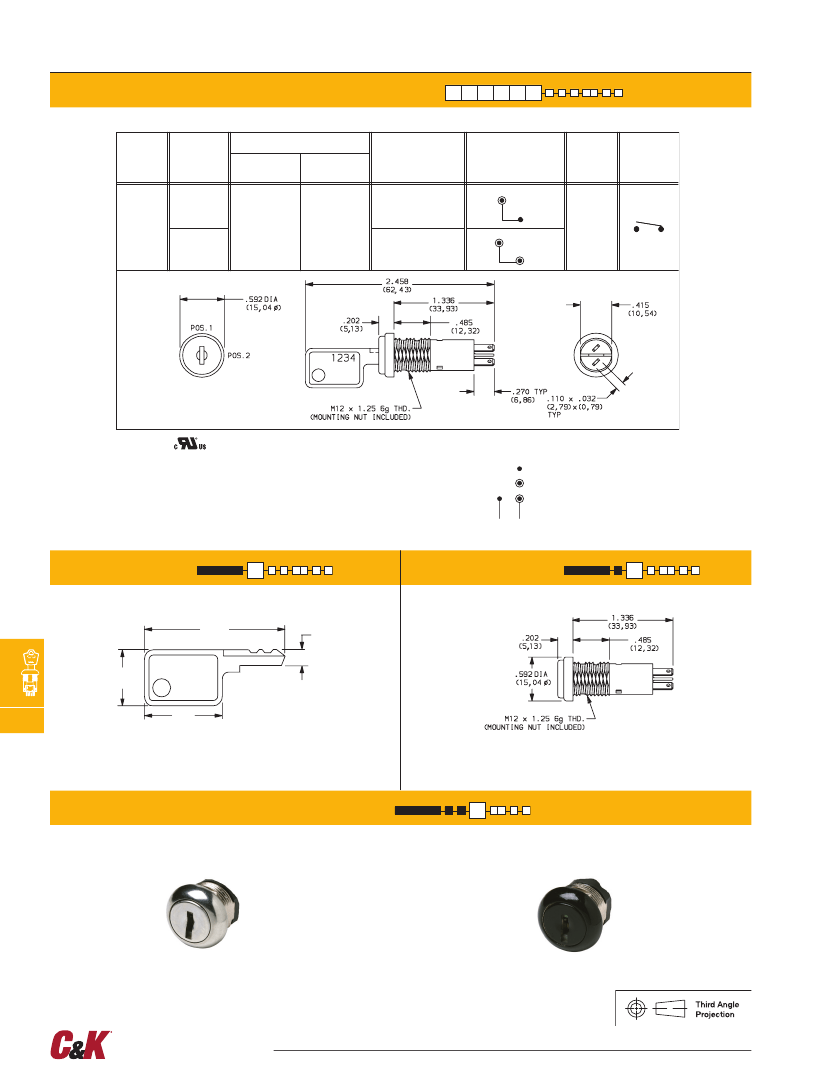

Switch and Lock Function

YM0613

SPST, 90º Index, keypull pos. 1

YM061U

SPST, 90º Index, keypull pos. 1 & 2

Keying

Two nickel plated brass keys

Lock Type

4 Tumbler, single bitted lock

with detent

Lock Finish

Stainless steel facing

Gloss black facing

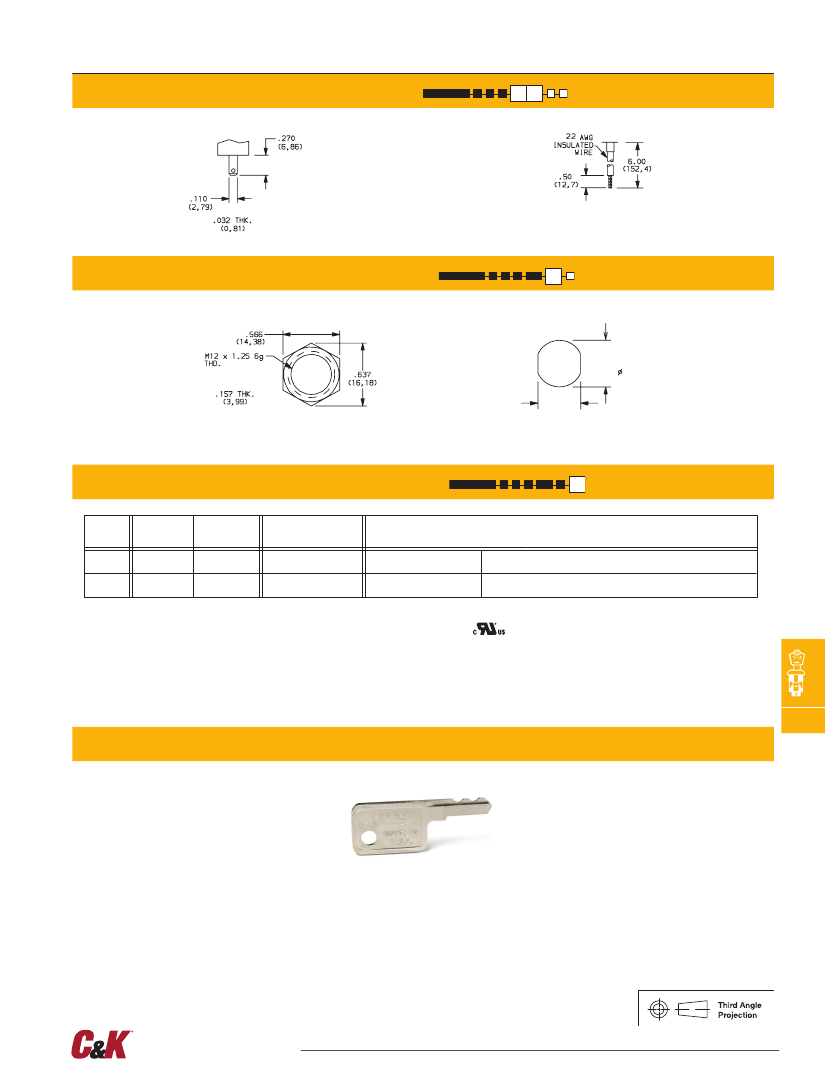

Terminations

Quick connect

Wire lead

Switchlock

Mounting Style

With nut

Contact Material

Silver

Gold

Dimensions are shown: Inch (mm)

Specifications and dimensions subject to change

L–15

www.ckswitches.com
