VY2 Series
www.vishay.com
Vishay BCcomponents
AC Line Rated Disc Capacitors
Class X1, 440 V
AC
, Class Y2, 300 V
AC
FEATURES
•
•
•
•
Complying with IEC 60384-14, 3
rd
edition
High reliability
Vertical (inline) kinked or straight leads
Material categorization:
For definitions of compliance please see
www.vishay.com/doc?99912
APPLICATIONS
• Across-the-line
• Line by-pass
• Antenna coupling
DESIGN
QUICK REFERENCE DATA
DESCRIPTION
Voltage (V
AC
)
Min.
Capacitance
(pF)
Max.
Capacitance
(pF)
Mounting
10
CLASS CLASS CLASS CLASS CLASS CLASS
X1
X1
X1
Y2
Y2
Y2
(U2J) (Y5S) (Y5U) (U2J) (Y5S) (Y5U)
440
68
680
10
300
68
680
The capacitors consist of a ceramic disc both sides of which
are silver-plated. Connection leads are made of tinned
copper having a diameter of 0.6 mm.
The capacitors may be supplied with vertical (inline) kinked
leads having a lead spacing of 5.0 mm, 7.5 mm, or 10.0 mm.
Encapsulation is made of flammable resistant epoxy resin in
accordance with “UL 94 V-0”
CAPACITANCE RANGE
47
680
10 000
47
680
10 000
10 pF to 0.01 μF
Through hole
RATED VOLTAGE U
R
IEC 60384-14 and UL60384-14:
(X1): 440 V
AC
, 50 Hz
(Y2): 300 V
AC
, 50 Hz
OPERATING TEMPERATURE RANGE
- 40 °C to + 125 °C
TEMPERATURE CHARACTERISTICS
See Ordering Information Tables
TEST VOLTAGE
Component test (100 %)
2600 V
AC
, 50 Hz, 2 s
(2600 V
AC
for LS 7.5 mm and 10 mm)
(2200 V
AC
for LS 5.0 mm)
Random sampling test (destructive test)
2600 V
AC
, 50 Hz, 60 s
Voltage proof of coating (destructive test)
2600 V
AC
, 50 Hz, 60 s
CLIMATIC CATEGORY
40/125/21 according to EN 60068-1
COATING
According to UL 94 V-0
Epoxy resin, isolating, flame retardant
APPROVALS
ENEC - VDE DE 1-30691
UL60384-14 file E183844
CSA 22.2
INSULATION RESISTANCE
10 000 M minimum
TOLERANCE OF CAPACITANCE
± 20 % (code M); ± 10 % (code K)
PACKAGING
Bulk; tape and reel; taped ammopack
DISSIPATION FACTOR
2.5 % maximum
The capacitors meet the essential requirements of
“EIA 198”. Unless stated otherwise all electrical values apply
at an ambient temperature of 25 °C ± 3 °C, at normal
atmospheric conditions
Revision: 08-Mar-12
Document Number: 28535
1
For technical questions, contact:
CDC@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
VY2 Series
www.vishay.com
Vishay BCcomponents
DIMENSIONS
DR = 3.0 mm
max.
F
SH
= 4.0 mm
max.
Ø d 0.6 mm
D
T
L = 30.0 mm
± 5.0 mm
Capacitors with 5.0 mm, 7.5 mm and 10 mm lead
spacing
ORDERING INFORMATION
C (pF)
COATING
BODY
LEAD
BODY
TOL.
TEMP.
DIAMETER THICKNESS SPACING EXTENSION
DR
MAX. (2)
T
MAX.
F
(%) COEFFICIENT
D
MAX.
(mm)
(mm)
(mm)
(mm)
CLEAR TEXT CODE
15
TH
DIGIT:
T = REEL; U = AMMO; 3 = BULK
(1)
RoHS AND
RoHS COMPLIANT
HALOGEN-FREE
2200 V
AC
, 50 Hz, 2 s
VY2100K29U2JS6*V5
VY2100K29U2JG6*V5
VY2150K29U2JS6*V5
VY2150K29U2JG6*V5
VY2220K29U2JS6*V5
VY2220K29U2JG6*V5
VY2330K29U2JS6*V5
VY2330K29U2JG6*V5
VY2470K29U2JS6*V5
VY2470K29U2JG6*V5
VY2680K29Y5SS6*V5 VY2680K29Y5SG6*V5
VY2101K29Y5SS6*V5 VY2101K29Y5SG6*V5
VY2151K29Y5SS6*V5 VY2151K29Y5SG6*V5
VY2221K29Y5SS6*V5 VY2221K29Y5SG6*V5
VY2331K29Y5SS6*V5 VY2331K29Y5SG6*V5
VY2471K29Y5SS6*V5 VY2471K29Y5SG6*V5
VY2681M29Y5US6*V5 VY2681M29Y5UG6*V5
VY2102M29Y5US6*V5 VY2102M29Y5UG6*V5
VY2152M31Y5US6*V5 VY2152M31Y5UG6*V5
VY2222M35Y5US6*V5 VY2222M35Y5UG6*V5
VY2332M41Y5US6*V5 VY2332M41Y5UG6*V5
VY2392M43Y5US6*V5 VY2392M43Y5UG6*V5
VY2 for leadspacing 5.0 mm
10
15
U2J (N750)
22
33
47
± 10
68
100
150
Y5S (2C3)
220
330
470
680
1000
1500
± 20
Y5U (2E3)
2200
3300
3900
7.5
5.0
5.0
3.0
8.0
9.0
10.5
11.0
ORDERING INFORMATION
C (pF)
COATING
BODY
LEAD
BODY
TOL.
TEMP.
DIAMETER THICKNESS SPACING EXTENSION
DR
MAX. (2)
T
MAX.
F
(%) COEFFICIENT
D
MAX.
(mm)
(mm)
(mm)
(mm)
CLEAR TEXT CODE
15
TH
DIGIT:
T = REEL; U = AMMO; 3 = BULK
(1)
RoHS AND
RoHS COMPLIANT
HALOGEN-FREE
2600 V
AC
, 50 Hz, 2 s
VY2100K29U2JS6*V7
VY2100K29U2JG6*V7
VY2150K29U2JS6*V7
VY2150K29U2JG6*V7
VY2220K29U2JS6*V7
VY2220K29U2JG6*V7
VY2330K29U2JS6*V7
VY2330K29U2JG6*V7
VY2470K29U2JS6*V7
VY2470K29U2JG6*V7
VY2680K29Y5SS6*V7 VY2680K29Y5SG6*V7
VY2101K29Y5SS6*V7 VY2101K29Y5SG6*V7
VY2151K29Y5SS6*V7 VY2151K29Y5SG6*V7
VY2221K29Y5SS6*V7 VY2221K29Y5SG6*V7
VY2331K29Y5SS6*V7 VY2331K29Y5SG6*V7
VY2471K29Y5SS6*V7 VY2471K29Y5SG6*V7
VY2681M29Y5US6*V7 VY2681M29Y5UG6*V7
VY2102M29Y5US6*V7 VY2102M29Y5UG6*V7
VY2152M31Y5US6*V7 VY2152M31Y5UG6*V7
VY2222M35Y5US6*V7 VY2222M35Y5UG6*V7
VY2332M41Y5US6*V7 VY2332M41Y5UG6*V7
VY2392M43Y5US6*V7 VY2392M43Y5UG6*V7
VY2472M49Y5US6*V7 VY2472M49Y5UG6*V7
VY2682M59Y5US63V7 VY2682M59Y5UG63V7
VY2103M63Y5US63V7 VY2103M63Y5UG63V7
VY2 for leadspacing 7.5 mm
10
15
22
± 10
U2J (N750)
33
47
68
100
150
± 10
Y5S (2C3)
220
330
470
680
1000
1500
2200
± 20
Y5U (2E3)
3300
3900
4700
6800
0.01 μF
7.5
5.0
7.5
3.0
8.0
9.0
10.5
11.0
12.5
14.5
16.0
Revision: 08-Mar-12
Document Number: 28535
2
For technical questions, contact:
CDC@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
VY2 Series
www.vishay.com
Vishay BCcomponents
CLEAR TEXT CODE
15
TH
DIGIT:
T = REEL; U = AMMO; 3 = BULK
(1)
RoHS AND
RoHS COMPLIANT
HALOGEN-FREE
2600 V
AC
, 50 Hz, 2 s
VY2100K29U2JS6*V0
VY2100K29U2JG6*V0
VY2150K29U2JS6*V0
VY2150K29U2JG6*V0
VY2220K29U2JS6*V0
VY2220K29U2JG6*V0
VY2330K29U2JS6*V0
VY2330K29U2JG6*V0
VY2470K29U2JS6*V0
VY2470K29U2JG6*V0
VY2680K29Y5SS6*V0
VY2680K29Y5SG6*V0
VY2101K29Y5SS6*V0
VY2101K29Y5SG6*V0
VY2151K29Y5SS6*V0
VY2151K29Y5SG6*V0
VY2221K29Y5SS6*V0
VY2221K29Y5SG6*V0
VY2331K29Y5SS6*V0
VY2331K29Y5SG6*V0
VY2471K29Y5SS6*V0
VY2471K29Y5SG6*V0
VY2681M29Y5US6*V0 VY2681M29Y5UG6*V0
VY2102M29Y5US6*V0 VY2102M29Y5UG6*V0
VY2152M31Y5US6*V0 VY2152M31Y5UG6*V0
VY2222M35Y5US6*V0 VY2222M35Y5UG6*V0
VY2332M41Y5US6*V0 VY2332M41Y5UG6*V0
VY2392M43Y5US6*V0 VY2392M43Y5UG6*V0
VY2472M49Y5US6*V0 VY2472M49Y5UG6*V0
VY2682M59Y5US63V0 VY2682M59Y5UG63V0
VY2103M63Y5US63V0 VY2103M63Y5UG63V0
ORDERING INFORMATION
C (pF)
COATING
BODY
LEAD
BODY
TOL.
TEMP.
DIAMETER THICKNESS SPACING EXTENSION
DR
MAX. (2)
T
MAX.
F
(%) COEFFICIENT
D
MAX.
(mm)
(mm)
(mm)
(mm)
VY2 for leadspacing 10.0 mm
10
15
22
U2J (N750)
33
47
68
± 10
100
7.5
150
Y5S (2C3)
220
330
5.0
10.0
3.0
470
680
1000
1500
8.0
2200
9.0
± 20
Y5U (2E3)
3300
10.5
3900
11.0
4700
12.5
6800
14.5
0.01 μF
16.0
Notes
(1)
15
th
digit of the clear text code number to be completed with the packaging code.
(2)
Coating extension DR valid for straight leads only.
• Straight leads are available on request.
LEADSPACING 5.0 mm and 7.5 mm
PACKAGING
CAPACITANCE
VALUE
10 pF to 4700 pF
6800 pF to 0.01 μF
SIZE CODE
29 to 49
59 to 63
BODY DIAMETER
D
MAX.
(mm)
12.5
16.0
PACKAGING QUANTITIES
BULK
1000
500
REEL
1000
-
AMMO
1000
-
LEADSPACING 10.0 mm
PACKAGING
CAPACITANCE
VALUE
10 pF to 4700 pF
6800 pF to 0.01 μF
SIZE CODE
29 to 49
59 to 63
BODY DIAMETER
D
MAX.
(mm)
12.5
16.0
PACKAGING QUANTITIES
BULK
1000
500
REEL
500
500
AMMO
750
750
Note
• The capacitors are supplied in bulk packaging (cardboard boxes), in tape on reel in ammopack.
STRAIGHT LEADS
D max.
coating
extension
DR
3.0 max.
30 mm to 5.0 mm (ΔR)
F
d = 0.6 mm
T max.
Revision: 08-Mar-12
Document Number: 28535
3
For technical questions, contact:
CDC@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
VY2 Series
www.vishay.com
D
P
2
P
ΔP
Vishay BCcomponents
ΔP
Δh
H
1
H
0
W
1
W
2
t
1
detail A
W
0
W
A
t
Direction of unreeling
Ød
P
1
F
P
0
D
0
e

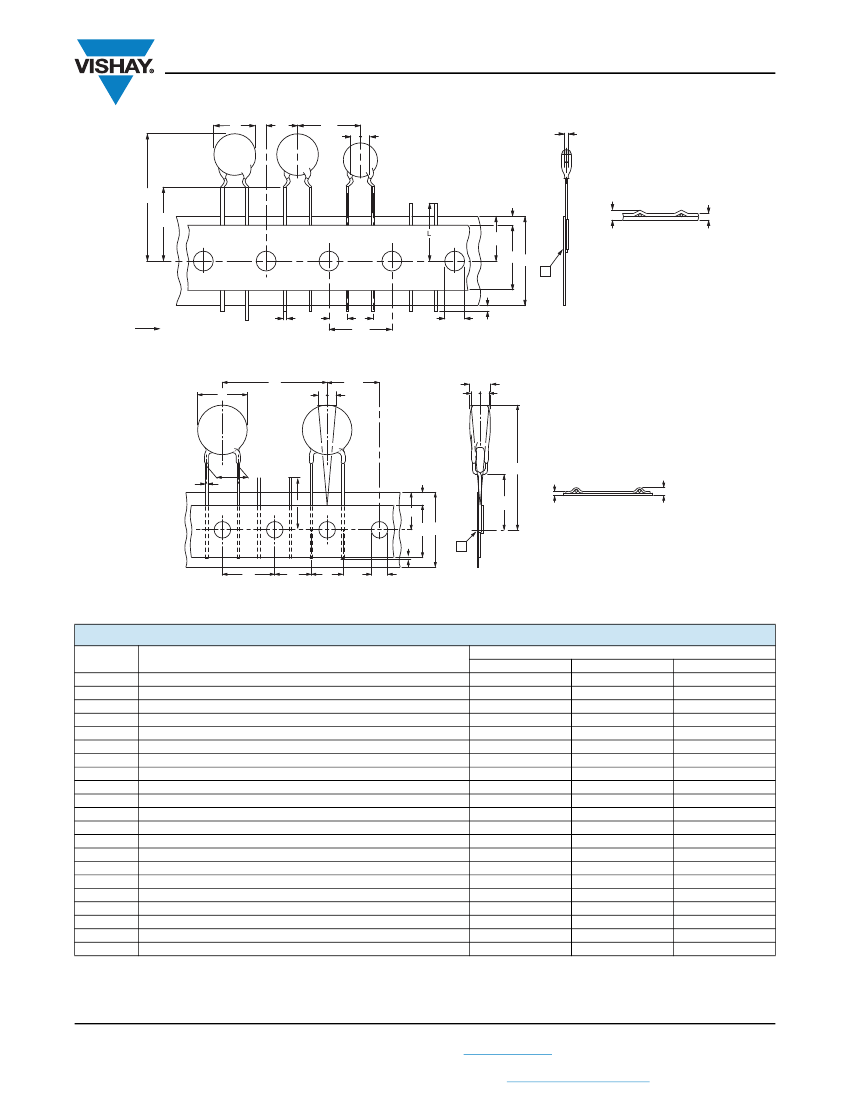

Fig. 1 - Kinked capacitors on tape, lead spacing 5.0 mm (0.2") and 7.5 mm (0.3")
P
D
ΔP
P
2
ΔP
T
Δh
Δh
F
Ød
L
W
2
W
1
W
0
W
A
e
P
0
P
1
F
D
0
H
0
H
1
t
detail A
t
1
Fig. 2 - Inline kink (V) leaded capacitors on tape, lead spacing 10 mm (0.40")
DIMENSION OF TAPE
SYMBOL
D
(1)
d
P
P
0 (2)
P
1 (3)
P
2 (3)
F
h
P
W
W
0
W
1
W
2
H
1
H
0
H
0
L
e
D
0
t
t
1
(1)
(2)
(3)
PARAMETER
Body diameter
Lead diameter
Pitch of component
Pitch of sprocket hole
Distance, hole center to lead
Distance, hole to center of component
Lead spacing
Average deviation across tape
Average deviation in direction of reeling
Carrier tape width
Hold-down tape width
Position of sprocket hole
Distance of hold-down tape
Maximum component height
Height to seating plane (for kinked leads)
Height to seating plane (for straight leads)
Length of cut leads
Length of lead protrusion
Diameter of sprocket hole
Total tape thickness
Maximum thickness of tape and wires
FIG. 1 (5 mm)
11.0 max.
0.6 ± 0.05
12.7 ± 1
12.7 ± 0.3
3.85 ± 0.7
6.35 ± 1.3
5.0 (+ 0.6/- 0.4)
± 1.0 max.
± 1.0 max.
18.0 + 1/- 0.5
5.0 min.
9.0 + 0.75/- 0.5
3.0 max.
32
16.0 ± 0.5
20.0 ± 0.5
11.0 max.
1.0 max.
4.0 ± 0.2
0.9 max.
1.5 max.
DIMENSIONS (mm)
FIG. 1 (7.5 mm)
FIG. 2 (10 mm)
14.0 max.
16.0 max.
0.6 ± 0.05
0.6 ± 0.05
15.0 ± 1
25.4 ± 1
15.0 ± 0.3
12.7 ± 0.3
3.75 ± 0.7
7.7 ± 1.0
7.5 ± 1.5
12.7 ± 1.5
7.5 (+ 0.6/- 0.4)
10.0 (+ 0.6/- 0.4)
± 1.0 max.
± 1.0 max.
± 1.0 max.
± 1.0 max.
18.0 + 1/- 0.5
18.0 + 1/- 0.5
5.0 min.
5.0 min.
9.0 + 0.75/- 0.5
9.0 + 0.75/- 0.5
3.0 max.
3.0 max.
40
40
16.0 ± 0.5
16.0 ± 0.5
20.0 ± 0.5
20.0 ± 0.5
11.0 max.
11.0 max.
1.0 max.
1.0 max.
4.0 ± 0.2
4.0 ± 0.2
0.9 max.
0.9 max.
1.5 max.
1.5 max.
Notes
See ordering information table
Cumulative pitch error: ±
1
mm/20 pitches
Obliquity maximum 3°
Document Number: 28535
4
For technical questions, contact:
CDC@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
Revision: 08-Mar-12
VY2 Series
www.vishay.com

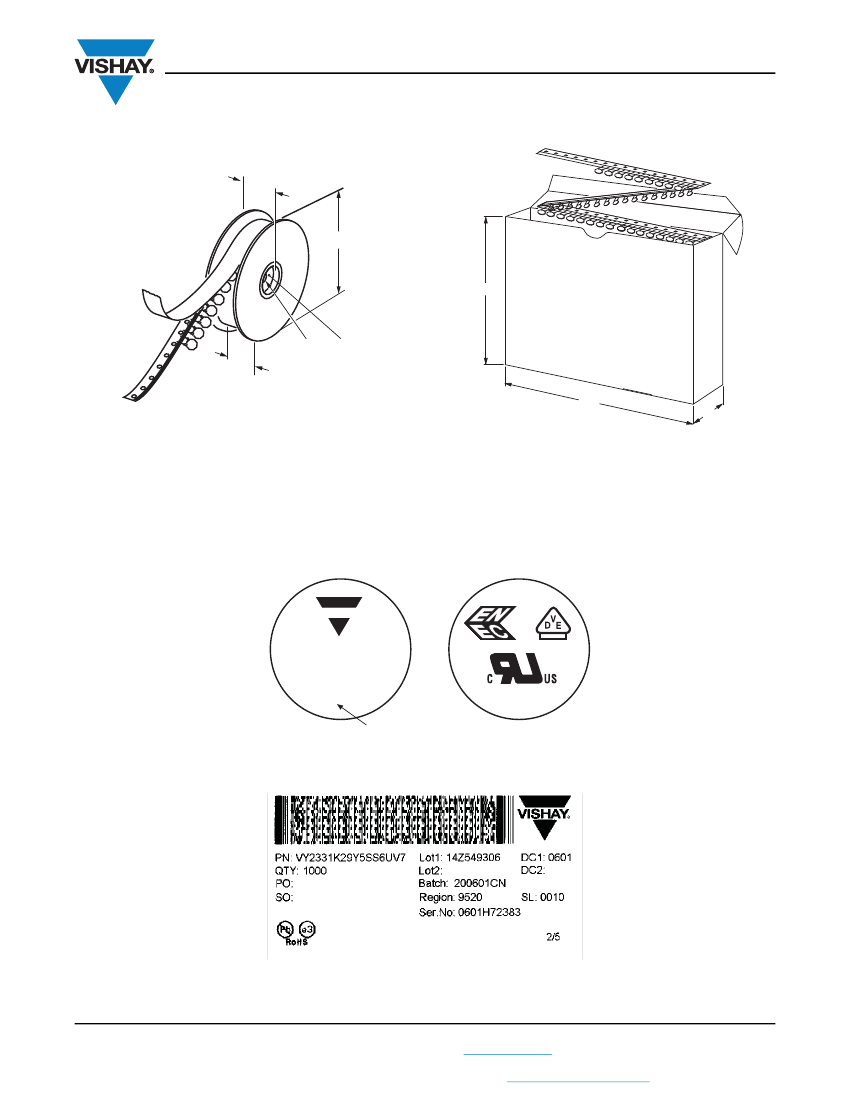

REEL AND TAPE DATA
in millimeters
Vishay BCcomponents
51 max.
355.6 ± 2.0
330
28 ± 1.5
45 max.
8.0
360
55
Ammopack with capacitors on tape
STANDARD RECOGNITION
IEC 60384 - 14/3
rd
issue (2005)- Safety Tests
UL60384-14 - Across-the-line, antenna-coupling and line-by-pass component
CQC - China Quality Certification Center-Safety Tests
MARKING: 2 SIDES
(EXAMPLE)
front
back
10
VY2 472 M
Y2 300 ~
X1 440 ~
xxxx
4 digit date code (year/week)
250 ~
LABEL
(EXAMPLE)
Revision: 08-Mar-12
Document Number: 28535
5
For technical questions, contact:
CDC@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
京公网安备 11010802033920号
EEWORLD
