400C542M160EB0 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> capacitor> 400C542M160EB0

400C542M160EB0: DescriptionAluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 160V, 20% +Tol, 20% -Tol, 5400uF, Through Hole Mount, CAN, RADIAL LEADED; CategoryPassive components capacitor; File Size343KB，5 Pages; ManufacturerCDE [ CORNELL DUBILIER ELECTRONICS ]; Environmental Compliance

Download Datasheet Parametric Compare View All

400C542M160EB0 Overview

Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 160V, 20% +Tol, 20% -Tol, 5400uF, Through Hole Mount, CAN, RADIAL LEADED

400C542M160EB0 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	,
Reach Compliance Code	compliant
ECCN code	EAR99
capacitance	5400 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR
diameter	44.45 mm
dielectric materials	ALUMINUM (WET)
ESR	25.6 mΩ
JESD-609 code	e3
leakage current	4 mA
length	82.55 mm
Manufacturer's serial number	400C
Installation features	THROUGH HOLE MOUNT
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	95 °C
Minimum operating temperature	-40 °C
Package shape	CYLINDRICAL PACKAGE
Package form	Radial
polarity	POLARIZED
positive tolerance	20%
Rated (DC) voltage (URdc)	160 V
ripple current	5232 mA
series	400C
surface mount	NO
Terminal surface	Tin (Sn)
Terminal shape	WIRE

Preview

Download Datasheet

View All

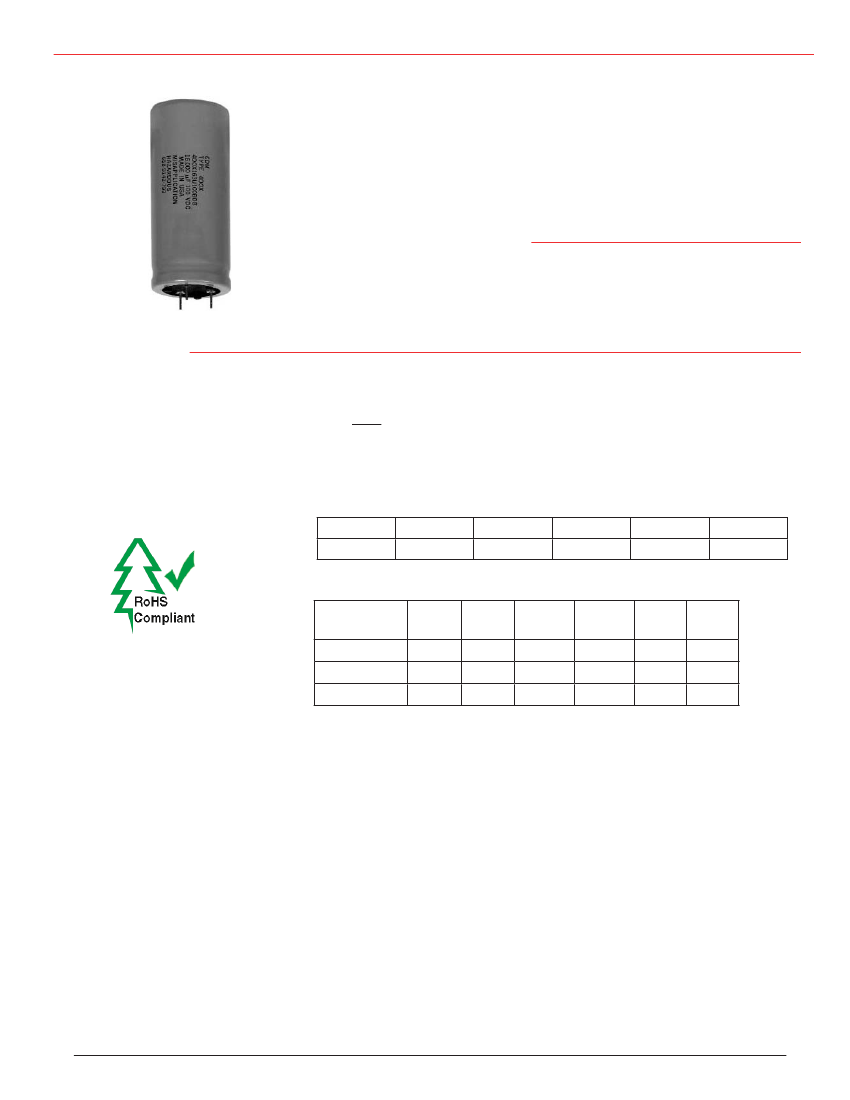

Type 400C

95 °C, Long-Life, Radial Leaded, Aluminum Electrolytic

Twice the Life!

The Type 400C is the PC-mount equivalent for Type

500C screw-terminal computergrade capacitor. It’s for

bus ﬁltering applications where long life is critical like

telecom systems and industrial power supplies. Type

400C delivers 2 to 3 times the life of Type 4CMC,

and above 250 V it has nearly the same capacitance.

Its extended cathode foil assures cool operation with

heatﬂow from the capacitor element to the can in all

mounting orientations.

Highlights

Speciﬁcations

Operating Temperature:

Rated Voltage:

Capacitance:

DC Leakage Current:

Cold Impedance:

Ripple Current Multipliers:

• More than 10 years life in most applications

• Ripple Currents to > 50 amps at 55 °C

• 3-leads

• Printed-circuit mounting

• Thermal-Pak

™

extended cathode construction

–40 °C to +95 °C

100 to 500 Vdc

170 µF to 29,000 µF ± 20%

≤ 3 √CV µA, 4 mA max, 5 min.

–20 °C multiple of 25 °C Z ≤ 4 for 100 V

3 for 150 V & up.

Ambient Temperature

45 °C

2.00

55 °C

1.82

65 °C

1.59

75 °C

1.33

85 °C

1.00

95 °C

0.48

Frequency

Complies with the EU Directive

2002/95/EC

requirement

restricting the use of Lead (Pb),

Mercury (Hg), Cadmium (Cd),

Hexavalent chromium (Cr(VI)),

PolyBrominated

Biphenyls

(PBB) and PolyBrominated

Diphenyl Ethers (PBDE).

50 Hz

100 to 160 V

200 to 350 V

400 to 500 V

0.80

0.78

60 Hz

0.85

0.83

0.80

120 Hz

1.00

360 Hz

1.05

1.15

1.30

1 kHz

1.08

1.20

1.40

5 kHz

& up

1.08

1.20

1.40

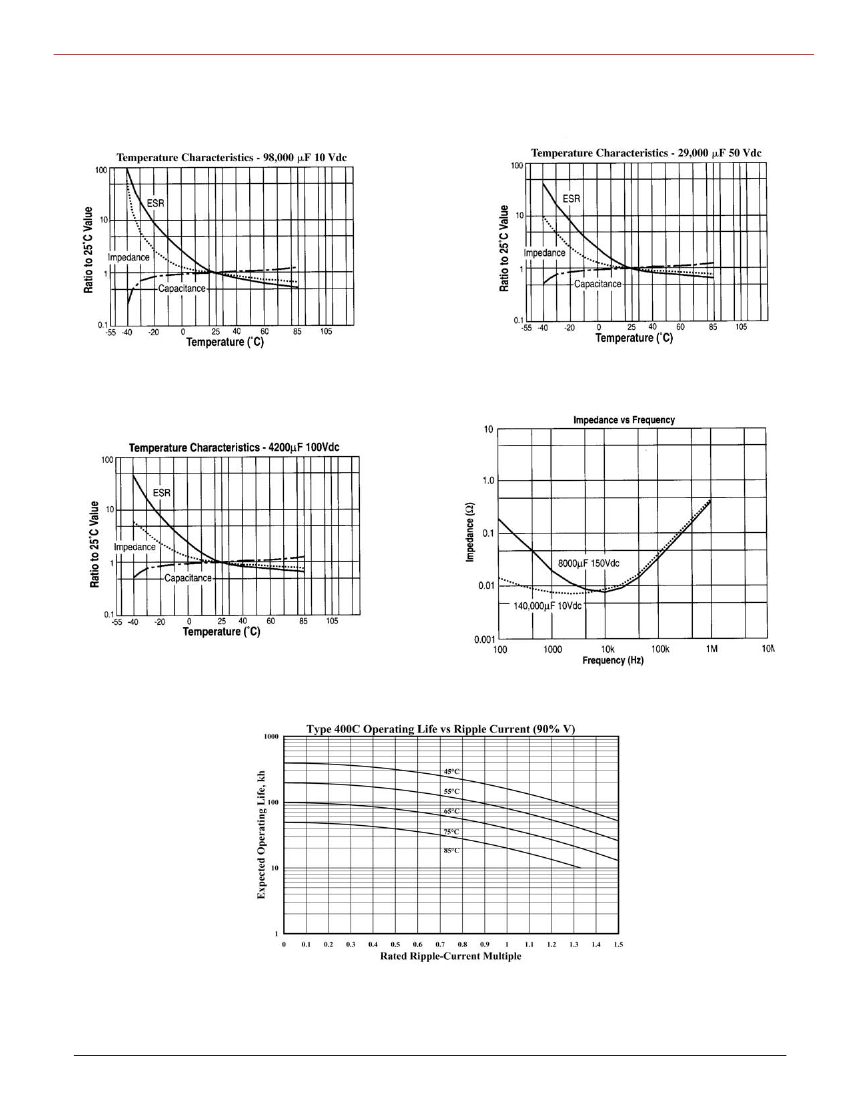

EIA Ripple Life:

3000 h at full load at 85 °C per EIA IS-749

∆Capacitance ±20%

ESR 200% of limit

DCL 100% of limit

Life Test:

3000 h at full load at 95 °C with rated voltage

∆Capacitance ±20%

ESR 200% of limit

DCL 100% of limit

Shelf Life Test:

500 h at 95 °C. Capacitance, ESR and DCL meet initial

requirements.

Vibration:

10 to 55 Hz, 0.06” and 10 g max, 2 h each plane.

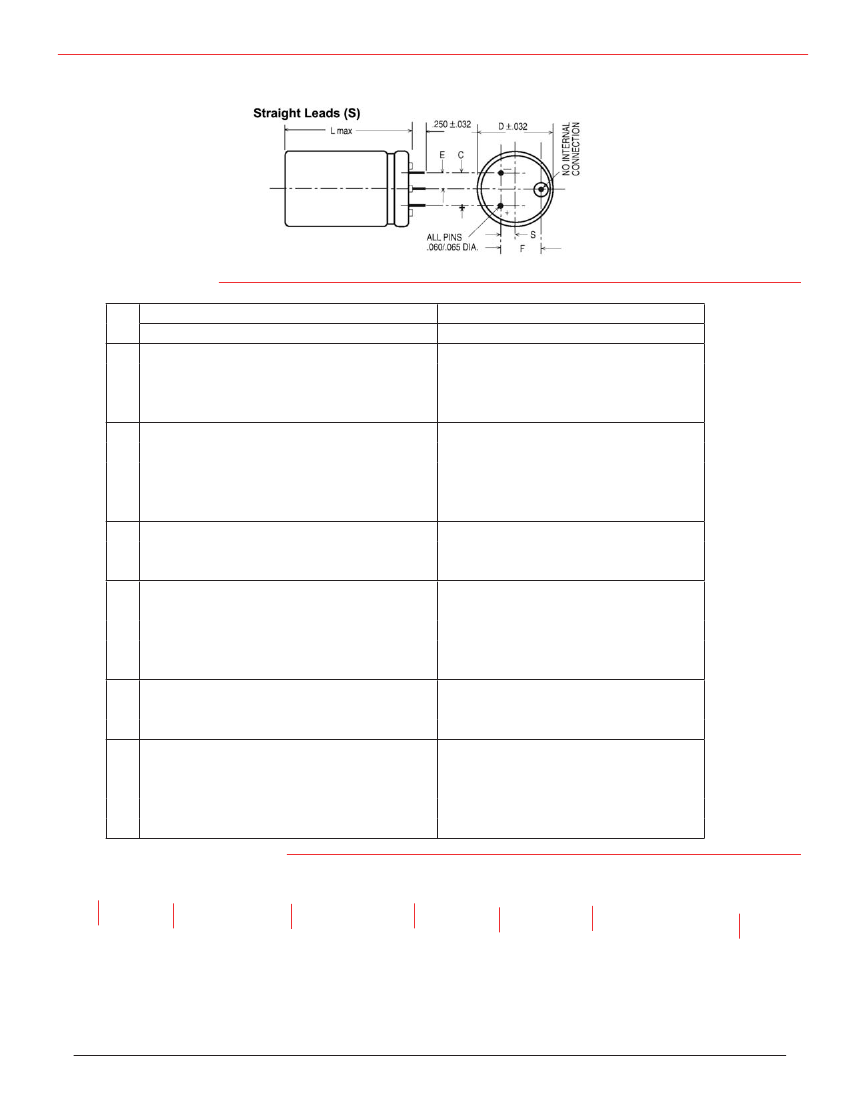

CDM Cornell Dubilier

•

140 Technology Place

•

Liberty, SC 29657

•

Phone: (864)843-2277

•

Fax: (864)843-3800

•

www.cde.com

400C542M160EB0 Related Products

	400C542M160EB0	400C542M160EB9
Description	Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 160V, 20% +Tol, 20% -Tol, 5400uF, Through Hole Mount, CAN, RADIAL LEADED	Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 160V, 20% +Tol, 20% -Tol, 5400uF, Through Hole Mount, CAN, RADIAL LEADED
Is it lead-free?	Lead free	Lead free
Is it Rohs certified?	conform to	conform to
Reach Compliance Code	compliant	compliant
ECCN code	EAR99	EAR99
capacitance	5400 µF	5400 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR	ALUMINUM ELECTROLYTIC CAPACITOR
diameter	44.45 mm	44.45 mm
dielectric materials	ALUMINUM (WET)	ALUMINUM (WET)
ESR	25.6 mΩ	25.6 mΩ
JESD-609 code	e3	e3
leakage current	4 mA	4 mA
length	82.55 mm	82.55 mm
Manufacturer's serial number	400C	400C
Installation features	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT
negative tolerance	20%	20%
Number of terminals	2	2
Maximum operating temperature	95 °C	95 °C
Minimum operating temperature	-40 °C	-40 °C
Package shape	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE
Package form	Radial	Radial
polarity	POLARIZED	POLARIZED
positive tolerance	20%	20%
Rated (DC) voltage (URdc)	160 V	160 V
ripple current	5232 mA	5232 mA
series	400C	400C
surface mount	NO	NO
Terminal surface	Tin (Sn)	Tin (Sn)
Terminal shape	WIRE	WIRE
