ARS-02-LP-46-GD10

Description
Board Connector, 46 Contact(s), 2 Row(s), Female, Straight, 0.1 inch Pitch, Solder Terminal, Plug
CategoryThe connector    The connector
File Size160KB,1 Pages
ManufacturerCentral Semiconductor
Environmental Compliance
Download Datasheet Parametric View All

ARS-02-LP-46-GD10 Overview

Board Connector, 46 Contact(s), 2 Row(s), Female, Straight, 0.1 inch Pitch, Solder Terminal, Plug

ARS-02-LP-46-GD10 Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
Reach Compliance Codeunknown
Other featuresROHS COMPLIANT
body width0.197 inch
subject depth0.197 inch
body length2.316 inch
Body/casing typePLUG
Connector typeBOARD CONNECTOR
Contact to complete cooperationNOT SPECIFIED
Contact point genderFEMALE
Contact materialNOT SPECIFIED
contact modeRECTANGULAR
Contact resistance20 mΩ
Contact styleSQ PIN-SKT
Dielectric withstand voltage600VAC V
Durability500 Cycles
Insulation resistance1000000000 Ω
Manufacturer's serial numberARS-02-LP
Plug contact pitch0.1 inch
Match contact row spacing0.1 inch
Installation methodSTRAIGHT
Installation typeBOARD
Number of connectorsONE
PCB row number2
Number of rows loaded2
Maximum operating temperature105 °C
Minimum operating temperature-40 °C
PCB contact patternRECTANGULAR
PCB contact row spacing2.54 mm
Plating thickness10u inch
Rated current (signal)3 A
GuidelineUL
reliabilityCOMMERCIAL
Terminal length0.114 inch
Terminal pitch2.54 mm
Termination typeSOLDER
Total number of contacts46
1
2
3
4
5
6
7
8
9
A
A
B
C
SPECIFICATIONS
Current Rating:
Contact Material:
Contact Plating:
Contact Resistance:
Insulation Material:
Insulator Resistance:
Withstanding:
Operating Temp:
3 Amps
Phosphor Bronze
Gold Flash (standard)
20m ohms max.
Polyester, UL94V-0 P.B.T
1000 Megohms min.
AC 600V
-40ºC ~ +105ºC
B
C
D
D
E
F
RoHS compliant
Rev.
Description
Date
Series
Rows
Profile
ARS
XX
LP
Receptacle 01=Single row
[blank]=8.5mm
strip
02=Dual row
LP=5.0mm
03=Single row right angle
04=Dual row right angle
Approved
Drawing
Name
Approved Howard
Checked Lizzy
Drawn Tina
0.0 ± 0.35
Date
5/28/08
5/28/08
5/28/08
Contacts
Plating
XX
XX
Single row: 3-36 TN=Tin
Dual row: 6-72 GDXX=Gold,
SGXX=Selective Gold
XX=Flash if blank
10,15,30u”
Options
XX
[blank]=None
SM=Surface mount
RT=Retention tails
P=Polarized
HT=High Temp
E
F
Central Components Manufacturing
440 Lincoln Blvd., Middlesex, New Jersey 08846
Phone 732 469-5720 888 288-5152 Fax 732 469-1919
Part No.:
ARS-02-LP-XX-XX
G
7
8
9
G
0.00 ± 0.20 Angles ± 3°
UNIT: mm
5
6

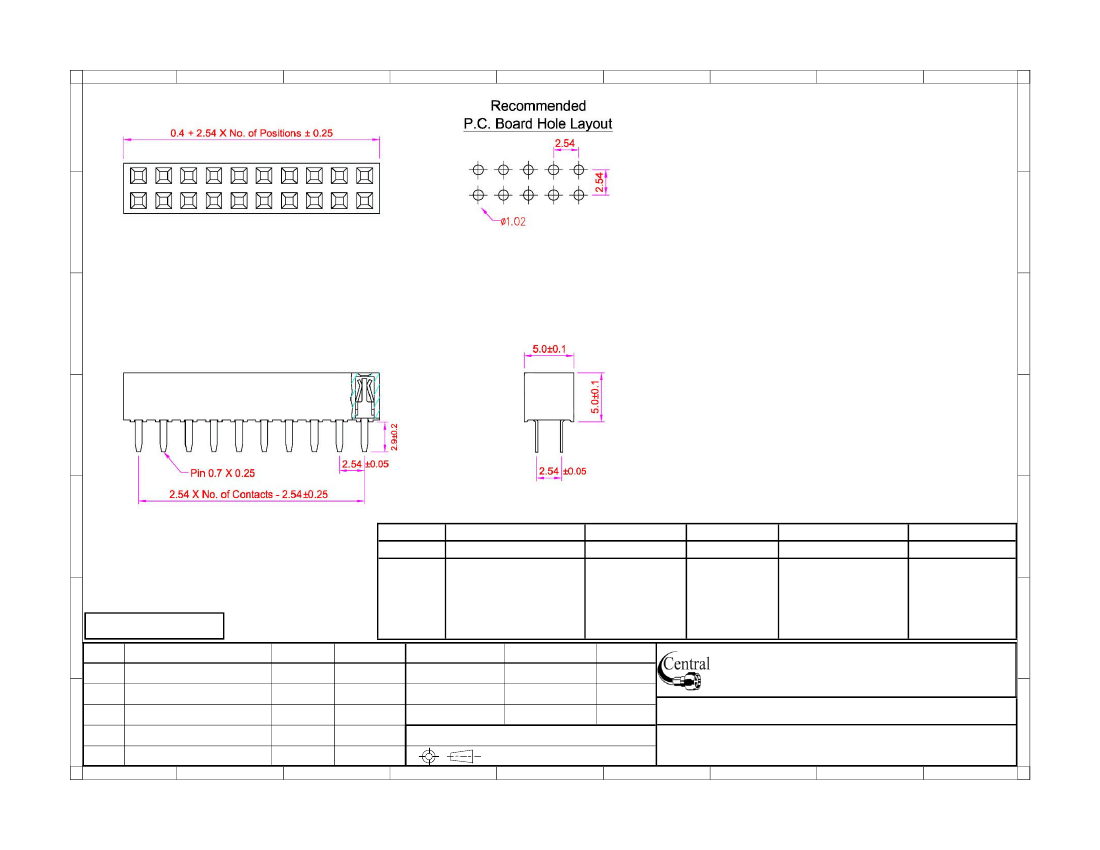

Description: Female Header P2.54 X 2.54mm, Dual Row Straight
1
2
3
4
