BHD-20-ST-TN-SLC

Description
Board Connector, 20 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Locking, Receptacle
CategoryThe connector    The connector
File Size119KB，1 Pages
ManufacturerCentral Semiconductor
Environmental Compliance
Download Datasheet Parametric Compare View All

BHD-20-ST-TN-SLC Overview

Board Connector, 20 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Locking, Receptacle

BHD-20-ST-TN-SLC Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
Reach Compliance Codeunknown
ECCN codeEAR99
Other featuresROHS COMPLIANT
body width0.429 inch
subject depth0.406 inch
body length1.302 inch
Body/casing typeRECEPTACLE
Connector typeBOARD CONNECTOR
Contact to complete cooperationSN
Contact completed and terminatedTIN
Contact point genderMALE
Contact materialBRASS
contact modeRECTANGULAR
Contact resistance30 mΩ
Contact styleSQ PIN-SKT
Dielectric withstand voltage500VAC V
Durability1000 Cycles
Insulation resistance3000000000 Ω
insulator materialGLASS FILLED POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial numberBHD
Plug contact pitch0.1 inch
Match contact row spacing0.1 inch
Installation option 1LOCKING
Installation option 2LATCH
Installation methodSTRAIGHT
Installation typeBOARD
Number of connectorsONE
PCB row number2
Number of rows loaded2
Maximum operating temperature105 °C
Minimum operating temperature-40 °C
PCB contact patternRECTANGULAR
PCB contact row spacing2.54 mm
polarization keyPOLARIZED HOUSING
Rated current (signal)2 A
GuidelineUL
reliabilityCOMMERCIAL
Terminal length0.126 inch
Terminal pitch2.54 mm
Termination typeSOLDER
Total number of contacts20

Preview

Download Datasheet
1
2
3
4
5
6
7
8
9
A
B

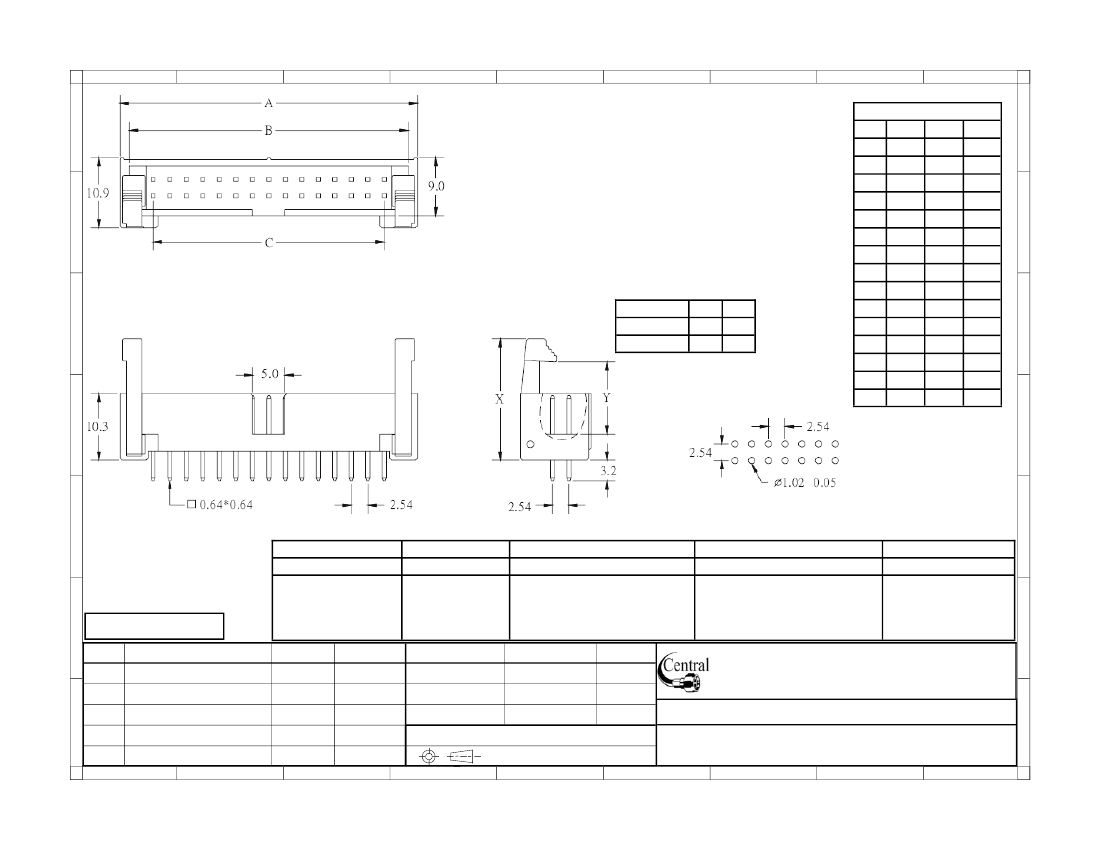

SPECIFICATIONS
Current rating:
Contact material:
Contact resistance:
Insulation material:
Insulation resistance:
Withstanding:
Operating temperature:
2 amps
Brass
30 milliohms max.
PBT, glass reinforced, UL94V-0
3,000 megohms min.
500VAC for 1 min.
-40°C to +105°C
C
Accessories X
Y
Long Latch 26.3 14.6
Short Latch 22.9 10.6
Dimensions
Pos. A
B
6 15.28 12.42
8 17.82 14.96
10 20.36 17.50
12 22.90 20.04
14 25.44 22.58
16 27.98 25.12
20 33.06 30.20
24 38.14 35.28
26 40.68 37.82
30 45.76 42.90
34 50.84 47.98
40 58.46 55.60
50 71.16 68.30
60 83.86 81.00
64 88.94 86.08
C
5.08
7.62
10.16
12.70
15.24
17.78
22.86
27.94
30.48
35.56
40.64
48.26
60.96
73.66
78.74
A
B
C
D
D
Recommended PC Board Layout
E
E
F
RoHS compliant
Rev.
Description
Series
Contacts
Mounting Type
Plating Options
BHD
XX
XX
XX
Box header .100”x.100” 6, 8, 10, 12, 14, 16, ST=Straight
TN=Tin
20, 24, 26, 30,34, RA=Right angle
SGXX=Selective gold
40, 50, 60, 64
RASM=Right angle surface mount GDXX=Gold
XX=Flash if blank; 05, 10, 30, 50µ”
Date
Approved
Drawing
Name
Approved Howard
Checked Lizzy
Drawn Tina
0.0 ± 0.35
Date
08/10/99
08/10/99
08/10/99 Part No.:
Options
XXX
[blank]=None
SPL=Special pin length
LLC=Long side latch
SLC=Short side latch
F
Central Components Manufacturing
440 Lincoln Blvd., Middlesex, New Jersey 08846
Phone 732 469-5720 888 288-5152 Fax 732 469-1919
G
BHD-XX-ST-XX-XLC
7
8
9
0.00 ± 0.20 Angles ± 3’
UNIT: mm
5
6
Description: Shrouded header with side latches
G
1
2
3
4

BHD-20-ST-TN-SLC Related Products

BHD-20-ST-TN-SLC BHD-26-ST-TN-SLC BHD-50-ST-TN-SLC BHD-06-ST-TN-SLC BHD-12-ST-TN-SLC BHD-60-ST-TN-SLC BHD-30-ST-TN-SLC BHD-40-ST-TN-SLC BHD-14-ST-TN-SLC
Description Board Connector, 20 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Locking, Receptacle Board Connector, 26 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Locking, Receptacle Board Connector, 50 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Locking, Receptacle Board Connector, 6 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Locking, Receptacle Board Connector, 12 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Locking, Receptacle Board Connector, 60 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Locking, Receptacle Board Connector, 30 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Locking, Receptacle Board Connector, 40 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Locking, Receptacle Board Connector, 14 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Locking, Receptacle
Is it Rohs certified? conform to conform to conform to conform to conform to conform to conform to conform to conform to
Reach Compliance Code unknown unknown unknown unknown unknown unknown unknown unknown unknown
ECCN code EAR99 EAR99 EAR99 EAR99 EAR99 EAR99 EAR99 EAR99 EAR99
Other features ROHS COMPLIANT ROHS COMPLIANT ROHS COMPLIANT ROHS COMPLIANT ROHS COMPLIANT ROHS COMPLIANT ROHS COMPLIANT ROHS COMPLIANT ROHS COMPLIANT
body width 0.429 inch 0.429 inch 0.429 inch 0.429 inch 0.429 inch 0.429 inch 0.429 inch 0.429 inch 0.429 inch
subject depth 0.406 inch 0.406 inch 0.406 inch 0.406 inch 0.406 inch 0.406 inch 0.406 inch 0.406 inch 0.406 inch
body length 1.302 inch 1.602 inch 2.802 inch 0.602 inch 0.902 inch 3.302 inch 1.802 inch 2.302 inch 1.002 inch
Body/casing type RECEPTACLE RECEPTACLE RECEPTACLE RECEPTACLE RECEPTACLE RECEPTACLE RECEPTACLE RECEPTACLE RECEPTACLE
Connector type BOARD CONNECTOR BOARD CONNECTOR BOARD CONNECTOR BOARD CONNECTOR BOARD CONNECTOR BOARD CONNECTOR BOARD CONNECTOR BOARD CONNECTOR BOARD CONNECTOR
Contact to complete cooperation SN SN SN SN SN SN SN SN SN
Contact completed and terminated TIN TIN TIN TIN TIN TIN TIN TIN TIN
Contact point gender MALE MALE MALE MALE MALE MALE MALE MALE MALE
Contact material BRASS BRASS BRASS BRASS BRASS BRASS BRASS BRASS BRASS
contact mode RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR
Contact resistance 30 mΩ 30 mΩ 30 mΩ 30 mΩ 30 mΩ 30 mΩ 30 mΩ 30 mΩ 30 mΩ
Contact style SQ PIN-SKT SQ PIN-SKT SQ PIN-SKT SQ PIN-SKT SQ PIN-SKT SQ PIN-SKT SQ PIN-SKT SQ PIN-SKT SQ PIN-SKT
Dielectric withstand voltage 500VAC V 500VAC V 500VAC V 500VAC V 500VAC V 500VAC V 500VAC V 500VAC V 500VAC V
Durability 1000 Cycles 1000 Cycles 1000 Cycles 1000 Cycles 1000 Cycles 1000 Cycles 1000 Cycles 1000 Cycles 1000 Cycles
Insulation resistance 3000000000 Ω 3000000000 Ω 3000000000 Ω 3000000000 Ω 3000000000 Ω 3000000000 Ω 3000000000 Ω 3000000000 Ω 3000000000 Ω
insulator material GLASS FILLED POLYBUTYLENE TEREPHTHALATE GLASS FILLED POLYBUTYLENE TEREPHTHALATE GLASS FILLED POLYBUTYLENE TEREPHTHALATE GLASS FILLED POLYBUTYLENE TEREPHTHALATE GLASS FILLED POLYBUTYLENE TEREPHTHALATE GLASS FILLED POLYBUTYLENE TEREPHTHALATE GLASS FILLED POLYBUTYLENE TEREPHTHALATE GLASS FILLED POLYBUTYLENE TEREPHTHALATE GLASS FILLED POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number BHD BHD BHD BHD BHD BHD BHD BHD BHD
Plug contact pitch 0.1 inch 0.1 inch 0.1 inch 0.1 inch 0.1 inch 0.1 inch 0.1 inch 0.1 inch 0.1 inch
Match contact row spacing 0.1 inch 0.1 inch 0.1 inch 0.1 inch 0.1 inch 0.1 inch 0.1 inch 0.1 inch 0.1 inch
Installation option 1 LOCKING LOCKING LOCKING LOCKING LOCKING LOCKING LOCKING LOCKING LOCKING
Installation option 2 LATCH LATCH LATCH LATCH LATCH LATCH LATCH LATCH LATCH
Installation method STRAIGHT STRAIGHT STRAIGHT STRAIGHT STRAIGHT STRAIGHT STRAIGHT STRAIGHT STRAIGHT
Installation type BOARD BOARD BOARD BOARD BOARD BOARD BOARD BOARD BOARD
Number of connectors ONE ONE ONE ONE ONE ONE ONE ONE ONE
PCB row number 2 2 2 2 2 2 2 2 2
Number of rows loaded 2 2 2 2 2 2 2 2 2
Maximum operating temperature 105 °C 105 °C 105 °C 105 °C 105 °C 105 °C 105 °C 105 °C 105 °C
Minimum operating temperature -40 °C -40 °C -40 °C -40 °C -40 °C -40 °C -40 °C -40 °C -40 °C
PCB contact pattern RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR
PCB contact row spacing 2.54 mm 2.54 mm 2.54 mm 2.54 mm 2.54 mm 2.54 mm 2.54 mm 2.54 mm 2.54 mm
polarization key POLARIZED HOUSING POLARIZED HOUSING POLARIZED HOUSING POLARIZED HOUSING POLARIZED HOUSING POLARIZED HOUSING POLARIZED HOUSING POLARIZED HOUSING POLARIZED HOUSING
Rated current (signal) 2 A 2 A 2 A 2 A 2 A 2 A 2 A 2 A 2 A
Guideline UL UL UL UL UL UL UL UL UL
reliability COMMERCIAL COMMERCIAL COMMERCIAL COMMERCIAL COMMERCIAL COMMERCIAL COMMERCIAL COMMERCIAL COMMERCIAL
Terminal length 0.126 inch 0.126 inch 0.126 inch 0.126 inch 0.126 inch 0.126 inch 0.126 inch 0.126 inch 0.126 inch
Terminal pitch 2.54 mm 2.54 mm 2.54 mm 2.54 mm 2.54 mm 2.54 mm 2.54 mm 2.54 mm 2.54 mm
Termination type SOLDER SOLDER SOLDER SOLDER SOLDER SOLDER SOLDER SOLDER SOLDER
Total number of contacts 20 26 50 6 12 60 30 40 14
Maker - Central Semiconductor Central Semiconductor Central Semiconductor Central Semiconductor Central Semiconductor - - -
