D55342E07W3E32P-TR datasheet, PDF

Datasheet> All Categories > Passive components> The resistor> D55342E07W3E32P-TR

D55342E07W3E32P-TR: DescriptionFixed Resistor, Thin Film, 0.25W, 3320ohm, 100V, 1% +/-Tol, 25ppm/Cel, Surface Mount, 1206, CHIP; CategoryPassive components The resistor; File Size102KB，1 Pages; ManufacturerState of the Art Inc.; Environmental Compliance

Download Datasheet Parametric View All

D55342E07W3E32P-TR Overview

Fixed Resistor, Thin Film, 0.25W, 3320ohm, 100V, 1% +/-Tol, 25ppm/Cel, Surface Mount, 1206, CHIP

D55342E07W3E32P-TR Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	CHIP
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	PRECISION
structure	Chip
JESD-609 code	e4
Manufacturer's serial number	D55342/07
Installation features	SURFACE MOUNT
Number of terminals	2
Maximum operating temperature	150 °C
Minimum operating temperature	-55 °C
Package height	0.46 mm
Package length	3.2 mm
Package shape	RECTANGULAR PACKAGE
Package form	SMT
Package width	1.55 mm
method of packing	TR
Rated power dissipation(P)	0.25 W
Rated temperature	70 °C
Guideline	MIL-PRF-55342
resistance	3320 Ω
Resistor type	FIXED RESISTOR
series	D55342/07-THIN FILM
size code	1206
surface mount	YES
technology	THIN FILM
Temperature Coefficient	25 ppm/°C
Terminal surface	Gold (Au)
Terminal shape	WRAPAROUND
Tolerance	1%
Operating Voltage	100 V

Preview

Download Datasheet

View All

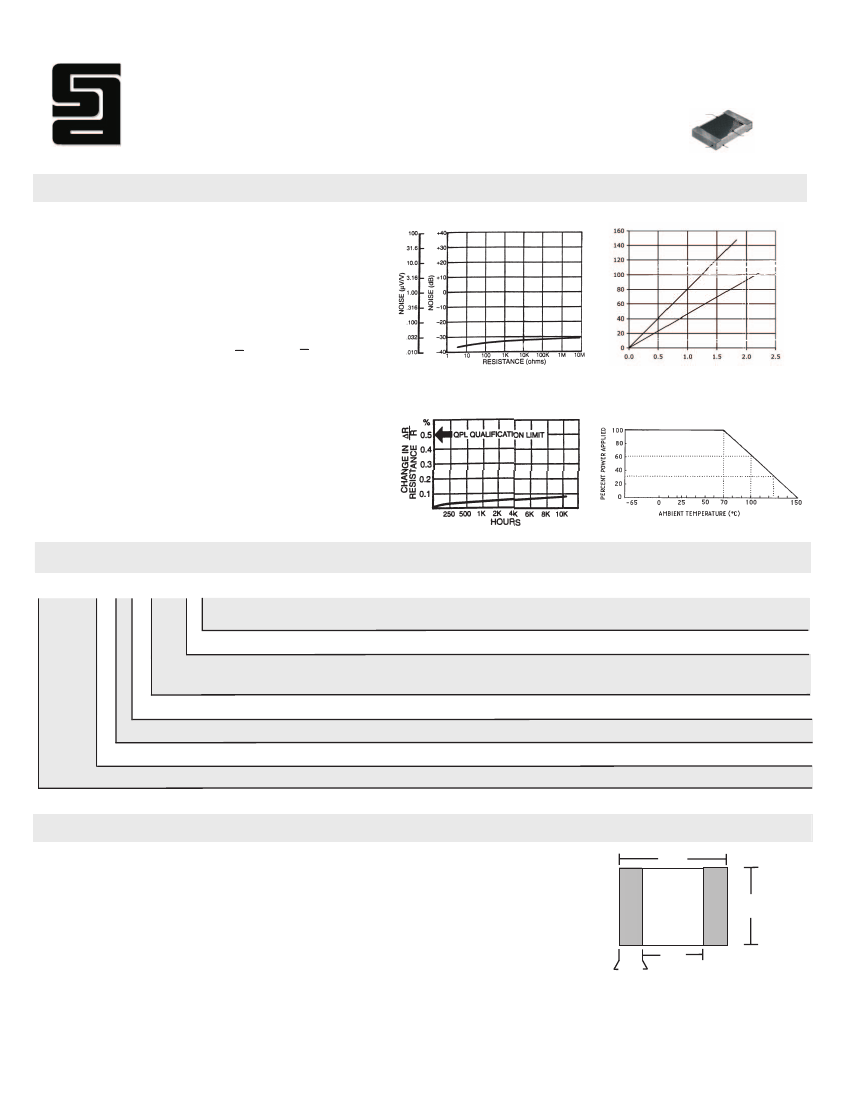

State of the Art, Inc.

Thin Film Chip Resistor

D55342/07 RM1206

PROTECTIVE

ENCAPSULANT

PRECISION

THIN FILM

RESISTOR

99.6% ALUMINA CHIP

WRAPAROUND

TERMINATIONS

PRETINNED

PERFORMANCE

TEMPERATURE RISE (°C)

Resistance Range

Tolerances

Maximum Power

Maximum Voltage

100

- 1M

0.1%, 1%, 2%, 5%

250 mW

100 Volts

CURRENT NOISE

POWER DISSIPATION

fiber epoxy board

ceramic board

TESTS

TCR (-55 to +125

C) in ppm/

Thermal Shock

Low Temperature Operation

Short-time Overload

Resistance to Soldering Heat

Moisture Resistance

Life, 2,000 Hours

High Temperature Exposure

CHARACTERISTICS*

±25

±0.1%

±0.2%

±0.5%

±0.1%

±50

±0.25%

±0.1%

±0.25%

±0.4%

±0.5%

±0.2%

POWER DISSIPATION (WATTS)

LIFE TEST

POWER DERATING

*Maximum allowable change per MIL-PRF-55342,

typical change is 10% of these values.

PART NUMBERING

D55342 H 07 B 100D R - TR

PACKAGING CODE: TR = Tape & Reel W= Waffle Pack

PRODUCT LEVEL DESIGNATOR: M: 1% per 1000 hrs. R: 0.01% P: 0.1% T: Space Level C: Non - ER

RESISTANCE AND TOLERANCE CODE:

Three significant digits, with a letter indicating the

decimal location, the tolerance, and the value range.

TERMINATION MATERIALS:

SIZE CODE: /07* = RM1206

TEMPERATURE CHARACTERISTIC: E: ± 25ppm H: ± 50ppm

PERFORMANCE SPECIFICATION MIL-PRF-55342

*RM1206 is specified in MIL-PRF-55342 as D55342 /07 rather than M55342 /07.

B: Solderable wraparound

A: 0.1%

D: 1%

G: 2%

J: 5%

B: 0.1% K

E: 1% K

H: 2% K

K: 5% K

C: 0.1% M

F: 1% M

T: 2% M

L: 5% M

W: Gold wire bondable

MECHANICAL

INCHES

MILLIMETERS

.156

MINIMUM

RECOMMENDED

MOUNTING

PADS

(INCHES)

Length

Width

Thickness

Top Term

Bottom Term

Gap

Approx. Weight

.126 (.118 - .134)

.061 (.058 - .068)

.018 (.015 - .033)

.016 (.010 - .025)

.018 (.010 - .025)

.090 (.086 - .094)

.0084 grams

3.20

1.55

0.46

0.41

0.46

2.29

(3.00 - 3.40)

(1.47 - 1.73)

(0.38 - 0.84)

(0.25 - 0.64)

(2.18 - 2.39)

.067

.084

.036

2470 Fox Hill Road, State College, PA 16803-1797

Phone (814) 355-8004 Fax (814) 355-2714 Toll Free 1-800-458-3401

“Specifications subject to change without notice.”

www.resistor.com

04/09/08
