S0502CPX3R32F20 datasheet, PDF

Datasheet> All Categories > Passive components> The resistor> S0502CPX3R32F20

S0502CPX3R32F20: DescriptionFixed Resistor, Metal Glaze/thick Film, 0.06W, 3.32ohm, 40V, 1% +/-Tol, 200ppm/Cel, Surface Mount, 0502, CHIP; CategoryPassive components The resistor; File Size52KB，1 Pages; ManufacturerState of the Art Inc.

Download Datasheet Parametric View All

S0502CPX3R32F20 Overview

Fixed Resistor, Metal Glaze/thick Film, 0.06W, 3.32ohm, 40V, 1% +/-Tol, 200ppm/Cel, Surface Mount, 0502, CHIP

S0502CPX3R32F20 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
package instruction	CHIP
Reach Compliance Code	not_compliant
ECCN code	EAR99
JESD-609 code	e0
Manufacturer's serial number	S0502
Installation features	SURFACE MOUNT
Number of terminals	2
Maximum operating temperature	150 °C
Minimum operating temperature	-55 °C
Package shape	RECTANGULAR PACKAGE
Rated power dissipation(P)	0.06 W
Rated temperature	70 °C
resistance	3.32 Ω
Resistor type	FIXED RESISTOR
size code	0502
surface mount	YES
technology	METAL GLAZE/THICK FILM
Temperature Coefficient	200 ppm/°C
Terminal surface	Tin/Lead (Sn60Pb40) - with Nickel (Ni) barrier
Terminal shape	WRAPAROUND
Tolerance	1%
Operating Voltage	40 V

Preview

Download Datasheet

View All

Standard Grade, Surface Mount, Solderable

GLASS

PASSIVATION

RESISTOR

FILM

96% ALUMINA CHIP

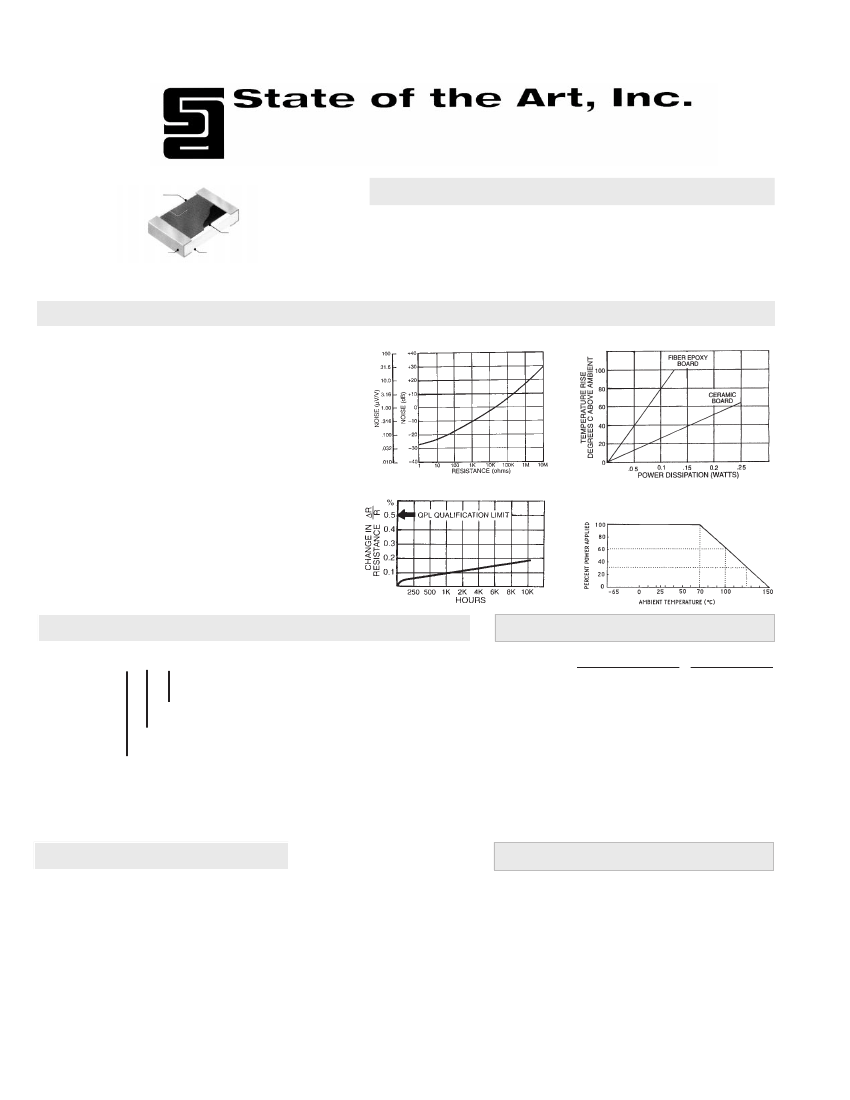

0502 Thick Film Chip Resistor

FEATURES

• Tolerances to ± 0.5%

• Operating temperature range :

-55

C to +150

• Pretinned (Sn60) nickel barrier

terminations

WRAPAROUND

TERMINATIONS

PRETINNED

• TCR's to ± 100 ppm

• Made with the same materials and

process as our MIL-PRF-55342 "S"

level qualified chips

• Suitable for solder reflow, vapor

phase, or wave solder attachment

PERFORMANCE CHARACTERISTICS

Resistance Range (1)

Tolerances (2)

Maximum Power

Maximum Voltage

1W-40MW

1%, 2%, 5%, 10%

60 mW

40 Volts

CURRENT NOISE

POWER DISSIPATION

ENVIRONMENTAL PERFORMANCE (3)

TCR (-55 to +125

C in ppm/

Thermal Shock

Low Temperature Operation

Short-time Overload

Resistance to Bonding Exposure

Moisture Resistance

High Temperature Exposure

Life

< 100 ppm

±0.03%

±0.05%

See Chart

TYPICAL LIFE TEST PERFORMANCE

POWER DERATING

(1) SOTA offers milliohm and high megohm resistors with

excellent performance.

(2) ±0.5% in limited availability

(3) Typical resistance change, the maximum is the same

as MIL-PRF-55342. Test methods are per MIL-PRF-55342.

PART NUMBERING

S0502CPX 150 J 20

TCR

10: ±100 ppm 20: ±200 ppm 30: ±300 ppm

TOLERANCES

D: 0.5% F: 1% G: 2% J: 5% K: 10% M: 20%

RESISTANCE VALUE

Three or four digits are used with all leading digits significant. Four digits

are used for 1% tolerance or lower, otherwise three digits are used. The last

digit specifies the number of zeros to add. The letter "R" is used to

represent the decimal for fractional ohmic values. Example: 5R6 is 5.6

ohms.

MECHANICAL

Length

Width

Thickness

Top Term.

Bottom Term.

INCHES

.050 (+.005/-.002)

.025 (±.005)

.008 - .020

.004 - .015

.007 - .017

1.27 (+.13/-.05)

.64 (±.13)

.20 - .51

.10 - .38

.18 - .43

Approx. Weight .00158 grams

Solderability: Solder coating compatible with Sn60, 62 or

63 solders, provides good wetting with all types of solder

attachment. All product is tested IAW Mil-Std-202,

method 208, including 8 hour steam aging.

PACKAGING

Three packaging options are available:

• Bulk Packaging - (5000 per Bag Max.)

• Waffle Pack - (400 per Tray Max.)

• Tape & Reel - (5000 per Reel Max.)

OPTIONS

SOTA offers a full line of component parts in the 0502 size

including High-Reliability (customer specified testing).

Available options are epoxy bondable and wire bondable

terminations, custom part marking, and untrimmed

resistors.

STATE OF THE ART, INC.

2470 Fox Hill Road, State College, PA 16803-1797

Phone (814) 355-8004 Fax (814) 355-2714

Toll Free 1-800-458-3401

10/01/97

Where Quality Isn't a Goal...It's Our Tradition
