SMT inductors
SIMID series, SIMID 1210-H
Series/Type:
Date:
B82422H
December 2012
a~í~=pÜÉÉí
¤
EPCOS AG 2012. Reproduction, publication and dissemination of this publication, enclosures
hereto and the information contained therein without EPCOS’ prior express consent is prohibited.
SMT inductors, SIMID series
SIMID 1210-H
Size 1210 (EIA) or 3225 (IEC)
Rated inductance 0.1 ... 680 μH
Rated current 61 ... 2050 mA
Construction
■
Ferrite drum core
■
Laser-welded winding
■
Flame-retardant molding
B82422H
Features
■
■
■
■
Temperature range up to +150 °C
Very high current handling capability
Qualified to AEC-Q200
Suitable for lead-free reflow soldering
as referenced in JEDEC J-STD 020D
■
RoHS-compatible
Applications
■
■
■
■
■
■
Filtering of supply voltages, coupling, decoupling
DC/DC converters, switch-mode power supplies
Automotive electronics (e.g. single wire bus systems)
Telecommunications
Consumer and data processing equipment
Industrial electronics
Terminals
■
Base material CuSn6
■
Layer composition Cu, Ag, Sn (lead-free)
1)
■
Electro-plated
Marking
■
Marking on component:
Manufacturer and letter “H”, L value (in
PH),
tolerance of L value (coded), date of manufacture (YWWD)
■
Minimum data on reel:
Manufacturer, ordering code, L value, quantity, date of packing
Delivery mode and packing units
■
8-mm blister tape, wound on 180-mm or 330-mm
reel
■
Packing units:
180-mm reel: 2000 pcs./reel
330-mm reel: 7500 pcs./reel
1) Ni-barrier-plated terminals on request (B82422H*50).
Please read
Cautions and warnings
and
Important notes
at the end of this document.
2
12/12
SMT inductors, SIMID series
SIMID 1210-H

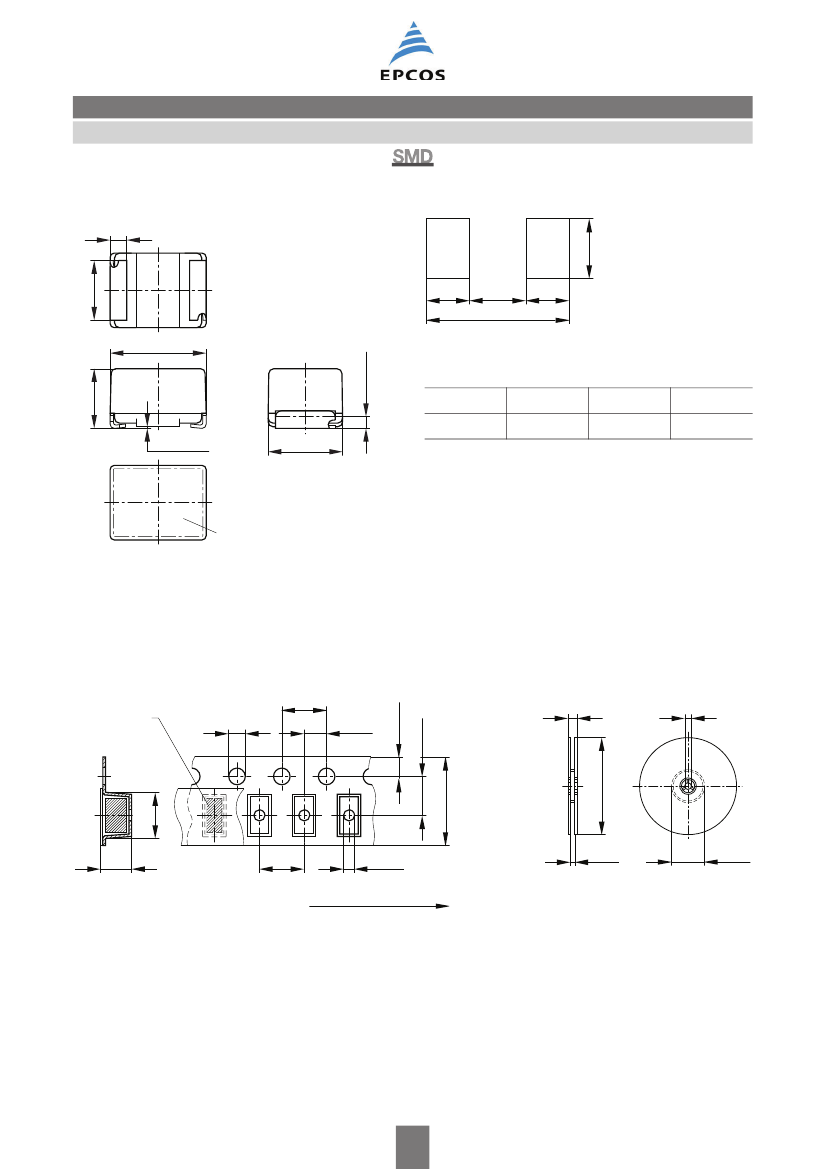

Dimensional drawing and layout recommendation
0.6±0.2
1)
1.9±0.1
1)
B82422H
B
C
D
B
IND0053-6
2.2±0.2
0.45 min.
1)
3.2±0.2
A
2.7
B
1.15
A
C
2.1
D
4.4
0.15 max.
2.5±0.2
Marking
1) Soldering area
IND0496-P-E
Dimensions in mm
Taping and packing
Blister tape
1.75±0.1
4±0.1
Component
1.5+0.1
2±0.05
Reel
14.4 max.
_
0
12.75
+0.15
3.5±0.05
_
2
180
+0
_
< 4.2
8±0.3
_
< 2.8
4±0.1
1.0+0.2
Direction of unreeling
IND0557-F-E
_
0
8.4
+1.5
_
2
330
+0
62±1.5
IND0592-V
Dimensions in mm
Please read
Cautions and warnings
and
Important notes
at the end of this document.
3
12/12
SMT inductors, SIMID series
SIMID 1210-H
Technical data and measuring conditions
Rated inductance L
R
Q factor Q
min
Rated temperature T
R
Rated current I
R
B82422H
Measured with impedance analyzer Agilent 4294A
at frequency f
L
, 0.1 V, +20 °C
Measured with impedance analyzer Agilent 4294A
at frequency f
Q
, +20 °C
+105
qC
Maximum permissible DC with inductance decrease
'L/L
0
d
10% and temperature increase
of
d
45 K at rated temperature
Measured with impedance analyzer Agilent 4294A, +20 °C
Measured at +20
qC
Sn95.5Ag3.8Cu0.7: +(245
r5)
°C, (5
r0.3)
s
Wetting of soldering area
t
90%
(based on IEC 60068-2-58)
+260
qC,
40 s (as referenced in JEDEC J-STD 020D)
55/150/56 (to IEC 60068-1)
Mounted: –55°C … +150 °C
Packaged: –25 °C … +40 °C,
d
75% RH
Approx. 50 mg
Self-resonance frequency f
res,min
DC resistance R
max
Solderability (lead-free)
Resistance to soldering heat
Climatic category
Storage conditions
Weight
Please read
Cautions and warnings
and
Important notes
at the end of this document.
4
12/12
SMT inductors, SIMID series
SIMID 1210-H
Characteristics and ordering codes
L
R
PH
1.0
1.5
2.2
3.3
4.7
6.8
10
15
22
33
47
68
100
150
220
330
470
680
r5%
^
B82422H
Tolerance
J
^
f
L
MHz
7.96
Q
min
10
10
10
10
10
10
12
12
12
15
15
15
f
Q
MHz
2.52
2.52
2.52
2.52
2.52
2.52
2.52
2.52
2.52
2.52
2.52
2.52
0.796
0.796
0.796
0.796
0.796
0.796
I
R
mA
1150
900
800
770
700
570
500
390
330
280
230
180
150
120
100
90
76
61
R
max
:
0.10
0.14
0.16
0.18
0.25
0.35
0.46
0.72
1.0
1.4
2.1
3.4
4.8
7.5
10.9
13.0
20.0
31.0
f
res,min
MHz
150
110
90
70
46
35
30
26
21
15
12
10
Ordering code
1)2)
( 180-mm reel)
B82422H1102+000
B82422H1152+000
B82422H1222+000
B82422H1332+000
B82422H1472+000
B82422H1682+000
B82422H1103+000
B82422H1153+000
B82422H1223+000
B82422H1333+000
B82422H1473+000
B82422H1683+000
r10%
K
7.96
7.96
7.96
7.96
7.96
2.52
2.52
2.52
2.52
2.52
2.52
0.796 20
0.796 20
0.796 20
0.796 20
0.796 20
0.796 20
8.0 B82422H1104+000
6.0 B82422H1154+000
5.5 B82422H1224+000
4.5 B82422H1334+000
3.5 B82422H1474+000
3.0 B82422H1684+000
Intermediate values and closer tolerances on request.
Higher currents possible at temperatures <T
R
on request.
Sample kit available. Ordering code: B82422X002
For more information refer to chapter “Sample kits".
1) Replace the + by the code letter for the required inductance tolerance.
For reel size
330 mm the last digit has to be an »8«. Example: B82422H1102M008
2) For Ni-barrier-plated terminals replace the last two digits “00” by “50” (reel 180 mm) or “58” (reel 330 mm).
Please read
Cautions and warnings
and
Important notes
at the end of this document.
5
12/12
