5456-3243: DescriptionBoard Connector, 24 Contact(s), 2 Row(s), Female, Straight, 0.1 inch Pitch, Solder Terminal, Plug; CategoryThe connector The connector; File Size77KB，1 Pages; ManufacturerConexcon Group

Download Datasheet Parametric Compare View All

5456-3243 Overview

Board Connector, 24 Contact(s), 2 Row(s), Female, Straight, 0.1 inch Pitch, Solder Terminal, Plug

5456-3243 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	LOW PROFILE
body width	0.2 inch
subject depth	0.197 inch
body length	1.231 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
maximum insertion force	8.0064 N
insulator material	POLYESTER
Manufacturer's serial number	5456
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
PCB contact pattern	RECTANGULAR
PCB contact row spacing	3.81 mm
Plating thickness	FLASH inch
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	24
Evacuation force-minimum value	.7784 N

Preview

Download Datasheet

View All

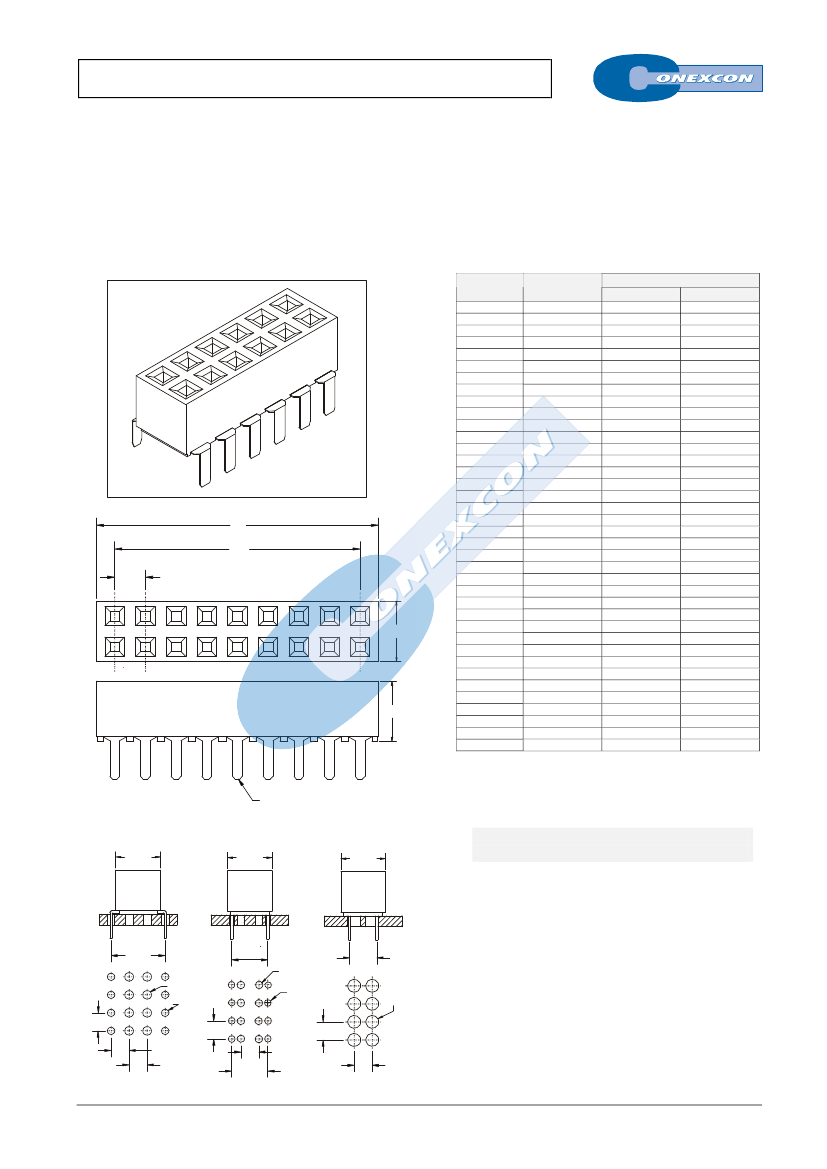

2.54mm DUAL ROW FEMALE HEADER

5456 SERIES.

2.54 x 2.54mm(0.100 x 0.100”). For PCB Solder

Features



Available in 6 through 80 circuits

Material: Polyester UL94V-0

Mates with 2.54mm pitch and 0.64mm pin headers

Low profile (5 mm. Height)



Different plating options are available

High quality dual beam phosphor bronze contacts

Designed for board to board small spacing interconnection

Top and bottom entry

Ordering and Dimensional Information

Circuit Size

Part Number

5456-T06C

5456-T08C

5456-T10C

5456-T12C

5456-T14C

5456-T16C

5456-T18C

5456-T20C

5456-T22C

5456-T24C

5456-T26C

5456-T28C

5456-T30C

5456-T32C

5456-T34C

5456-T36C

5456-T38C

5456-T40C

5456-T42C

5456-T44C

5456-T46C

5456-T48C

5456-T50C

5456-T52C

5456-T54C

5456-T56C

5456-T58C

5456-T60C

5456-T62C

5456-T64C

5456-T66C

5456-T68C

5456-T70C

5456-T72C

5456-T74C

5456-T76C

5456-T78C

5456-T80C

Dimensions

5,08(0,200)

7,62(0,300)

10,16(0,400)

12,70(0,500)

15,24(0,600)

17,78(0,700)

20,32(0,800)

22,86(0,900)

25,40(1,000)

27,94(1,100)

30,48(1,200)

33,02(1,300)

35,56(1,400)

38,10(1,500)

40,64(1,600)

43,18(1,700)

45,72(1,800)

48,26(1,900)

50,80(2,000)

53,34(2,100)

55,88(2,200)

58,42(2,300)

60,96(2,400)

63,50(2,500)

66,04(2,600)

68,58(2,700)

71,12(2,800)

73,66(2,900)

76,20(3,000)

78,74(3,100)

81,28(3,200)

83,82(3,300)

86,36(3,400)

88,90(3,500)

91,44(3,600)

93,98(3,700)

96,52(3,800)

99,06(3,900)

8,42(0,331)

10,96(0,431)

13,50(0,531)

16,04(0,631)

18,58(0,731)

21,12(0,831)

23,66(0,931)

26,20(1,031)

28,74(1,131)

31,28(1,231)

33,82(1,331)

36,36(1,431)

38,90(1,531)

41,44(1,631)

43,98(1,731)

46,52(1,831)

49,06(1,931)

51,60(2,031)

54,14(2,131)

56,68(2,231)

59,22(2,331)

61,76(2,431)

64,30(2,531)

66,84(2,631)

69,38(2,731)

71,92(2,831)

74,46(2,931)

77,00(3,031)

79,54(3,131)

82,08(3,231)

84,62(3,331)

87,16(3,431)

89,70(3,531)

92,24(3,631)

94,78(3,731)

97,32(3,831)

99,86(3,931)

102,40(4,031)

Dimensional Information

2.54

5.08

5.0

PIN 0.8X0.25±0.02

T = Contact Plating

Type 1

5.08

Type 2

5.08

Type 3

5.08



T =

Tin plated.

T =

Gold flash over 50µ” nickel.

Recommended Finish

T =

15µ” gold over 50µ” nickel

T =

30µ” gold over 50µ” nickel

T =

13.

Selective gold flash over 50µ” nickel

T =

15.

15µ” selective gold over 50µ” nickel

T =

16.

30µ” selective gold over 50µ” nickel

7.62

2.54

1.2

1.00

5.08

1.20

3.81

ø1.00

2.54

1.80

C = Pitch Type

2.54

5.08

2.54



C =

(7.62mm)

Type 1

C =

(5.08mm)

Type 2

C =

(3.81mm)

Type 3

FULL LINE CATALOGUE

E-XX

5456-3243 Related Products

	5456-3243	5456-3423	5456-3403	5456-3443	5456-3323	5456-3203	5456-3383	5456-3303
Description	Board Connector, 24 Contact(s), 2 Row(s), Female, Straight, 0.1 inch Pitch, Solder Terminal, Plug	Board Connector, 42 Contact(s), 2 Row(s), Female, Straight, 0.1 inch Pitch, Solder Terminal, Plug	Board Connector, 40 Contact(s), 2 Row(s), Female, Straight, 0.1 inch Pitch, Solder Terminal, Plug	Board Connector, 44 Contact(s), 2 Row(s), Female, Straight, 0.1 inch Pitch, Solder Terminal, Plug	Board Connector, 32 Contact(s), 2 Row(s), Female, Straight, 0.1 inch Pitch, Solder Terminal, Plug	Board Connector, 20 Contact(s), 2 Row(s), Female, Straight, 0.1 inch Pitch, Solder Terminal, Plug	Board Connector, 38 Contact(s), 2 Row(s), Female, Straight, 0.1 inch Pitch, Solder Terminal, Plug	Board Connector, 30 Contact(s), 2 Row(s), Female, Straight, 0.1 inch Pitch, Solder Terminal, Plug
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Other features	LOW PROFILE	LOW PROFILE	LOW PROFILE	LOW PROFILE	LOW PROFILE	LOW PROFILE	LOW PROFILE	LOW PROFILE
body width	0.2 inch	0.2 inch	0.2 inch	0.2 inch	0.2 inch	0.2 inch	0.2 inch	0.2 inch
subject depth	0.197 inch	0.197 inch	0.197 inch	0.197 inch	0.197 inch	0.197 inch	0.197 inch	0.197 inch
body length	1.231 inch	2.131 inch	2.031 inch	2.231 inch	1.631 inch	1.031 inch	1.931 inch	1.531 inch
Body/casing type	PLUG	PLUG	PLUG	PLUG	PLUG	PLUG	PLUG	PLUG
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI	AU ON NI	AU ON NI	AU ON NI	AU ON NI	AU ON NI	AU ON NI	AU ON NI
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
Contact material	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact style	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT
maximum insertion force	8.0064 N	8.0064 N	8.0064 N	8.0064 N	8.0064 N	8.0064 N	8.0064 N	8.0064 N
insulator material	POLYESTER	POLYESTER	POLYESTER	POLYESTER	POLYESTER	POLYESTER	POLYESTER	POLYESTER
Manufacturer's serial number	5456	5456	5456	5456	5456	5456	5456	5456
Plug contact pitch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch
Match contact row spacing	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of connectors	ONE	ONE	ONE	ONE	ONE	ONE	ONE	ONE
PCB row number	2	2	2	2	2	2	2	2
Number of rows loaded	2	2	2	2	2	2	2	2
PCB contact pattern	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
PCB contact row spacing	3.81 mm	3.81 mm	3.81 mm	3.81 mm	3.81 mm	3.81 mm	3.81 mm	3.81 mm
Plating thickness	FLASH inch	FLASH inch	FLASH inch	FLASH inch	FLASH inch	FLASH inch	FLASH inch	FLASH inch
Guideline	UL	UL	UL	UL	UL	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	24	42	40	44	32	20	38	30
Evacuation force-minimum value	.7784 N	.7784 N	.7784 N	.7784 N	.7784 N	.7784 N	.7784 N	.7784 N
ECCN code	EAR99	-	-	-	EAR99	EAR99	EAR99	EAR99
