7672-50811 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 7672-50811

7672-50811: DescriptionTelecom and Datacom Connector, 64 Contact(s), Male, Right Angle, Solder Terminal, Locking, Jack; CategoryThe connector The connector; File Size368KB，1 Pages; ManufacturerConexcon Group; Environmental Compliance

Download Datasheet Parametric View All

7672-50811 Overview

Telecom and Datacom Connector, 64 Contact(s), Male, Right Angle, Solder Terminal, Locking, Jack

7672-50811 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	unknown
ECCN code	EAR99
body width	0.833 inch
subject depth	1.204 inch
body length	2.594 inch
Body/casing type	JACK
Connector type	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	AU ON NI
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
Contact resistance	20 mΩ
Contact style	TELCOM, MODULAR
Dielectric withstand voltage	300VAC V
Durability	1000 Cycles
Insulation resistance	1000000000 Ω
insulator material	THERMOPLASTIC
Manufacturer's serial number	7672
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of ports	8
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
PCB contact pattern	STAGGERED
Plating thickness	15u inch
Rated current (signal)	1.5 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.128 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	64

Preview

Download Datasheet

View All

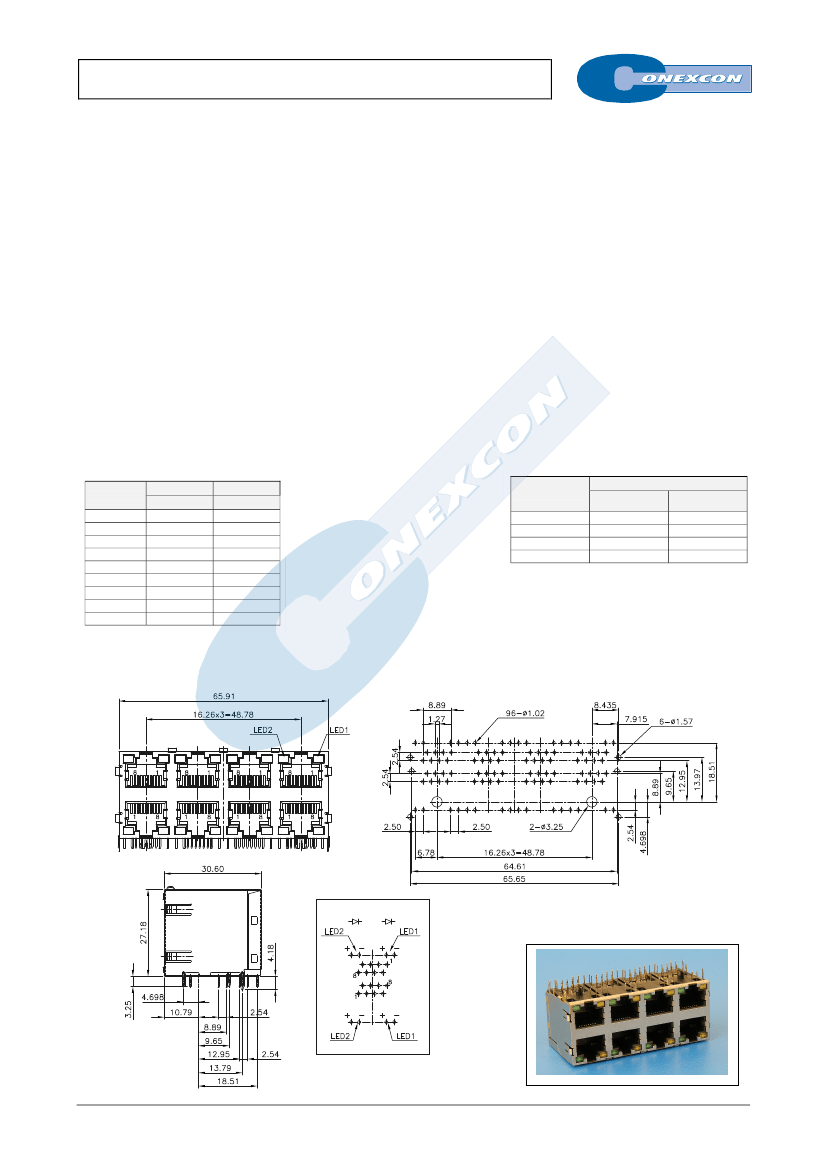

SIDE ENTRY MULTI PORT PCB JACK FCC-68

7672 SERIES.

With leds. Shielded multi port dual level.

General Features

Electrical Features



Available in 8/8 circuits

Standard telephone jack FCC-68

Available in 2, 4, 6 and 8 ports

27.25 mm. Height and 30.60 mm. depth

Accept standard plugs FCC-68

Selective gold plating with different plating

Bifurcated plastic foot print

With / without grounding tabs



Voltage rating: < 125V

Current rating: < 1.50 A

Contact resistance: < 20 mΩ

Dielectric withstanding voltage: 300 V AC/minute

Insulation resistance: >1000 MΩ

Materials

Mechanical Features



Insulator: Thermoplastic UL 94V-0

Contact: 0.46 mm round in phosphor bronze

Operating temperature. -25ºC to + 85ºC

RoHS compliant



Durability: 1000 cycles

Dimensional Information

LED 1

RIGHT

W/O LED

GREEN

YELLOW

GREEN

YELLOW

YELL/GREEN

GRREN/RED

YELLOW

LED 2

LEFT

W/O LED

YELLOW

W/O LED

GREEN

YELLOW

YELL/GREEN

GREEN/RED

YELL/GREEN

Part number

W/O grounding

With grounding

Tabs

7672 –

T021C

7672 –

T022C

7672 –

T041C

7672 –

T061C

7672 –

T081C

7672 –

T042C

7672 –

T062C

7672 –

T082C

OPTION C

Ports

T = Plating Options



T =

10µ” gold over nickel

T =

15µ” gold over nickel

T =

30µ” gold over nickel

T =

50µ” gold over nickel

RECOMMENDED HOLE PATTERN

LED Schematic

Top

Botton

E-XX

FULL LINE CATALOGUE
