8370-16-36-1 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 8370-16-36-1

8370-16-36-1: DescriptionBoard Connector, 36 Contact(s), 1 Row(s), Male, Straight, 0.079 inch Pitch, Solder Terminal, Black Insulator; CategoryThe connector The connector; File Size65KB，1 Pages; ManufacturerConexcon Group; Environmental Compliance

Download Datasheet Parametric View All

8370-16-36-1 Overview

Board Connector, 36 Contact(s), 1 Row(s), Male, Straight, 0.079 inch Pitch, Solder Terminal, Black Insulator

8370-16-36-1 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	unknown
ECCN code	EAR99
body width	0.087 inch
subject depth	0.138 inch
body length	2.835 inch
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact point gender	MALE
Contact material	BRASS
contact mode	RECTANGULAR
Contact resistance	10 mΩ
Contact style	RND PIN-SKT
Dielectric withstand voltage	1000VAC V
Durability	500 Cycles
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED POLYPHENYLENE SULPHIDE
Manufacturer's serial number	8370
Plug contact pitch	0.079 inch
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
Plating thickness	30u inch
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.114 inch
Terminal pitch	2.0066 mm
Termination type	SOLDER
Total number of contacts	36

Preview

Download Datasheet

View All

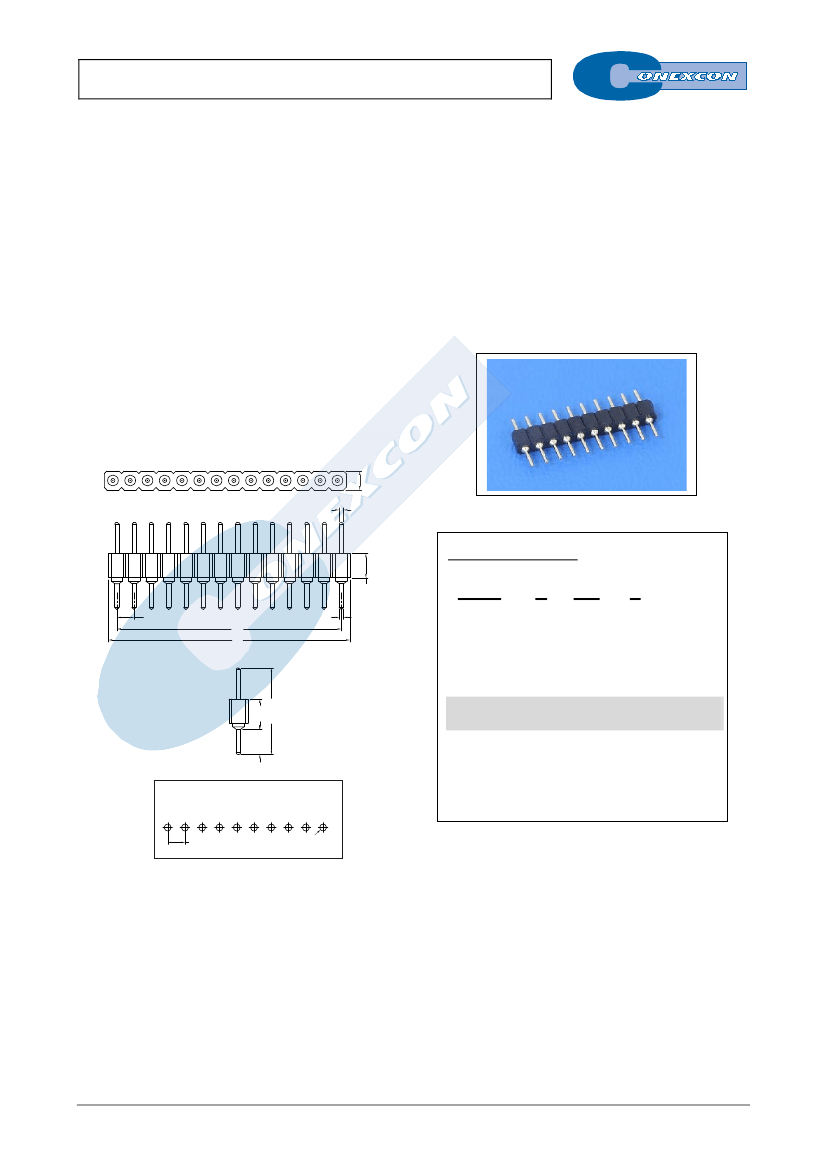

SINGLE ROW VERTICAL PIN HEADER

8370 SERIES.

2.00 mm. (0.079”) pitch. Machined contact.

General Features

Electrical Features



Available in 2 through 40 circuits



Mates with sockets 2.00 mm. pitch 8375, 8377, 8379,

8381 and 8383 series



0.47 round pin in contact area with different plating

Materials



Voltage rating: < 250V

Current rating: < 3A

Contact resistance: < 10 mΩ

Dielectric withstanding Voltage: 1000 V AC/minute

Insulation resistance: >1000 MΩ

Mechanical Features



Insulator: PPS black + 30% GF UL 94 V-0

Contact: Brass

Operating temperature. -40ºC to +105ºC

RoHS compliant



Durability: 500 Cycles

Dimension Information

ø0.47

2.20±0.15

Ordering Information:

2.80±0.15

8370 -

T-

XX-

2.00±0.10

ø0.50

1. Connector Series

2. (T) Contact Plating

10.00

3.50



T =

gold flash over 30-50µ" Ni overall

Recommended Finish



T =

15.

15µ" selec. gold over 30-50µ" Ni overall



T =

16.

30µ" selec. gold over 30-50µ" Ni overall

3. (XX) Number of circuits

RECOMMENDED HOLE PATTERN

(Tolerance ±0.05)

2.90



Available in 2 through 40 circuits

2.00

ø0.80

Dimensions:

(In mm.)

= 2.00 x (XX*-1)

= 2.00 x (XX*)

* XX

(Number of circuits)

A-XX

FULL LINE CATALOGUE
