SSMA Female Bulkhead Connector Crimp/Solder
Attachment For RG178, RG196, .177 inch D Hole
TECHNICAL DATA SHEET
Configuration
Connector
Connector Interface Type
Cable Attachment Method (Shield/Contact)
Body Style
Mount Method
SSMA Female
RG178,RG196
Crimp/Solder
Straight
Bulkhead
PE44389
SSMA Female Bulkhead Connector Crimp/Solder Attachment For RG178, RG196, .177 inch D Hole
Electrical Specifications
Impedance, Ohms
50
Mechanical Specifications
Size
Length, in [mm]
Width/Dia., in [mm]
.
0.88 [22.35]
0.25 [6]
0.005 [2.27]
Weight, lbs [g]
Connector
Type
Contact Material and Plating
Body Material and Plating
Dielectric Type
SSMA Female
Gold
Brass, Nickel
PTFE
Compliance Certifications
(visit www.Pasternack.com for current document)
RoHS Compliant
Yes
Plotted and Other Data
Notes:
Values at 25 °C, sea level
SSMA Female Bulkhead Connector Crimp/Solder Attachment For RG178, RG196, .177 inch D Hole from Pasternack
Enterprises has same day shipment for domestic and International orders. Our RF, microwave and fiber optic products
maintain a 99% availability and are part of the broadest selection in the industry.
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
SSMA Female Bulkhead Connector Crimp/Solder Attachment For RG178, RG196, .177 inch D
Hole PE44389
URL:
http://www.pasternack.com/ssma-female-standard-rg178-rg196-connector-pe44389-p.aspx
PE44389 REV
1
© 2013 Pasternack Enterprises All Rights Reserved
DWG TITLE
PE44389

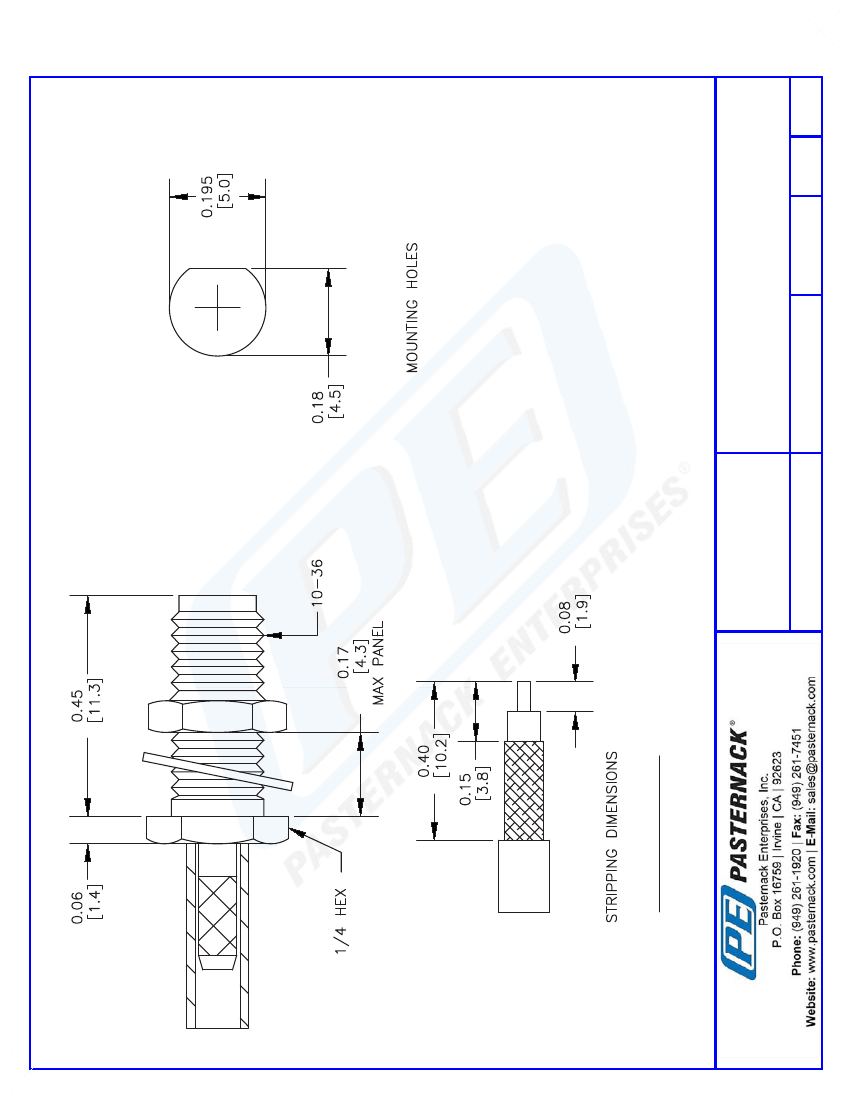

CAD Drawing
SSMA Female Bulkhead Connector Crimp/Solder Attachment
For RG178, RG196, .177 inch D Hole
PE44389 REV
CRIMP SIZE REQUIRED
CONTACT: SOLDER
FERRULE: .100" HEX CRIMP TOOL
NOTES:
1. UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL.
2. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME.
3. DIMENSIONS ARE IN INCHES [mm].
4. FITS MIL-C-17 AND EQUIVALENT CABLES.
PE44389
FSCM NO. 53919
CAD FILE
102903
SCALE N/A
SIZE A
