MIO-2261Z2-2GS6A1E Overview

IntelÂ® Atomâ¢ N2600/ N2800 Pico-ITX SBC, DDR3, 18/24-bit LVDS, VGA, 1 GbE, Half-size Mini PCIe, 4 USB, 2 COM, SMBus, I2C, mSATA & MIOe

Preview

Download Datasheet

View All

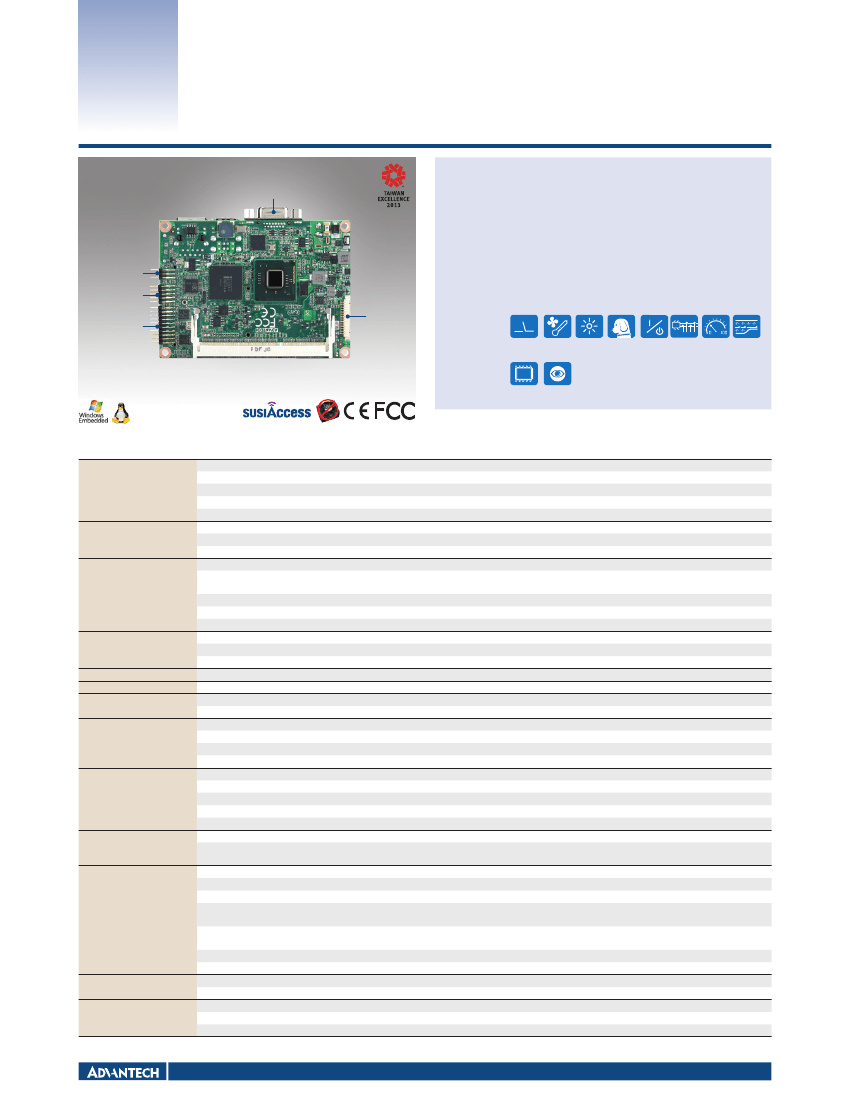

MIO-2261

VGA

Power button/

HDD LED/

Power LED

HD Audio

(Line-in, Line-out)

Intel

Atom™ N2600/ N2800 Pico-ITX SBC, DDR3,

18/24-bit LVDS, VGA, 1 GbE, Half-size Mini PCIe,

4 USB, 2 COM, SMBus/I

C, mSATA & MIOe

Features

Embedded Intel

Atom™ Dual-Core processor N2600/ N2800 + Intel NM10,

1 x DDR3 memory support up to 4 GB

DirectX 9, Dual Independent display: 18/24-bit LVDS + VGA

Flexible design using integrated multiple I/O: MIOe to approach vertical

applications & keep domain knowhow

Intel GbE support, Rich I/O interface with 2 COM, 1 SATA, 4 USB 2.0, GPIO,

SMBus, mSATA, and MIOe expansion interface

Supports SUSIAccess and Embedded Software APIs

18/24-bit LVDS

2x RS-232

Software APIs:

GPIO

H/W Brightness Watchdog Backlight SMBus/ CPU Speed System

Monitor

On/Off

Throttling

Utilities:

BIOS Flash Monitoring

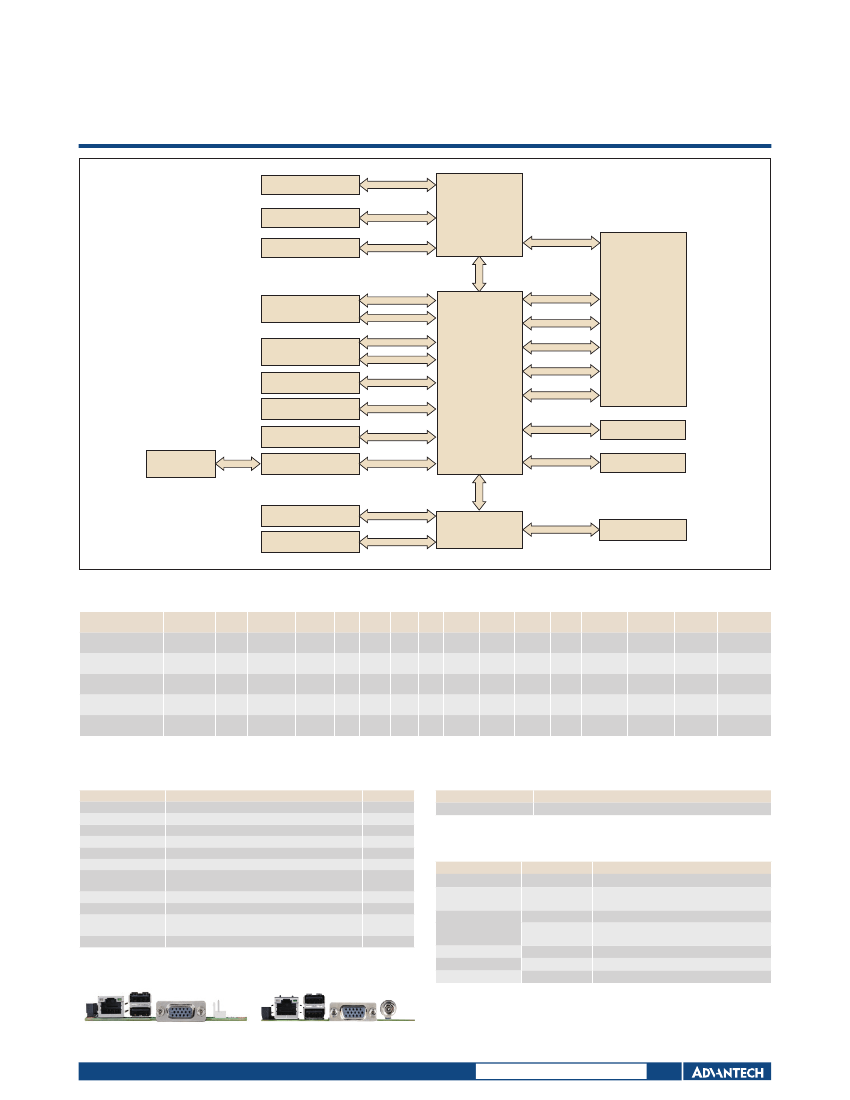

Specifications

Processor System

CPU

Frequency

L2 Cache

System Chipset

BIOS

Technology

Max. Capacity

Socket

Controller

Graphic Engine

Display

LVDS

VGA

Dual Display

Speed

Controller

Connector

Chipset

mSATA

SATA

Ethernet

VGA

USB

DC Power Jack*

USB

Serial

SMBus

GPIO

Mini PCI Express

MIOe

Power Type

Power Supply Voltage

Total peripheral power supply output

Power

Power Consumption (Typical)

Power Consumption (Max, test in HCT)

Power Management

Battery

Operation

Non-Operation

Dimensions (L x W)

Weight

Total Height

Intel Atom Dual-Core N2600 1.6 GHz/ N2800 1.86 GHz

Dual Core 1.6 GHz/ 1.86 GHz

1 MB

Intel Atom N2600/ N2800 + Intel NM10

AMI EFI 16 Mbit

DDR3 800 MHz (N2600), DDR3 1066 MHz (N2800)

4 GB

1 x 204-pin SODIMM

Integrated Intel GMA 3600 Series

DirectX 9 and OpenGL3.0 support

HW Accelerated Decode: MPEG2, H.264, VC-1

18/24-bit LVDS1: up to 1366 x 768

Up to 1920 x 1200

VGA+LVDS

10/100/1000Mbps

Intel 82583V

RJ45

Realtek ALC892, High Deﬁnition Audio (HD), Line-in, Line out

Output System reset, Programmable counter from 1 ~ 255 minutes/ seconds

1 (Integrates USB signal, supports either mSATA or USB interface module)

1, up to 3Gb/s (300MB/s)

2 x USB 2.0

2 x RS-232(ESD protection for RS-232: Air gap ±15kV, Contact ±8kV)

1 (Shares with SMBus pin, supported by request)

8-bit general purpose input/output

1 x Half-size

SMBus, 2 x USB2.0, LPC, 2 x PCIe x1, line out, DisplayPort/HDMI*, +5 Vsb/+12 Vsb power, Power On,

Reset

Single 12V DC power input (Supports DC power hot plug)

Supports single 12V input, ± 10%

5V @ 3A for CPU board and MIOe module totally, 12V @ 2A for MIOe module

N2600: 0.35 A @ 12 V (4.2 W)

N2800: 0.46 A@ 12 V (5.52 W)

N2600: 0.76 A @ 12 V (9.12 W)

N2800: 0.80 A @ 12 V (9.6 W)

ACPI

3 V / 210 mAH

0 ~ 60° C (32 ~ 140° F) (Operational humidity: 40° C @ 95% RH Non-Condensing)

-40° C ~ 85° C and 60° C @ 95% RH non-condensing

100 x 72 mm (3.9" x 2.8")

0.48 kg (1.06 lb), weight of total package

Top Side: 15.65 mm (including heatsink); Bottom Side: 16.4 mm; PCB: 1.6 mm

Memory

Ethernet

Audio

WatchDog Timer

Storage

Rear I/O

Internal I/O

Expansion

Environment

Physical Characteristics

* The speciﬁcation is supported by request

MI/O Extension SBCs, Modules and Chassis

All product specifications are subject to change without notice

Last updated : 15-Jan-2014
