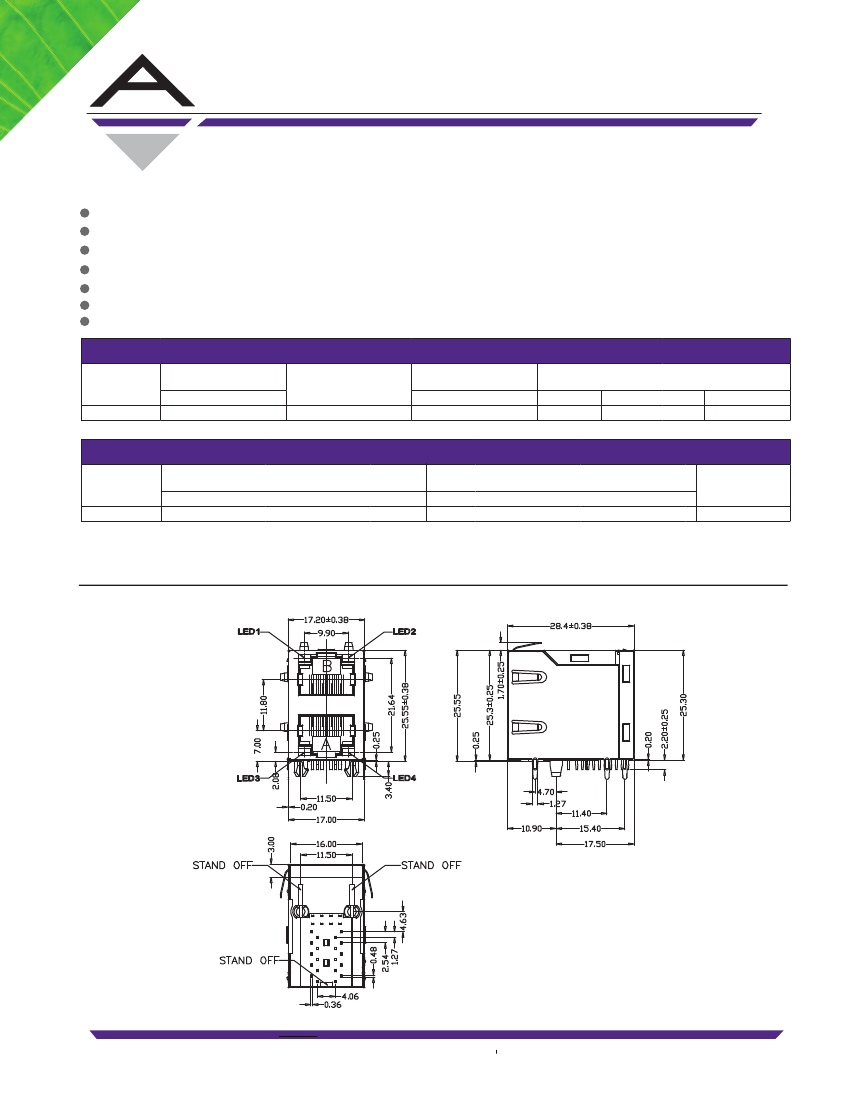

2X1 Dual Port RJ45 Connector
AR21-3694I
10/100/1000 Base-T Ethernet Application
Impedance: 100OHMS
Transmit open circuit inductance (OCL): 350uH (MIN) @100KHz,0.1VRMS with 8mA DC Bias
RJ45 jack cavity conforms to FCC rules and regulations Part 68, SUB Part F
Industrial Operating temp: -40ºC to +85ºC
Contact Factory for Standard Temp.
Storage temperature range: -40ºC to +85ºC
Electrical Specifications @ 25°C
Part
Number
AR21-3694I
OCL(uH Min)
@ 100kHz, 0.1V
With 8mA DC Bias
350
Turns Ratio
chip: cable
(±3%)
1CT:1CT
Insertion Loss
(dB Max)
1-100MHz
1.0
1-30MHz
18
Return Loss
(dB Min)
30-60MHz
16
60-80MHz
12
Electrical Specifications @ 25°C
Part
Number
AR21-3694I
Common Mode Rejection
(dB Min)
1-100MHz
-30
Cross Talk
(dB Min)
1-100MHz
-30
HI-POT
(VDC)
60Sec.
2250
All specifications subject to change without notice.
MECHANICAL
714-665-1140
ALLIED COMPONENTS INTERNATIONAL
REVISED 02/16/12
15
www.alliedcomponents.com
RoHS
RoHS
2X1 Dual Port RJ45 Connector
AR21-3694I

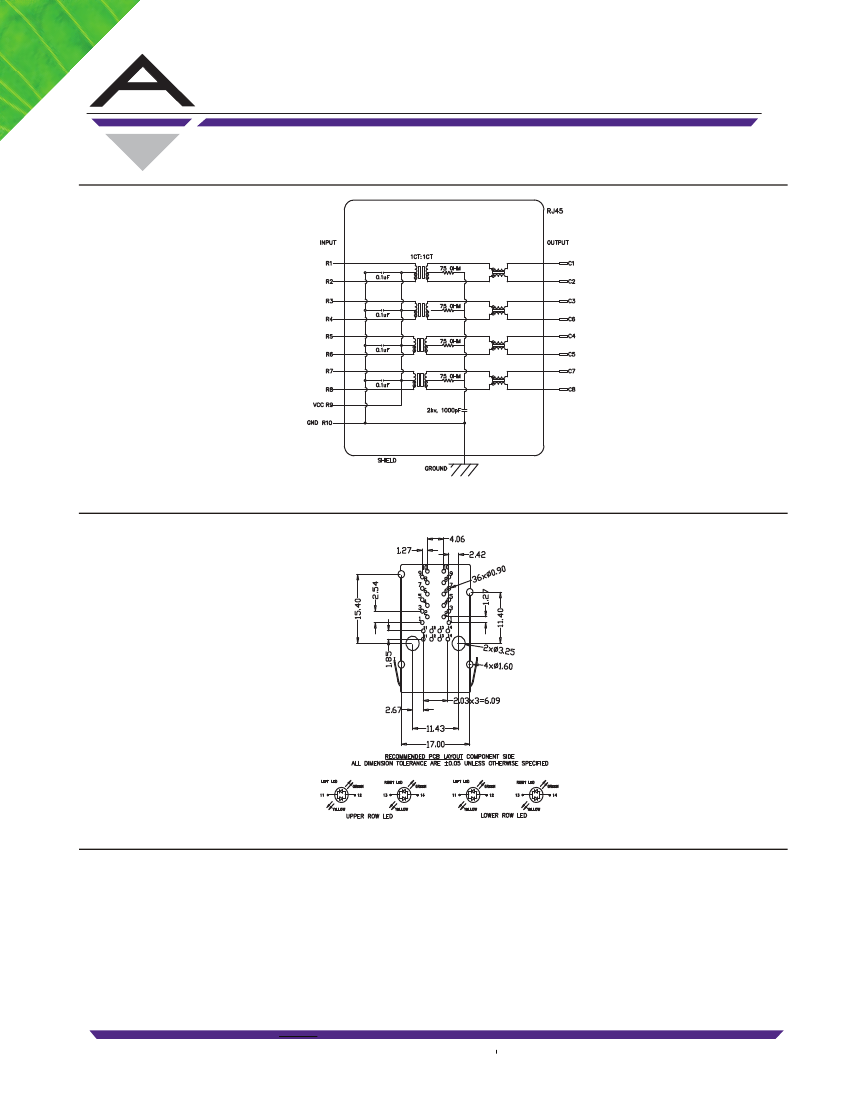

SCHEMATICS
PCB LAYOUT
NOTES
0.20mm THICKNESS BRASS C2680 H.
PLATING NICKEL 30u"-50u"
2. Housing-
Standard Material Nylon66, Glass filled
Polyester UL94V-0 Standard Color Black.
3. RJ Terminal- Plastic: PBT+30% GF, UL94V-0, Standard
Color Black.
Pin: 0.35mm Thickness Phos-Bronze C5210 EH.
Plating: Nickel 40u"-60u" for all and Sn 100%, and
6u” Gold Plating.
4. Input Terminal: Plastic: Nylon 66 Glass Filled, UL94V-0,
Standard Color Black.
Pin: 0.35mm Thickness Phos-Bronze C2680.
Plating: Nickel 40u"-60u" for all and Sn 100%.
1. Shield-
714-665-1140
ALLIED COMPONENTS INTERNATIONAL
REVISED
15
02/16/12
www.alliedcomponents.com
