Single Port SMD RJ45

ARSM11-3687I

10/100 Base-T Ethernet Application

Impedance: 100OHMS

RJ45 jack cavity conforms to FCC rules and regulations Part 68, SUB Part F

Industrial Operating Temp: -40ºC to +85ºC

Available in other Circuit Designs

Optional Gold Plating Thickness

Other LED Patterns available

Electrical Speciﬁcations @ 25°C

Part

Number

ARSM11-3687I

OCL(uH Min)

@ 100kHz, 0.1V

With 8mA DC Bias

350

Turns Ratio

chip: cable

(±2%)

1CT:1CT

Insertion Loss

(dB Max)

1-100MHz

-1.0

1-30MHz

-18

Return Loss

(dB Min)

30-60MHz

-18-20Log(F/30MHz)

60-80MHz

-12

Electrical Speciﬁcations @ 25°C

CMR

CDMR

Cross Talk

HI-POT

(dB Min)

(Vrms)

0.5-1MHz 10MHz 30MHz 50MHz 100MHz 0.3-1MHz 10MHz 30MHz 60MHz 100MHz 0.3-1MHz 10MHz 30MHz 60MHz 100MHz 0.5mA/2Sec.

-40

-35

-50

-40

-50

-30

1500

-47

-30

-42

-45

-50

-37

All specifications subject to change without notice.

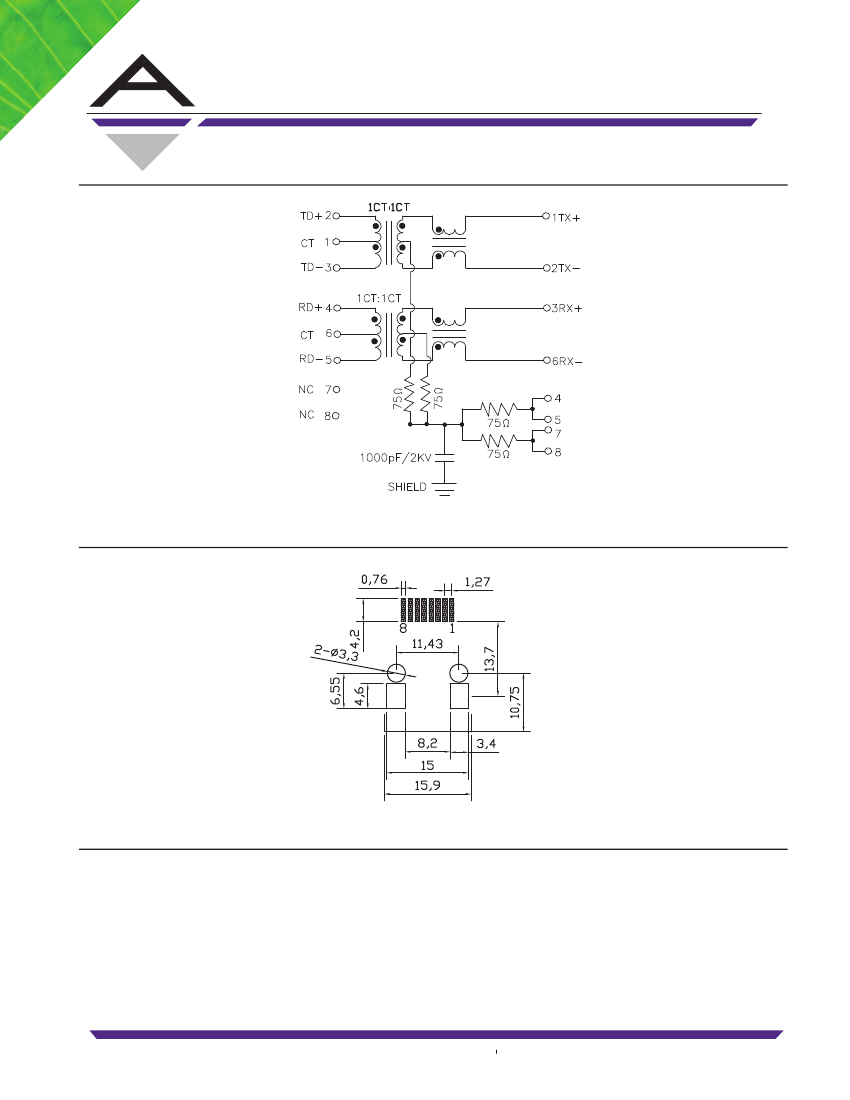

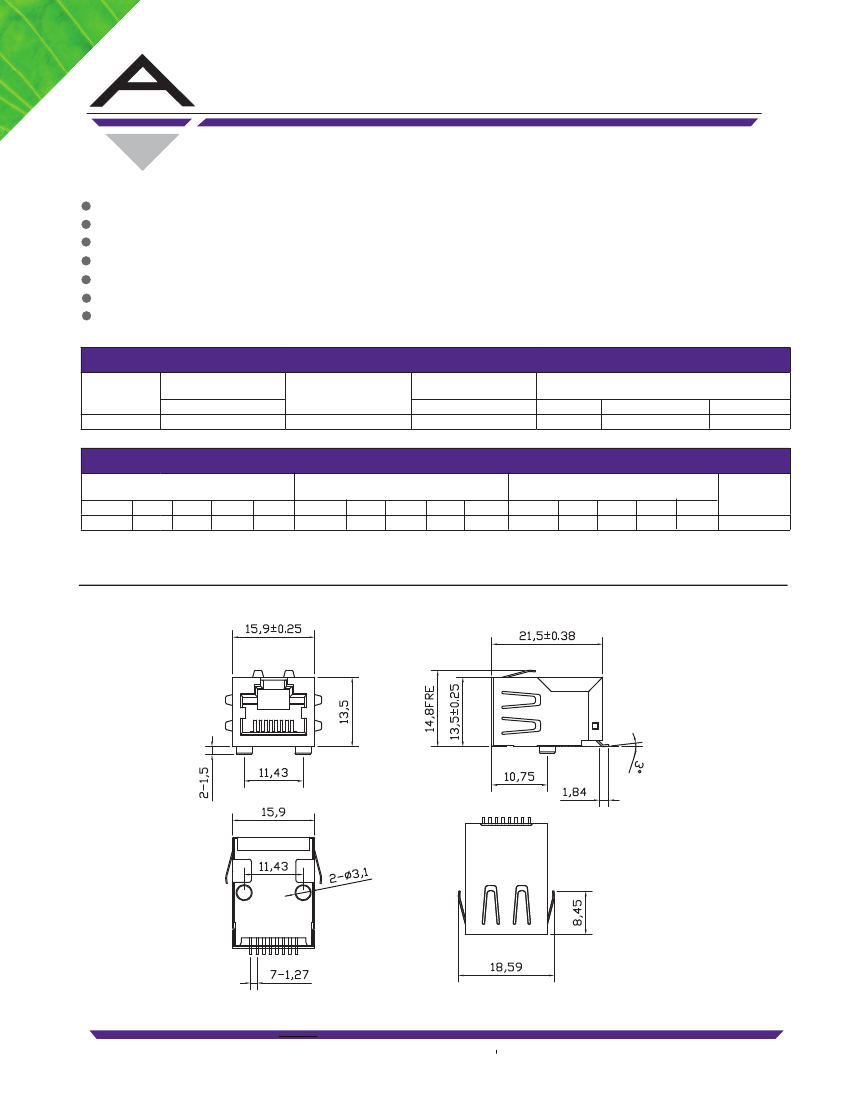

MECHANICAL

714-665-1140

ALLIED COMPONENTS INTERNATIONAL

01/26/12

www.alliedcomponents.com
