TQM8M9077 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Topical application> Wireless rf/communication> TQM8M9077

TQM8M9077: DescriptionTELECOM, CELLULAR, RF AND BASEBAND CIRCUIT, QCC32; CategoryTopical application Wireless rf/communication; File Size1MB，9 Pages; ManufacturerTriQuint Semiconductor Inc. (Qorvo); Websitehttp://www.triquint.com

Download Datasheet Parametric Compare View All

TQM8M9077 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	TQM8M9077	-	-	View	Buy Now

TQM8M9077 Overview

TELECOM, CELLULAR, RF AND BASEBAND CIRCUIT, QCC32

TQM8M9077 Parametric

Parameter Name	Attribute value
Number of functions	1
Number of terminals	32
Maximum operating temperature	85 Cel
Minimum operating temperature	-40 Cel
Rated supply voltage	5 V
Processing package description	5 X 5 MM, ROHS COMPLIANT PACKAGE-32
state	ACTIVE
packaging shape	SQUARE
Package Size	CHIP CARRIER
surface mount	Yes
Terminal form	NO LEAD
Terminal spacing	0.5000 mm
terminal coating	GOLD OVER NICKEL
Terminal location	QUAD
Packaging Materials	UNSPECIFIED
Temperature level	INDUSTRIAL
Communication type	RF AND BASEBAND CIRCUIT

Preview

Download Datasheet

View All

TQM8M9077

0.05-4 GHz Digital Variable Gain Amplifier

Applications

•

2G / 3G / 4G Wireless Infrastructure

LTE / WCDMA / CDMA / EDGE

IF and RF Applications

General Purpose Wireless

32-pin 5x5mm leadless SMT package

Product Features

•

Integrates DSA + Amp Functionality

50-4000 MHz Broadband Performance

13 dB Gain @ 2.14 GHz

3.9 dB Noise Figure @ max gain setting

+21.5 dBm P1dB

+38.5 dBm OIP3

+5 V Supply Voltage

88 mA Operating Current

MTTF > 1000 Years

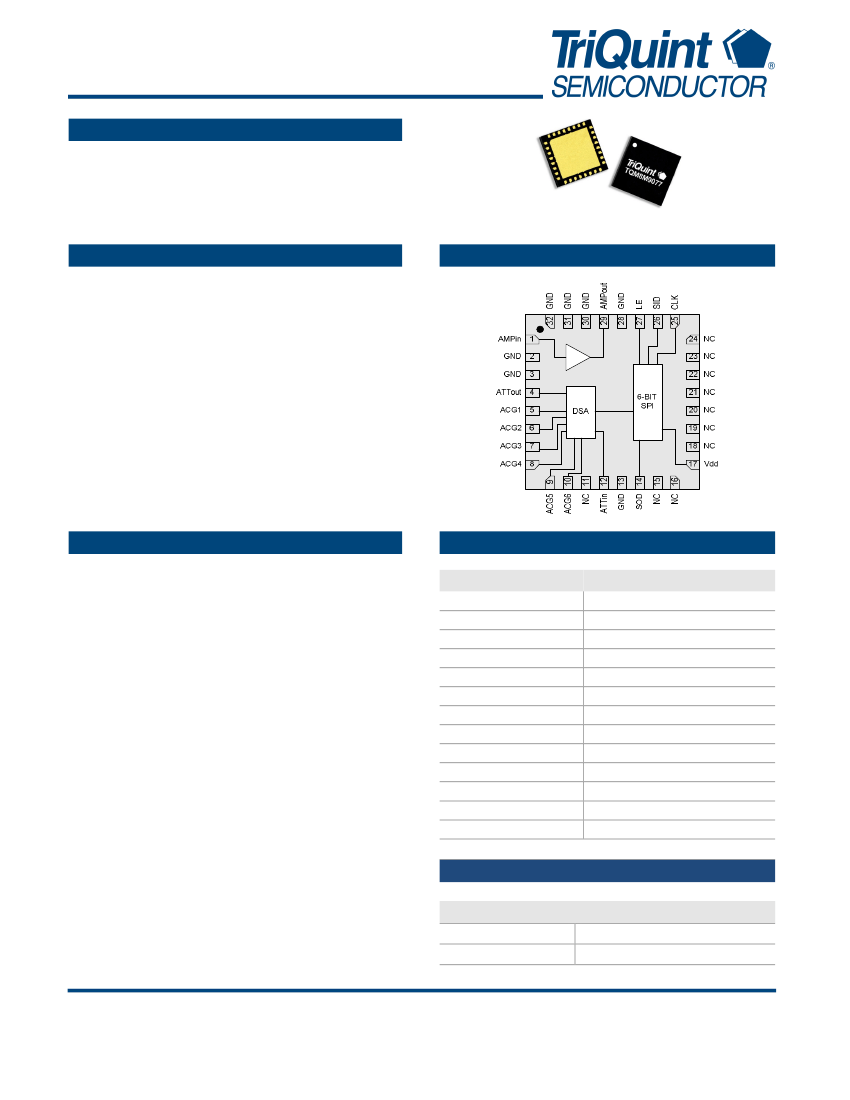

Functional Block Diagram

General Description

The TQM8M9077 is a digitally controlled variable gain

amplifier (DVGA) with a broadband frequency range of 50

to 4000 MHz. The DVGA features high linearity and low

noise while providing digital variable gain with a 31.5 dB

of range in 0.5 dB steps through a 6-bit serial mode control

interface. This combination of performance parameters

makes the DVGA ideal for receiver applications requiring

gain control with high IIP3.

The TQM8M9077 integrates a high performance digital

step attenuator and a high linearity, broadband gain block.

Both stages are internally matched to 50 Ohms and do not

require any external matching components. A serial output

port enables cascading with other serial controlled devices.

The TQM8M9077 is packaged in a RoHS-compliant,

compact 5x5 mm surface-mount leadless package.

Superior thermal design allows the product to have a

minimum MTTF rating of 1000 years at a mounting

temperature of +85º C.

The TQM8M9077 is targeted for use in wireless

infrastructure, point-to-point, or can be used for any general

purpose wireless application.

Pin Configuration

Pin #

2, 3, 13, 28, 30, 31, 32

5, 6, 7, 8, 9, 10

11, 15, 16, 18-24

Backside Paddle

Symbol

Ampin

GND (Ground)

ATTout

ACG1-6

NC (No Connect)

SOD

ATTin

Vdd

CLK

SID

Ampout

RF/DC Ground

Ordering Information

Part No.

TQM8M9077

TQM8M9077-PCB

Description

Digital Variable Gain Amplifier

0.3-4.0 GHz Evaluation Board

Standard T/R size = 2500 pieces on a 13” reel.

Datasheet: Rev D 01-20-12

1 of 9

Disclaimer: Subject to change without notice

Connecting the Digital World to the Global Network

TQM8M9077 Related Products

	TQM8M9077	TQM8M9077-PCB
Description	TELECOM, CELLULAR, RF AND BASEBAND CIRCUIT, QCC32	TELECOM, CELLULAR, RF AND BASEBAND CIRCUIT, QCC32
Number of functions	1	1
Number of terminals	32	32
Maximum operating temperature	85 Cel	85 Cel
Minimum operating temperature	-40 Cel	-40 Cel
Rated supply voltage	5 V	5 V
Processing package description	5 X 5 MM, ROHS COMPLIANT PACKAGE-32	5 X 5 MM, ROHS COMPLIANT PACKAGE-32
state	ACTIVE	ACTIVE
packaging shape	SQUARE	SQUARE
Package Size	CHIP CARRIER	CHIP CARRIER
surface mount	Yes	Yes
Terminal form	NO LEAD	NO LEAD
Terminal spacing	0.5000 mm	0.5000 mm
terminal coating	GOLD OVER NICKEL	GOLD OVER NICKEL
Terminal location	QUAD	QUAD
Packaging Materials	UNSPECIFIED	UNSPECIFIED
Temperature level	INDUSTRIAL	INDUSTRIAL
Communication type	RF AND BASEBAND CIRCUIT	RF AND BASEBAND CIRCUIT
