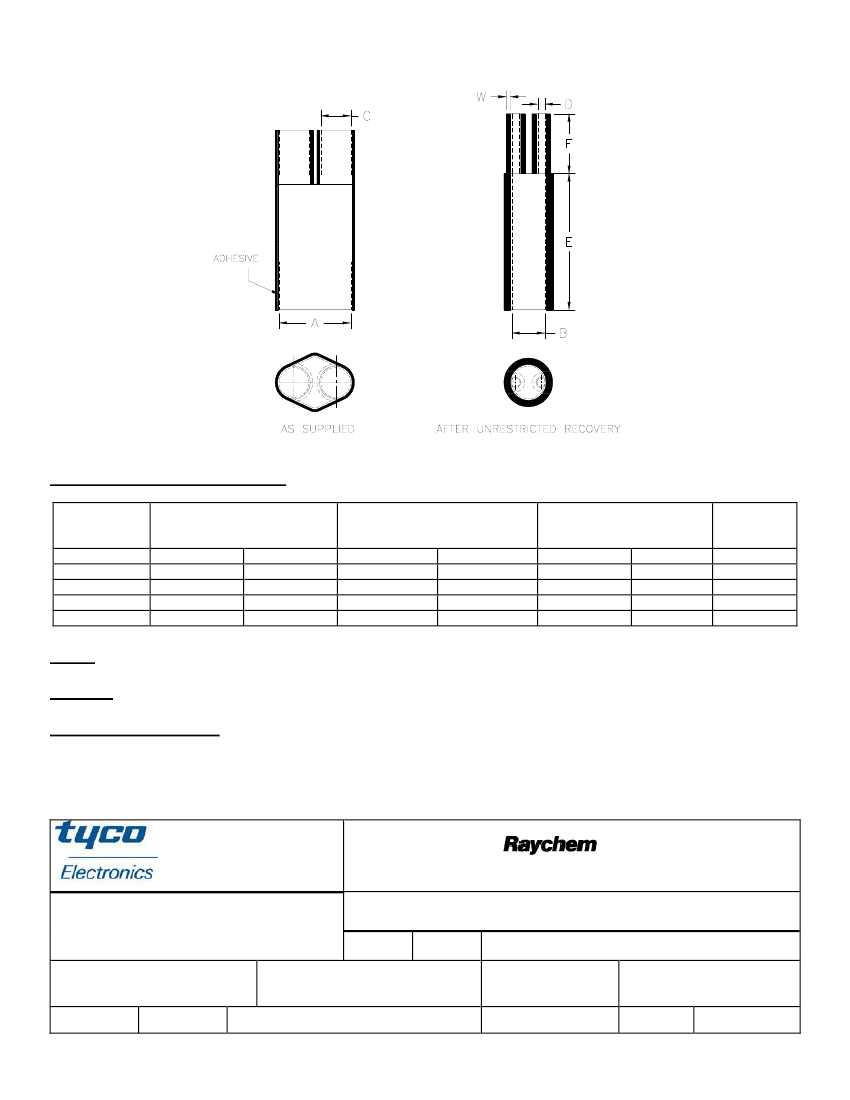

CABLE BREAKOUT BOOTS, TWO ENTRY
Table of Dimensions, inch
(mm):
PART
NUMBER
(See Note*)
D3-9FR
D14-30FR
D50-100FR
D50-200FR
D200-400FR
Body ID
Exp.
(A), Min
0.80
(20)
1.20
(30)
1.90
(48)
2.50
(63)
3.00
(76)
Rec’d.
(B), Max
0.37
(9)
0.60
(15)
0.90
(23)
0.90
(23)
1.50
(38)
Exp.
(C), Min
0.33
(8)
0.50
(13)
0.75
(19)
0.75
(19)
1.45
(37)
Leg ID
Rec’d.
(D), Max
0.11
(3)
0.17
(4)
0.30
(8)
0.30
(8)
0.50
(13)
Rec’d. Length
Min
(E), Body
(F), Leg
2.0
(51)
0.7
(18)
2.5
(64)
1.0
(25)
3.0
(76)
1.2
(30)
3.0
(76)
1.2
(30)
3.5
(89)
1.5
(38)
Rec’d. Wall
Ref.
(W)
0.05
(1.3)
0.07
(1.8)
0.10
(2.5)
0.10
(2.5)
0.12
(3.0)
Note*:
Material:
Add “NA” to the end of Part Number if no adhesive is required
Heat shrinkable boot material in accordance with –3 polyolefin
Factory applied hot melt adhesive is standard.
Factory applied sealant
:
Product Brand:
Raychem Products, North America
Tyco Electronics Corporation
300 Constitution Drive
Menlo Park, CA 94025 USA
Title:
Specification Control Drawing
CABLE BREAKOUT BOOT, TWO ENTRY
Size
A
Cage Code
Document No.
06090
Rev.:
DXXX-XXXFR
Rev. Date:
A.Ng
R030128.doc
03/10/2003
Print Date: 14-Mar-03
If this document is printed it becomes uncontrolled. Check for the latest revision.
Tyco Electronics reserves the right to amend this drawing
UNLESS OTHERWISE SPECIFIED
at any time. Users should evaluate the suitability of the
DIMENSIONS ARE IN INCHES.
product for their application.
METRIC DIMENSIONS ARE SHOWN IN
BRACKETS
Drawn By:
Org. Date
:
Original file:
A
File :
Scale:
March 10, 2003
Sheet:
None
1 of 1
