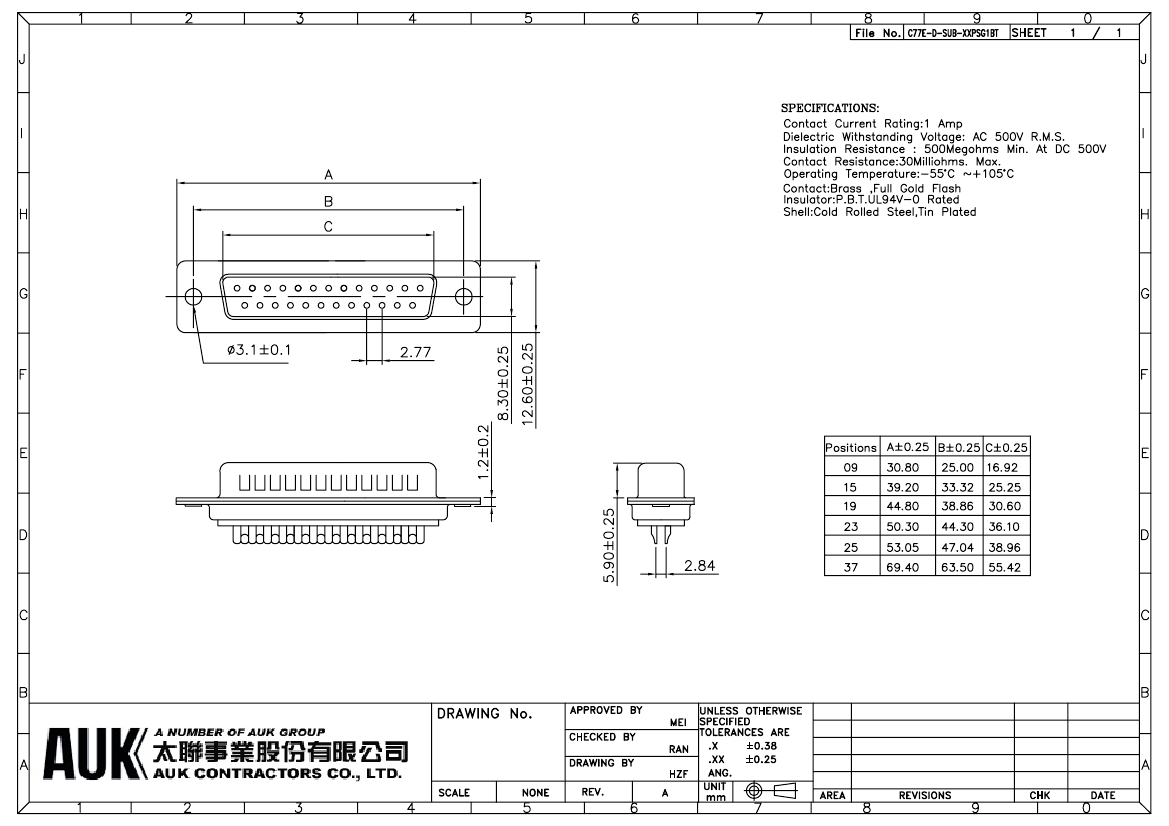

Preview

DE09PGT: DescriptionD Type Connector, 9 Contact(s), Male, 0.109 inch Pitch, Solder Lug Terminal, Hole .112-.124, Receptacle; CategoryThe connector The connector; File Size62KB，1 Pages; ManufacturerAUK Contractors Co., Ltd.

Download Datasheet Parametric Compare View All

DE09PGT Overview

D Type Connector, 9 Contact(s), Male, 0.109 inch Pitch, Solder Lug Terminal, Hole .112-.124, Receptacle

DE09PGT Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Reach Compliance Code	unknown
ECCN code	EAR99
body width	0.496 inch
body length	1.213 inch
Body/casing type	RECEPTACLE
Contactor design	STAMPED, PREASSEM
Contact to complete cooperation	AU
Contact completed and terminated	GOLD FLASH
Contact point gender	MALE
Contact material	BRASS
contact mode	STAGGERED
Contact resistance	30 mΩ
Contact style	RND PIN-SKT
Dielectric withstand voltage	500VAC V
Insulation resistance	500000000 Ω
Insulator color	BLUE
insulator material	POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number	DE
Plug contact pitch	0.109 inch
Match contact row spacing	0.112 inch
Installation option 1	HOLE .112-.124
Installation option 2	LOCKING
Installation type	PANEL
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Plating thickness	FLASH inch
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Shell surface	TIN
Shell material	STEEL
Termination type	SOLDER LUG
Total number of contacts	9

Preview

Download Datasheet

View All

DE09PGT

DE09PGT Related Products

	DE09PGT	DE37PGT	DE15PGT
Description	D Type Connector, 9 Contact(s), Male, 0.109 inch Pitch, Solder Lug Terminal, Hole .112-.124, Receptacle	D Type Connector, 37 Contact(s), Male, 0.109 inch Pitch, Solder Lug Terminal, Hole .112-.124, Receptacle	D Type Connector, 15 Contact(s), Male, 0.109 inch Pitch, Solder Lug Terminal, Hole .112-.124, Receptacle
Is it Rohs certified?	incompatible	incompatible	incompatible
Reach Compliance Code	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99
body width	0.496 inch	0.496 inch	0.496 inch
body length	1.213 inch	2.732 inch	1.543 inch
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE
Contactor design	STAMPED, PREASSEM	STAMPED, PREASSEM	STAMPED, PREASSEM
Contact to complete cooperation	AU	AU	AU
Contact completed and terminated	GOLD FLASH	GOLD FLASH	GOLD FLASH
Contact point gender	MALE	MALE	MALE
Contact material	BRASS	BRASS	BRASS
contact mode	STAGGERED	STAGGERED	STAGGERED
Contact resistance	30 mΩ	30 mΩ	30 mΩ
Contact style	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT
Dielectric withstand voltage	500VAC V	500VAC V	500VAC V
Insulation resistance	500000000 Ω	500000000 Ω	500000000 Ω
Insulator color	BLUE	BLUE	BLUE
insulator material	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number	DE	DE	DE
Plug contact pitch	0.109 inch	0.109 inch	0.109 inch
Match contact row spacing	0.112 inch	0.112 inch	0.112 inch
Installation option 1	HOLE .112-.124	HOLE .112-.124	HOLE .112-.124
Installation option 2	LOCKING	LOCKING	LOCKING
Installation type	PANEL	PANEL	PANEL
Number of rows loaded	2	2	2
Maximum operating temperature	105 °C	105 °C	105 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C
Plating thickness	FLASH inch	FLASH inch	FLASH inch
Rated current (signal)	1 A	1 A	1 A
Guideline	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL
Shell surface	TIN	TIN	TIN
Shell material	STEEL	STEEL	STEEL
Termination type	SOLDER LUG	SOLDER LUG	SOLDER LUG
Total number of contacts	9	37	15
