DS09PWZT

Description
D Type Connector, 9 Contact(s), Male, 0.109 inch Pitch, Solder Lug Terminal, Hole .112-.124, Receptacle
CategoryThe connector    The connector
File Size62KB,1 Pages
ManufacturerAUK Contractors Co., Ltd.

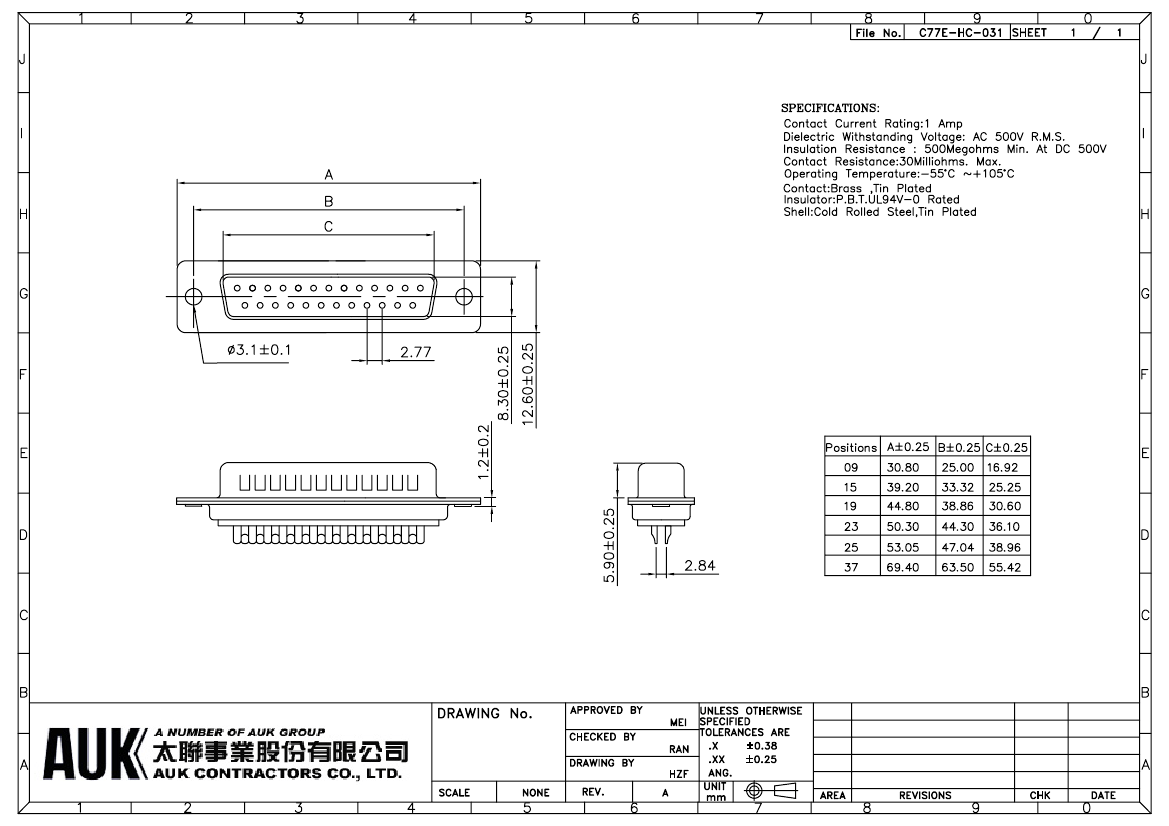

Download Datasheet Parametric View All

DS09PWZT Overview

D Type Connector, 9 Contact(s), Male, 0.109 inch Pitch, Solder Lug Terminal, Hole .112-.124, Receptacle

DS09PWZT Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
Reach Compliance Codeunknown
ECCN codeEAR99
Other featuresTRAY PACKGING
body width0.496 inch
subject depth0.248 inch
body length1.213 inch
Body/casing typeRECEPTACLE
Contactor designPREASSEM CONN
Contact to complete cooperationSN
Contact completed and terminatedTIN
Contact point genderMALE
Contact materialBRASS
contact modeSTAGGERED
Contact resistance30 mΩ
Contact styleRND PIN-SKT
Dielectric withstand voltage500VAC V
Insulation resistance500000000 Ω
Insulator colorWHITE
insulator materialPOLYBUTYLENE TEREPHTHALATE
Manufacturer's serial numberDS
Plug contact pitch0.109 inch
Match contact row spacing0.112 inch
Installation option 1HOLE .112-.124
Installation option 2LOCKING
Installation typePANEL
Number of rows loaded2
Maximum operating temperature105 °C
Minimum operating temperature-55 °C
Rated current (signal)1 A
GuidelineUL
reliabilityCOMMERCIAL
Shell surfaceZINC
Shell materialSTEEL
Termination typeSOLDER LUG
Total number of contacts9
