8N2022 datasheet, PDF - EEWORLD Datasheet

8N2022: DescriptionSwitch, DPDT, Momentary, 0.01A, 5VDC, Through Hole-straight,; CategoryMechanical and electronic products switch; File Size2MB，10 Pages; ManufacturerFujisoku Corporation

Download Datasheet Parametric Compare View All

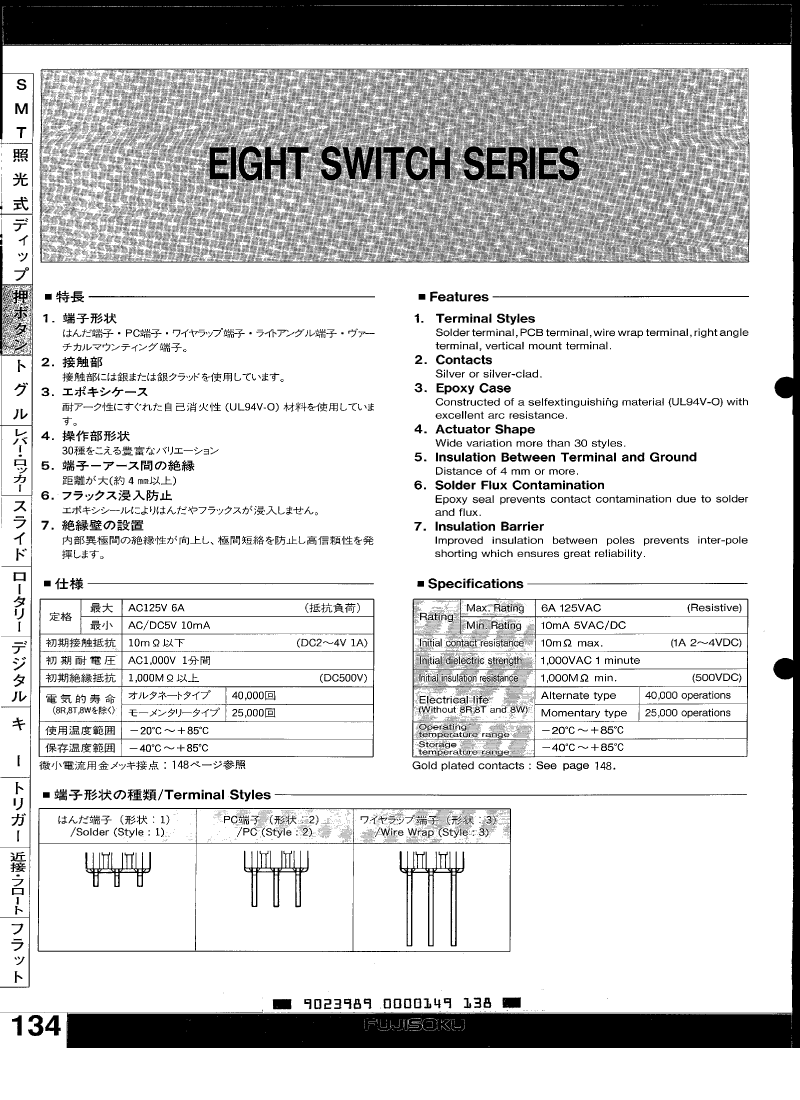

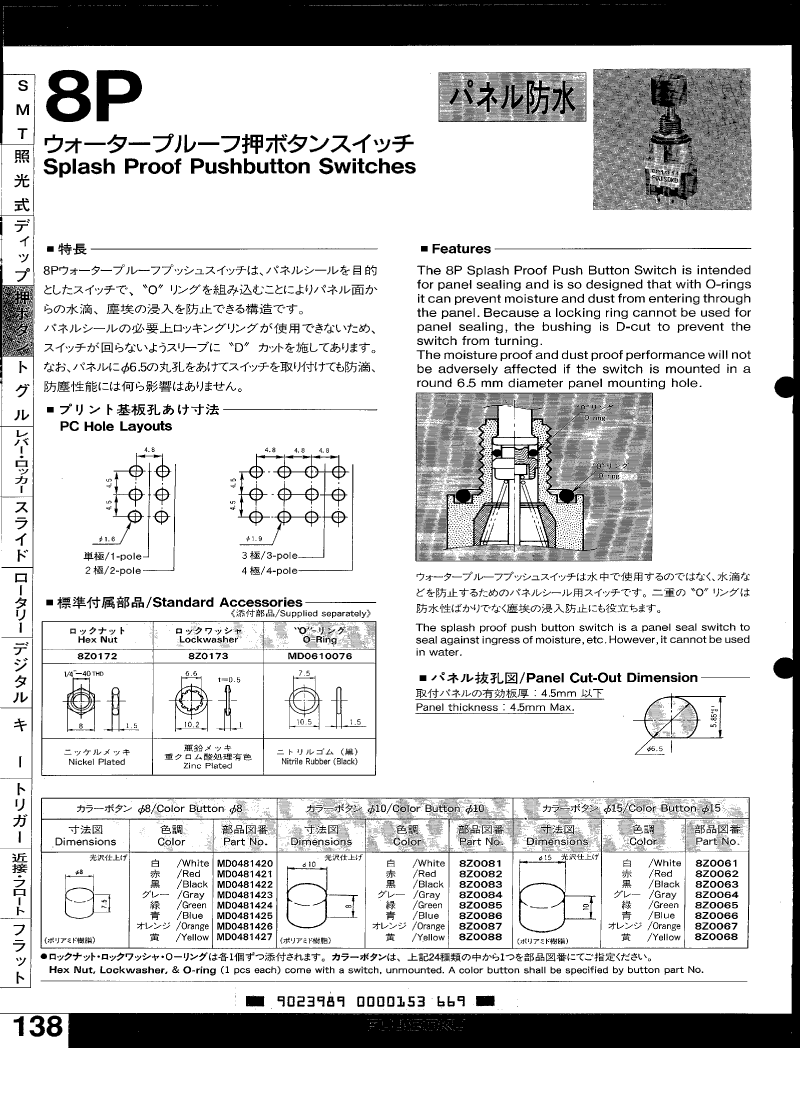

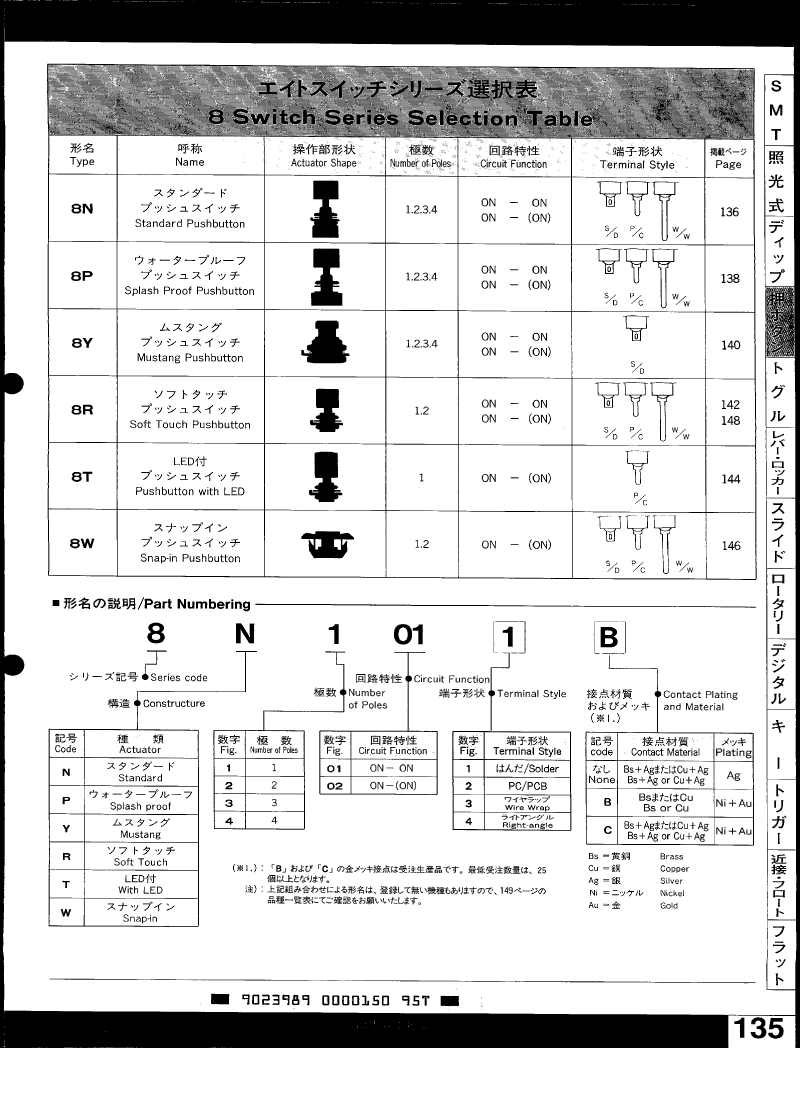

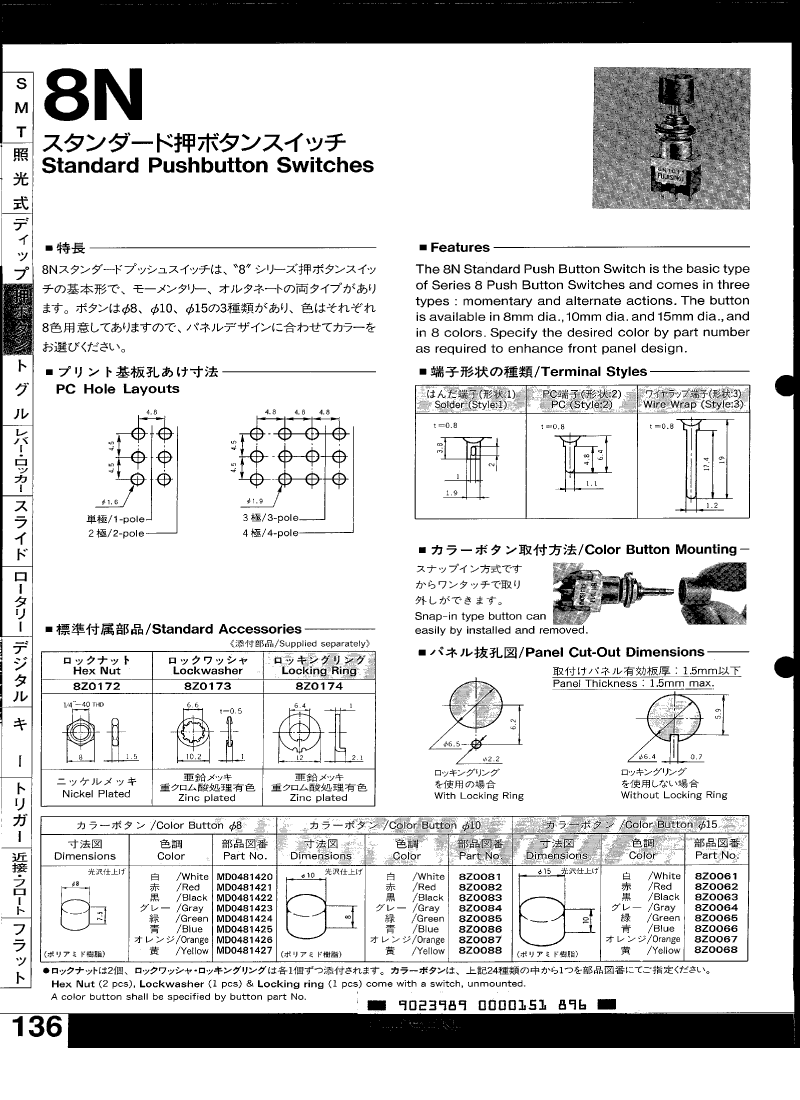

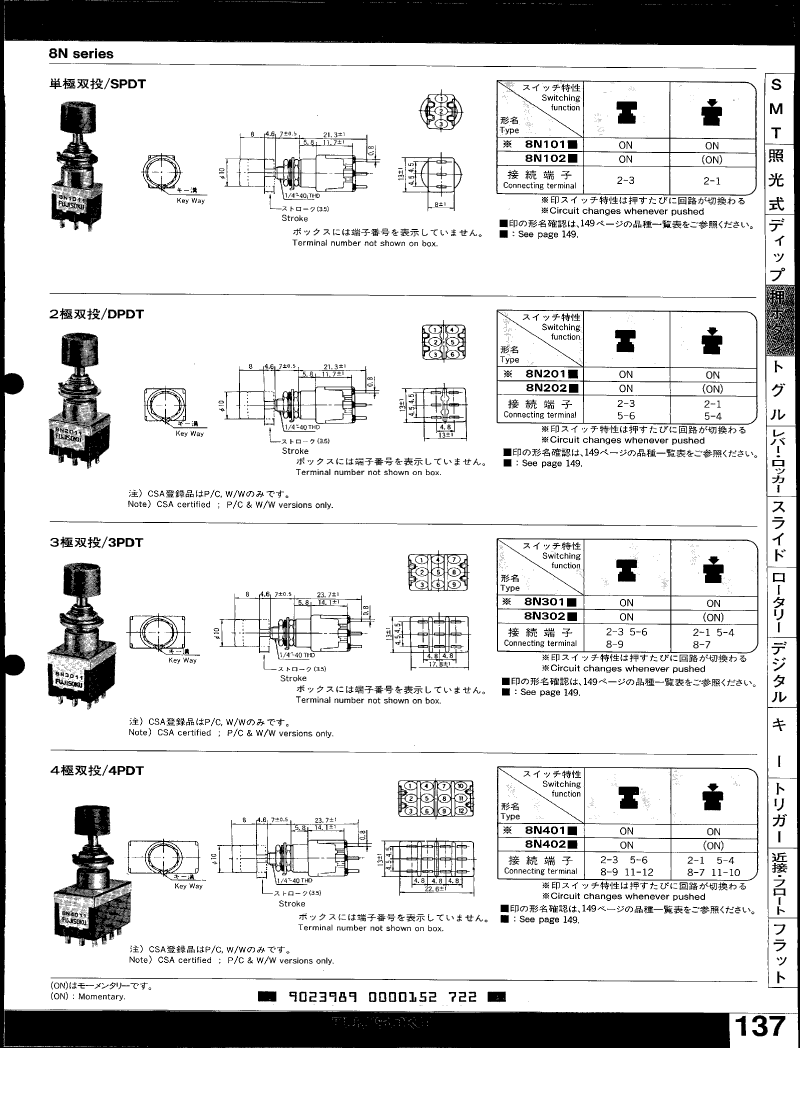

8N2022 Overview

Switch, DPDT, Momentary, 0.01A, 5VDC, Through Hole-straight,

Parameter Name	Attribute value
Reach Compliance Code	unknown
ECCN code	EAR99
Actuator angle
Actuator length	0.496 inch
Actuator stroke	3.5052 mm
Actuator type	PUSHBUTTON
Other features	UL, CSA
body width	13.0048 mm
Body length or diameter	13.0048 mm
Nozzle length	0.276 inch
Casing type	1/4-40
Center contact plating	SILVER
Contact (AC) maximum rated R load	6A@125VAC
Maximum contact current (AC)	6 A
Maximum contact current (DC)	0.01 A
Contact (DC) maximum rated R load	0.01A@5VDC
Contact function	ON-(ON)
Contact resistance	0.01 mΩ
contact time	BREAK-BEFORE-MAKE
Maximum contact voltage (AC)	125 V
Maximum contact voltage (DC)	5 V
Dielectric withstand voltage	1000VAC V
Electrical life	25000 Cycle(s)
End contact plating	SILVER
Insulation resistance	1000000000 Ω
Manufacturer's serial number	8N
Installation features	THROUGH HOLE-STRAIGHT
Maximum operating temperature	85 °C
Minimum operating temperature	-20 °C
PCB hole count	6
seal	EPOXY
Solderability	HAND
surface mount	NO
Switch action	MOMENTARY
switch function	DPDT
Termination type	SOLDER
Washability	SOLVENT

Printed from www.freetradezone.com, a service of Partminer, Inc.

This Material Copyrighted By Its Respective Manufacturer

	8N2022	8N1023
Description	Switch, DPDT, Momentary, 0.01A, 5VDC, Through Hole-straight,	Switch, SPDT, Momentary, 0.01A, 5VDC, Through Hole-straight,
Reach Compliance Code	unknown	unknown
ECCN code	EAR99	EAR99
Actuator length	0.496 inch	0.496 inch
Actuator stroke	3.5052 mm	3.5052 mm
Actuator type	PUSHBUTTON	PUSHBUTTON
Other features	UL, CSA	UL, CSA
body width	13.0048 mm	8.001 mm
Body length or diameter	13.0048 mm	13.0048 mm
Nozzle length	0.276 inch	0.276 inch
Casing type	1/4-40	1/4-40
Center contact plating	SILVER	SILVER
Contact (AC) maximum rated R load	6A@125VAC	6A@125VAC
Maximum contact current (AC)	6 A	6 A
Maximum contact current (DC)	0.01 A	0.01 A
Contact (DC) maximum rated R load	0.01A@5VDC	0.01A@5VDC
Contact function	ON-(ON)	ON-(ON)
Contact resistance	0.01 mΩ	0.01 mΩ
contact time	BREAK-BEFORE-MAKE	BREAK-BEFORE-MAKE
Maximum contact voltage (AC)	125 V	125 V
Maximum contact voltage (DC)	5 V	5 V
Dielectric withstand voltage	1000VAC V	1000VAC V
Electrical life	25000 Cycle(s)	25000 Cycle(s)
End contact plating	SILVER	SILVER
Insulation resistance	1000000000 Ω	1000000000 Ω
Manufacturer's serial number	8N	8N
Installation features	THROUGH HOLE-STRAIGHT	THROUGH HOLE-STRAIGHT
Maximum operating temperature	85 °C	85 °C
Minimum operating temperature	-20 °C	-20 °C
PCB hole count	6	3
seal	EPOXY	EPOXY
Solderability	HAND	HAND
surface mount	NO	NO
Switch action	MOMENTARY	MOMENTARY
switch function	DPDT	SPDT
Termination type	SOLDER	WIRE WRAP
Washability	SOLVENT	SOLVENT
