14251S9-07-1AXLY-60 datasheet, PDF

Datasheet> All Categories > The connector> The connector> 14251S9-07-1AXLY-60

14251S9-07-1AXLY-60: DescriptionBoard Connector, 7 Contact(s), 1 Row(s), Male, Right Angle, 0.1 inch Pitch, Surface Mount Terminal, Receptacle; CategoryThe connector The connector; File Size153KB，1 Pages; ManufacturerGSN Electronics

Download Datasheet Parametric Compare View All

14251S9-07-1AXLY-60 Overview

Board Connector, 7 Contact(s), 1 Row(s), Male, Right Angle, 0.1 inch Pitch, Surface Mount Terminal, Receptacle

14251S9-07-1AXLY-60 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
ECCN code	EAR99
body width	0.138 inch
subject depth	0.226 inch
body length	0.7 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
Dielectric withstand voltage	500VAC V
Insulation resistance	5000000000 Ω
insulator material	THERMOPLASTIC
Manufacturer's serial number	14251S9
Plug contact pitch	0.1 inch
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
Plating thickness	FLASH inch
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	2.54 mm
Termination type	SURFACE MOUNT
Total number of contacts	7

Preview

Download Datasheet

View All

Total Process Quality

14251S9

14251S9A

14251S9B

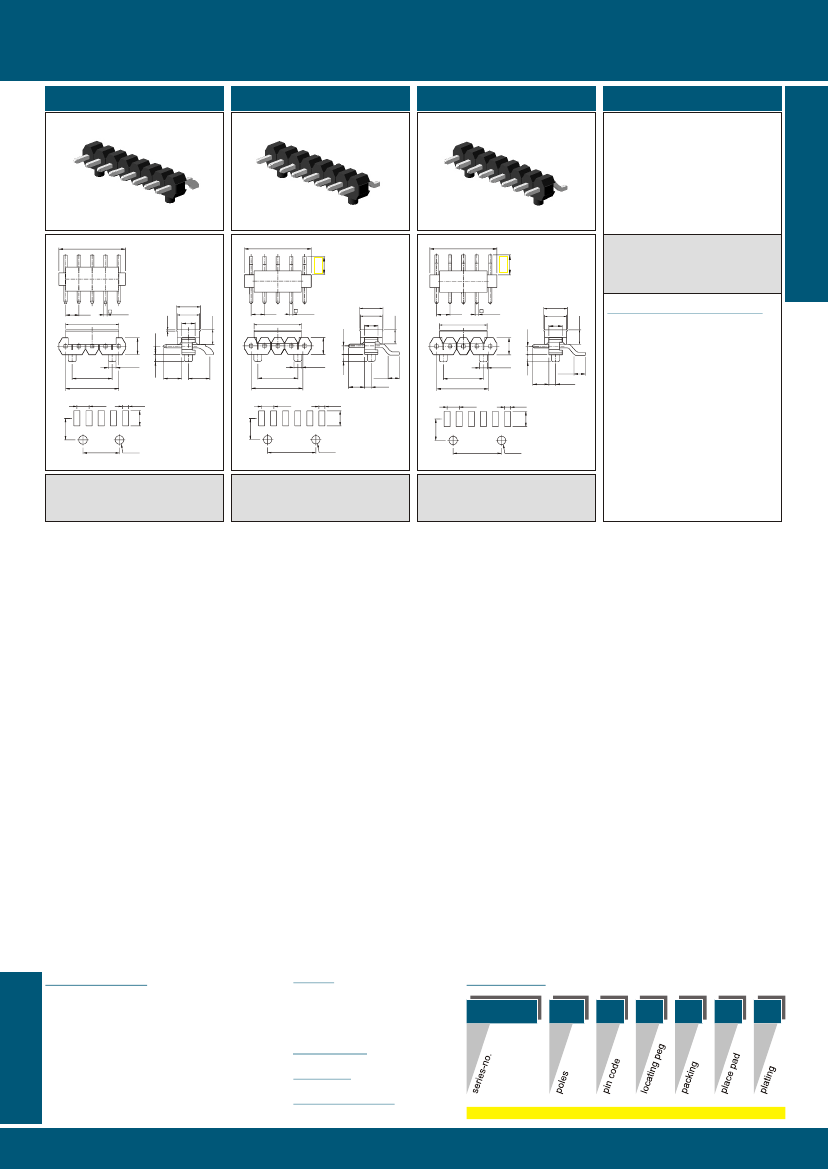

male header horizontal single row SMT 2.54

dimensions

GSN

2.54 x n

4.57

2.54 x n

14251S9, 14251S9A

14251S9B

4.50

4.20

2.50

0.25

2.90

10.00

1.78

3.50

2.90

10.00

3.50

1.78

3.5

1.78

1.40

1.4

Ø1.58

2.54x(n -2)

2.54x(n -1)

2.54

4.50

1.27

3.17

Ø1.58

4.50

Ø1.58

1.27

1.25

2.54x(n -2)

2.54x(n -1)

2.54

5.44

2.54x(n -2)

2.54x(n -1)

2.54

5.69

1.27

1.25

1.27

2.77

1.27

2.77

2.54x(n-2)

Ø1.78

2.54 x (n -2)

Ø1.78

2.54 x (n -2)

Ø1.78

available pole no.:

dimensions:

02 to 40

available pole no.:

dimensions:

02 to 40

available pole no.:

dimensions:

02 to 40

please see table

Shown fotos may differ to final product

Currently valid drawings are only on www.gsn.sg

In case of any doubt, please contact GSN

technical data

contact material

insulator

flammability

dielectric strength

current rating

insulation resistance

operating temperature

soldering temperature

copper alloy

0.635x0.635mm

thermoplastic

UL 94V-0

plating

00=

30=

50=

60=

flash gold

selective gold 0.75µm

tin

selective flash gold

X=without, N=with

Y=without, P=with

order code

14251S9-

06 -

Y-

: 500V AC for 1 minute

: 3A

: 5000 Meg Ohm min

: -40°C to +105°C

: 260°C max / 10 sec

locating peg

place pad

possible packing

L=loose,

P=tray,

T=tube,

R=reel

other dimensions / materials are available, please contact us

2.90

2.54

10.00

0.635

4.5

4.20

2.50

2.54

0.635

4.50

4.20

2.50

2.54

0.635

pin code

-B-

3.05

5.84

8.13

10.67

support@gsn.sg

A38

board to board

4.82

14251S9-07-1AXLY-60 Related Products

	14251S9-07-1AXLY-60	14251S9-05-1AXLY-60	14251S9-12-1AXLY-60	14251S9-06-1AXLY-60	14251S9-11-1AXLY-60	14251S9-08-1AXLY-60
Description	Board Connector, 7 Contact(s), 1 Row(s), Male, Right Angle, 0.1 inch Pitch, Surface Mount Terminal, Receptacle	Board Connector, 5 Contact(s), 1 Row(s), Male, Right Angle, 0.1 inch Pitch, Surface Mount Terminal, Receptacle	Board Connector, 12 Contact(s), 1 Row(s), Male, Right Angle, 0.1 inch Pitch, Surface Mount Terminal, Receptacle	Board Connector, 6 Contact(s), 1 Row(s), Male, Right Angle, 0.1 inch Pitch, Surface Mount Terminal, Receptacle	Board Connector, 11 Contact(s), 1 Row(s), Male, Right Angle, 0.1 inch Pitch, Surface Mount Terminal, Receptacle	Board Connector, 8 Contact(s), 1 Row(s), Male, Right Angle, 0.1 inch Pitch, Surface Mount Terminal, Receptacle
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
body width	0.138 inch	0.138 inch	0.138 inch	0.138 inch	0.138 inch	0.138 inch
subject depth	0.226 inch	0.226 inch	0.226 inch	0.226 inch	0.226 inch	0.226 inch
body length	0.7 inch	0.5 inch	1.2 inch	0.6 inch	1.1 inch	0.8 inch
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	AU	AU	AU	AU	AU	AU
Contact point gender	MALE	MALE	MALE	MALE	MALE	MALE
Contact material	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact style	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT
Dielectric withstand voltage	500VAC V	500VAC V	500VAC V	500VAC V	500VAC V	500VAC V
Insulation resistance	5000000000 Ω	5000000000 Ω	5000000000 Ω	5000000000 Ω	5000000000 Ω	5000000000 Ω
insulator material	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC
Manufacturer's serial number	14251S9	14251S9	14251S9	14251S9	14251S9	14251S9
Plug contact pitch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of connectors	ONE	ONE	ONE	ONE	ONE	ONE
PCB row number	1	1	1	1	1	1
Number of rows loaded	1	1	1	1	1	1
Maximum operating temperature	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
PCB contact pattern	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Plating thickness	FLASH inch	FLASH inch	FLASH inch	FLASH inch	FLASH inch	FLASH inch
Rated current (signal)	3 A	3 A	3 A	3 A	3 A	3 A
Guideline	UL	UL	UL	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Termination type	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Total number of contacts	7	5	12	6	11	8
