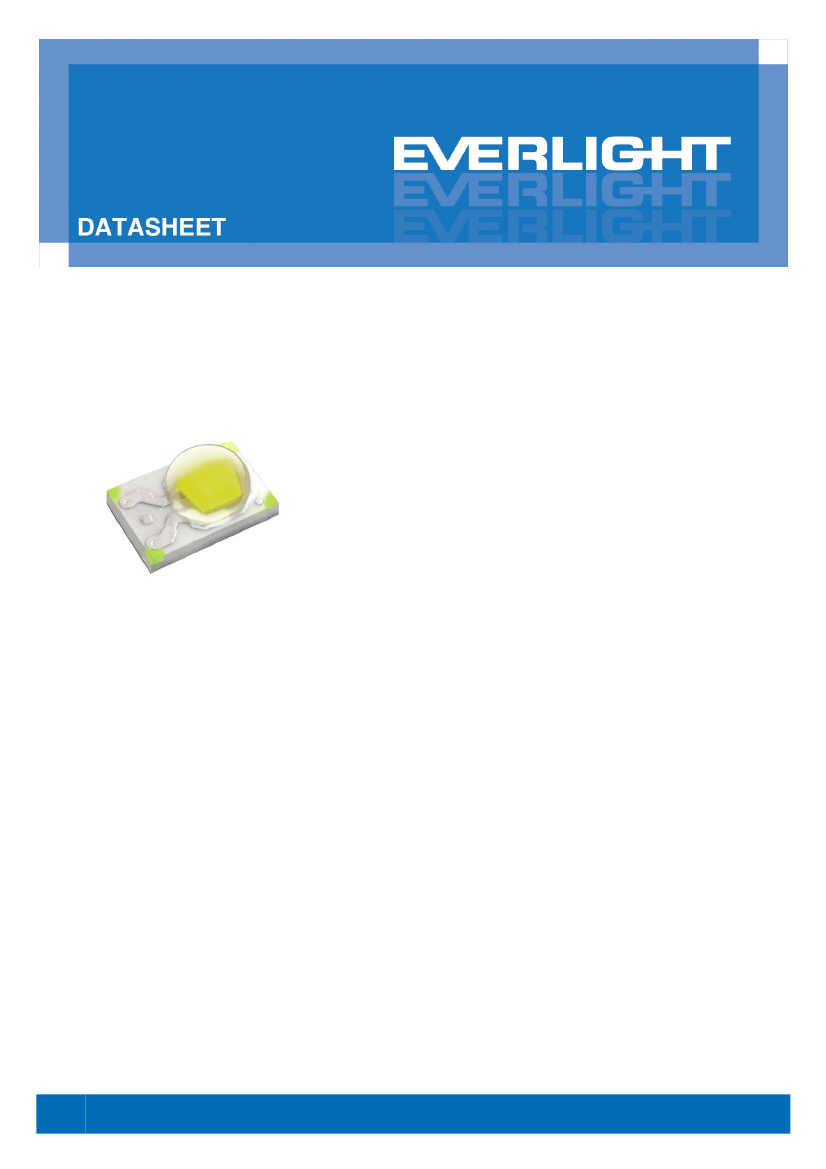

Shuen
1W Series
炫
Introduction
The Shuen series is a surface-mount high-power
device featuring high brightness combined with a compact
size that is suitable for all kinds of lighting applications such as
general illumination, spot, signal, industrial and commercial
“Shuen [Xuan] is the English translation for the Chinese word meaning Bright and
Shiny. Both words are relevant descriptions of this Everlight LED series. The modern,
adaptive Chinese definition of the word represents that which is New, Extravagant, and
Highly Sought After.”
lighting. The thermal pad of this device is electrically isolated providing convenience in
thermal and electrical design. The Shuen series is one of the most promising devices
in Everlight’s high power product offering and is ready to face the challenges of today’s
Solid-State Lighting requirements.
Features
Small package with high efficiency
ESD protection up to 8KV
Soldering method: SMT
Binning Parameters: Brightness,
Forward Voltage ,Wavelength and
Chromaticity
Moisture Sensitivity Level: 1
RoHS compliant
Matches ANSI binning
Reliability testing conforms to IESNA
LM80 Lumen maintenance test method
Applications
General Lighting
Decorative and Entertainment
Lighting
Signal and Symbol Luminaries for
orientation marker lights (e.g. steps,
exit ways, etc.)
Exterior and Interior Automotive
Illumination
Agriculture Lighting
1
Copyright © 2011, Everlight All Rights Reserved. Release Date: 11.07.2011. Issue No: DHE-0000751
www.everlight.com
DATASHEET
SMD HP Shuen
1W Series
Table of Contents
Product Nomenclature ............................................................................................................. 3
Absolute Maximum Ratings ..................................................................................................... 4
JEDEC Moisture Sensitivity ..................................................................................................... 4
Luminous Flux Characteristics for the Shuen series ................................................................ 5
PN of the Shuen series: White LEDs ....................................................................................... 6
PN of the Shuen High Luminous Series: White LEDs .............................................................. 7
PN of the Shuen series: Color LEDs ........................................................................................ 9
Optical Characteristics ........................................................................................................... 19
Mechanical Dimension ........................................................................................................... 20
Pad Configuration .................................................................................................................. 21
Mechanical Dimension ........................................................................................................... 22
Pad Configuration .................................................................................................................. 23
Reflow Soldering Characteristics ........................................................................................... 24
Wavelength Characteristics ................................................................................................... 25
Typical Light Output Characteristic V.S. Thermal Pad Temperature....................................... 27
Typical Electrical Characteristics............................................................................................ 28
Typical Relative Luminous Flux V.S. Forward Current ........................................................... 29
Typical Wavelength & CCT Shift Characteristics
V.S. Forward Current............................... 31
Relative Flux and Forward Voltage V.S. Junction Temperature.............................................. 34
Current Derating Curves ........................................................................................................ 35
Typical Radiation Patterns ..................................................................................................... 36
Emitter Reel Packaging ......................................................................................................... 38
Product Labeling .................................................................................................................... 38
Storage Conditions................................................................................................................. 39
Revision History ..................................................................................................................... 40
2
Copyright © 2011, Everlight All Rights Reserved. Release Date: 11.07.2011. Issue No: DHE-0000751
www.everlight.com
DATASHEET
SMD HP Shuen
1W Series
Product Nomenclature
The product name is designated as below:
ELSH – ABCDE – FGHIJ – V1234
Designation:
AB = min.luminous flux (lm) or radiation power (mW) performance
C = radiation pattern
[1]
D = color
[2]
E = power consumption
[3]
F = reserved for future product offerings
G = internal coding
H = packaging type
[4]
IJ = internal coding
V = forward voltage bin
1234 = color bin or CCT bin
Notes
1. Table of radiation patterns
Symbol Description
1
Lambertian
2. Table of color offerings:
Symbol
Color
R
Red
O
Orange
Y
Amber
G
Green
B
Blue
L
Royal-Blue
C
Cool-White
N
Neutral-White
M
Warm-White
E
Deep-Red
F
Far-Red
3. Table of power consumptions:
Symbol Description
1
1W
4. Table of packaging types:
Symbol Description
P
Tape
Dominant wavelength range/Peak wavelength/CCT
620~635nm
610~620nm
580~595nm
520~550nm
450~470nm
445~460nm
4745~7050K
3710~4745K
2580~3710K
645~675nm
715~745nm
3
Copyright © 2011, Everlight All Rights Reserved. Release Date: 11.07.2011. Issue No: DHE-0000751
www.everlight.com
DATASHEET
SMD HP Shuen
1W Series
Absolute Maximum Ratings
Parameter
Max. DC Forward Current (mA)
Max. Peak Pulse Current (mA)
Max. ESD Resistance
Reverse Voltage
Thermal Resistance
Max. Junction Temperature
Operating Temperature
Storage Temperature
Max. Soldering Temperature
Allowable Reflow Cycles
Notes:
1.
2.
3.
4.
5.
6.
Maximum forward current for 1W is 600mA (Thermal Pad=25°
C).
Duty cycle = 1/10@1KHZ
The Shuen series LEDs are not designed for reverse bias use.
Thermal Resistance is 10°
C/W for Blue, Royal-Blue,Green, Cool-White, Neutral-White,and Warm-White LEDs and 12°
C/W for
Deep-Red, Far-Red, Red, Amber, and Orange LEDs.
Maximum junction temperature of Cool-White, Neutral-White, Warm-White, Blue, Royal-Blue, Green, Deep-Red, Far-Red, Red,
Amber, and Orange LEDs is 125°
C.
Maximum Operating Temperature (Thermal Pad) of Cool-White, Neutral-White, Warm-White, Blue, Royal-Blue, Green,
Deep-Red, Far-Red, Red, Amber, and Orange LEDs is 100°
C.
Symbol
I
F
I
Pulse
V
B
V
R
R
th
T
J
T
Opr
T
Stg
T
Sol
n/a
Ratings
600
[1]
1000
[2]
8000
Note 3
10~12
[4]
125
[5]
-40 ~ +100
[6]
-40 ~ +100
260
2
Unit
mA
mA
V
V
°
C/W
°
C
°
C
°
C
°
C
cycles
JEDEC Moisture Sensitivity
Floor Life
Level
Time
(hours)
1
unlimited
Conditions
30°C / 85% RH
Time
(hours)
168 (+5/-0)
Conditions
85° / 85% RH
C
Soak Requirements
Standard
4
Copyright © 2011, Everlight All Rights Reserved. Release Date: 11.07.2011. Issue No: DHE-0000751
≦
www.everlight.com
DATASHEET
SMD HP Shuen
1W Series
Luminous Flux Characteristics for the Shuen series
Color
Part Number
ELSH – F81CX
ELSH – F91CX
Cool
White
1W
Minimum Luminous Flux(lm)
or
Radiometric Power(mW)
[1]
80
90
100
110
120
80
90
100
60
70
80
90
45
52
60
45
52
60
39
45
70
80
13
17
20
275
275
125
Drive Current
(mA)
350
350
350
350
350
350
350
350
350
350
350
350
350
350
350
350
350
350
350
350
350
350
350
350
350
350
350
350
ELSH – J11CX
ELSH – J21CX
ELSH – J31CX
ELSH – F81NX
Neutral
White
ELSH – F91NX
ELSH –J11NX
ELSH – F61MX
Warm
White
ELSH – F71MX
ELSH – F81MX
ELSH – F91MX
ELSH – F41RX
Red
ELSH – F51RX
ELSH – F61RX
ELSH – F41OX
Orange
ELSH – F51OX
ELSH – F61OX
ELSH – F31YX
Amber
ELSH – F41YX
ELSH – F71GX
Green
ELSH – F81GX
ELSH – E61BX
Blue
ELSH – E71BX
ELSH – E81BX
Royal Blue
Deep Red
Far Red
ELSH – Q91LX
ELSH – Q91EX
ELSH – Q61LX
Notes:
1.
2.
3.
4.
Luminous flux measurement tolerance: ±10%.
The data of luminous flux measured at thermal pad=25°
C
Typical luminous flux or light output performance is operated within the conditions guided by this datasheet.
The range of Luminous Flux in Royal-Blue, Deep-Red and Far-Red is described as Radiometric Power.
5
Copyright © 2011, Everlight All Rights Reserved. Release Date: 11.07.2011. Issue No: DHE-0000751
www.everlight.com
