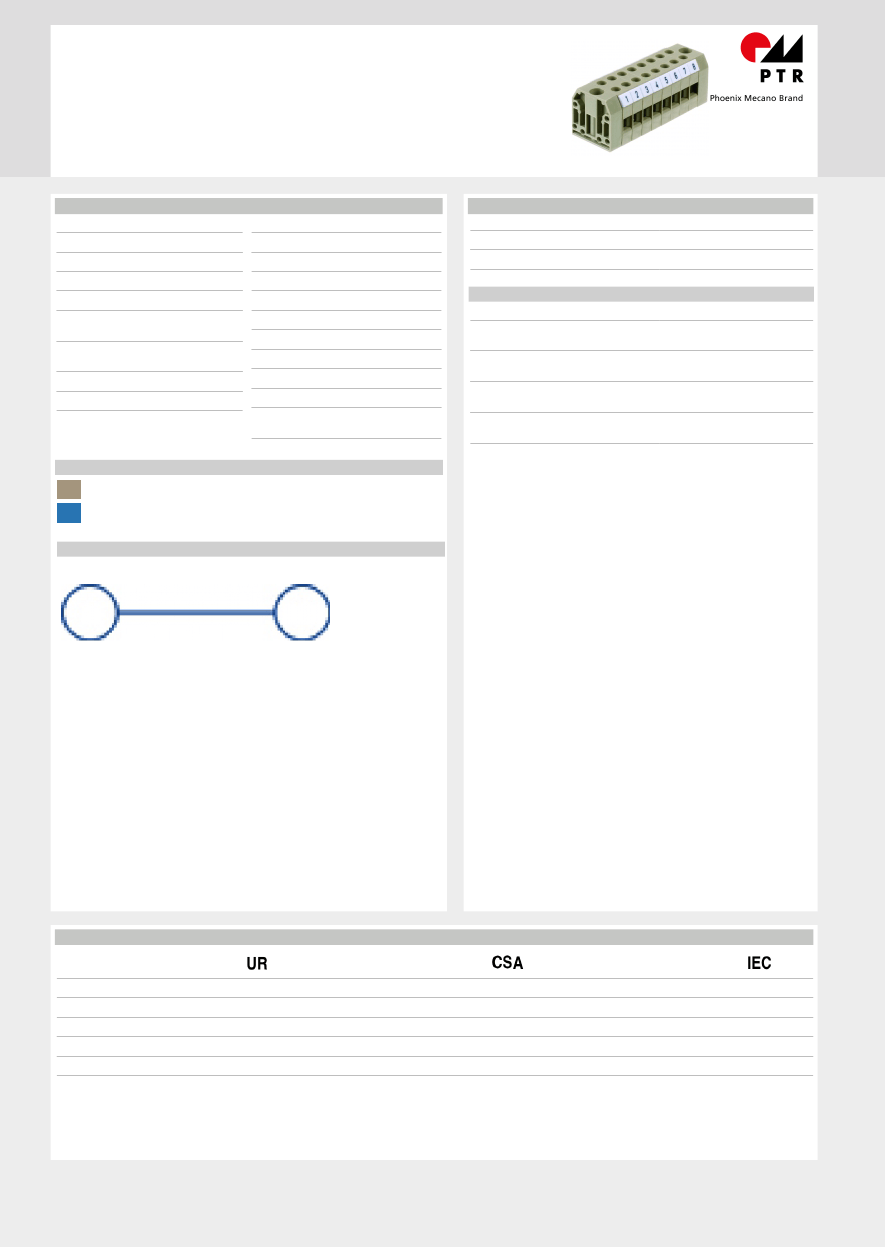

Screw Type |
Through Terminal Block
SRMB4/24-FW1-24B
- 48 Connections
- Direct mounting
- With labelling on both sides
Technical Data
Wire sizes
Solid min
Solid max
Stranded (flexible) min
Stranded (flexible) max
Stranded with Ferrule
min
Stranded with Ferrule
max
Clamping Range min
Clamping Range max
0.2 mm²
4.0 mm²
0.2mm²
4.0 mm²
0.2 mm²
4.0 mm²
0.2mm²
4.0 mm²
Insulating Material
Material
Flammability Class
Temperatures
Working Temperature -40 - 105 °C
Dimensions
Stripped Length
Width
Height
Length
Length Hole Direct
Mounting
9.0 mm
6.0 mm
23.0 mm
160.7 mm
153.6 mm
PA 6.6
UL 94 V-2
Order Data
Article Designation
SRMB4/24-FW1-24B-BEIGE
SRMB4/24-FW1-24B-BLUE
Article Number
42357.2
42357.5
PU
10
10
Accessoires
Article Designation
External Cross-Connector
insulated AQI2/6/11
External Cross-Connector
insulated AQI3/6/11
External Cross-Connector
insulated AQI4/6/11
External Cross-Connector
insulated AQI10/6/11
Article Number
492125.0
492126.0
492140.0
492141.0
PU
50
50
10
10
Colours
BEIGE, similar RAL 1019
BLUE, similar RAL 5015
Connection Diagram
Ratings
Ratings
Rated Voltage
Rated Current
Rated Wire Size
Rated Impulse Voltage
Pollution Degree
300 V
30 A
AWG 22-12
300 V
25 A
AWG 22-12
400 V
32 A
4.0 mm²
6V
3
PTR HARTMANN GmbH
• Gewerbehof 38 • 59368 Werne / Germany
Telefon: +49 (0)2389/7988-0 •
E-Mail: info@ptr-hartmann.com
www.ptr.eu
