54291110001D: DescriptionBarrier Strip Terminal Block,; CategoryThe connector; File Size1MB，1 Pages; ManufacturerPTR Messtechnik GmbH & Co. KG

Download Datasheet Parametric Compare View All

54291110001D Overview

Barrier Strip Terminal Block,

54291110001D Parametric

Parameter Name	Attribute value
Reach Compliance Code	compliant
Terminal and terminal strip types	BARRIER STRIP TERMINAL BLOCK

Preview

Download Datasheet

View All

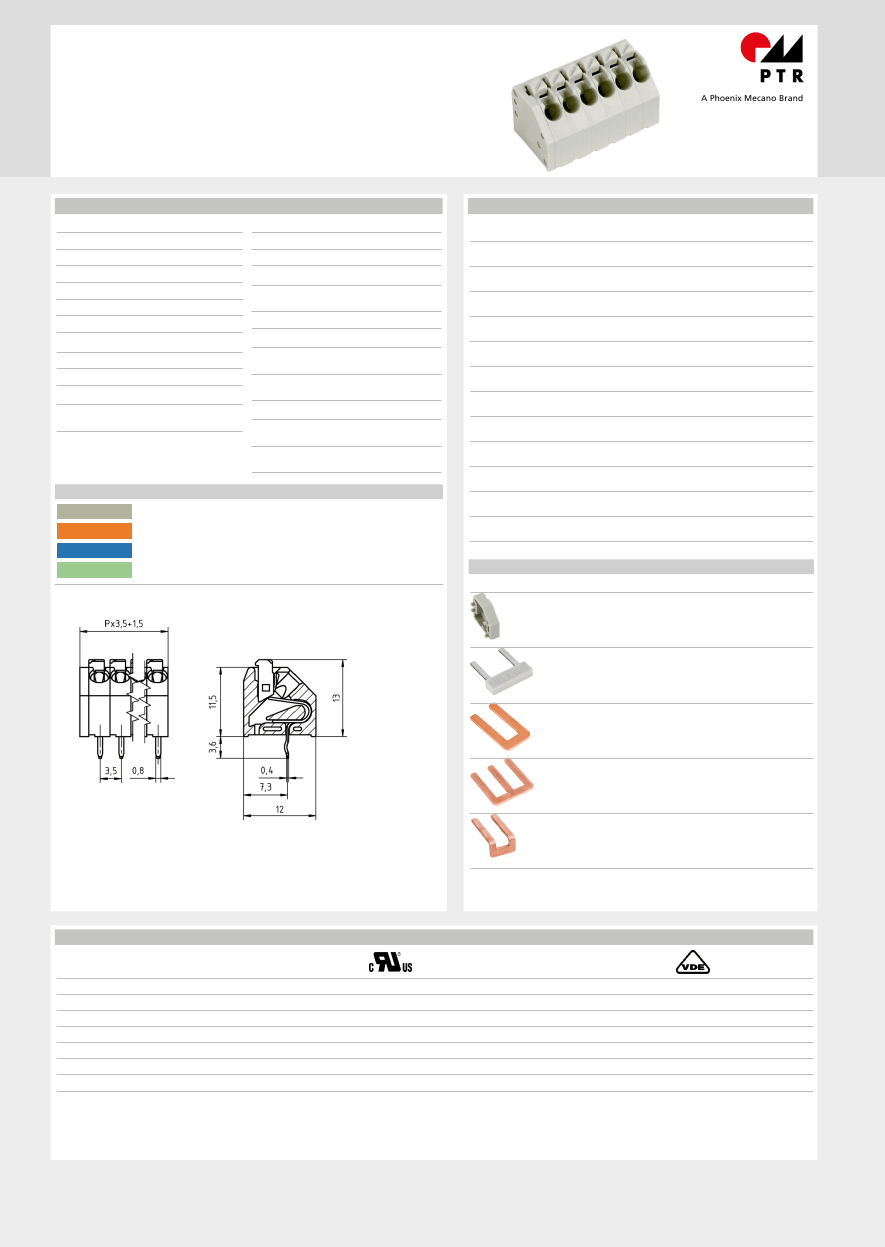

Push-In |

Spacing 3.5 mm

AK4291/..KD-3.5-PEBBLE GREY

- 1- to n-poles

Technical Data

Wire sizes

Solid min

Solid max

Stranded (flexible) min

Stranded (flexible) max

Stranded with Ferrule min

Stranded with Ferrule max

0.08 mm²

1.5 mm²

0.14mm²

1.0 mm²

0.14 mm²

0.5 mm²

Order Data (Spacing 3.5 mm)

Insulating Material

Material

Flammability Class

PA 6.6

5.00

8.50

12.00

15.50

19.00

22.50

26.00

29.50

33.00

36.50

40.00

43.50

Poles

Width (mm)

Article Designation

AK4291/1KD-3.5-PEBBLE

GREY

AK4291/2KD-3.5-PEBBLE

GREY

AK4291/3KD-3.5-PEBBLE

GREY

AK4291/4KD-3.5-PEBBLE

GREY

AK4291/5KD-3.5-PEBBLE

GREY

AK4291/6KD-3.5-PEBBLE

GREY

AK4291/7KD-3.5-PEBBLE

GREY

AK4291/8KD-3.5-PEBBLE

GREY

AK4291/9KD-3.5-PEBBLE

GREY

AK4291/10KD-3.5-PEBBLE

GREY

AK4291/11KD-3.5-PEBBLE

GREY

AK4291/12KD-3.5-PEBBLE

GREY

Article

Number

54291010001 G

54291020001 F

54291030001 F

54291040001 F

54291050001 E

54291060001 E

54291070001 E

54291080001 D

54291090001 D

54291100001 D

54291110001 D

54291120001 D

250

200

100

UL 94 V-0

Temperatures

Operating Temperature

(without mech. load)

Store Temperature

-40 °C - 105 °C

Dimensions

Stripped Length

PCB Hole Diameter

9.0 mm

1.0 mm

Wave Soldering Process

Soldering Temperature,

recommended

Peak Soldering Time,

recommended

260 °C

3-4 s

Materials

Contact Tag

Copper

Alloy

Reflow Process

Soldering Temperature,

recommended

Peak Soldering Time,

recommended

Colours

PEBBLE GREY, RAL 7032

ORANGE, RAL 2011

BLUE, RAL 5015

LIGHT GREEN, similar RAL 6018

Colours according to RAL, there may be variations on colour due to production conditions. Special

colours on request.

Accessoires

Figure

Designation

Spacer SPC-AK4291-PEBBLE GREY

Article Number

Order Data:

54291000000

Bridge, 2-pole, insulated,

BRI/2-7.0/7.62-L7.5-LIGHT GREY

Order Data:

50000000018

Bridge, 2-pole, BR/2-3.5/3.81-L7.5

Order Data:

50000000015

Bridge, 3-pole, BR/3-3.5/3.81-L7.5

Order Data:

50000000016

Bridge, 2-pole, angled,

BR/2-3.5/3.81-H-L7.5

Order Data:

50000000029

Ratings

UseGroup

Rated Voltage

Rated Current

Rated Wire Size

- solid

- stranded

Test Voltage

300 V

min

130 V

max

0.75 mm²

2.0 kV

AWG 22-16

1.60 kV

0.2 mm²

PTR HARTMANN GmbH

• Gewerbehof 38 • 59368 Werne / Germany

Telefon: +49 (0)2389/7988-0 •

E-Mail: info@ptr-hartmann.com

www.ptr.eu
