54541060401E datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> 54541060401E

54541060401E: DescriptionBarrier Strip Terminal Block,; CategoryThe connector; File Size1MB，1 Pages; ManufacturerPTR Messtechnik GmbH & Co. KG

Download Datasheet Parametric Compare View All

54541060401E Overview

Barrier Strip Terminal Block,

54541060401E Parametric

Parameter Name	Attribute value
Reach Compliance Code	compliant
Terminal and terminal strip types	BARRIER STRIP TERMINAL BLOCK

Preview

Download Datasheet

View All

Push-In |

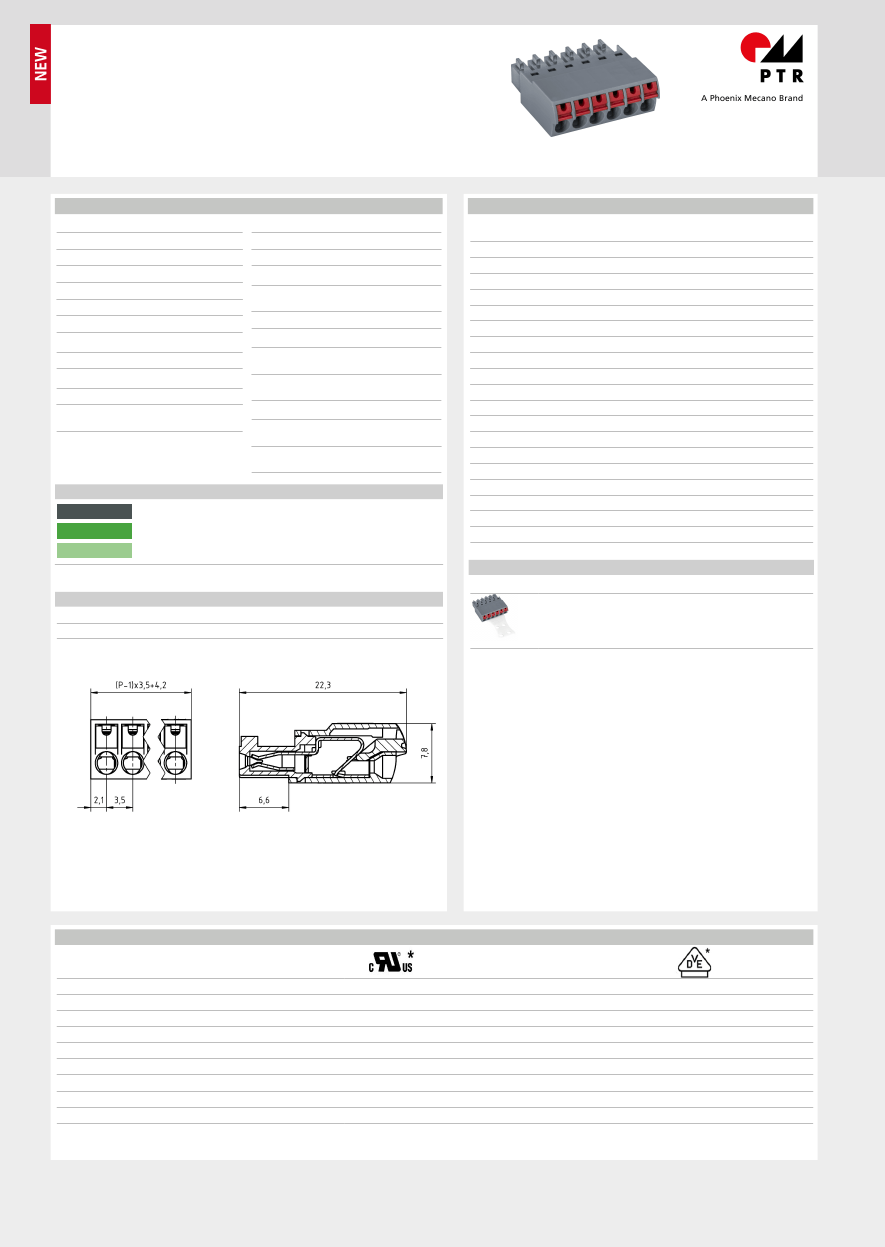

Spacing 3.5 mm

AK4541/..KD-3.5-BASALTGREY

Technical Data

Wire sizes

Solid min

Solid max

Stranded (flexible) min

Stranded (flexible) max

Stranded with Ferrule min

Stranded with Ferrule max

0.2 mm²

1.5 mm²

0.2mm²

1.5 mm²

0.25 mm²

1.5 mm²

Order Data (Spacing 3.5 mm)

Insulating Material

Material

Flammability Class

PA 6.6

7.70

11.20

14.70

18.20

21.70

25.20

28.70

32.20

35.70

39.20

42.70

46.20

49.70

53.20

56.70

60.20

63.70

67.20

70.70

AK4541/2KD-3.5-BASALTGREY

AK4541/3KD-3.5-BASALTGREY

AK4541/4KD-3.5-BASALTGREY

AK4541/5KD-3.5-BASALTGREY

AK4541/6KD-3.5-BASALTGREY

AK4541/7KD-3.5-BASALTGREY

AK4541/8KD-3.5-BASALTGREY

AK4541/9KD-3.5-BASALTGREY

AK4541/10KD-3.5-BASALTGREY

AK4541/11KD-3.5-BASALTGREY

AK4541/12KD-3.5-BASALTGREY

AK4541/13KD-3.5-BASALTGREY

AK4541/14KD-3.5-BASALTGREY

AK4541/15KD-3.5-BASALTGREY

AK4541/16KD-3.5-BASALTGREY

AK4541/17KD-3.5-BASALTGREY

AK4541/18KD-3.5-BASALTGREY

AK4541/19KD-3.5-BASALTGREY

AK4541/20KD-3.5-BASALTGREY

Poles

Width (mm)

Article Designation

Article

Number

54541020401 G

54541030401 F

54541040401 F

54541050401 E

54541060401 E

54541070401 D

54541080401 D

54541090401 D

54541100401 D

54541110401 D

54541120401 D

54541130401 D

54541140401 D

54541150401 D

54541160401 D

54541170401 D

54541180401 D

54541190401 D

54541200401 D

250

200

100

UL 94 V-0

Temperatures

Operating Temperature

(without mech. load)

Store Temperature

-40 °C - 105 °C

Dimensions

Stripped Length

10.0 mm

Wave Soldering Process

Soldering Temperature,

recommended

Peak Soldering Time,

recommended

Materials

Contact Spring

Clamp Spring

tin plated

Stainless

Steel

Reflow Process

Soldering Temperature,

recommended

Peak Soldering Time,

recommended

Colours

BASALT GREY, RAL 7012

GREEN, RAL 6018

LIGHT GREEN, similar RAL 6018

Colours according to RAL, there may be variations on colour due to production conditions. Special

colours on request.

Accessoires

Figure

Designation

Series AK4541 with pull relief

Article Number

Order Data: on request

Counterparts (Spacing 3.5 mm)

Pin Strip

STLZ1541

STL1550

Ratings

UseGroup

Rated Voltage

Rated Current

Overvoltage Category

Rated Wire Size

- solid

- stranded

Test Voltage

Pollution Degree

150 V

50 V

150 V

320 V

min

max

1.5 mm²

2.5 kV

* Approval Pending

AWG 24-16

1.30 kV

AWG 24-16

1.10 kV

AWG 24-16

1.30 kV

0.2 mm²

PTR HARTMANN GmbH

• Gewerbehof 38 • 59368 Werne / Germany

Telefon: +49 (0)2389/7988-0 •

E-Mail: info@ptr-hartmann.com

www.ptr.eu

54541060401E Related Products

	54541060401E	54541110401D
Description	Barrier Strip Terminal Block,	Barrier Strip Terminal Block,
Reach Compliance Code	compliant	compliant
Terminal and terminal strip types	BARRIER STRIP TERMINAL BLOCK	BARRIER STRIP TERMINAL BLOCK
