LP11-OA-1-T-A-S-YB datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Mechanical and electronic products> switch> LP11-OA-1-T-A-S-YB

Preview

LP11-OA-1-T-A-S-YB: DescriptionPushbutton Switch, SPST, Off-(on), Momentary, 0.1A, 12VDC, 9 PCB Hole Cnt, Solder Terminal, Through Hole-straight; CategoryMechanical and electronic products switch; File Size136KB，2 Pages; ManufacturerE-Switch; Websitehttp://www.e-switch.com

Download Datasheet Parametric View All

LP11-OA-1-T-A-S-YB Overview

Pushbutton Switch, SPST, Off-(on), Momentary, 0.1A, 12VDC, 9 PCB Hole Cnt, Solder Terminal, Through Hole-straight

LP11-OA-1-T-A-S-YB Parametric

Parameter Name	Attribute value
Reach Compliance Code	compliant
ECCN code	EAR99
Actuator length	0.453 inch
Actuator stroke	4.4958 mm
Actuator type	PUSHBUTTON
Other features	WITH LED
body width	15.0114 mm
body height	11.5062 mm
Body length or diameter	15.0114 mm
Maximum contact current (DC)	0.1 A
Contact (DC) maximum rated R load	0.1A@12VDC
Contact function	OFF-(ON)
Contact resistance	0.2 mΩ
Maximum contact voltage (DC)	12 V
Dielectric withstand voltage	500VAC V
Electrical life	200000 Cycle(s)
Insulation resistance	100000000 Ω
Manufacturer's serial number	LP11
Installation features	THROUGH HOLE-STRAIGHT
Maximum operating temperature	70 °C
Minimum operating temperature	-20 °C
PCB hole count	9
surface mount	NO
Switch action	MOMENTARY
switch function	SPST
Switch type	PUSHBUTTON SWITCH
Terminal length	0.142 inch
Termination type	SOLDER

Preview

Download Datasheet

View All

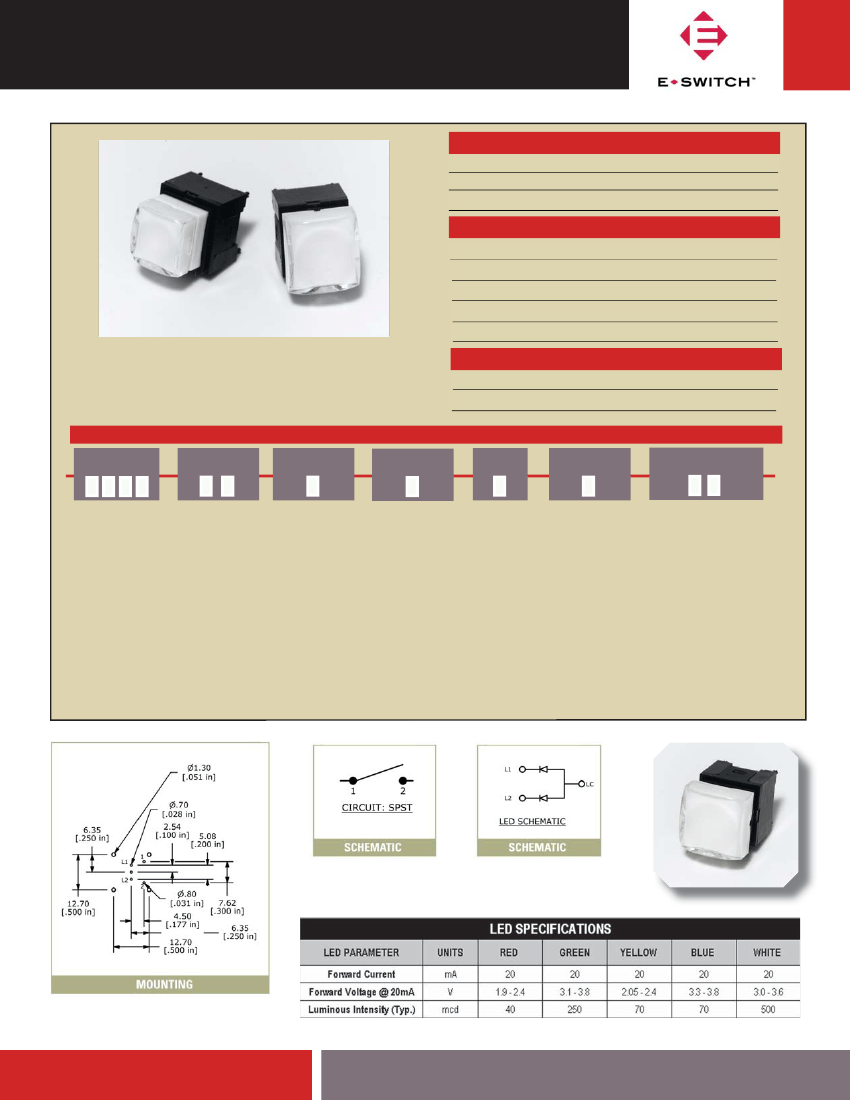

SERIES LP11 SWITCHES

ILLUMINATED PUSHBUTTON

MECHANICAL SPECIFICATIONS

Mechanical Life:

Force:

Travel:

200,000 cycles

250 +/- 100 gf

4.50 +/- 0.2mm

ELECTRICAL SPECIFICATIONS

Electrical Life:

Contact Rating:

Contact Resistance:

Insulation Resistance:

Dielectric Strength:

200,000 cycles

100mA @ 12VDC

200mΩ (initial max)

100MΩ (Min @ 500VDC)

500VAC

FEATURES & BENEFITS

Multiple illumination options

Tactile or Non-tactile feel

Multiple cap sizes

APPLICATIONS / MARKETS

Computer Servers/peripherals

Performance Audio

Instrumentation

Telecommunications/networking

ACTUATION

TYPE

N = Non Tactile

T = Tactile Feel

ENVIRONMENTAL SPECIFICATIONS

Operating Temperature:

Storage Temperature:

-20ºC to +70ºC

HOW TO ORDER:

SERIES

FUNCTION STYLE

CIRCUIT

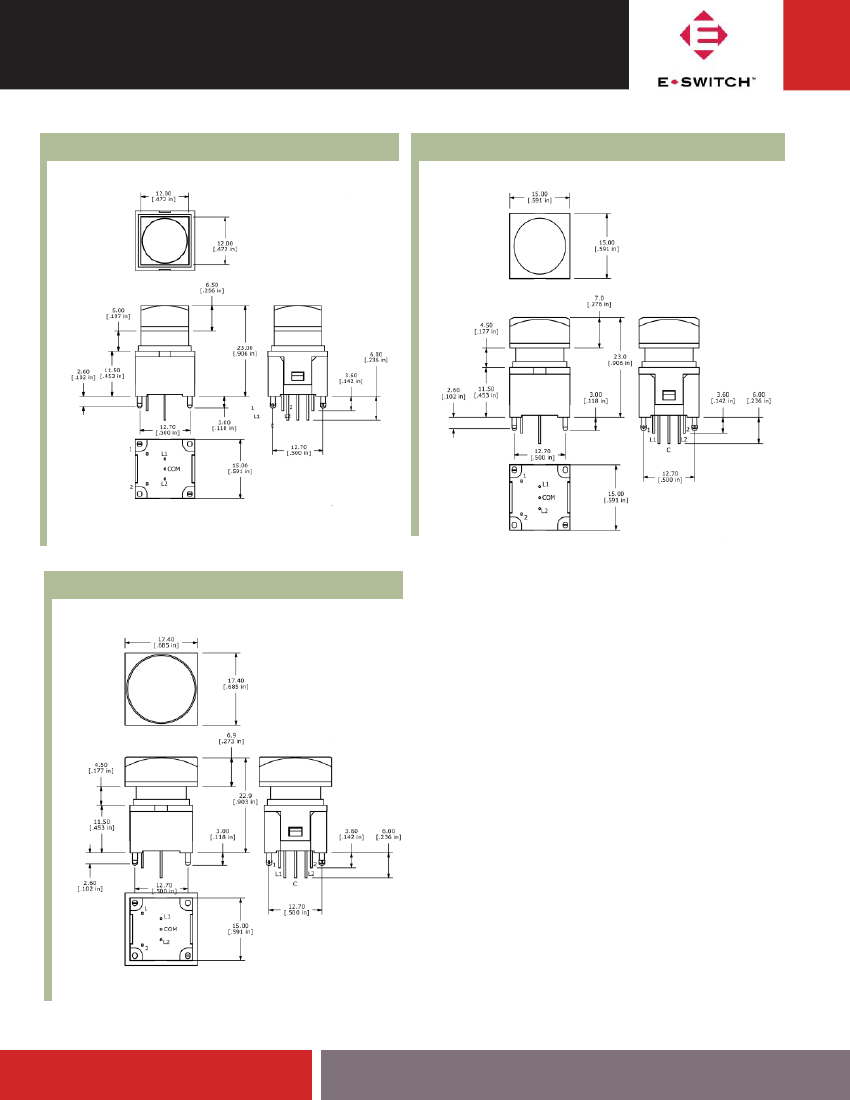

CAP SIZE

CAP

CONFIGURATION

S = Sculptured

LED COLORS

LP11

OA = Momentary

1 = SPST

A = 12 mm sq.

B = 15 mm sq.

C = 17.4 mm sq.

Example Ordering Code:

LP11-OA-1-N-B-S-RG

RR = RED-RED

RG = RED-GRN

RY = RED-YEL

RB = RED-BLU

RW = RED-WHT

YY = YEL-YEL

YG = YEL-GRN

YB = YEL-BLU

YW = YEL-WHT

GG = GRN-GRN

GB = GRN-BLU

GW = GRN-WHT

BB = BLU-BLU

BW = BLU-WHT

WW = WHT-WHT

Speciﬁcations subject to change without notiﬁcation.

OFF

(ON)

www.e-switch.com

email: info@e-switch.com

7153 NORTHLAND DRIVE NORTH

MINNEAPOLIS, MN 55428

PHONE: 800-867-2717

FAX: 763-531-8235
