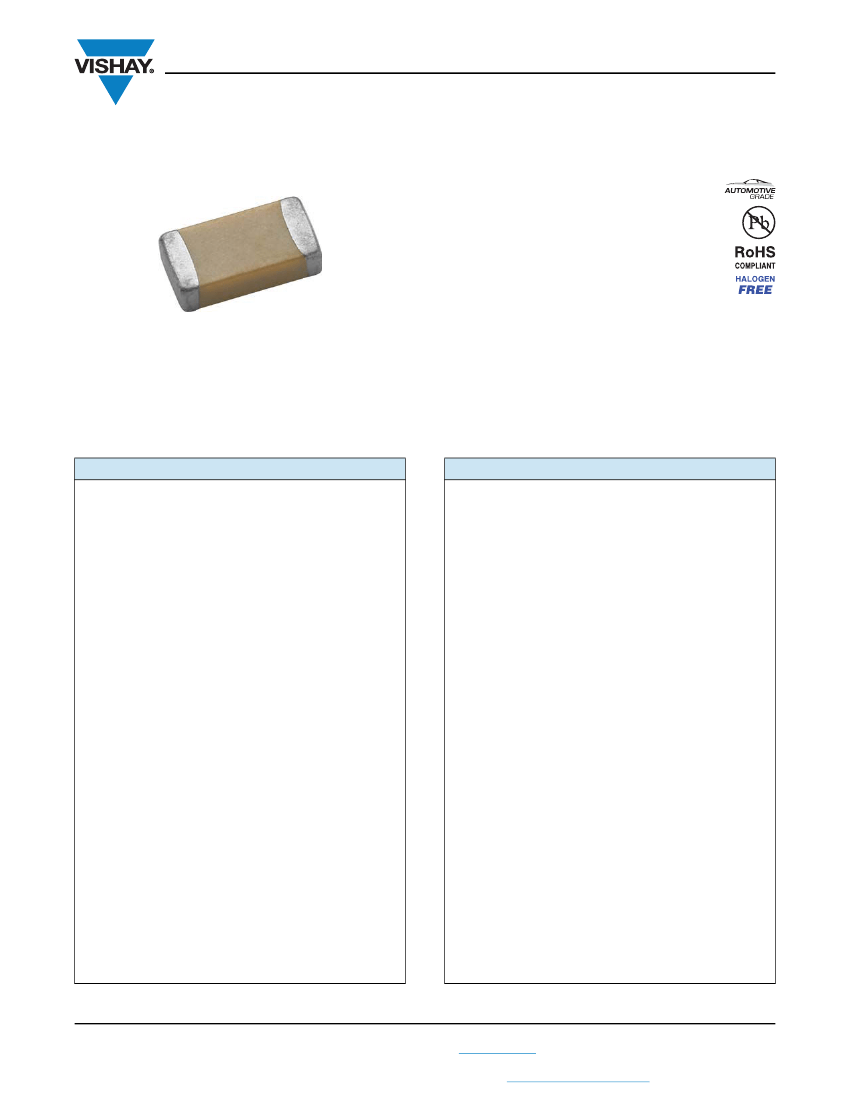

VJ....31/VJ....34 Automotive MLCC
www.vishay.com
Vishay Vitramon
Surface Mount Multilayer Ceramic Chip Capacitors
for Automotive Applications
FEATURES
•
•
•
•
•
•
•
•
•
AEC-Q200 qualified with PPAP available
Available in 0402 to 1812 body size
Four dielectric materials
AgPd termination available for silver epoxy
bonding
High operating temperature
Wet build process
Reliable Noble Metal Electrode (NME) system
Halogen-free according to IEC 61249-2-21 definition
Compliant to RoHS Directive 2002/95/EC
For more than 20 years Vishay Vitramon has supported the automotive industry with robust, highly reliable MLCCs that have
made it a leader in this segment. All Vishay Vitramon MLCCs are manufactured in “Precious Metal Technology” (PMT/NME) with
a wet build process. They are qualified according to AEC-Q200 with PPAP available on request. Applications for these devices
include automotive “under the hood”, safety and comfort electronics. Their termination finish is 100 % tin plate matte and AgPd
which is used with silver epoxy bonding. A Polymer (flexible) termination with 100 % tin plate matte finish is offered for intensive
boardflex requirements.
C0G (NP0) DIELECTRIC
GENERAL SPECIFICATION
Note
Electrical characteristics at + 25 °C unless otherwise specified
X5R, X7R, X8R DIELECTRIC
GENERAL SPECIFICATION
Note
Electrical characteristics at + 25 °C unless otherwise specified
Operating Temperature:
- 55 °C to + 150 °C
(above + 125 °C changed characteristics 2.3)
Capacitance Range:
1 pF to 22 nF
Operating Temperature
:
- 55 °C to + 150 °C
(X5R above + 85 °C changed characteristics 2.3)
(X7R above + 125 °C changed characteristics 2.3)
Capacitance Range
:
120 pF to 1.0 μF
Voltage Range
:
25 V
DC
to 3000 V
DC
Voltage Range
:
10 V
DC
to 1000 V
DC
Temperature Coefficient of Capacitance (TCC):
0 ppm/°C ± 30 ppm/°C from - 55 °C to + 125 °C
Dissipation Factor (DF):
0.1 % maximum at 1.0 V
RMS
and
1 MHz for values
1000 pF
0.1 % maximum at 1.0 V
RMS
and
1 kHz for values > 1000 pF
Insulating Resistance:
At + 25 °C 100 000 M min. or 1000
F
whichever is less
At + 125 °C 10 000 M min. or 100
F
whichever is less
Aging
:
0 % maximum per decad
e
Dielectric Strength Test:
Performed per method 103 of EIA 198-2-E.
Applied test voltages
250 % of rated voltage
250 V
DC
-rated:
500 V
DC
-rated:
200 % of rated voltage
150 % of rated voltage
630 V
DC
, 1000 V
DC
-rated:
3000 V
DC
-rated:
120 % of rated voltage
Temperature Coefficient of Capacitance (TCC):
X5R: ± 15 % from - 55 °C to + 85 °C, with 0 V
DC
applied
(5)
X7R: ± 15 % from - 55 °C to + 125 °C, with 0 V
DC
applied
X8R: ± 15 % from - 55 °C to + 150 °C, with 0 V
DC
applied
Dissipation Factor (DF):
10 V ratings: 5 % maximum at 1.0 V
RMS
and 1 kHz
16 V, 25 V ratings: 3.5 % maximum at 1.0 V
RMS
and 1 kHz
> 25 V ratings: 2.5 % maximum at 1.0 V
RMS
and 1 kHz
Insulating Resistance:
At + 25 °C 100 000 M min. or 1000
F
whichever is less
At + 125 °C 10 000 M min. or 100
F
whichever is less
Aging Rate
:
1 % maximum per decade
Dielectric Strength Test:
Performed per method 103 of EIA 198-2-E.
Applied test voltages
250 % of rated voltage
250 V
DC
-rated:
500 V
DC
-rated:
min. 150 % of rated voltage
150 % of rated voltage
630 V
DC
, 1000 V
DC
-rated:
Revision: 05-Aug-11
1
For technical questions, contact:
mlcc@vishay.com
Document Number: 45040
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
VJ....31/VJ....34 Automotive MLCC
www.vishay.com
Vishay Vitramon
ORDERING INFORMATION - TIN TERMINATION
VJ0805
(2)
CASE
CODE
Y
102
K
CAPACITANCE
TOLERANCE
X
A
A
MARKING
C
PACKAGING
31
PROCESS
CODE
DIELECTRIC CAPACITANCE
NOMINAL
CODE
A = C0G
(NP0)
Y = X7R
G = X5R
(5)
H = X8R
TERMINATION DC VOLTAGE
RATING
(1)
0402
0603
0805
1206
1210
1812
X = Ni barrier
B = ± 0.10 pF
Expressed in
100 % tin plate
C = ± 0.25 pF
picofarads (pF).
matte finish
D = ± 0.5 pF
The first two
B = Polymer
F=±1%
digits are
100 % tin plate
G=±2%
significant, the
matte finish
(3)
J=±5%
third is a
K = ± 10 %
multiplier. An
M = ± 20 %
“R” indicates a
Note:
decimal point.
C0G (NP0):
Examples
B, C, D < 10 pF
4R7 = 4.7 pF
102 = 1000 pF F, G, J, K 10 pF
X5R/X7R/X8R:
J, K, M
Q = 10 V
J = 16 V
X = 25 V
A = 50 V
B = 100 V
C = 200 V
P = 250 V
T = 400V
(4)
E = 500 V
L = 630 V
G = 1000 V
H = 3000 V
A = Unmarked
B = Marked
Note:
Marking is only
available for
0805 and 1206
vendor ID and
date code
31 =
Automotive
100 % tin
plate matte
finish
E/T = 7" reel/plastic tape
(6)
C = 7" reel/paper tape
M/R = 11 1/4"/13" reel/plastic tape
(6)
P = 11 1/4"/13" reel/paper tape
ORDERING INFORMATION - SILVER PALLADIUM TERMINATION
VJ0805
(2)
CASE
CODE
Y
102
K
CAPACITANCE
TOLERANCE
F
A
A
MARKING
O
PACKAGING
34
PROCESS
CODE
DIELECTRIC CAPACITANCE
NOMINAL
CODE
A = C0G
(NP0)
Y = X7R
G = X5R
(5)
H = X8R
Expressed in
picofarads (pF).
The first two
digits are
significant, the
third is a
multiplier. An
“R” indicates a
decimal point.
Examples
102 = 1000 pF
TERMINATION DC VOLTAGE
RATING
(1)
0402
0603
0805
1206
1210
1812
B = ± 0.10 pF
C = ± 0.25 pF
D = ± 0.5 pF
F=±1%
G=±2%
J=±5%
K = ± 10 %
M = ± 20 %
Note:
C0G(NP0):
B, C, D < 10 pF
F, G, J, K 10 pF
X5R/X7R/X8R:
J, K, M
F, E = AgPd
(7)
Q = 10 V
J = 16 V
X = 25 V
A = 50 V
B = 100 V
C = 200 V
P = 250 V
T = 400V
(4)
E = 500 V
L = 630 V
G = 1000 V
H = 3000 V
A = Unmarked
Note:
Marking is not
available
34 =
Automotive
AgPd finish
E/T = 7" reel/plastic tape
(6)
O = 7" reel/flamed paper tape
M/R = 11 1/4"/13" reel/plastic tape
(6)
I = 11 1/4"/13" reel/flamed paper tape
Note:
“I” and “O” are used for
“F”, “E” termination
size 0402/0603/0805
Notes
(1)
DC voltage rating should not be exceeded in application. Other application factors may affect the MLCC performance.
Consult for questions:
mlcc@vishay.com
(2)
Case size designator may be replaced by a four digit drawing number
(3)
Polymer termination contact
mlcc@vishay.com
for availability of ratings
(4)
Per customer request. Contact:
mlcc@vishay.com
for availability
(5)
Selected values for X5R, see dielectric selection chart
(6)
Packaging “T” and “R” is used for 1812 size
(7)
Termination code “E” is for conductive epoxy assembly.
Revision: 05-Aug-11
3
For technical questions, contact:
mlcc@vishay.com
Document Number: 45040
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
