EB45D15SGX15 Overview

Edgeboard Connectors, Dual Readout,

EB45D15SGX15 Parametric

Parameter Name	Attribute value
Maker	Vishay
Reach Compliance Code	unknow
ECCN code	EAR99
Other features	RAISED MOUNTING FLANGE
body width	0.365 inch
subject depth	0.61 inch
body length	2.335 inch
Connector type	CARD EDGE CONNECTOR
Contactor design	PREASSEM CONN
Contact to complete cooperation	AU ON NI
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	30 mΩ
Contact style	BELLOWED TYPE
Dielectric withstand voltage	650VAC V
Durability	500 Cycles
Insulation resistance	5000000000 Ω
Insulator color	BROWN
insulator material	GLASS FILLED POLYPHENYLENE SULPHIDE
Manufacturer's serial number	EB4
Plug contact pitch	0.1 inch
Match contact row spacing	0.2 inch
Installation option 1	HOLE .125-.137
Installation option 2	MOUNTING FLANGE
Installation type	PANEL
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-65 °C
Plating thickness	30u inch
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.115 inch
Termination type	SOLDER LUG
Total number of contacts	30
Evacuation force-minimum value	.1668 N
Base Number Matches	1

Preview

Download Datasheet

View All

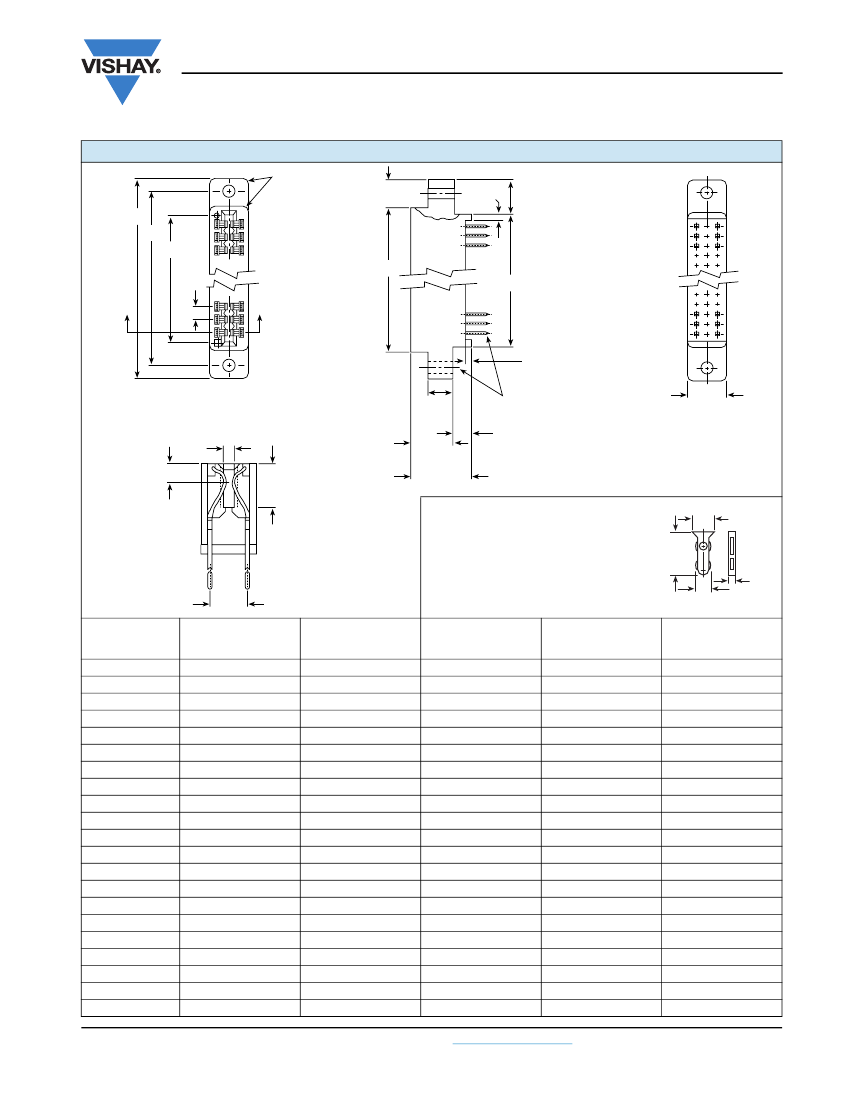

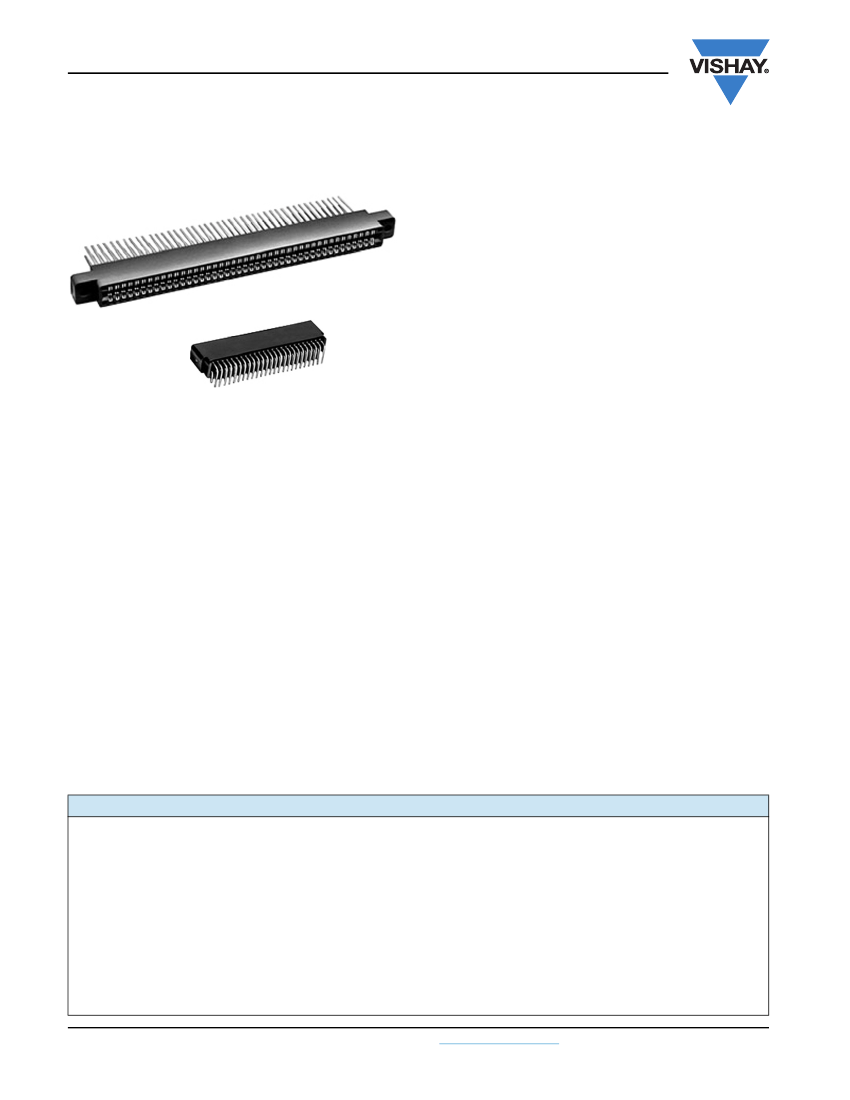

EB4

Vishay Dale

Edgeboard Connectors, Dual Readout, 0.100" (2.54 mm) C-C,

Standard and Right Angle Terminals

FEATURES

• Grid Patterns: 0.100" C-C x 0.150" (2.54 mm x 3.81 mm)

and 0.100" C-C x 0.200" (2.54 mm x 5.08 mm)

• Standard and right angle terminals

• Greater design latitude:

4 body materials: Diallyl phthalate, phenolic, glass-filled

polyester and glass-filled polyphenylene sulfied

7 contact termination styles - 3 standard, 4 right angle

20 body sizes and 6 mounting styles

• Selective gold plating

• Accepts PC board thickness of 0.054" to 0.071" (1.37 mm

to 1.80 mm)

• Polarization between contact positions in all sizes.

Between contact polarization permits polarizing without

loss of contact position.

•

Recognized under the Component Program of

Underwriters Laboratories, Inc. listed under file

E65524, project 77CH3889

ELECTRICAL SPECIFICATIONS

Current Rating:

3 A

Test Voltage Between Contacts:

At sea level: 650 V

RMS

At 70 000 feet (21 336 meters): 275 V

RMS

Insulation Resistance:

5000 MΩ minimum at 500 V

potential

Contact Resistance:

30 mV maximum at rated current (with

gold plating)

Operating Temperature:

- 65 °C to + 125 °C

Humidity:

96 h at 90 % relative humidity at + 40 °C, dried at

room temperature for 3 h minimum, insulation resistance

was greater than 5000 MΩ

Durability:

After 500 cycles of insertion and withdrawal of a

0.070" (1.78 mm) thick steel test board, contact resistance

less than 0.030 V at 3 A on gold plated contacts and

individual contact pair separation force when measured with

a 0.054" (1.37 mm) thick steel test blade was greater than

½ oz.

Shock:

Three 50G shocks in each of 3 mutually

perpendicular planes with no loss of continuity

Vibration:

2 h in each of 3 mutually perpendicular planes,

frequency sweep 10 cps to 55 cps at 0.06 double amplitude

with no loss of continuity

APPLICATIONS

For use with 0.0625" (1.59 mm) printed circuit boards

requiring an edgeboard type connector on 0.100" (2.54 mm)

centers

MATERIAL SPECIFICATIONS

Body Material:

“1” glass-filled diallyl phthalate per MIL-M-14, Type SDG-F

green, flame retardant (UL 94 V-0)

“2” glass-filled phenolic per MIL-M-14, Type MFH dark

green, flame retardant (UL 94 V-0)

“3” thermoplastic polyester, glass-filled, black, flame

retardant (UL 94 V-0)

”5” thermoplastic polyphenylene sulfied, glass filled, brown,

flame retardant (UL 94 V-0)

Contacts:

Phosphor bronze (See Ordering Information)

Polarizing Key:

Glass reinforced nylon, flame retardant

(UL 94H-B)

Plating:

Gold (See Ordering Information)

ORDERING INFORMATION

EB4

MODEL

BODY

MATERIAL

MOUNTING

POLARIZING

CONTACT PLATING

STANDARD CONTACTS

VARIATIONS

PER SIDE

TERMINAL

KEY POSITIONS

SG = Selective gold plating (0.00003"

VARIATIONS

6, 10, 12, (0.000762 mm) minimum thick) on contact

Key(s) are located to

1 = Diallyl

area with gold flash on terminal.

15, 18, 20,

C, D, K,

right of position(s)

Phthalate

SGF = Selective gold plating (0.000010"

22, 25, 28,

1R, 2R,

designated. Use odd-

2 = Phenolic

30, 31, 35, (0.000254 mm) minimum thick) on contact

3R, 4R

numbered contact for

3 = Glass-filled

area with gold flash on terminal.

36, 40, 43,

ordering: -1, -3, -5, etc.

Polyester

All gold plating over 0.00005"

44, 48, 49,

Required only when

5 = Glass-filled

(0.00127 mm) minimum nickel underplate.

50, 60,

polarizing keys are to be

Polyphenylene

Contact factory for additional plating

and 65

factory installed.

Sulfied

options.

Note:

To order polarizing

keys individually, specify

model PK-4.

For technical questions, contact:

connectors@vishay.com

Document Number: 36001

Revision: 16-Feb-09

www.vishay.com
