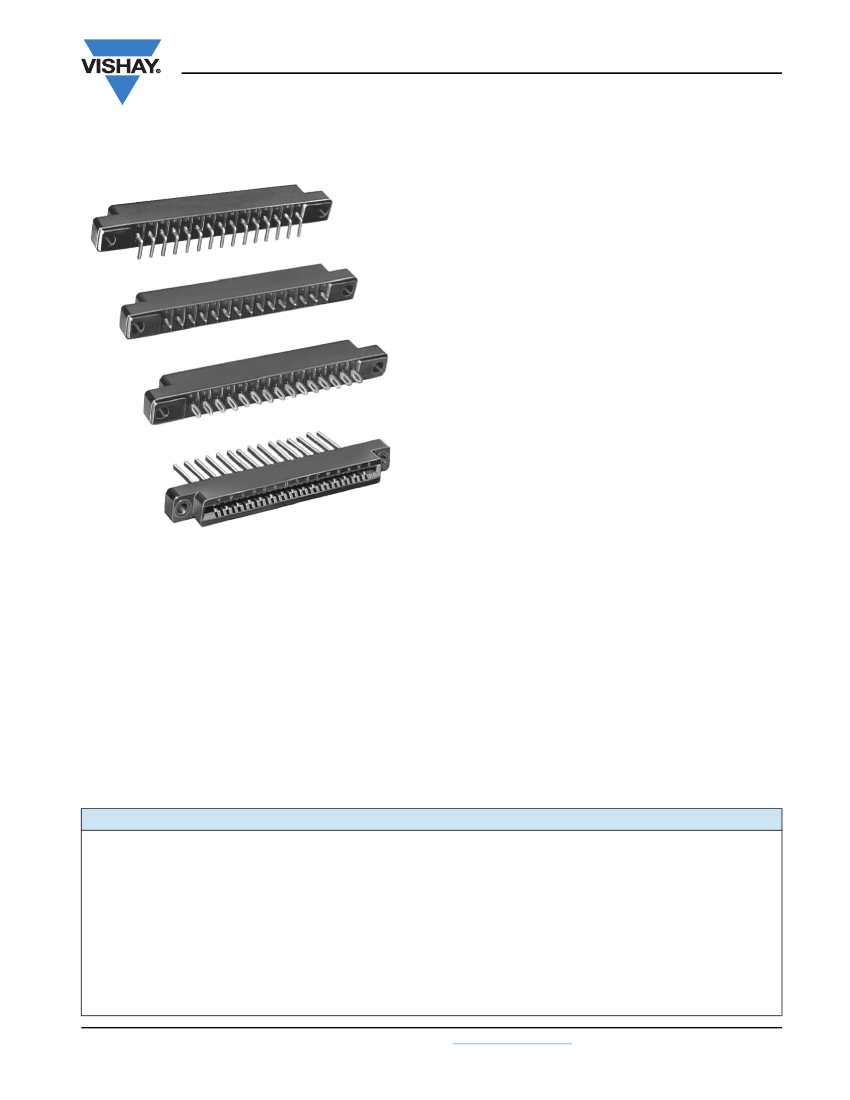

EBT156
Vishay Dale
Edgeboard Connectors, Single Readout, Dip Solder, Eyelet and
Wire Wrap™ Termination
FEATURES
• 0.156" (3.96 mm) C-C
• Modified tuning fork contacts have chamfered lead-in to
reduce wear on printed circuit board contacts without
sacrificing contact pressure and wiping action
• Accepts PC board thickness of 0.054" to 0.070" (1.37 mm
to 1.78 mm)
• Polarization on or between contact positions in all sizes.
Between contact polarization permits polarizing without
loss of a contact position
• Polarizing key is reinforced nylon, may be inserted by
hand, requires no adhesive
• Protected entry, provided by recessed leading edge of
contact, permits the card slot to staighten and align the
board before electrical contact is made. Prevents damage
to contacts which might be caused by warped or out of
tolerance boards
• Optional terminal configurations, including eyelet (type A),
dip-solder (types B, C, D, R), Wire Wrap™ (types E, F)
•
Connectors with type A, B, C, D, or R contacts are
recognized under the Component Program of
Underwriters Laboratories, Inc. listed under file
E65524, project 77CH3889
ELECTRICAL SPECIFICATIONS
Current Rating:
5 A
Test Voltage Between Contacts:
At sea level: 1800 V
RMS
At 70 000 feet (21 336 meters): 450 V
RMS
Insulation Resistance:
5000 MΩ minimum (at 500 V
DC
potential)
Contact Resistance:
(voltage drop) 30 mV maximum at
rated current with gold flash
APPLICATIONS
For use with 0.062" (1.57 mm) printed circuit boards requiring
an edgeboard type connector on 0.156" (3.96 mm) centers
MATERIAL SPECIFICATIONS
Body:
Glass-filled phenolic per MIL-M-14, type MFH, black,
flame retardant (UL 94 V-0)
Contacts:
Copper alloy
Finish:
1 = Electro tin plated, 2 = Gold flash
Polarizing Key:
Glass-filled nylon
Optional Threaded Mounting Insert:
Nickel plated brass
(Type Y)
Optional Floating Mounting Bushing:
Cadmium plated
brass (Type Z)
PHYSICAL SPECIFICATIONS
Number of Contacts:
6, 10, 12, 15, 18, or 22
Contact Spacing:
0.156" (3.96 mm)
Card Thickness:
0.054" to 0.070" (1.37 mm to 1.78 mm)
Card Slot Depth:
0.330" (8.38 mm)
ORDERING INFORMATION
EBT156
MODEL
10
CONTACTS
6, 10, 12,
15, 18, or 22
A
STANDARD TERMINAL
VARIATIONS
A, B, C, D,
E, F, or R
1
CONTACT
FINISH
X
A, J
MOUNTING BETWEEN CONTACT
POLARIZATION
VARIATIONS
A9, J9
ON CONTACT POLARIZATION
Required
only
when polarizing
key(s) are to be
factory installed.
Polarization key replaces contact.
When polarizing key(s) replaces
contact(s), indicate by adding suffix
“9” to contact position(s) desired.
Example:
A9, J9
means keys
replace terminals
A and J
1 = Electro tin W, X, Y, or Z
plated
2 = Gold flash
Required
only
when polarizing key(s) are to be
factory installed.
Polarization key positions: Between contact
polarization key(s) are located to the right of the
contact position(s) desired.
Example:
A, J
means keys between
A and B,
and
J and K
Document Number: 36007
Revision: 16-Feb-09
For technical questions, contact:
connectors@vishay.com
www.vishay.com
17
EBT156
Vishay Dale
Edgeboard Connectors, Single Readout, Dip Solder, Eyelet
and Wire Wrap™ Termination

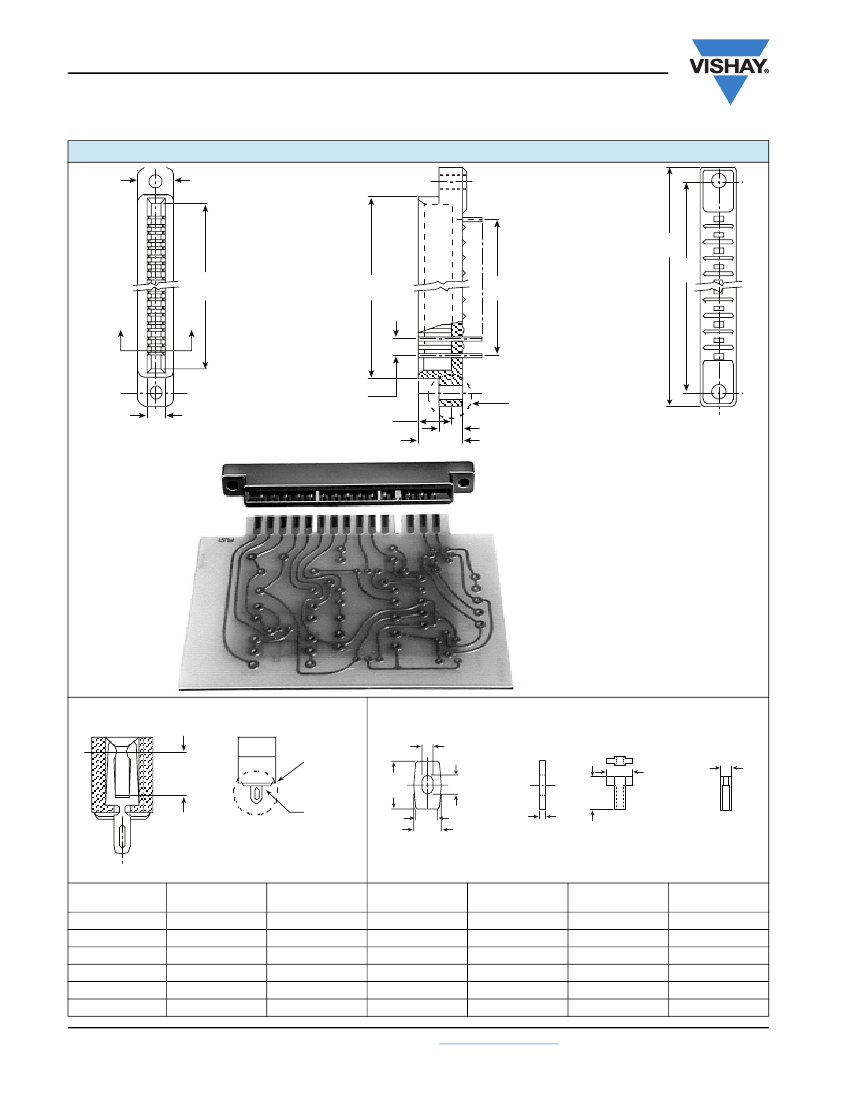

DIMENSIONS
in inches (millimeters)
B
F
G
C
D
E
A
A
0.156 (3.96)
Centers Typ.
To accept a
0.054 to 0.070 (1.37 to 1.78)
Thick Card
0.330 (8.38)
See Mounting
Variations
0.250 (6.35)
0.458 (11.63)
Between contact or
on contact polarization
available in all sizes for
factory or field insertion.
Section A to A:
Polarizing Key:
PK156
0.062 (1.57)
0.235
(5.97)
See
Terminal
Variations
PKC156
0.060 ± 0.002
(1.52 ± 0.051)
0.170 (4.32)
0.225
(5.72)
0.034
(0.864)
0.328
(8.33)
0.125
(3.18)
0.150 (3.81)
0.180 (4.57)
Staked
Contact
On Contact Polarizing Key
(Field Insertable)
Between Contact Polarizing Key
When ordering polarizing keys individually, specify by Model Number PK156 or
PKC156
# OF CONTACT
POSITIONS
6
10
12
15
18
22
www.vishay.com
18
B
0.340 (8.64)
0.340 (8.64)
0.340 (8.64)
0.340 (8.64)
0.340 (8.64)
0.340 (8.64)
C
1.10 (27.94)
1.72 (43.69)
2.04 (51.82)
2.50 (63.50)
2.97 (75.44)
3.60 (91.44)
D
1.24 (31.50)
1.86 (47.24)
2.18 (55.37)
2.65 (67.31)
3.11 (78.99)
3.74 (95.0)
E
0.781 (19.84)
1.41 (35.81)
1.72 (43.69)
2.19 (55.63)
2.66 (67.56)
3.28 (83.31)
F
1.80 (45.72)
2.43 (61.72)
2.74 (69.60)
3.21 (81.53)
3.68 (93.47)
4.30 (109.22)
G
1.53 (38.86)
2.16 (54.86)
2.47 (62.74)
2.94 (74.68)
3.41 (86.61)
4.03 (102.36)
For technical questions, contact:
connectors@vishay.com
Document Number: 36007
Revision: 16-Feb-09
EBT156
Edgeboard Connectors, Single Readout, Dip Solder, Eyelet and
Wire Wrap™ Termination
MOUNTING VARIATIONS
in inches (millimeters)
Type “W”
No Mounting Flange
+ 0.010 (0.254)
- 0.000 (0.000)
Vishay Dale
Type “X”
Clearance Hole
Type “Y”
Threaded Insert
Type “Z”
Floating Bushing
0.250 (6.35)
Ref.
0.116 ± 0.003
(2.95 ± 0.076)
0.140 (3.56)
Dia.
4-40 UNC-2B
0.010 (0.254)
0.005 (0.127)
Axial Float
0.010 (0.254) Min.
Radial Float
0.040 (1.02) Min. Wall
TERMINAL VARIATIONS
in inches (millimeters)
Type “A”
Type “B”
Type “C”
Type “D”
1.25
(31.75)
0.040
(1.02)
0.190 (4.83)
0.031
(0.787)
Sq.
0.125
(3.18)
0.406
(10.318)
0.200 (5.08)
0.090 (2.29)
0.031
(0.787)
0.031 (0.787) Sq.
0.031 (0.787) Sq.
Type “E”
Type “F”
Type “R”
0.100
(2.54)
0.062
(1.57)
0.031
(0.787)
0.500
(12.70)
0.062
(1.57)
0.031
(0.787)
0.800
(20.32)
0.031
(0.787)
Sq.
0.170 (4.32)
0.560
(14.22)
Document Number: 36007
Revision: 16-Feb-09
For technical questions, contact:
connectors@vishay.com
www.vishay.com
19
