CALL 512-863-5585
x6464
DIMENSIONS
D
JUMPER LENGTH
.050
.031
CONTACT CUSTOMER SERVICE

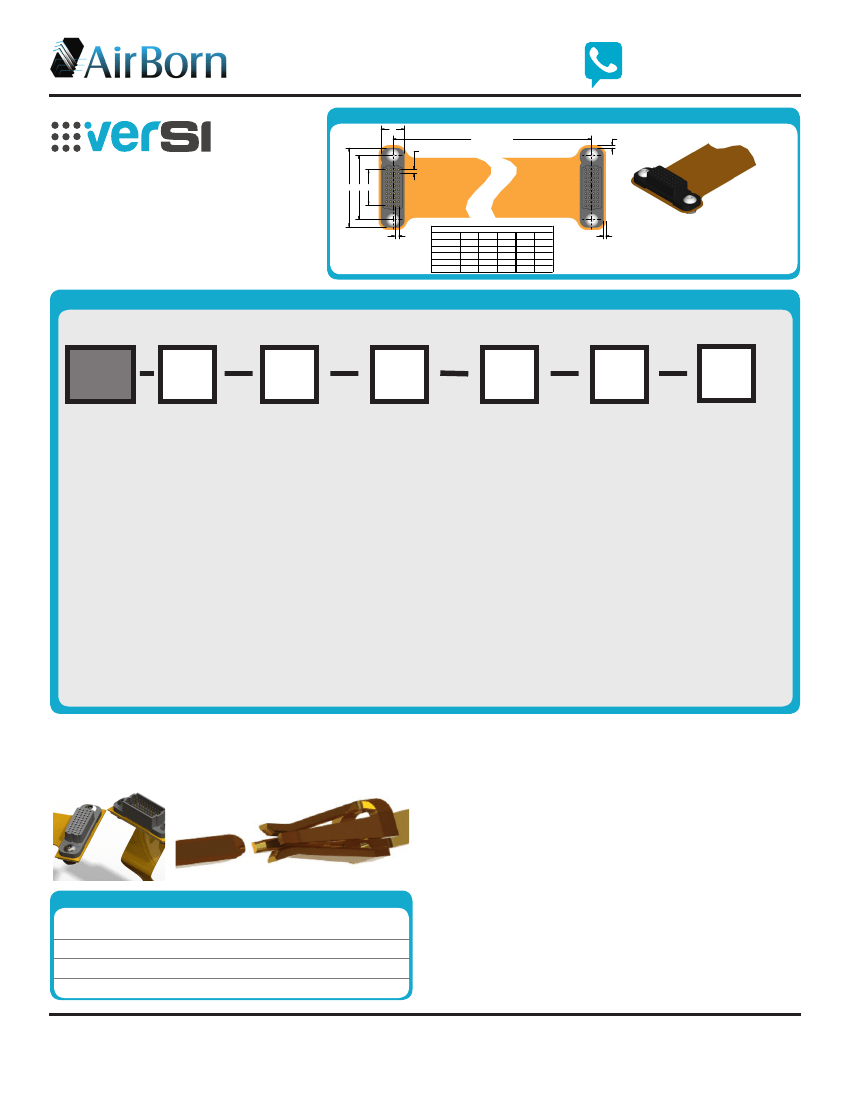

VSX – Flexible Circuit Jumper
Assembly
VSX flexible circuit jumpers come in standard
lengths and wiring configurations, but custom
specifications can be requested.
A
B
C
.050
COLUMNS
10
20
30
40
50
FLEX JUMPER DIMENSIONS
A
B
C
ROWS
1.000
.813
.450
4
1.500
1.313
.950
5
2.000
1.813
1.450
6
2.500
2.313
1.950
8
3.000
2.813
2.450
10
D
.300
.350
.400
.500
.700
.031
ORDER FORM
ENTER
CODE
ENTER
CODE
Sample Part Number Format: VSX-XX-XX-XX-XX-XX-XXX
ENTER
CODE
ENTER
CODE
ENTER
CODE
ENTER
CODE
VSX
SERIES
Flexible Circuit
Jumper
1.27 mm
ROWS
04 – 4 Rows
05 – 5 Rows
06 – 6 Rows
08 – 8 Rows
10 – 10 Rows
COLUMNS
10 – 10 Columns
20 – 20 Columns
30 – 30 Columns
40 – 40 Columns
50 – 50 Columns
CONTACT PLATING
30 – 30 µ” Au
50 – 50 µ” Au
CONNECTOR 1
01 – Male
03 – Female
CONNECTOR 2
01 – Male
03 – Female
LENGTH*
015 – 0.15 M
030 – 0 .30 M
045 – 0.45 M
NOTES
* Other cable lengths and configurations available.
FEATURES
verSI connectors feature low mating force/high-reliability contact system with four points of
contact. The open-pin field design allows for flexibility in termination schemes. Single-ended,
differential pair, power, and ground are all available in one connector design.
MATERIALS & FINISHES
Socket Contact:
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . BeCu per ASTM-B194
Pin Contacts: . . . . . . . . . . . . . . . . . . . . . . . . . .260 brass per ASTM-B36 or per BeCu ASTM-B194
(press fit contact)
Contact Finish: . . . . . . . . . . . . . . . . . . . . . . .Localized
gold finish per MIL-G-45204 over nickel per
ASTM-B689 Type I
Molded Insulators:
. . . . . . . . . . . . . . . .
Glass-filled liquid crystal polymer (LCP) per ASTM-D5138
Hardware: . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Stainless steel per ASTM-A582/A582M, passivated
per ASTM-A967, SAE AMS-QQ-P-35
NOTE: AirBorn can manufacture other configurations to your exact specifications.
PERFORMANCE
SI DATA – Simulated (Connectors Only)
REQUIREMENTS
22 GHz @ -2 db
7.5 GHz @ -20 db
100 ohm ±10%
< 2 psec
17.5 GHz @ -10 db
1
2
3
4
Diff. Insertion Loss
Diff. Return Loss
Diff. Impedance
Diff. Skew
ACTUAL
Contact Rating: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2 amperes maximum
Operating Temperature:
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
-55° C to 125° C
Contact Wipe: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1.5 mm (.060”)
Contact Normal Force:
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
35-40 grams
Max Recommended Voltage:
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
200 V, RMS, 60 Hz
Insulation Resistance:
. . . . . . . . . . . . . . . . . . . . . . . . . . . .
5,000 megaohms minimum @ 500 VDC
Durability: .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
500 connector mating cycles
Sinusoidal Vibration:
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
15 g (EIA-364-28, condition IV)
Random Vibration:
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .TBD
Shock:
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
100 g (EIA-364-27, condition G)
NOTE: Performance values are estimates at this time. Actual values will be determined
when final product testing is complete.
PATENT PENDING
www.AIRBORN.com
( 512 ) 863-5585
PRELIMINARY RELEASE
2012-Apr-20
