ZMF7P0T datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > unclassified> ZMF7P0T

ZMF7P0T: DescriptionSNAP ACTING/LIMIT SWITCH, SPDT, MOMENTARY, THROUGH HOLE-STRAIGHT; Categoryunclassified; File Size170KB，3 Pages; ManufacturerC&K Components

Download Datasheet Parametric Compare View All

ZMF7P0T Overview

SNAP ACTING/LIMIT SWITCH, SPDT, MOMENTARY, THROUGH HOLE-STRAIGHT

ZMF7P0T Parametric

Parameter Name	Attribute value
Maximum operating temperature	85 Cel
Minimum operating temperature	-30 Cel
Maximum AC contact current	3 A
Maximum AC contact voltage	125 V
Processing package description	ROHS COMPLIANT
Lead-free	Yes
EU RoHS regulations	Yes
state	ACTIVE
Electrical life	15000 Cycle(s)
switch function	SPDT
terminal coating	TIN
Manufacturer Series	ZM
Control valve	PIN PLUNGER
width	5.8 mm
high	6.6 mm
length or diameter	12.8 mm
Installation features	THROUGH HOLE-STRAIGHT
maximum control	1.47 N
Switch action	MOMENTARY
Switch type	SNAP ACTING/LIMIT SWITCH
Terminal type	SOLDER

Preview

Download Datasheet

View All

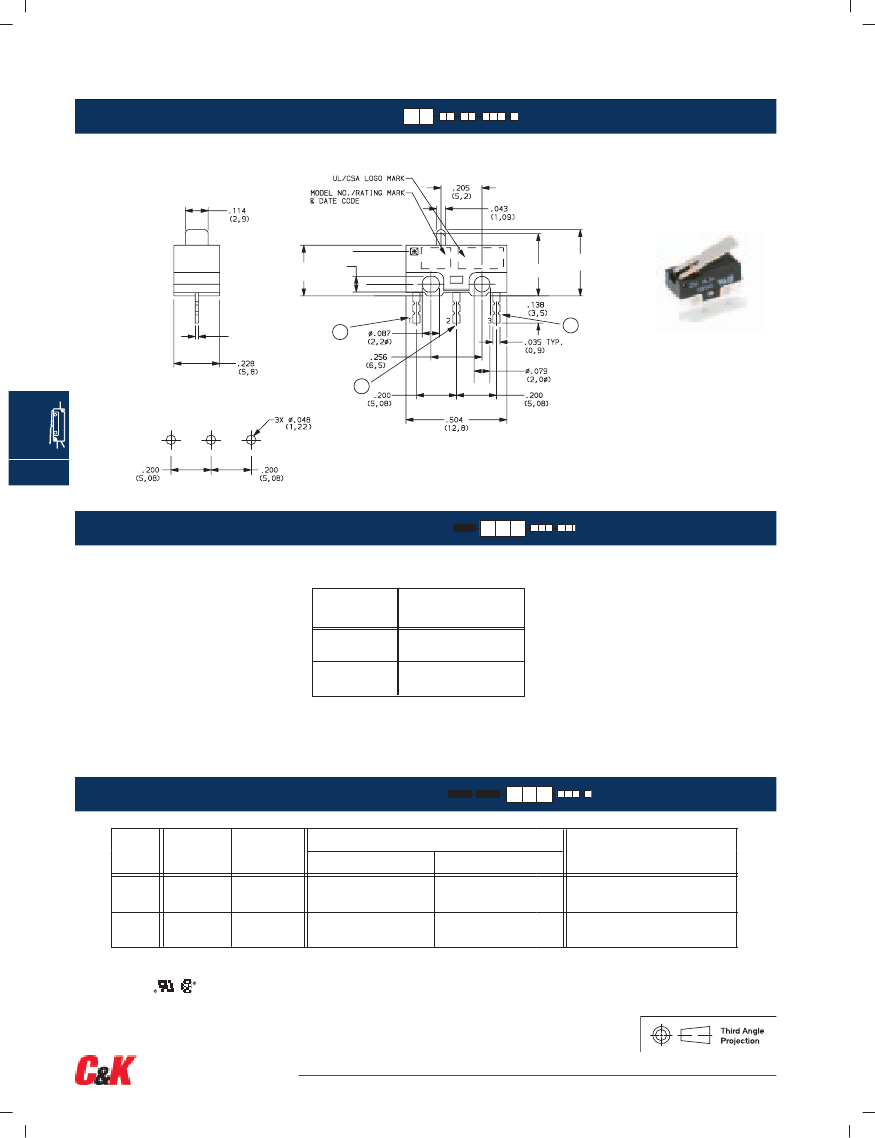

ZM Series

Subminiature Snap-acting Switches

Features/Benefits

•

Reliable snap-acting mechanism

•

Long electrical and mechanical life

•

Compact size—Ideal when space is limited

•

Various PCB terminals and actuators

•

RoHS compatible

Typical Applications

•

PCB detection switch

•

Communication devices

•

Testing equipment

•

Security/Alarm systems

•

Consumer electronics

Models Available

Specifications

CONTACT RATING: F7: 3A @ 125 VAC; 1.5A @ 250 VAC

M9: 0.2A @ 60 VDC.

ELECTRICAL LIFE: 15,000 Cycles. @ 3A

INSULATION RESISTANCE: 100 M ohm min.

DIELECTRIC STRENGTH: 1000 Vrms.

OPERATING TEMPERATURE: –30ºC to 85ºC.

OPERATING FORCE: CJ: 150 grams, CH: 90 grams.

* Low Level=conditions where no arcing occurs during switching, i.e., 0.4 VA max. @

20 V AC or DC max.

Materials

CASE: Nylon 4/6

COVER/ACTUATOR: Nylon 6/6

MOVABLE CONTACTS: Silver, gold plated.

STATIONARY CONTACTS: Silver, gold plated.

TERMINALS: Brass, tin plated.

NOTE:

Specifications and materials listed above are for switches with standard options.

For information on specific and custom switches, consult Customer Service Center.

Snap-acting

Build-A-Switch

To order, simply select desired option from each category and place in the appropriate box. Available options are shown and

described on pages J-34 and J-35. For additional options not shown in catalog, consult Customer Service Center.

Series

SP, Mom.

Operating Force

150 grams

90 grams

Electrical Rating

3 A, 125 V AC; 1.5A, 250 VAC

0.2 A, 60 V DC

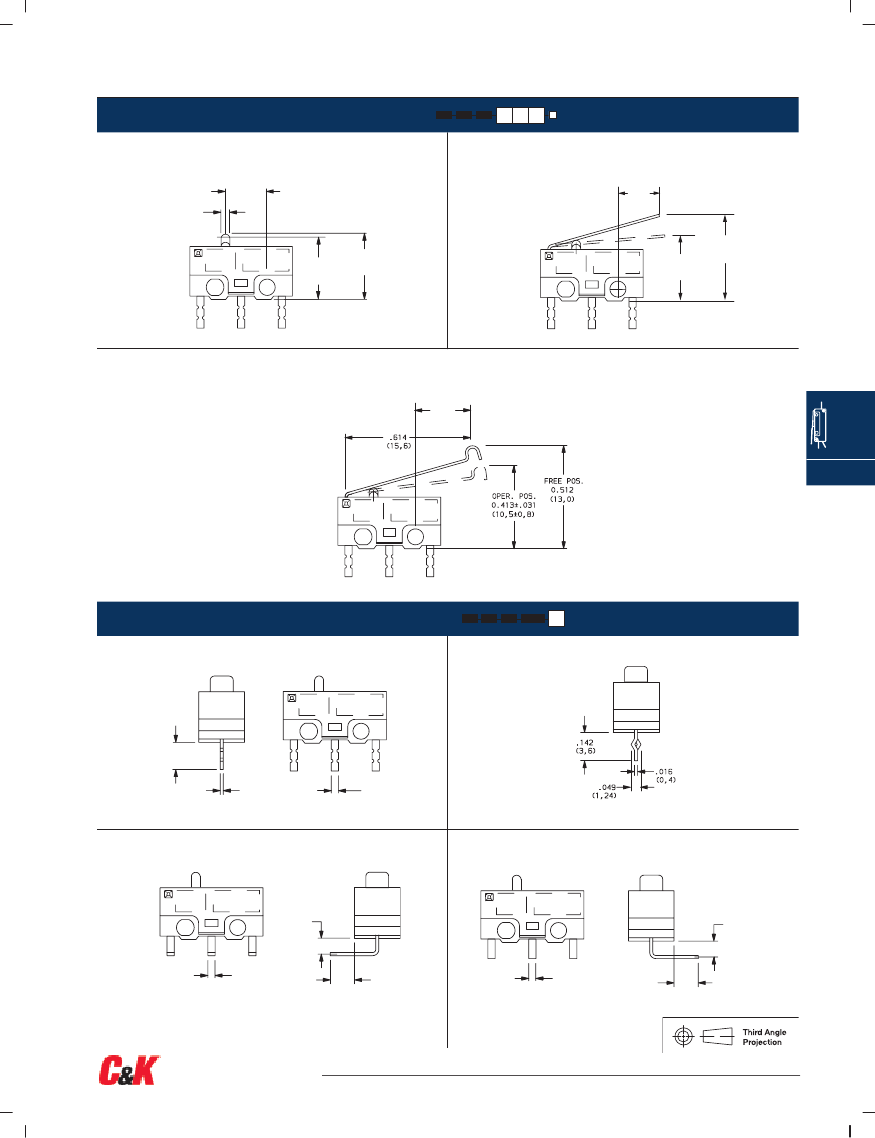

Actuator

Pin plunger

Leaf

T13

Simulated roller

T23

Simulated roller

Terminations

PC Thru-hole

Left-footed, PC Thru-hole

Right-footed, PC Thru-hole

PC Thru-hole with retention feature

Third Angle

Projection

Dimensions are shown: Inches (mm)

Specifications and dimensions subject to change

J–33

www.ck-components.com

ZMF7P0T Related Products

	ZMF7P0T	ZMCJF7P0T	ZMCJP0T
Description	SNAP ACTING/LIMIT SWITCH, SPDT, MOMENTARY, THROUGH HOLE-STRAIGHT	SNAP ACTING/LIMIT SWITCH, SPDT, MOMENTARY, THROUGH HOLE-STRAIGHT	SNAP ACTING/LIMIT SWITCH, SPDT, MOMENTARY, THROUGH HOLE-STRAIGHT
Maximum operating temperature	85 Cel	-	85 Cel
Minimum operating temperature	-30 Cel	-	-30 Cel
Maximum AC contact current	3 A	-	3 A
Maximum AC contact voltage	125 V	-	125 V
Processing package description	ROHS COMPLIANT	-	ROHS COMPLIANT
Lead-free	Yes	-	Yes
EU RoHS regulations	Yes	-	Yes
state	ACTIVE	-	ACTIVE
Electrical life	15000 Cycle(s)	-	15000 Cycle(s)
switch function	SPDT	-	SPDT
terminal coating	TIN	-	TIN
Manufacturer Series	ZM	-	ZM
Control valve	PIN PLUNGER	-	PIN PLUNGER
width	5.8 mm	-	5.8 mm
high	6.6 mm	-	6.6 mm
length or diameter	12.8 mm	-	12.8 mm
Installation features	THROUGH HOLE-STRAIGHT	-	THROUGH HOLE-STRAIGHT
maximum control	1.47 N	-	1.47 N
Switch action	MOMENTARY	-	MOMENTARY
Switch type	SNAP ACTING/LIMIT SWITCH	-	SNAP ACTING/LIMIT SWITCH
Terminal type	SOLDER	-	SOLDER
